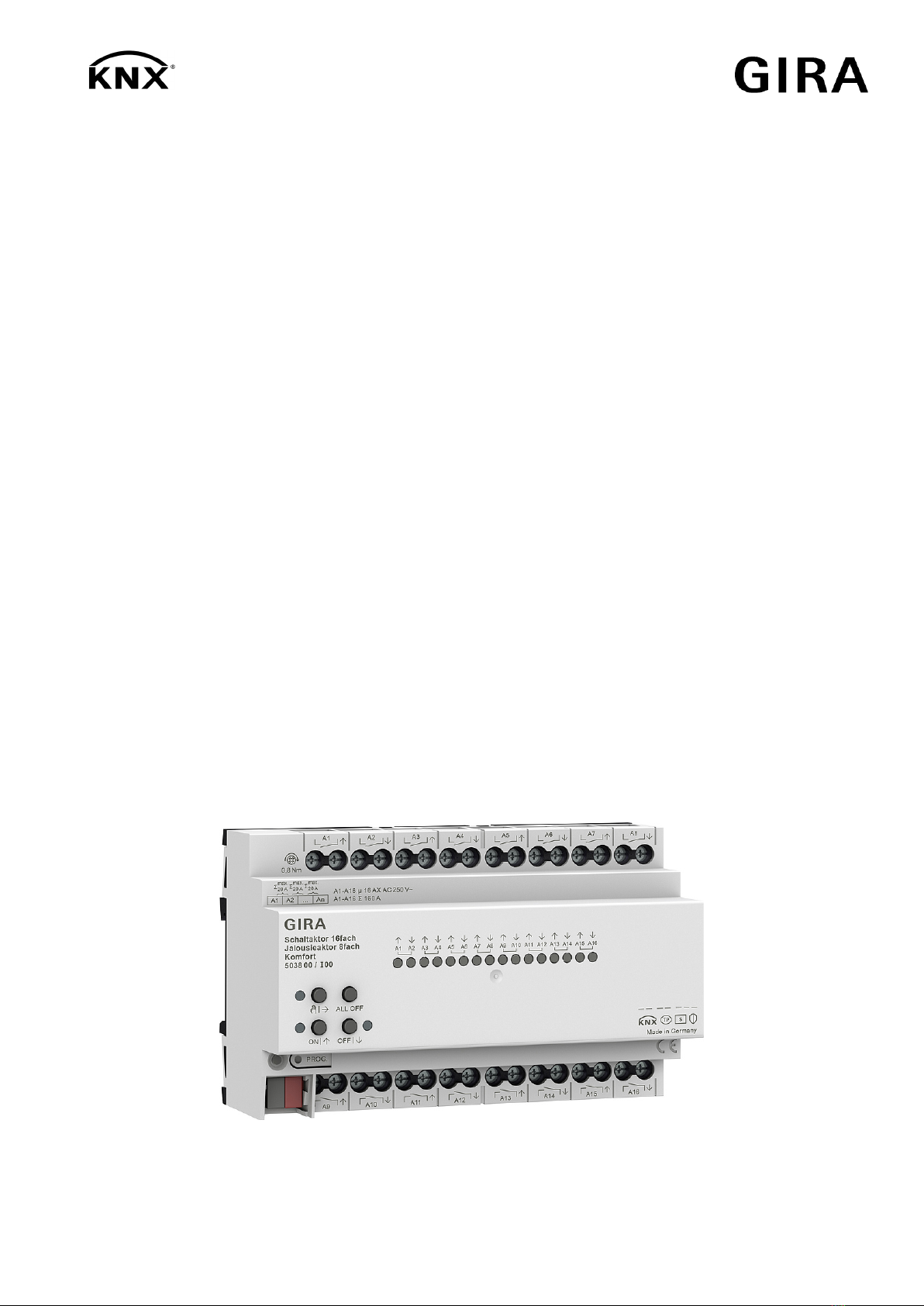

KNX GIRA Standard Manuel utilisateur
Switching actuator / blind actuator 16 A Standard & Komfort
Table of Contents
1 Safety instructions.............................................................................................................3
2 Device components...........................................................................................................3
3 Function ............................................................................................................................4
4 Operation ..........................................................................................................................5
5 Information for electrically skilled persons ........................................................................9
5.1 Mounting and electrical connection...................................................................... 10
5.2 Commissioning .................................................................................................... 10
6 Technical data.................................................................................................................11
7 Warranty..........................................................................................................................12
2 / 13
82402632 15.12.2022
1 Safety instructions
Electrical devices may only be mounted and connected by electrically skilled
persons.
Serious injuries, fire or property damage possible. Please read and follow manual
fully.
Danger of electric shock on the SELV/PELV installation. Do not connect loads for
mains voltage and SELV/PELV together to the device.
For parallel connection of several motors to an output it is essential to observe the
corresponding instructions of the manufacturers, and to use a cut-off relay if neces-
sary. The motors may be destroyed.
Use only Venetian blind motors with mechanical or electronic limit switches. Check
the limit switches for correct mastering. Observe the specifications of the motor man-
ufacturers. Device can be damaged.
Do not connect any three-phase motors. Device can be damaged.
This manual is an integral part of the product, and must remain with the end cus-
tomer.
2 Device components
Image1: Device components
(1) Button field for manual operation
(2) Programming button and LED
(3) KNX connection
(4) Status LEDs for outputs
(5) Load connections (relay outputs)
3 / 13
82402632 15.12.2022
Switching actuator / blind actuator 16 A Standard & Komfort
3 Function
System information
This device is a product of the KNX system and complies with the KNX directives.
Detailed technical knowledge obtained in KNX training courses is a prerequisite to
proper understanding.
The function of this device depends upon the software. Detailed information on load-
able software and attainable functionality as well as the software itself can be ob-
tained from the manufacturer´s product database.
The device can be updated. Firmware can be easily updated with the Gira ETS Ser-
vice App (additional software).
The device is KNX Data Secure capable. KNX Data Secure offers protection against
manipulation in building automation and can be configured in the ETS project. De-
tailed specialist knowledge is required. A device certificate, which is attached to the
device, is required for safe commissioning. During mounting, the device certificate
must be removed from the device and stored securely.
Planning, installation and commissioning of the device are carried out with the aid of
the ETS, version 5.7.3 and above.
Intended use
– Switching of electrical loads with potential-free contacts
– Switching of electrically-driven Venetian blinds, roller shutters, awnings and
similar hangings
– Installation in sub-distribution unit on DIN rail according to DIN EN 60715
– Operation in KNX system for Standard and Comfort devices.
– Operation in Gira One system for Standard devices only.
Product characteristics
– Outputs can be operated manually, construction site mode
– Manual switching between Venetian blind operation and switching operation
without commissioning
– Feedback in manual mode and in bus mode
– Disabling of individual outputs manually or by bus
– Status feedback (e. g. wind alarm)
– KNX Data Secure compatible
– Updatable with Gira ETS Service App
Characteristics switch operation
– Operation as NO or NC contacts
– Feedback function
– Logic and restraint function
4 / 13
82402632 15.12.2022
Switching actuator / blind actuator 16 A Standard & Komfort
– Central switching functions with collective feedback
– Time functions: switch-on delay, switch-off delay, staircase lighting timer with
run-on time
– Scene function
– Operating hours counter
Characteristics blinds operation
– Suitable for AC motors 110...230 V
– Operating modes "Venetian blind with slats", "Roller shutter/awning", "Venting
louvre/roof window"
– Blind/shutter position directly controllable
– Slat position directly controllable
– Feedback of movement status, blind/shutter position and slat position
– Forced position through higher-level controller
– Safety function: 3 independent wind alarms, rain alarm, frost alarm
– Sun protection function with heating/cooling operation
– Disabling function (lock-out protection)
– Scene function
Logic function characteristics
– Logic gate
– Transformer (conversion)
– Disabling element
– Comparator
– Limit value switch
4 Operation
Image2: Operating elements
5 / 13
82402632 15.12.2022
Switching actuator / blind actuator 16 A Standard & Komfort
(4) Status LEDs for outputs
ON: Relay output closed
OFF: Relay output opened
Flashes slowly: Output in manual mode selected
Flashes quickly: Output disabled via continuous manual mode
(6) Button ǃ
Manual operation
(7) LED ǃ
ON: Continuous manual mode active/Flashing: Temporary manual mode
active
(8) LED DŽ
ON: Relay outputs closed, manual mode active
(9) Button DŽ
Short: Switch on, adjust slats or stop
Long: Move hanging upwards
(10) Button Dž
Short: Switch off, adjust slats or stop
Long: Move hanging downwards
(11) LED Dž
ON: Relay outputs opened, manual mode active
(12) Button ALL OFF
Open all relay outputs, stop drives
In operation with the button field the device distinguishes between a short and a long
press.
– Short: Pressing for less than 1 s
– Long: Pressing for between 1 and 5 s
In switching operation, the device distinguishes between the "NO contact" and
"NC contact" operating modes. The buttons (9 + 10) switch the switching state
when actuated:
NO contact: Switch on = close relay, Switch off = open relay
NC contact: Switch on = open relay, Switch off = close relay
The LED (4 + 8 + 11) always indicate the relay state.
The LEDs (4) optionally indicate the states of the outputs only temporarily
(parameter-dependent).
Operating modes
– Bus operation: operation via push-button sensors or other bus devices
– Temporary manual control: manual control locally with keypad, automatic re-
turn to bus control
– Continuous manual mode: Exclusively manual operation on the device
No bus operation is possible in manual mode.
After a bus failure and restoration the device switches to bus operation.
6 / 13
82402632 15.12.2022
Switching actuator / blind actuator 16 A Standard & Komfort
The manual mode can be disabled in ongoing operation via a bus telegram.
Switching on temporary manual operation mode
Operation is not disabled.
￭ Press button ǃ (6) briefly.
LED ǃ (7) flashes, LEDs A1... (4) of the first configured output or output pair
flash.
Short-time manual operation is switched on.
After 5 s without a button actuation, the actuator returns automatically to bus
operation.
Switching off temporary manual operation mode
The device is in short-term manual mode.
￭ No button-press for 5 s.
- or -
￭ Press ǃ (6) button briefly as many time as necessary until the actuator
leaves the short-time manual mode.
Status LEDs A1... (4) no longer flash, but rather indicate the relay status.
Short-time manual operation is switched off.
Switching outputs: depending on the programming, the output relays switch to
the position that is active after the manual mode is switched off, e.g. logic
function.
Blind/shutter outputs: depending on the programming, the hangings move to
the position that is active after the manual mode is switched off, e.g. to safety
or sun protection position.
Switching on permanent manual operation mode
Operation is not disabled.
￭ Press the ǃ (6) button for at least 5 s.
LED ǃ (7) lights up, LEDs A1... (4) of the first configured output or output
pair flash.
Continuous manual mode is switched on.
Switching off permanent manual operation mode
The device is in continuous manual mode.
￭ Press the ǃ (6) button for at least 5 s.
LED ǃ (7) is off.
7 / 13
82402632 15.12.2022
Switching actuator / blind actuator 16 A Standard & Komfort
Continuous manual mode is switched off. Bus operation is switched on.
Switching outputs: depending on the programming, the output relays switch to
the position that is active after the manual mode is switched off, e.g. logic
function.
Blind/shutter outputs: depending on the programming, the hangings move to
the position that is active after the manual mode is switched off, e.g. to safety
or sun protection position.
Operating an output in manual mode
￭ Activate short-term or permanent manual operation.
￭ Press button ǃ (6) repeatedly until LED A1... (4) of the desired output or
output pair flashes.
￭ Press button DŽ (9) or Dž (10).
Short: Switch on/off, drive stop.
Long: Move blind/shutter upwards/downwards.
LED DŽ (8) ON: Relay output closed
LED Dž (7) OFF: Relay output opened
Short-term manual mode: After running through all of the outputs the device
exits manual mode after another brief actuation.
Switching off all outputs / Stopping all hangings
The device is in permanent manual operation mode.
￭ Press the ALL OFF button (12).
Switching outputs: all outputs switch off (NO operating mode: relay output
opened/NC operating mode: relay output closed).
Venetian blind outputs: all blinds/shutters stop.
Disabling outputs
The device is in continuous manual mode. The bus control can be disabled (ETS
parameter).
￭ Press button ǃ (6) repeatedly until LED A1... (4) of the desired output or
output pair flashes.
￭ Press the DŽ (9) and Dž (10) buttons simultaneously for approx. 5 s.
Selected output is disabled.
The status LED A1... (4) of the selected output or output pair flashes quickly.
A disabled output can be operated in manual mode.
8 / 13
82402632 15.12.2022
Switching actuator / blind actuator 16 A Standard & Komfort
Re-enabling outputs
The device is in continuous manual mode. One or more outputs were disabled in
manual mode.
￭ Press button ǃ (6) repeatedly until the output to be unlocked or the output
pair is selected.
￭ Press the DŽ (9) and Dž (10) buttons simultaneously for approx. 5 s.
Disabling is deactivated.
The LED A1... (4) of the selected output or output pair flashes slowly.
Switching between Venetian blind and switching operation
Device is not in operation
￭ Activate permanent manual operation.
￭ Press button ǃ (1) repeatedly until LED A1... (8) of the desired output or
output pair flashes.
￭ Press the ǃ (1) and DŽ (4) and Dž (5) buttons simultaneously for
approx. 5 s.
Switching operation: Both status LEDs A1... (8) of the output pair light up.
Venetian blind operation: Both status LEDs A1... (8) of the output pair flash al-
ternately.
￭ Press the DŽ (4) and Dž (5) buttons simultaneously.
Outputs switch between switching operation and Venetian blind operation.
Both status LEDs A1... (8) indicate the current operating mode.
￭ Press the ǃ (1) and DŽ (4) and Dž (5) buttons simultaneously for
approx. 5 s.
Operating mode switchover is terminated, permanent manual operation mode
is activated.
￭ Press the ǃ button (1) for approx. 5 s.
Operating mode switchover is terminated, permanent manual operation mode
is deactivated.
5 Information for electrically skilled persons
DANGER!
Mortal danger of electric shock.
Disconnect the device. Cover up live parts.
9 / 13
82402632 15.12.2022
Switching actuator / blind actuator 16 A Standard & Komfort
5.1 Mounting and electrical connection
5.2 Commissioning
Commissioning the device
NOTICE!
Incorrect load control due to undefined relay state at delivery.
Risk of destruction of connected drive motors.
During commissioning, before switching on the load, ensure that all relay contacts
are open by applying the KNX bus voltage. Observe commissioning sequence!
￭ Switch on the KNX bus voltage.
￭ Wait about 10 s.
￭ Switch on load circuits.
Delivery state: The outputs can be operated with manual control. Outputs are
set as Venetian blind outputs.
Safe-state mode
The safe-state mode stops the execution of the loaded application program.
Only the system software of the device is still functional. ETS diagnosis func-
tions and programming of the device are possible. Manual operation is not
possible.
Activating safe-state mode
￭ Switch off the bus voltage or remove the KNX device connection terminal.
￭ Wait about 15 s.
￭ Press and hold down the programming button.
￭ Switch on the bus voltage or attach the KNX device connection terminal. Re-
lease the programming button only after the programming LED starts flashing
slowly.
The safe-state mode is activated.
By briefly pressing the programming button again, the programming mode can
also be switched on and off in the safe-state mode as usual. If the program-
ming mode is active, the programming LED stops flashing.
Deactivating safe-state mode
￭ Switch off bus voltage (wait approx. 15 s) or carry out ETS programming.
10 / 13
82402632 15.12.2022
Switching actuator / blind actuator 16 A Standard & Komfort
Ce manuel convient aux modèles suivants
7
Table des matières
Autres manuels KNX Contrôleurs
KNX
KNX Jung 2304.16 REG HE Manuel utilisateur
KNX
KNX GIRA Manuel utilisateur
KNX
KNX GIRA 5065 00 Manuel utilisateur
KNX
KNX Berker 7531 40 18 Manuel utilisateur
KNX
KNX Module SAS-04.16 Manuel utilisateur
KNX
KNX SATION-DM0101.0210 Manuel utilisateur
KNX
KNX GIRA 2015 00 Manuel utilisateur
KNX
KNX Jung 230011SU Manuel utilisateur
KNX
KNX GIRA Manuel utilisateur
KNX
KNX Iddero Verso Manuel utilisateur
