Translation of Original Operating and Installation Instructions Keep for future reference!
DIAPHRAGM LIQUID PUMP
NF 1.60
Operating and
Installation
Instructions
Read and observe these
operating and installation
instructions!
An additional letter prefixing
the NF model code is a
country-specific designation,
with no technical relevance.
Contents Page
1. About this document ................................................................. 2
2. Use ........................................................................................... 3
3. Safety ....................................................................................... 4
4. Technical data .......................................................................... 6
5. Assembly and function ............................................................. 8
6. Installation and connection ....................................................... 9
7. Operation ................................................................................ 12
8. Servicing ................................................................................. 14
9. Troubleshooting ...................................................................... 17
10. Return of the pump ................................................................. 19
KNF Flodos AG
Wassermatte 2
6210 Sursee, Switzerland
Tel. +41 (0)41 925 00 25
Fax +41 (0)41 925 00 35
www.knf.com
info.flodos@knf.com
NF 1.60 KP DC 24V
- / PMLxxxx / PLxxxx [Ch. 1]
NF / UNF
1.60
KP / KT [Ch. 4]
DC / DCB
-
B / DCB
-
4B
Supply voltage [Ch. 4]
Diaphragm-liquid pump NF 1.60 About this document
KNF Flodos AG BA_NF1.60_EN_05_161566.docx
Translation of Original Operating and Installation Instructions 2
1. About this document
1.1. Use of the operating and installation
instructions
The operating and installation instructions are part of the pump.
Pass on the operating and installation instructions to the next
owner.
Customer-specific project pumps (pump models which begin with
"PL" or "PML") may differ from the operating and installation
instructions.
In the case of project pumps, take note of any additionally
agreed specifications.
1.2. Symbols and markings
Warning
WARNING
This symbol indicates a potential danger.
It also indicates the possible consequences of failure
to observe the warning. The signal word (i.e.
"Warning") indicates the level of danger.
This specifies measures for avoiding the danger
and the consequences of failure to implement
these measures.
Danger levels
Signal word
Meaning Consequences if not observed
DANGER warns of
immediate
danger
Death or serious injuries and/or
serious material damage are the
consequence
WARNING
warns of possible
danger
Death or serious injuries and/or
serious material damage are
possible
CAUTION warns of a
potentially
dangerous
situation
Minor injuries or material
damage are possible
Tab. 1
Other information and symbols
This indicates an activity (step) that needs to be carried out.
1. This indicates the first step of an activity to be carried out. Any
additional steps required are consecutively numbered.
This symbol indicates important information.
Project pumps
Diaphragm-liquid pump NF 1.60 Use
KNF Flodos AG BA_NF1.60_EN_05_161566.docx
Translation of Original Operating and Installation Instructions 3
2. Use
2.1. Intended use
The pumps are intended for transferring and metering liquids.
Owner's responsibility
Only install and operate the pumps under the operating parameters
and conditions described in Chapter 4, Technical data.
Pumps must only be operated when fully assembled.
Before transferring or metering a medium, check that it can be
transferred without risk in the specific application case.
Before using a medium, check the compatibility of the materials of
the pump head, pump housing, diaphragm and valves with the
pumped medium.
The temperature of the medium must lie within the permissible
temperature range (see Chapter 4).
The pumped medium should not contain particles as these can
prevent the pump from working correctly. If this cannot be
guaranteed, a filter < 100 m with sufficiently large filter area must
be used upstream of the pump.
2.2. Improper use
The pumps must not be operated in an explosive atmosphere.
For special modifications outside the standard technical
specifications please contact a KNF pump specialist.
Operating parameters and
conditions
Requirements for transferred
medium
Diaphragm-liquid pump NF 1.60 Safety
KNF Flodos AG BA_NF1.60_EN_05_161566.docx
Translation of Original Operating and Installation Instructions 4
3. Safety
Note the safety precautions in Chapters 6. Installation and
connection, and 7. Operation.
The pumps are built according to the generally recognized rules of
technology and in accordance with the pertinent occupational
safety and accident prevention regulations. Nevertheless, dangers
can result during their use which lead to injuries to the user or
others, or to damage to the pump or other property.
Only use the pumps in perfect working order and in accordance
with their intended use. Always ensure adherence to the operating
and installation instructions and work in a safety-conscious
manner.
Make sure that only trained and instructed personnel or specially
trained personnel work on the pumps. This especially applies to
assembly, connection and servicing work.
Make sure that all personnel have read and understood the
operating and installation instructions, and in particular the "Safety"
chapter.
Always ensure adherence to all pertinent accident prevention and
safety regulations when working on and operating the pump.
When pumping dangerous media, observe the safety regulations
for handling such media.
Always ensure adherence to all information stickers on the pumps,
such as flow direction arrows and type plates, and keep stickers in
legible condition.
All replacement parts should be properly stored and disposed of in
accordance with the applicable environmental protection
regulations. Ensure adherence to the pertinent national and
international regulations. This especially applies to parts
contaminated with toxic substances.
Dispose of all packaging in an environmentally appropriate
manner. The packaging materials are recyclable.
Ensure that the pump is disposed of in an environmentally
appropriate manner at the end of its useful life. Use
appropriate waste collection systems for the disposal of
end-of-life equipment. Used pumps contain valuable
recyclable materials.
Personnel
Working in a safety-
conscious manner
Handling dangerous media
Notes
Environmental protection
Disposal
Diaphragm-liquid pump NF 1.60 Safety
KNF Flodos AG BA_NF1.60_EN_05_161566.docx
Translation of Original Operating and Installation Instructions 5
The pumps are in accordance with the requirements of the
guidelines 2011/65/EU (ROHS2)
Under Machinery Directive 2006/42/EC, pumps are partly
completed machinery, and as such should not be regarded as
ready for use. The partly completed machinery must not be put into
service until the final machinery into which it is to be installed has
been declared to be in conformity with the provisions of this
Directive. Always ensure implementation and enforcement of the
basic requirements of the Machinery Directive 2006/42/EC
according to Appendix I (General Principles).
The following harmonised standards are met:
NF 1.60 DCB-B / DCB-4B
IEC/EN 61000-6-2
IEC/EN 61000-6-3
NF 1.60 DC
EN 55011
All repairs to the pump(s) must be carried out by the relevant KNF
Customer Service team.
Only use KNF original parts for all maintenance work.
EU directives/standards
Customer service and
repairs
Diaphragm-liquid pump NF 1.60 Technical data
KNF Flodos AG BA_NF1.60_EN_05_161566.docx
Translation of Original Operating and Installation Instructions 6
4. Technical data
Pump materials
The pump type KP stands for:
Assembly Material1)
Pump head * PP
Valves EPDM
O-rings EPDM
Diaphragm EPDM
Resonating diaphragm PTFE
Tab. 2 1) according to DIN ISO 1629 and 1043.1
The pump type KT stands for:
Assembly Material1)
Pump head * PP
Valves FFKM
O-ring FFKM
Diaphragm PTFE-coated
Resonating diaphragm PTFE
Tab. 3 1) according to DIN ISO 1629 and 1043.1
* Pump head (Fig. 1) comprises an intermediate plate and a connecting
plate
Hydraulic ratings
Parameter 3) Value
Flow rate [l/min] 1), 2) 0.65
Permissible pressure [bar g] 6
Suction head [mWG] 3
Max. inlet pressure [mWG] 3
Tab. 4
1) Measured with water at 20°C / at atmospheric pressure
2) Flow rates may vary from the values shown, depending on fluid
viscosity, pump head material and the hoses / hose connectors used.
3) For special modifications outside the standard technical specifications
please contact a KNF pump specialist.
Hydraulic connections
Parameter Value
Hose connection NF ID / AD [mm] 4 - 6
Hose connection UNF ID / AD [Inch] 1/8“ - 1/4“
Tab. 5
Diaphragm-liquid pump NF 1.60 Technical data
KNF Flodos AG BA_NF1.60_EN_05_161566.docx
Translation of Original Operating and Installation Instructions 7
Specifications NF 1.60 DCB-B / DCB-4B
Motor variant DCB-B DCB-B DCB-4B
Supply voltage [V] 12 24 10..26.4
Power consumption [W] 10.2 10.6 10.9
Max. I load [A] 0.85 0.44 1.1..0.39
Protection class [-] IP50
Weight1) [g] 260
Tab. 6
Specifications NF 1.60 DC
Motor voltage 12V 24V
Power consumption [W] 10
Max. I load [A] 0.8 0.4
Max. permissible current
consumption [A]
1.4 0.71
Protection class [-] IP00
Weight1) [g] 320
Tab. 7
1) The weight may differ slightly from the stated value, depending on the
version.
Electrostatic sensitive components (ESD)
Other parameters
Parameter Value
Permissible ambient temperature range
[°C]
+ 5 to + 40
Permissible media temperature range [°C] + 5 to + 80
Permissible kinematic viscosity of the
media [cSt]
≤ 150
Tab. 8
Diaphragm-liquid pump NF 1.60 Assembly and function
KNF Flodos AG BA_NF1.60_EN_05_161566.docx
Translation of Original Operating and Installation Instructions 8
5. Assembly and function
Assembly
1 Outlet
2 Inlet
3 Head plate
4 Connecting plate
5 Intermediate plate
6 Motor
Fig. 1: Diaphragm liquid pump NF 1.60
1 Exhaust valve
2 Inlet valve
3 Working chamber
4 Diaphragm
5 Eccentric
6 Connecting rod
7 Pump drive
Fig. 2: Operating principle
Diaphragm liquid pumps are based on reciprocating displacement
pump technology. An elastic diaphragm (4) is moved up and down
by the eccentric (5) and the connecting rod (6). During the down
stroke, the diaphragm sucks in the medium through the inlet valve
(2). During the up stroke, it forces medium out of the pump head
through the exhaust valve (1). The diaphragm hermetically seals
off the working chamber (3) from the pump drive (7).
NF 1.60 version (specified flow rate)
This pump type represents this product in its simplest form and
delivers media at the specified flow rate.
Diaphragm-liquid pump NF 1.60 Installation and connection
KNF Flodos AG BA_NF1.60_EN_05_161566.docx
Translation of Original Operating and Installation Instructions 9
6. Installation and connection
Only install the pumps under the operating parameters and
conditions described in Chapter 4, Technical data.
Observe the safety notes (see Chapter 3).
6.1. Installation
Before installation, store the pump at the installation location to
bring it up to ambient temperature.
Mounting dimensions (see Fig. 3 to 5)
Fig. 3: Mounting dimensions NF 1.60 DCB-B
Fig. 4: Mounting dimensions NF 1.60 DCB-4B
Fig. 5: Mounting dimensions NF 1.60 DC
Mounting dimensions
Diaphragm-liquid pump NF 1.60 Installation and connection
KNF Flodos AG BA_NF1.60_EN_05_161566.docx
Translation of Original Operating and Installation Instructions 10
Make sure that the installation location is dry and the pump is
protected against water in the form of rain, spray, splashes and
drips.
Protect the pump against dust.
Protect the pump against vibration and impact.
The pump can be mounted in any orientation.
Generally speaking, the pump can be mounted in any
orientation. For maximum precision and rapid venting, install
pump as shown in the illustration (Fig. 6).
KNF recommends mechanically decoupling the pump from the
pipework system, e.g. by using flexible hoses or pipes. This
prevents any oscillations of the pump being transferred to the
system.
6.2. Electrical connection
For pumps with direct current motors:
Pump should only be connected by an authorised specialist.
Only connect the pump when the power supply is turned off.
All electrical connection work must adhere to the pertinent
norms, directives, regulations and technical standards.
Connecting the pump
1. Make sure that the power supply data match the data on the
motor type plate. The current consumption can be found on the
type plate.
2. Connect the motor cables. For electrical data see Chapter 4.
Always check polarity of cables.
For DC motors:
red motor lead: +
black motor lead: -
In the case of brushless DC motors:
incorrect polarity may damage the electronics.
Installation location
Mounting orientation

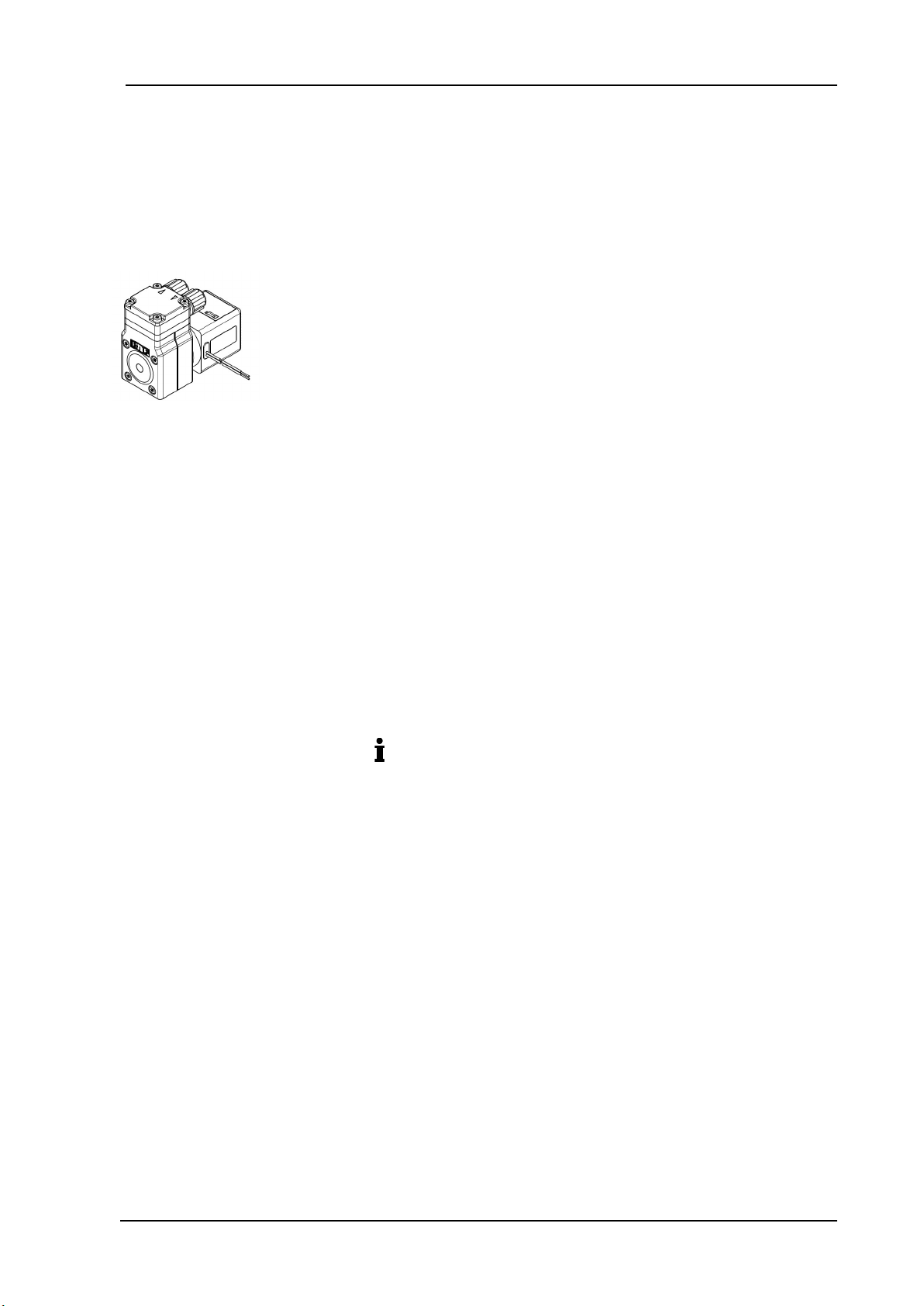

Fig. 6: Optimal mounting
orientation
Decoupling
Ce manuel convient aux modèles suivants
5
Table des matières
Autres manuels KNF Pompe à eau
KNF
KNF OEM Manuel utilisateur
KNF
KNF N838 DC Series Manuel utilisateur
KNF
KNF N936 Manuel utilisateur
KNF
KNF NPK 09 Manuel utilisateur
KNF
KNF LABOPORT N820.3FT.29.18G Manuel utilisateur
KNF
KNF N96 Schéma de câblage
KNF
KNF N 816 Manuel utilisateur
KNF
KNF N96K E-W Manuel utilisateur
KNF
KNF LIQUIPORT 100**.18 Series Manuel utilisateur
KNF
KNF N630.12 Manuel utilisateur
KNF
KNF UNPK09 Manuel utilisateur
KNF
KNF NF 1.100 EX Manuel utilisateur
KNF
KNF Labor N035.18 Manuel utilisateur
KNF
KNF NF5 Manuel utilisateur
KNF
KNF N630 EX Manuel utilisateur
KNF
KNF N 813.3 ANE Manuel utilisateur
KNF
KNF N 2400.15 Manuel utilisateur
KNF
KNF N86.16 Series Manuel utilisateur
KNF
KNF NMP 03 KP DC-B1 Manuel utilisateur
KNF
KNF SIMDOS 10 Manuel utilisateur
Manuels Pompe à eau populaires d'autres marques
Sykes AmeriPumps
Sykes AmeriPumps GP100M Guide de dépannage
DUROMAX
DUROMAX XP WX Series Manuel utilisateur
BRINKMANN PUMPS
BRINKMANN PUMPS SBF550 Manuel utilisateur
Franklin Electric
Franklin Electric IPS Manuel utilisateur
Xylem
Xylem e-1532 Series Manuel utilisateur
Milton Roy
Milton Roy PRIMEROYAL Manuel utilisateur
