KME A2E7X ALL-IN-ONE PC

CHASSIS INTEGRATION WITH THE

GIGABYTE GA-Q87TN DESKTOP BOARD

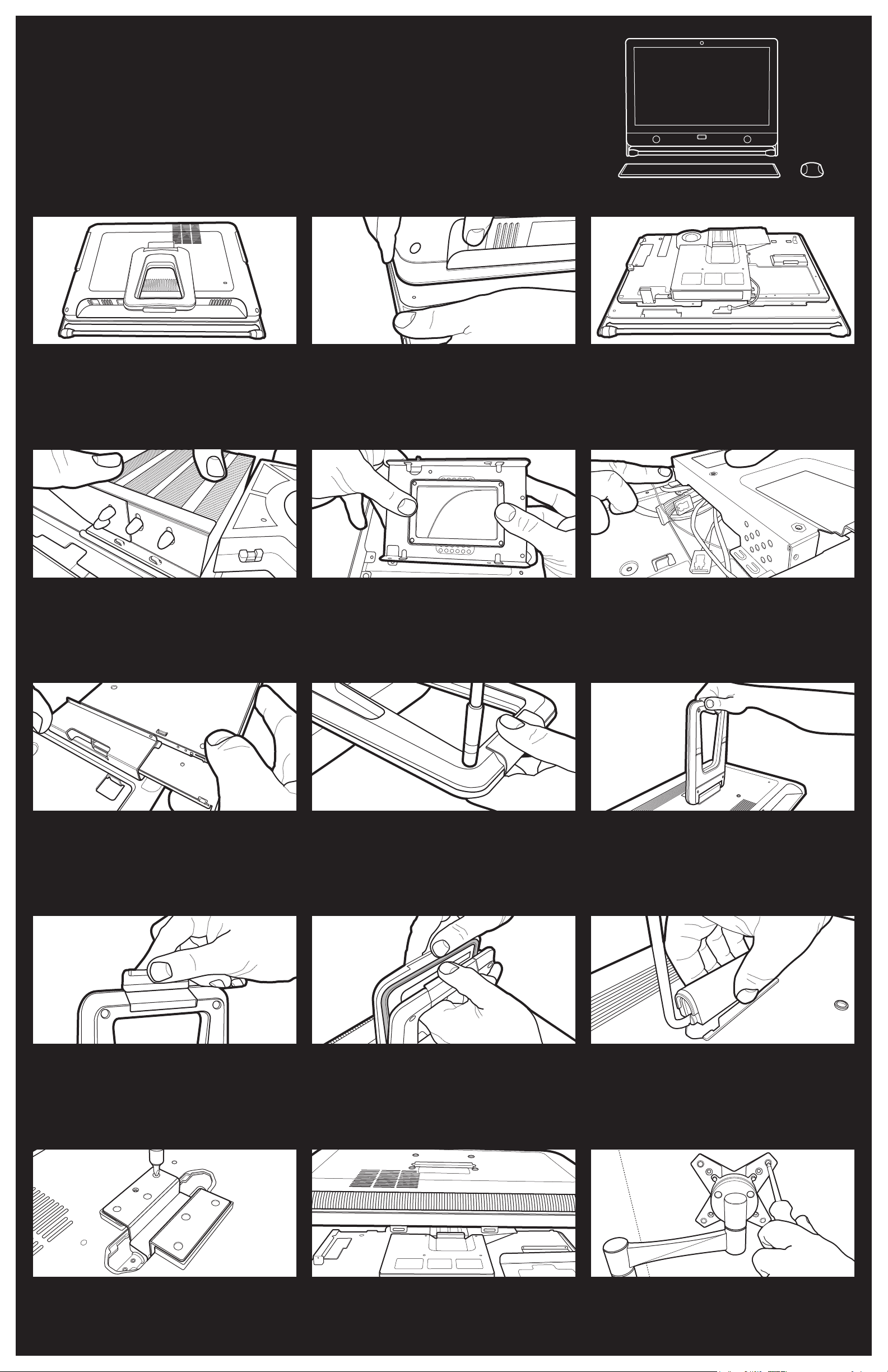

1. Removing Rear Cover Fasteners 2. Removing Rear Cover 3. Removing Rear Cover Bracket

4. Positioning CPU Heat Sink 5. Installing HDD or SSD in Drive Bracket 6. Replacing Rear Cover Bracket

7. Installing Optical Drive 8. Removing Stand Cover Plate 9. Positioning Rear Cover Stand Plate

10. Removing Rear Stand Rubber Bumper 11. Separating Rear Stand Cover Plate Moulding 12. Remove Stand Hinge Cover Pate

13. Remove Internal Stand Fasteners 14. Prepare for VESA mount 15. Attach VESA mount bracket

Remove the four fasteners located at the edge of the rear cover.

If there are 4 fasteners located at the VESA mount points, remove

these as well.

Once the fasteners have been removed, select the lower right or

left side corner and lift the cover upwards.

Once the rear cover has been removed, remove the rear cover

plate by shifting it towards the CPU Fan and lifting upwards.

Slide the Optical Drive into position as shown. The stand cover plate requires removal as part of the VESA mount

preparation. Remove the four fasteners at the edge of the stand

and one located under the mini-stand extension.

Position the rear stand vertically to prepare for ﬁnal removal

steps. Please note: Do not extend the stand beyond 90 degrees

as this could cause permanent damage to the stand.

Peel the rubber bumper back as shown to prepare for rear cover

plate removal.

Separate the rear cover plate moulding as shown. Unclip the stand hinge cover plate as shown.

Remove the rear cover and loosen the internal stand fasteners as

shown.

Ensure that the rear cover bracket is securely in position and

replace the rear cover as shown. Fasten the 4 outer fasteners

before fastening the four VESA mount fasteners.

Position the VESA mount bracket over the four VESA mount points

and fasten the bracket to the chassis.

When positioning the CPU Heat Sink, ensure that it is properly

fastened to the chassis via retention clips on the chassis.

The 3.5” mounting points in the drive bracket can accommodate a

2.5” drive as shown.

When replacing the rear cover bracket, ensure that cables are

properly routed and none are trapped between the cover and

chassis.

FPD - 19V

1 2 3

LCD - 5V

1 2 3

910

12 13 13 14 15 17 17 19 20

23 24

2728

29 30

1. LVDS

2. LCD Panel SW

3. Front Panel

4. CPU Fan

5. SATA Power

6. DDR3 SP DIMM

7. SATA III Ports

8. Single USB Header

9. USB 3 Connect

10. Half Length Mini PCI-e Slot

11. Internal ATX 19V Connector

12. 19V DC In

13. 2x GbE LAN Ports

14. Display Port

15. HDMI

16. COM1

17. USB 3

18. LPT

19. Speaker Out

20. Mic In

21. Speaker

22. FP Audio

23. DMIC

24. CLR CMOS

25. Full Length Mini PCI-e / mSATA

26. PCI-e 4X

27. 2 x Single USB Headers

28. Dual USB 2 Header

29. FPD

30. BL_SW

31. WFLED

32. LCD PWR

33. FPD PWR

LCD INTEGRATION NOTES

GENERAL INTEGRATION NOTES

GIGABYTE GA-Q87TN DESKTOP BOARD OVERVIEW

1. Inserting the LVDS Connector 2. Checking Jumper Settings 3. Conﬁguring the BIOS

1. Placing the Thermal Retention Mechanism 2. Placing the Thermal Tab 3. Inserting the Desktop Board

4. SATA and DATA 5. Single USB Connection 6. Wireless Connection

When inserting the LVDS Connector, conﬁrm correct alignment.

Once in, never remove the cable by “pulling on the wires”, as this

could permanently damage the cable.

Conﬁrm that this jumper settings for the Backlight Inverter and

Front Panel voltage are correct for the inverter and the board

being integrated.

Ensure LVDS Cable is Connected

Navigate to Chipset

Select Enable for LVDS Control Function

Select M215HGE-L10/M240Q002 for Panel Type

Check that the thermal retention mechanism is in place before

installing the desktop board.

Once the thermal retention mechanism is in place, secure the

thermal pad as above.

When installing the desktop board, it may help to locate the power

connection on the desktop board with the IO shield ﬁrst and then

“swivel” the board in. Check that the ports on the desktop board

connect with the IO shield contacts.

The SATA power cable provides power for the HDD and ODD. Where a “single” USB connection is connected to a dual USB

header, conﬁrm that the “red” cable is aligned to the pins closest

to PIN 1 (white marking at the base). It is possible to connect two

single USB connections to a dual port USB header in this manner.

For Wireless-N & Wireless-AC maximum bandwidth potential, ensure

that both wireless antennae are connected to the wireless adapter.

Navigate to Chipset

Select Enable for LVDS Control Function

Select M215HGE-L10/M240Q002 for Panel Type
