CP-T SERIES

OWNER’S MANUAL

WHAT’S INSIDE

Speakers (x2) Brackets (x2) Grills (x2) Bracket Retaining

Screws (x4)

Mounting Template Grill Remover Tool

Mount Wall Bracket Template for CP-4/4T

MAKE SURE TEMPLATE IS LEVEL BEFORE DRILLING PILOT HOLES!

Horizontal

Pilot Hole

Vertical

Pilot Hole

Vertical

Pilot Hole

Horizontal

Pilot Hole

MAKE SURE TEMPLATE IS LEVEL

BEFORE DRILLING PILOT HOLES!

To mount speaker HORIZONTALLYUP in ceiling/wall corner putting bracket on wall

put THIS SIDE on wall flush against ceiling and mark horizontal pilot holes

To mount speaker vertically in corner PUTTING

BRACKET ON LEFT WALL against corner put THIS SIDE

flush in corner on left wall and mark vertical pilot holes

To mount speaker vertically in corner PUTTING

BRACKET ON RIGHT WALL against corner put

THIS SIDE flush in corner on left wall and mark

vertical pilot holes

CP-T SERIES

Thank you for your purchase of the Klipsch CP-T Series 70/100

Volt speakers! They are designed to both withstand the rigors of

outdoor use while also complimenting any indoor décor. The 90°x

90° horn dispersion pattern assures wide, even coverage with

either horizontal or vertical placement. The long-throw woofers are

combined with front-ﬁring ports for tight, musical bass no matter

how they are mounted or placed. The included, unique speaker

bracket allows for not only quick vertical or horizontal mounting but

also allows for tight, wall/wall or wall/ceiling corner mounting for a

highly aesthetic look that allows for increased overall bass output.

The CP-4T contains a high quality, built-in 70/100 Volt transformer

with a single, ﬁxed 5/10 watt tap while the CP-6T contains a 70/100

Volt transformer with multiple tap settings of 3.75/7.5 watts, 7.5/15

watts, 15/30 watts and 30 watt taps. The CP-6T also has an 8 ohm

bypass setting for 8 ohm operation.

SPEAKER DIMENSIONS WITH/WITHOUT INCLUDED BRACKETS

CP-4T CP-6T

Tools/Parts Needed For Installation:

a) A level

b) A pencil

c) A Philips #2 screwdriver or Phillips #2 bit with a drill with a LOW TORQUE SETTING

d) Two #10 or #12 2.5-3 inch (4-5cm) Pan Head Screws for each speaker for mounting into wall

stud OR minimum 10 lb. (5 kg) Wall Anchors for mounting if stud unavailable

e) (If using Safety Cables) One 1” (2.5cm) long, 1/4”- 20-thread screw for each speaker

BEFORE SPEAKER INSTALLATION/CONNECTION

5.5”

(14.0cm)

8.8”

(22.4cm) 7.2”

(18.3cm)

5.5”

(14.0cm)

4.7”

(11.9cm)

7.0”

(17.8cm)

11.0”

(27.9cm)

9.4”

(23.9cm)

6.9”

(17.5cm)

6.1”

(15.5cm)

STEP 1

Choose speaker location and run speaker wire to location. Use included template

and a level to mark bracket hole locations where speaker will be mounted.

Typical Wall-Mounting With Included Bracket (Level not included)

If Wall/Wall Corner or Ceiling/Wall Corner Mounting With Included Bracket

H H

STEP 2

Run speaker wire (and Safety Cable if used) through hole in bracket back and attach wall bracket to wall.

Speaker

Wires

Safety Cable

(if desired or required)

Use #10-#12, 2.5-3 INCH

Pan Head Screws

STEP 3

Remove front terminal cover then slide speaker partially onto mounted bracket arms.

Channel speaker wire from rear slot through front opening while keeping speaker in

position with hand.

Terminal Cover

STEP 4

To keep speaker on bracket while adjusting use Phillips

head screwdriver (or drill/screwdriver bit AT LOW TORQUE

SETTING) and partially screw in front top/bottom bracket

screws (2-3 revolutions) then gently pull out speaker to

detente position 3/4ths of way on bracket.

IF USING A SPEAKER SAFETY CABLE

Attach it with a 1” (2.5cm) 20-thread screw (not included) to

either threaded insert on speaker rear. Use a LOW TORQUE

setting if drill and screwdriver bit are used.

STEP 5

With speaker still loosely on bracket arms, adjust speaker to

desired angle on wall.

MOUNTING OPTIONS

45˚ 45˚

45˚

WALL

45˚

CEILING OR WALL

OR OR

STEP 6

Connect speaker wires to terminals (in parallel with all

speakers) with Phillips screwdriver or LOW TORQUE drill/bit.

CP-6T SPEAKER ONLY

Select desired wattage tap setting on speaker front for either

70 or 100 Volt operation.

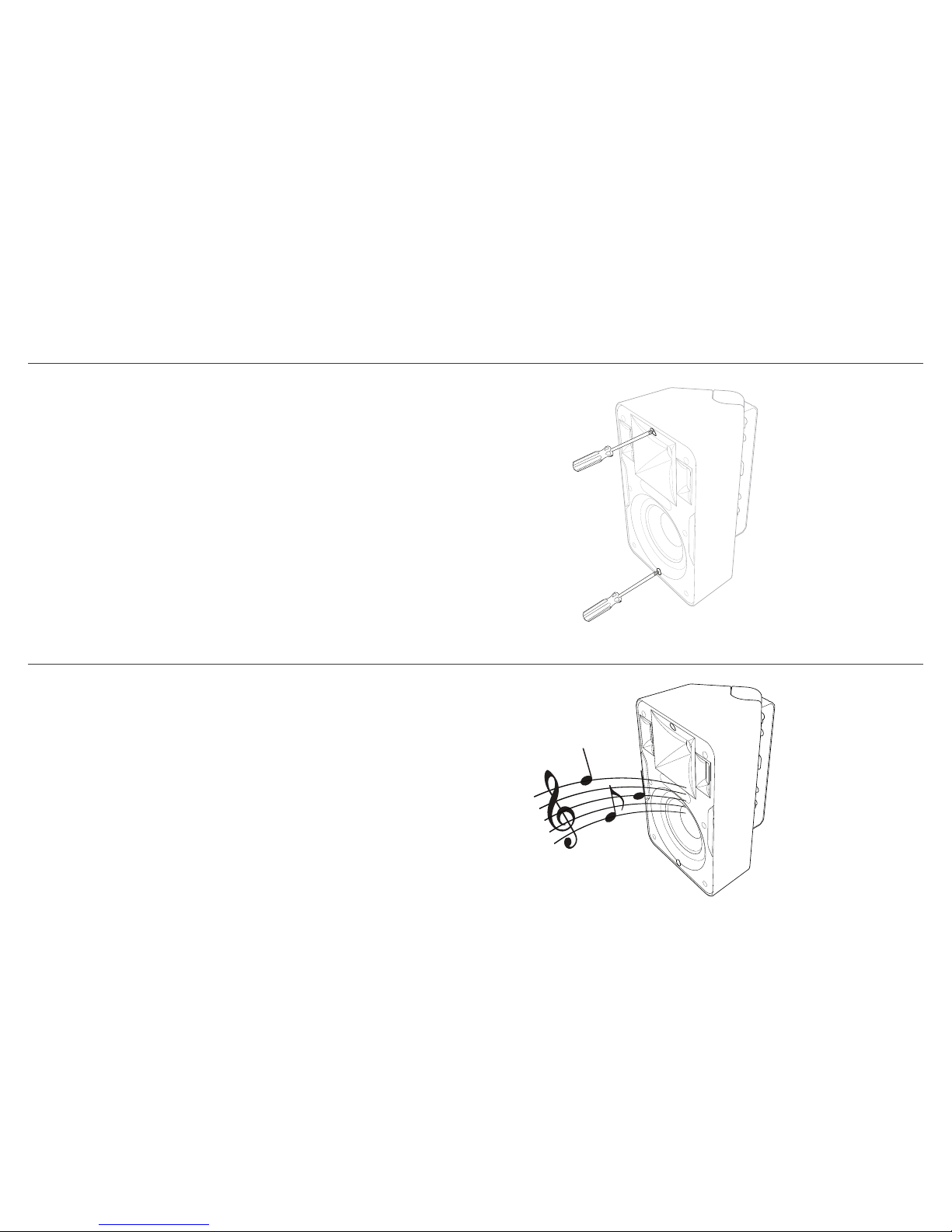

STEP 7

STEP 8

Once speaker is positioned as desired push back all the way

back on bracket arms until ﬂush with bracket caps and screw

two partially inserted screws all the way in to lock position.

TEST SOUND: Play music/test signal through speaker to

make sure connections are tight, and, IF USING CP-6T, tap

setting is correct for desired volume.
