Kleenmaid IVK61 Manuel utilisateur

REF CONSTRUCTEUR 214

220-240 V 50Hz

Cooking

collection

Instructions for fitting and using

your mixed induction-ceramic

and

Warranty Details

IVK61-600mm Induction-ceramic Cooktop

The best you can own.

Congratulations on the purchase of your new appliance.

This appliance has been

designed and manufactured to give you years

of reliable performance.

For best results, carefully read the instructions on how to

install your new appliance. Correct installation will avoid

delays and unnecessary service calls.

Once installation is complete, read this booklet

carefully and get to know the controls and the

features of your new appliance.

We reserve the right to alter the specifications

with no influence on the operation of the

appliance. This instruction manual cannot be

reason for a claim.

In this Manual,

displays safety

instructions

displays tips and hints

Using your hob in complete safety..........................4

Containers.........................................................6-7

Installing your hob in complete safety...........................8

Using your hob in all simplicity.............................10

Preserving and maintaining your hob....................12

Small problems and solutions...............................13

Cooking ........................................................14-15

List of contents

Using your hob in complete safety

Overheat sensor

•Each unit is equipped with a sensor that continuously monitors the temperature of

the bottom of the pan, so that overheating is impossible (empty saucepan, etc.).

•A sensor continuously monitors the temperature of the components of your hob.

The power output by the hob will automatically be reduced if this temperature

becomes excessive.

Overflow protection

The shutdown of the hob, a special display (symbol shown opposite) and an audible

"beep"* can all be triggered in one of the three following cases:

•An overflow which covers the control buttons.

•A damp cloth being placed on the buttons.

•A metal object being placed on the control buttons.

Clean or remove the object and start cooking once again.

*depending on the model

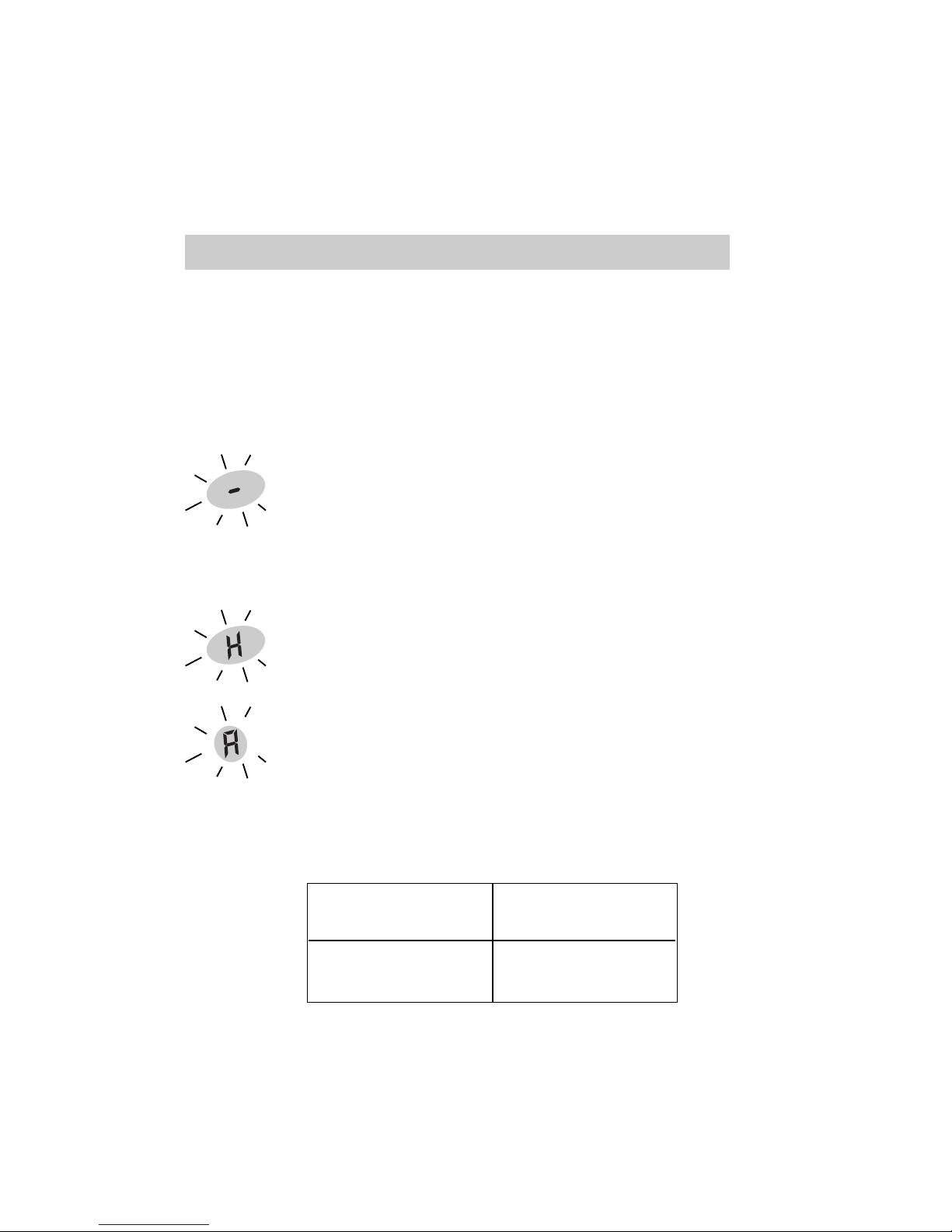

Residual heat indicator

After intensive use, the cooking zone may remain hot for several minutes.

The letter “

H”

is displayed during this period. Do not touch the zones concerned.

Auto-stop system

The "Automatic-Stop" function activates automatically if the user forgets to turn off the

cooker after cooking.

It starts up automatically if ever you forget to turn off after cooking

The letter A is displayed for the heating zone concerned and the hob will bleep for about

2 minutes. The Awill continue to be displayed until any control of the zone in question

is touched. The hob will then bleep twice to confirm your action.

the heating zone

Power used goes out automatically

after:

Between 1....4 8 hours

Between 5....7 2 hours

Between 8....9 1 hour

BIP...BIP

For the hob

For

saucepans

Unlocking the appliance

Keypad lock

Your cook top is equipped with a child safety feature which locks it during the use:

- Either when stopped (for cleaning)

- Or during cooking (any operations underway will continue and the displayed settings remain

active).

this case, for safety reasons only the "STOP" button is still usable.

Don't forget to unlock the appliance before reusing it.

Automatic saucepan detection

Your induction hob is able to recognise most recipients.

•Test recipient: place your recipient on one of the rings on power setting 4.

If the display remains unchanged, your recipient is compatible.

If it flashes on and off, your recipient cannot be used with induction.

•You can also check using a magnet.

If it "sticks" to the base of the recipient, then this recipient is compatible with induction.

Removing the recipient from the hob immediately turns off the power to your hob. To

completely turn off the ring you should press on the "Stop" button.

"Small item" safety feature

A small object such as a fork, spoon or a ring placed on your induction hob by itself is not

detected as a pan. The display flashes and there is no output power.

The display goes out after a few seconds.

Pressing any of the buttons activates the display.

Locking the appliance

Choose the specific touch for locking,

press this touch until information is dis-

played on the screen.

Press locking touch until

lights out.

• The appliance is not intended for use by young children without supervision.

• Young children should be supervised to ensure that they do not play with the appliance.

Induced currents

Electronic circuit

Induction coil

For the attention of wearers of pacemakers or other active

implants:

The hob complies with all current standards on electromagnetic interference.

Your induction hob is therefore perfectly in keeping with legal requirements (89/336/CEE directives). It

is designed not to create interference on any other electrical apparatus being used on condition that the

apparatus in question also complies with this legislation.

Your induction hob generates short-range magnetic fields.

To avoid any interference between your induction hob and a pacemaker, the latter must be designed to

comply with relevant regulations.

In this respect, we can only guarantee our own product conformity. Please consult the pacemaker

manufacturer or your doctor concerning its conformity or any possible incompatibility.

Your induction hob in complete safety

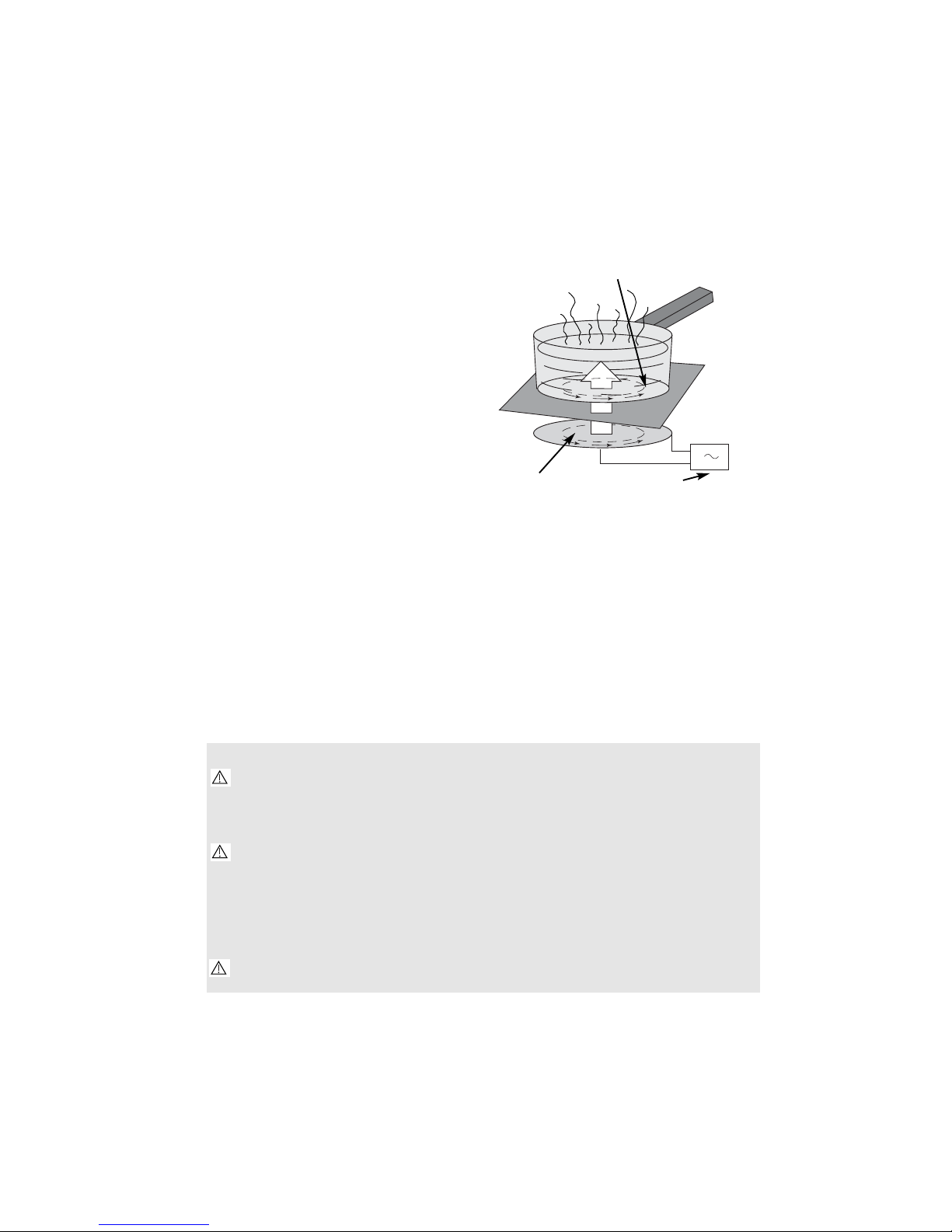

The principles of induction

When your induction hob is switched on and a

heating power has been selected, the electronic

circuits produce induced currents that

instantaneously heat the bottom of the pan that

transfers this heat to the food.

Thus cooking takes place with practically no ener-

gy loss between the induction hob and the food.

If a crack appears in the glass surface, disconnect the appliance immediately to avoid any risk of

electric shock. For disconnecting, remove the fuses or use the cutout switch.

Do not re-use your hob until the glass surface has been changed.

Your hob must never be used as a storage space or cutting surface for any products whatsoever.

When cooking never use aluminium foil and never place products wrapped in aluminium foil or

products deep-frozen in aluminium packs on the hob.

The aluminium will melt and damage your appliance irreparably.

Do not leave empty pans on your hob in case of residual heat or if the hob is turned on by mistake.

Do not connect electrical appliances on plugs close to the hob. Make sure that the power cable is not

in contact with any heating zones.

A steam cleaner must not be used.

Induction pan area

You probably already have some suitable pans.

Your induction hob is able to recognize most

types of pans.

Pan test: Place your pan on a zone, for example

at position 4; you know that your pan is compa-

tible if the display does not flash, but if it does

flash then you cannot use this pan for induction

cooking.You can also test it with a magnet: if

the magnet "sticks" to the base of the pan, then

you can use it for induction cooking.

Pans compatible with induction are:

• pans made of enamel coated steel with or

without a non-stick coating.

• cast iron pans with or without enamel coated

base.

An enamelled coated base will prevent the glass

top of your hob from getting scratched.

• stainless steel pans designed for induction

cooking.

Most stainless steel pans (saucepans, stewpans,

frying pans, deep frying pans, etc.) are suitable

for induction cooking if they pass the pan test.

• aluminium pans with special base.

pans which do not have a flat base may be sui-

table, however they must not be badly deformed .

Choose a pan marked with the

logo on its base or packaging to be sure that it is

perfectly suitable for use on your induction hob

under normal conditions of use.

A list of utensils is supplied with these

instructions to help you make your choice.

• Note

Glass, ceramic, earthenware pans, aluminium

pans (without a special base) and copper

pans, and some non-magnetic stainless steel

pans are incompatible with induction cooking.

You will be informed by the flashing display.

You should choose pans with a thick

flat base for uniform cooking (heat is

better distributed).

Using the cooking zones according to the pan (depending on the model)

Ø18 ..... 24 cm

Ø 21 cm

Ø 16 cm

Ø10 ..... 18 cm

Slow cooking (sauces, creams…).

Preparing small quantities or individual

portions…

Multi-service zone

For small pans

Vitroceramic pan area

The best way to use your ceramic hob

For easy use, we have provided cooking zones

specially adapted to your needs, nevertheless:

However, higher temperatures may be required

for:

- Large quantities

- Cooking with a non-covered casserole.

- Using a glass or ceramic casserole.

And lower temperatures are required for:

- Cooking food products that tend to burn easily

(start with a low temperature that can always be

increased if possible).

- In case of overflowing

(take the lid off, or remove the pan from the heat,

then lower the temperature).

Energy saving:

To finish off cooking touch the control and

reduce back to 0. Leave the pan in place to use

up all the accumulated heat (which saves

energy).

Use a lid whenever possible to reduce any loss of

heat through evaporation.

Automatic cooking zone temperature adjust-

ment

The radiant cooking zone is self-regulating, It

switches itself on and off so as to remain at the

programmed power. Under these conditions the

temperature remains constant and is correctly

adapted to the food you are cooking.

The frequency of self-regulation depends on the

power being used.

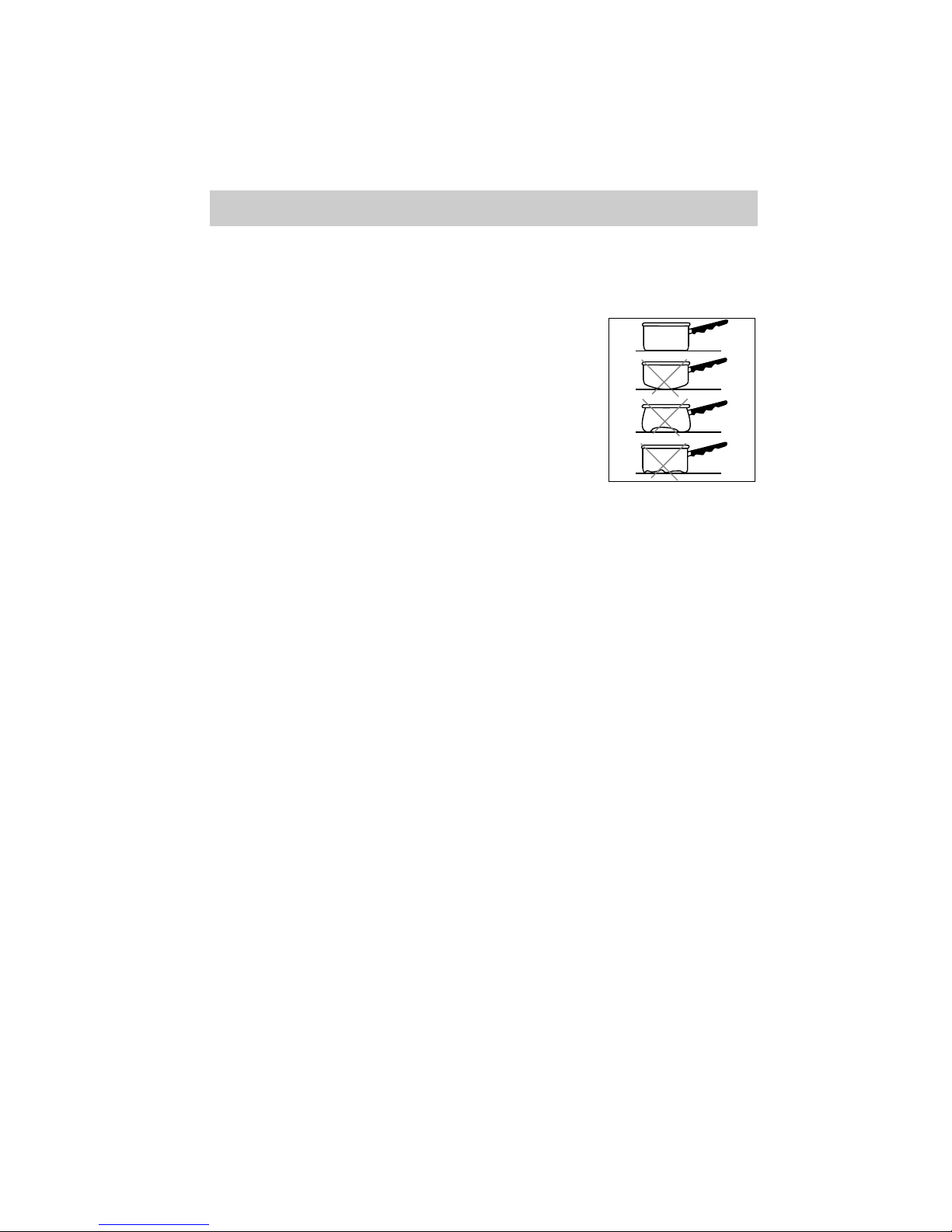

Pans and casseroles must be designed for use with electric hobs.

Use pans with flat bases that have good surface contact with the cooking

zone surface. They must be made out of:

- Stainless steel with a thick tri-metal or "sandwich" bottom.

- In aluminium with a thick smooth bottom.

- In enamelled steel.

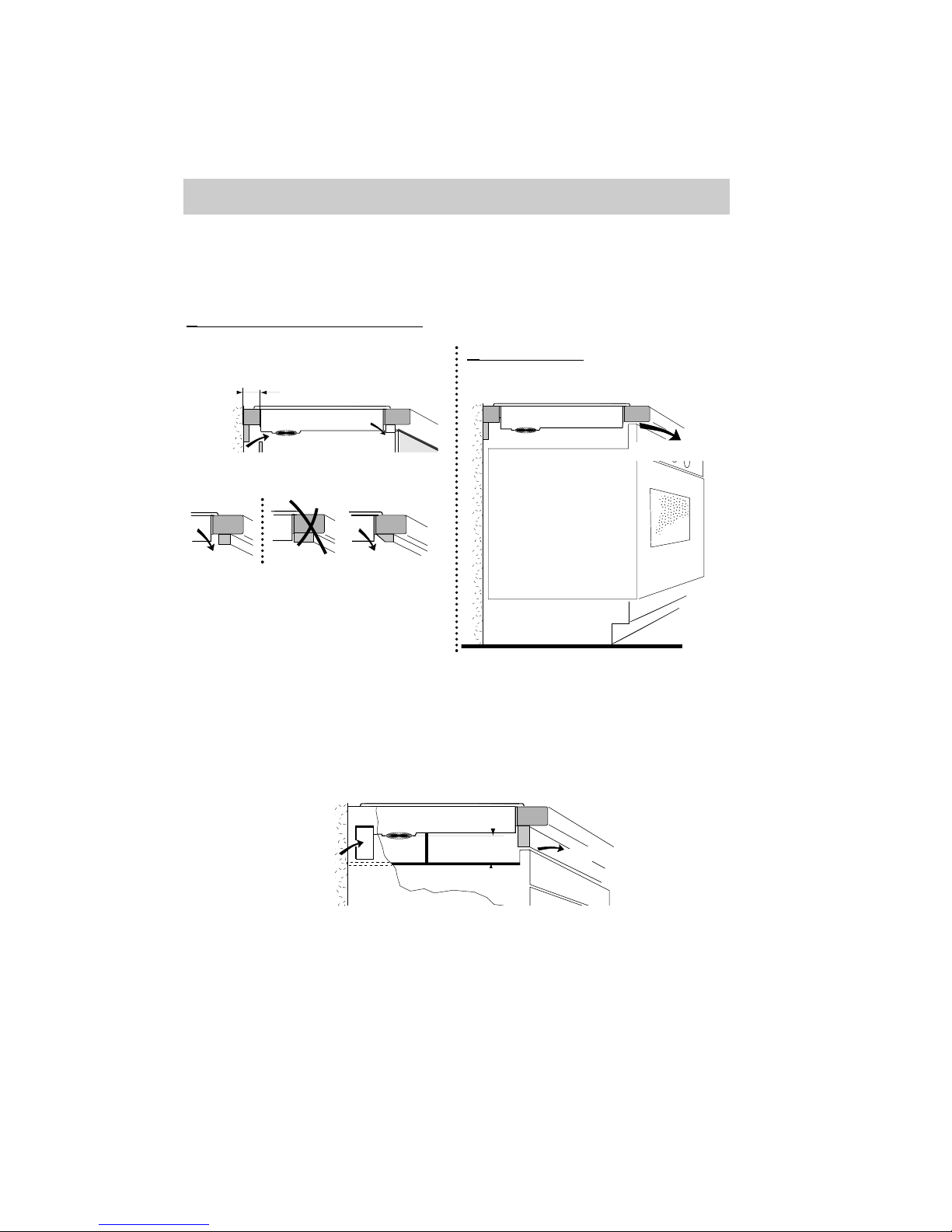

Installing your hob in complete safety

mini 5 cm

Kit d'isolation (SAV) mini 4 mm

Above an oven

4 cm mini

Ensure that the unit crossbar does not block the air

passage, make a bevel if necessary.

Above a cupboard or drawer unit

Gap MINI 4 mm

If the appliance underneath your hob produces excess heat :

this will be detected by a safety device incorporated into your induction hob. A high temperature will be indicated by a

series of dashes or F7 will appear in the display.

If this happens we suggest you either create an opening in the side of the unit and/or install an insulation kit available

from the After-Sales Dept (ref 75X1652), which will protect your hob from the heat generated beneath it.

Providing the advice on ventilation given above is followed, your hob can be installed above any piece of kitchen

equipment.

Always ensure that the air vents beneath the hob are kept clear.

Your induction hob must always be adequately ventilated.

Opening in the side of the

unit approx 8 cm x 5 cm

Insulation kit (after-sales service)

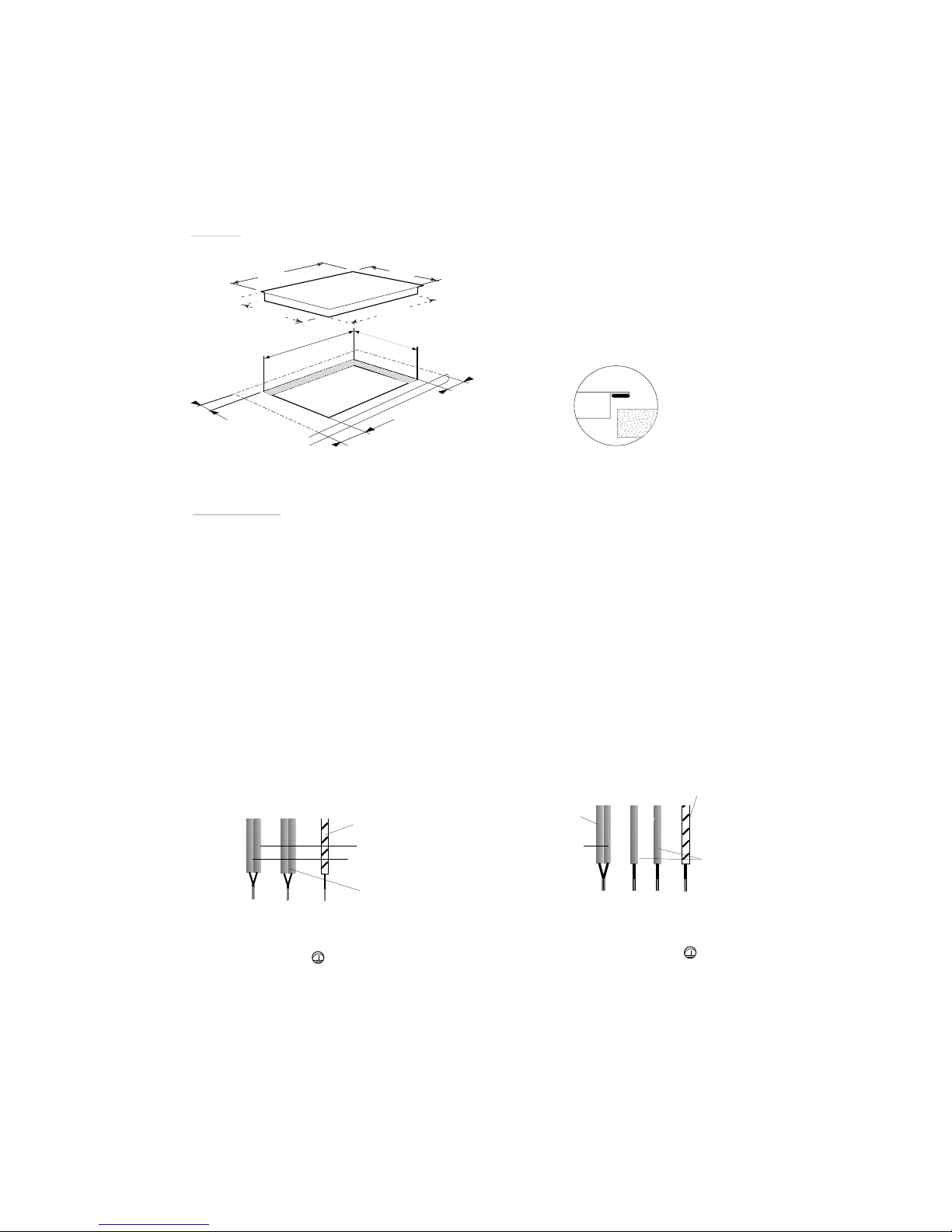

Installing your hob in complete safety

4 cm mini

26 ,5 /56 /75 cm

49 cm

4 cm mini

Fitting A seal exists for preventing any

humidity getting under the hob.

-Stick the seal under the rim of

the hob and lower the hob into

position on the worktop.

-This seal is supplied in the

sachet; stick it in place beneath

the hob.

Neutral

Earth

Phase

- 220-240 V monophase

fuse 32

Neutral

Earth

Phase 2

Phase 1

NL1 L2

Separate the 2 phase wires L1 and L2

before connecting

Blue

Green/yellow

Black

- 400 V 2N three-phase

fuse : 16 Amp

Green/yellow

Blue

Black

These hobs are delivered with type H 05 VVF power cable (1.5mm²) with 3/5 conductors (including a

green/yellow earth wire), which must be connected to the power supply via a plug that complies with

publication CEI 60083 or an all-pole cut-out unit with contacts that open by at least 3mm.

If the cable is damaged, it must be replaced by the manufacturers, their After Sales Service or another

similarly qualified person for avoiding any possible risk of accident.

When the power is switched on, or after a long power failure, a light

code appears on the control panel. This disappears automatically after

about 30 seconds or as soon as any touch control is touched on the

panel. This is normal, as the display is for use by the after-sales service when required. The user must not

take this into account under any circumstances.If the unit has a 3 phase 400 V2N connection, and is not

working correctly, check that the neutral wire is correctly connected. This precaution should also be taken

for all your other electronic apparatus.

"When installing the cooktop, precautions must be taken to avoid damaging the power cable with the

sharp edges"

The unit must be installed so that the mains plug is easily

accessible.

brown

Connection

58 51

48,8 55,5

6,4

dimensions in cm

Table des matières

Autres manuels Kleenmaid plaque de cuisson

Kleenmaid

Kleenmaid ICT6021 Manuel utilisateur

Kleenmaid

Kleenmaid CH805CE Manuel utilisateur

Kleenmaid

Kleenmaid CH605SX Guide d'installation

Kleenmaid

Kleenmaid ICK88X Manuel utilisateur

Kleenmaid

Kleenmaid GCTK9012 Guide d'installation

Kleenmaid

Kleenmaid GCT6020 Manuel utilisateur

Kleenmaid

Kleenmaid CH605CM Manuel utilisateur

Kleenmaid

Kleenmaid GCT6030 Guide d'installation

Kleenmaid

Kleenmaid GCTEK9020 Guide d'installation

Kleenmaid

Kleenmaid ICT9031 Guide d'installation

Kleenmaid

Kleenmaid ICK98X Manuel utilisateur

Kleenmaid

Kleenmaid ICK98X Instructions d'utilisation

Kleenmaid

Kleenmaid ICK68X Guide de configuration

Kleenmaid

Kleenmaid KCGCTK6011 Guide d'installation

Kleenmaid

Kleenmaid ICT6020 Guide d'installation

Kleenmaid

Kleenmaid GCTE6010 Manuel utilisateur

Kleenmaid

Kleenmaid GCT9012 Manuel utilisateur

Kleenmaid

Kleenmaid ICK60X Manuel utilisateur

Kleenmaid

Kleenmaid ICK66X Guide d'installation

Kleenmaid

Kleenmaid CH611W Manuel utilisateur

Kleenmaid

Kleenmaid SCALA CH1 Manuel utilisateur

Kleenmaid

Kleenmaid cooking GCTK9011 Guide d'installation

Kleenmaid

Kleenmaid cooking CCTB6010 Guide d'installation

Kleenmaid

Kleenmaid CH17 Manuel utilisateur

Manuels plaque de cuisson populaires d'autres marques

Bonnet

Bonnet OPTIMUM 700 Manuel du propriétaire

Jenn-Air

Jenn-Air JGCP430 Manuel utilisateur

Frigidaire

Frigidaire FES367FCC Guide de démarrage rapide

Ztove

Ztove EZ2 DUO Manuel utilisateur

Casselin

Casselin CSASRE24 Manuel utilisateur

Jenn-Air

Jenn-Air JGC2536EB00 Manuel utilisateur

Waldorf

Waldorf RN8603E-B Mode d’emploi

Whirlpool

Whirlpool SMP658CNEIXL Manuel utilisateur

Wolf

Wolf CI243C/B Manuel utilisateur

Fulgor Milano

Fulgor Milano F5PGK305S1 Manuel utilisateur

GE JP389 Manuel utilisateur

Wells

Wells WV-2HFG Manuel utilisateur

IKEA

IKEA Lagan HGA4K Manuel utilisateur

Samsung

Samsung NA36N9755 Manuel utilisateur

Miele

Miele KM 404 Manuel utilisateur

Lacor

Lacor 69562 Fiche technique

Keating Of Chicago

Keating Of Chicago MG-2 Manuel utilisateur

Jenn-Air

Jenn-Air CCE1400 Manuel utilisateur
