Service Manual
Drum Washing Machine
KUD-WD1133S
DRUMWASHINGMACHINE
SERVICEGUIDE
"What is Drum Washing machine.............................................................2
"Product Spec.............................................................................................5
"Diagram of operation Principles and Parts Classification......................6
"Classification per Assy..............................................................................7
"Parts list for each Assy.............................................................................8
"Control Part Function Spec. .....................................................................20
"PCB Pin Arrangement .............................................................................45
"Electronic Parts List Spec. .......................................................................46
"Power Defect.............................................................................................61
"Noise Defect..............................................................................................62
"Wirng Diagram .........................................................................................63
"Installation ................................................................................................64
2
Water consumption is reduced by using the power of the laundry falling (free-fall) created when rotating
the drum resembling a sieve net. With temperature control system, this drum washing machine saves
energy and improves washing performance at the same time.
"WhatisDrumWashingMachine?
1.DrumWashingMachine
"Simultaneous supply of cold#hot water
As cold and hot water is supplied at the same time, heating time and energy is saved.
"Top-quality popup dial
The top-quality popup dial is used only during washing process.
"Dust filter
Filter to remove foreign substances, such as naps generated during washing, etc., is installed inside the
drum.
"DD inverter motor
The direct-drive type, of which motor is directly connected to drum without an interim clutch,
significantly reduces noise and vibration.
"Heating device is installed to enable boiling of the laundry.
"Large door creates grand appearance and makes it easy to put in and out the laundry.
"For pump drainage, the powerful pump speeds up drainage process.
2.Featuresof DrumWashingMachine
3
#DD Control: Direct drive type of direct connection between drum and motor
#Rotation by powerful high-performance BLDC motor
#Pump drainage type for built-in installation

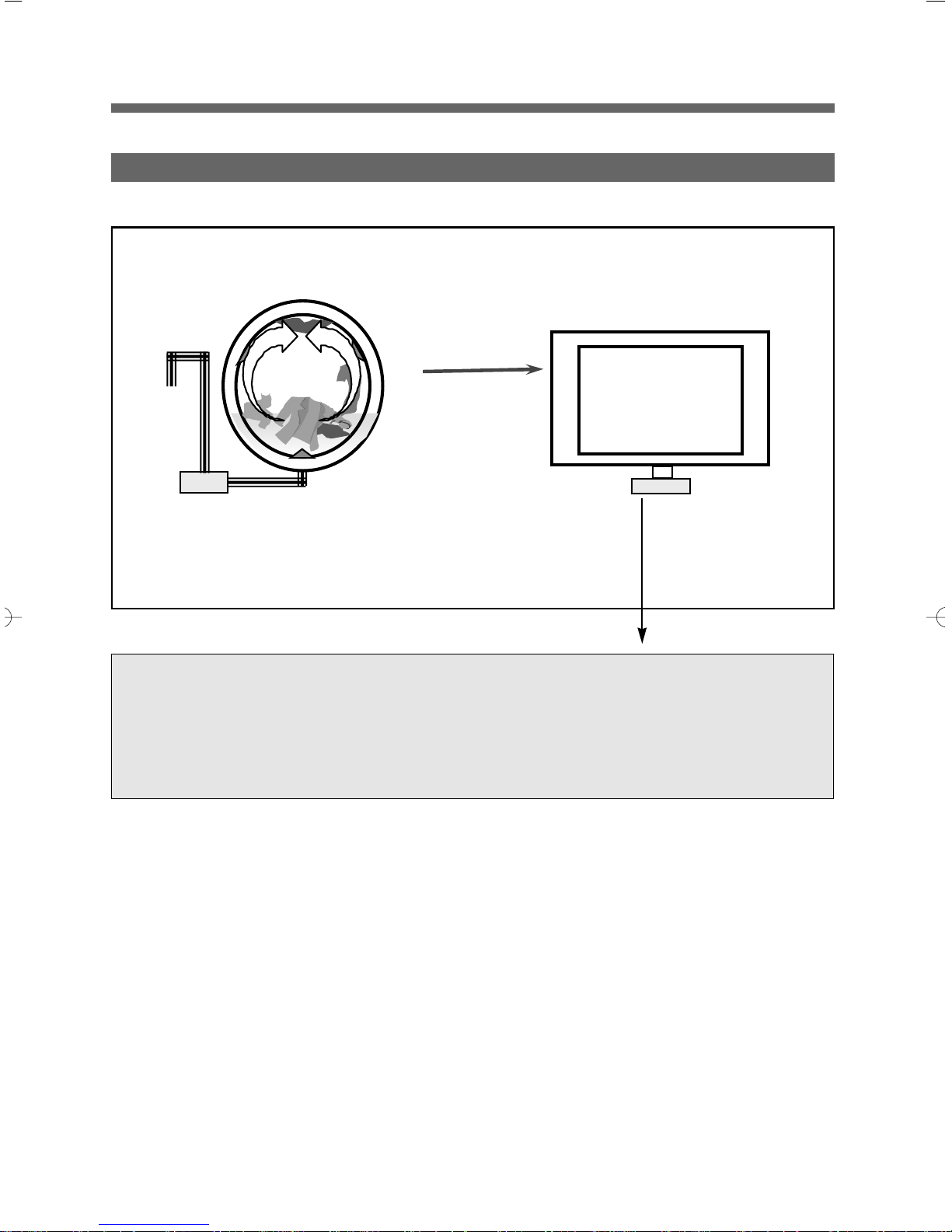

3.PowerSystemof#KLASSE$DrumWashingMachine
Drainage Motor BLDC Motor
Turbo
Drum
The
Laundry
4
$Washing
When rotating drum after putting in the laundry and detergent into the drum, the laundry are rotated by
protrusions (lifters) attached inside the drum.
Washing is carried out with bending and impact actions generated by falling of the laundry to the top
part of drum.
%Rinsing
Rinsing cleanly washes out detergent and dirt removed from the laundry after washing cycle.
&Spin-drying
Weak, standard and strong cycles can be selected according to types of fabrics to be washed. Spin-
drying is carried out by rotation (the centrifugal force) of drum according to the designated speed.
'Drainage
Pump Drainage: Powerful pump for built-in installation and application of filter to remove foreign
substances
rumWa
4.MajorFunctionsofDrumWashingMachine
5

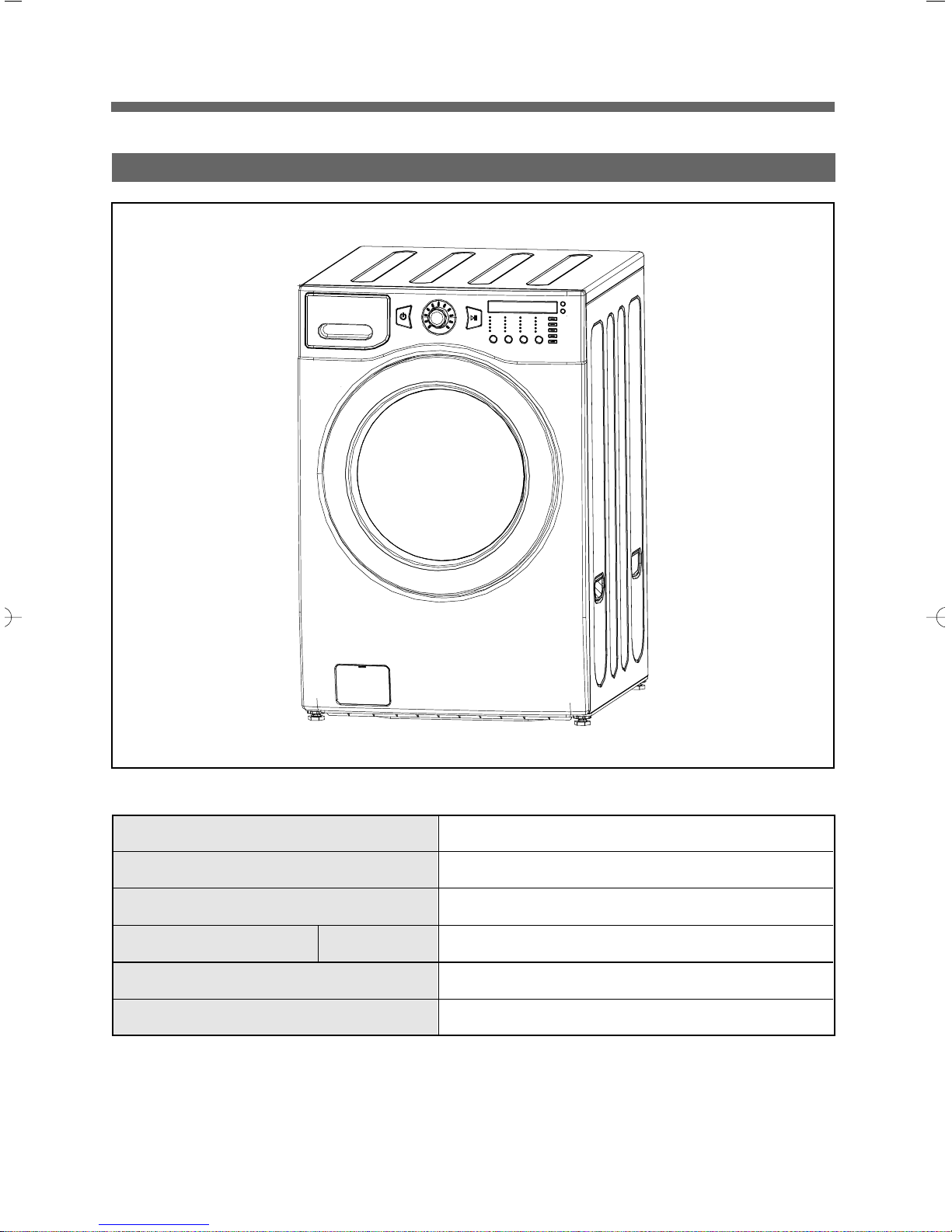

"ProductSpec
ProductSpec.
External Measurements (inches) 27"(width) x 31.8"(depth) x 40.1"(height)
Weight 198.4lbm
Rated Supply Power 120V 60Hz
Rated Consumption Power Washing 200W (1100W during heating)
Washing Method Drum type
Water Pressure 29kPa ~ 784kPa(0.3kgf/kg~8kgf/kg)

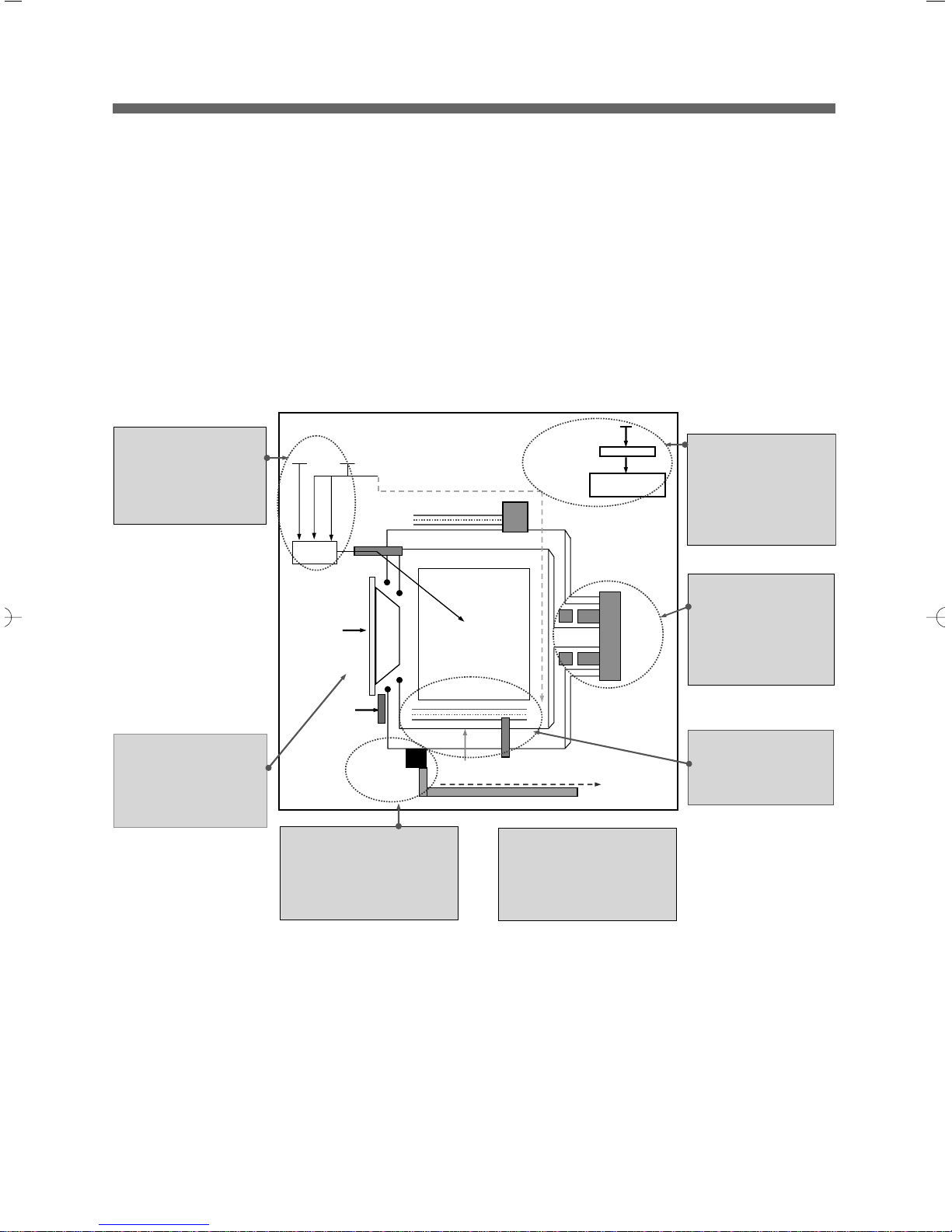

"DiagramofOperationPrinciplesandPartsClassification
6
4. WATER SUPPLY PART
• Cold Water: 3 holes
Cold water, pre-washing
• Hot Water: 1 hole
• Water supply box, hose
5. DOOR
• Door lock S/W
- Lock hinge
• Door AS: Glass
• Gasket
6. DRAINAGE PART
• Drainage pump
• Valve housing
• Hose
7. SUPPORTER
• Base
• Damper AS: 4
• Spring: 2
3. HEATING PART
• Water Heater: 1000W
•Washing temperature
sensor
2. DRIVING PART
• BLDC motor
• Drum
• Bearing
• Spider/ shaft
• Tub
• Weight balancer
1. CONTROL PART
• Main PCB
• Front PCB
• Harness
• Noise filter
• Power Cord: 15A
7

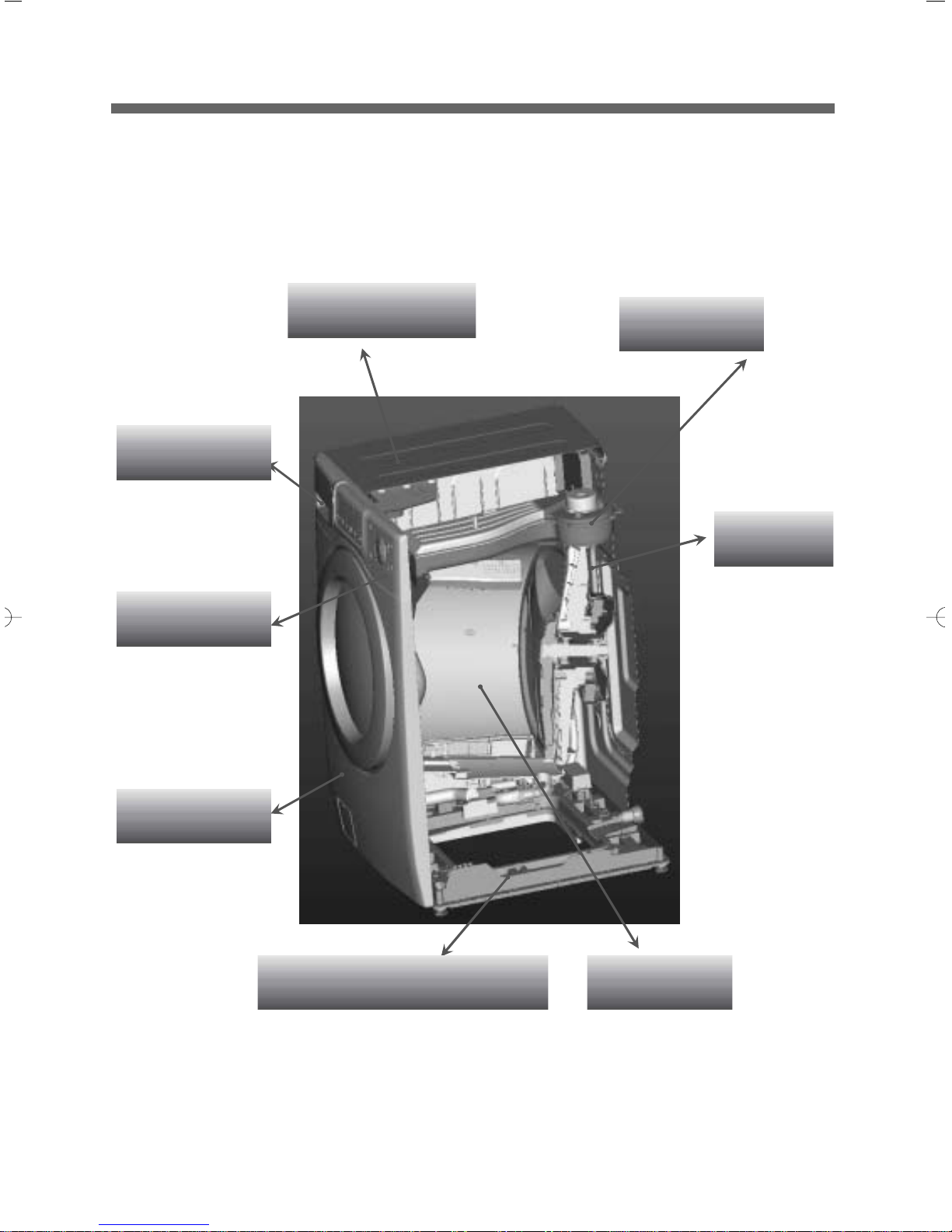

"ClassificationperASSY
PLATE TOP AS CABINETAS
DUCTAS
INLETBOX AS
PANEL F AS
CABINET F AS
BASE U AS TUB AS
8

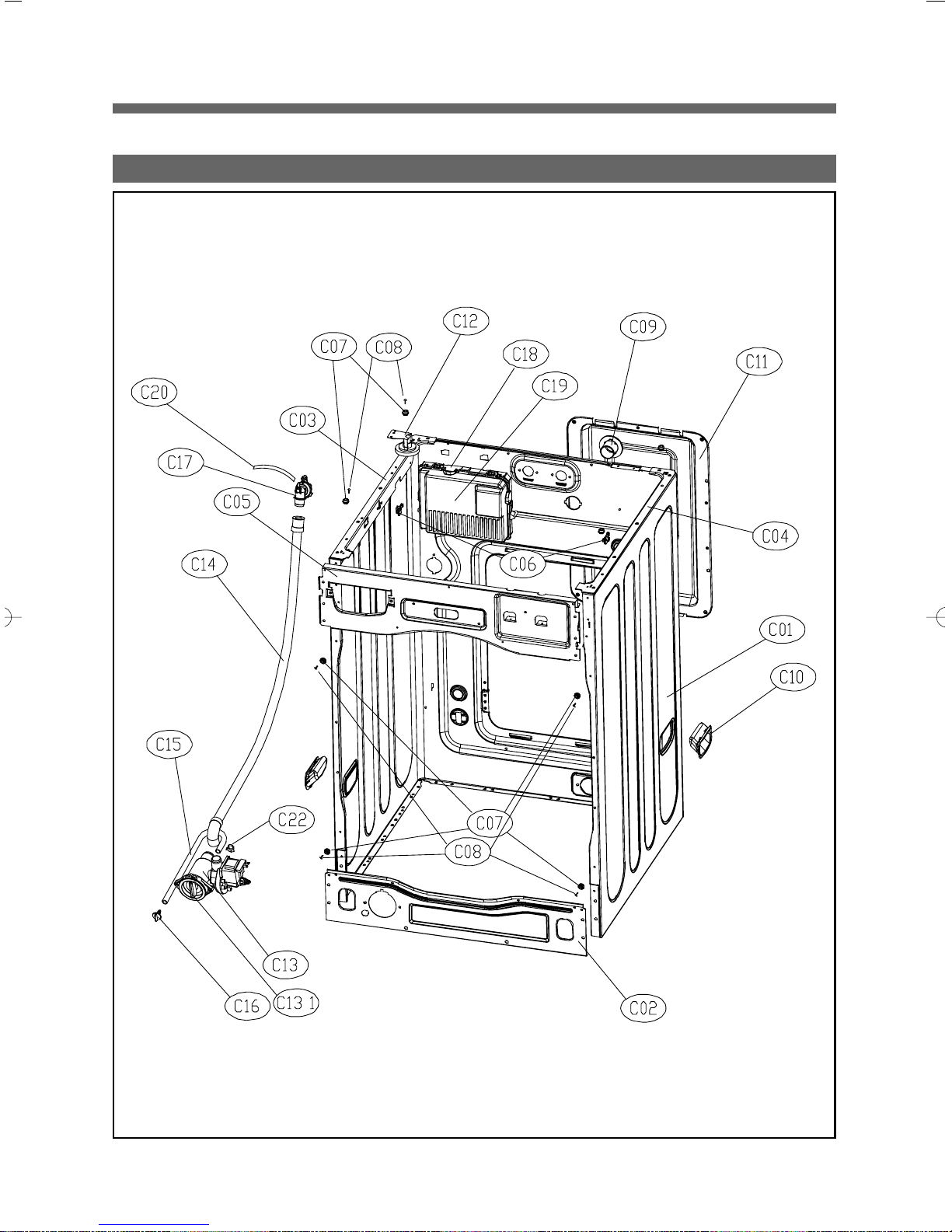

1.CABINETAS
"PARTSLISTFOREACHASSY
9
NNooPPaarrttNNaammeePPaarrttCCooddeeDDeessccrriippttiioonnQQtttt''yyRReemmaarrkkss
C01 CABINET 3610811740 SGCC 0.8t, Painting 1
C02 FRAME LOWER 3612206700 SBHG 1.2T 1 1 Piece SVC
C03 FRAME TOP L 3612206500 SGCC 1.6T 1 part
C04 FRAME TOP R 3612206600 SGCC 1.6T 1
C05 FRAME UPPER 3612208200 SBHG 1.2T 1
C06 STOPPER SPRING 3615202200 POM 2
C07 FIXTURE PLATE 3612008000 POM 8
C08 SCREW TAPPING 7121401211 T2S PAN 4X12 MFZN 8
C09 NOZZLE AIR 3618103110 PP 1
C10 HANDLE CABINET 3612608100 PP 2
C11 COVER BACK AS 3611425530 COVER B + PAD CABINET 1
C12 SENSOR PRESSURE 3614825220 DWD-130RP 1
C13 UNIT DRAIN PUMP AS 36189L5600 PUMP+FILTER 1
C13-1 FILTER PUMP 3611910200 13KG HANYU FILTER 1
C14 HOSE DRAIN I 3613271300 ST+EL 1,010mm 1 1 Piece SVC
-ABSORBER HOSE DRAIN 3610115600 T10, 60x130 1 Part
-CLAMP HOSE 3611203900 SK5 D=26 2 FixHosedrain I
C15 HOSE WATER REMAIN 3613271410 EPDM, 13kg, UL 3t Round bending 1
C16 CAP WATER REMAIN 3610916800 PP 1
C17 CUFF DRAIN HOSE 3616802600 PP 1
C18 PCB AS PRPSSWAD24 USA WASHER, UL 1WASHER
C19 COVER PCB M 3611427700 UL,ABS,VE-0856, MAIN PCB COVER 1
C20 HOSE SIPHON 3613272210 EPDM, 13kg, UL 3t L=270 1
C21 CLAMP HOSE 3611203900 (26 1
- HARNESS AS 3612796T00 UL, 13kg Wash, Non bubble 1
