KitchenAid KSSS48DYW00 Manuel utilisateur

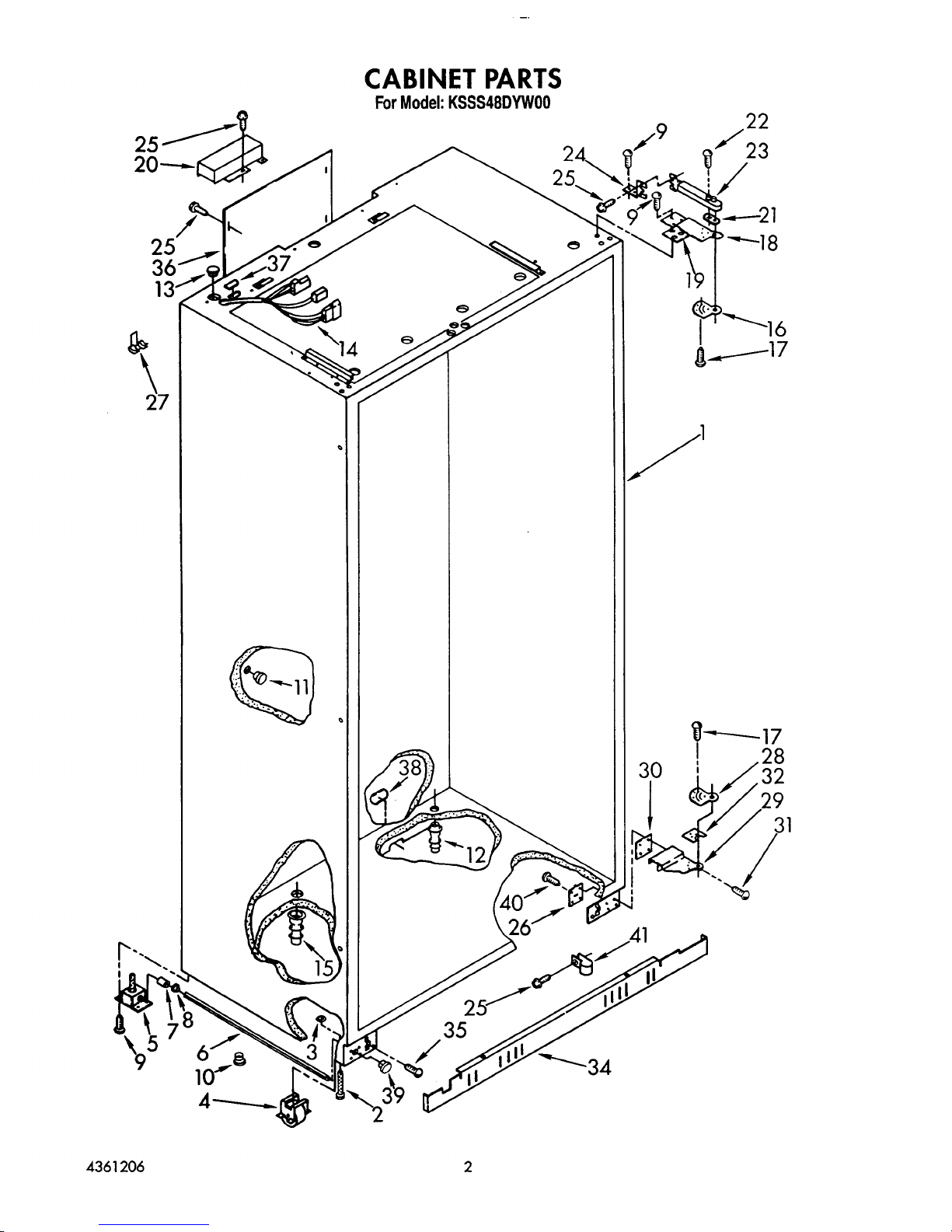

1 Cabinet (Not A Serviceable Part)

2 1112019 Leveler, Front (2)

3 1113249 Retainer (2)

4 1112023 Roller, Front & Rear (4)

5 1112695 Leveler, Adjustable (2)

6 1112936 Adjusting Rod (2)

7 1113250 Sleeve, Retainer (2)

8 1112937 Bushing, Rod (2)

9 2000489 Screw

10 1112939 Hole Plug, Leveler

11 1112849 Cap, Grommet

12 1112970 Grommet, Water Tube

13 1113122 Grommet, Wiring

14 2000614 Wiring Harness, Cabinet

15 1112848 Drain Fitting

16 Gap Cover Assembly (Top)

2001199 Left Side

2001200 Right Side

17 1112906 Shoulder Screw

18 Hinge (Top)

1112901 Left Side

1112912 Right Side

19 1112988 Shim, Hinge Top (4)

20 1112805 Guard, Wiring

21 1112907 Door Closer, Fixed Cam

22 487818 Screw, 8-32 x 5/16

23 1112992 Door Closer Assembly (2)

24 Bracket, Door Closer

1112947 Left Side

1112948 Right Side

25 486194 Screw,8x1/2

26 1112973 Tap Plate, Hinge Butt (2)

27 1113227 Fastener (3)

28 Gap, Cover Assembly (Bottom)

2001200 Left Side

2001199 Right Side

29 Hinge (Bottom)

1112919 Left Side

1112923 Right Side

30 Shim, Hinge Bottom

1112942 1 Each

1112943 2 Each

31 2000490 Screw

32 1113809 Spacer Lower Door Hinge

34 2001219 Grille Base, Front

35 489238 Screw (6)

36 1112835 Cover, Rear

37 1113123 Grommet, Wiring

38 1113079 Grommet, Flexible

39 1112926 Grommet, Tube

40 487534 Screw,8x3/4

41 488366 Clamp, Tube

1 1112667 Breaker Trim, (One Piece)

2 1113277 Retainer Side (4)

3 1112754 Retainer Trim Freezer (2)

4 1112687 Retainer Trim Refrigerator (2)

5 1112682 Magnet, Side (4)

6 1112679 Magnet, Freezer (2)

7 1112681 Magnet, Refrigerator (2)

8 1112712 Heater, Mullion

9 2001179 Cabinet Trim R.S

10 2001178 Cabinet Trim L.S

11 489238 Screw (12)

487246 Screw (Repair)

12 2001190 Trim (Bottom)

13 488649 Screw, 8-32 x 1/2 (8)

14 2001193 Spacer Trim, Grille

15 1113604 Retainer, Unit Base (2)

16 487944 Washer (2)

1 Liner (Not A Serviceable Part)

6 538533 Support Clip, Icemaker (2)

7 538532 Grommet, Screw (2)

8 488552 Screw, 10-12 x 3/8 (2)

9 992720 Stud, Support (4)

11 Rail, Evaporator Cover

2000956 Left Side

2000957 Right Side

12 486194 Screw,8x1/2

13 1112591 Spacer, Control Panel (3)

14 842534 Clip, Air Duct (4)

15 842339 Grommet (15)

16 1112260 Support, Evaporator

17 658944 Stud, Shelf (8)

18 487559 Screw, 8-15 x 1-1/4 (8)

19 1112843 Gasket, Evaporator Cover (2)

1 LINER (Not A Serviceable Part)

2 1112591 Spacer, Control Panel (3)

3 843436 Grommet, Screw (3)

4 842339 Grommet

5 1112115 Ladder, Shelf (2)

6 520965 Screw Support, Ladder (8)

7 488357 Screw, 8 x 1-1/4 (8)

8 486194 Screw,8x1/2

9 1112257 Hole Plug

10 2000952 Cover, Liner Back

11 1112219 Control Panel Assembly (Meat)

12 1112125 Insulation, Liner Back Cover

13 1112132 Duct, Meat Pan

14 1112218 Damper Control, Meat Pan

15 1112258 Control Knob, Meat Pan

16 837444 Retainer, Knob

17 1112789 Bracket, Light

18 1112613 Socket, Light

19 547225 Light Bulb

20 1112995 Wiring Harness, Air Baffle

21 1112709 Wiring Harness, Light Socket

22 1116793 Cover, Thermistor

23 1116959 Thermistor

24 1113078 Flexible Grommet

25 1112788 Shield, Light

26 2000527 Guard Air Return

27 1112840 Baffle Evaporator
