KitchenAid KSSC42MFS05 Manuel utilisateur

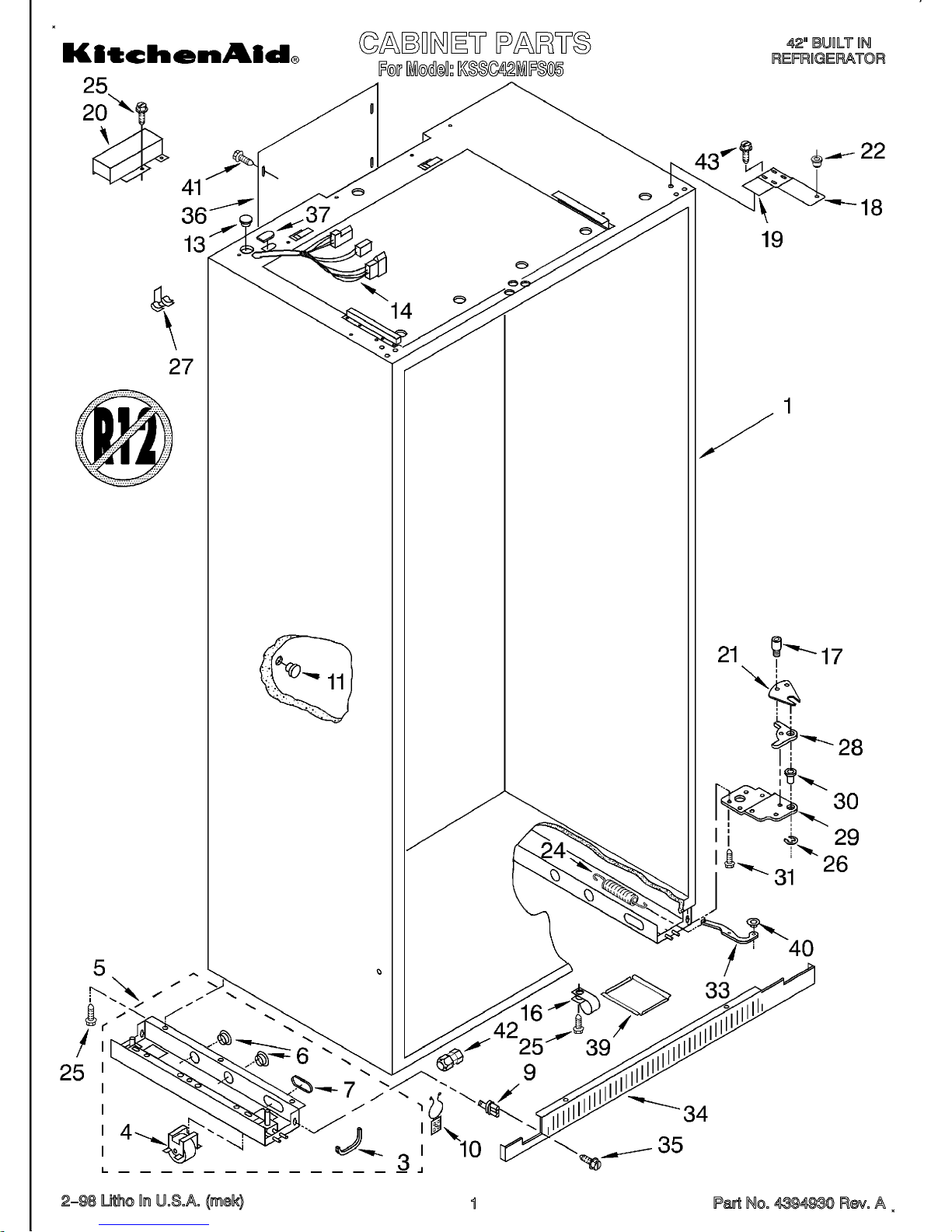

1 Cabinet (Not A Serviceable Part)

3 2005004 Grommet, Tube Crossover

4 1112023 Roller, Front & Rear (4)

5 Support, Leveler Assembly

2004506 Refrigerator Side

2004505 Freezer Side

6 2005006 Grommet, Wiring

7 2005007 Grommet, Flexible

9 2004852 Mounting Stud, Grill

10 2005237 Wire Clip

11 1112849 Cap, Grommet

13 1113122 Grommet, Wiring

14 2004912 Wiring Harness, Cabinet

16 488946 Tube, Clamp

17 2005378 Screw, Door Stop

18 Hinge (Top)

2005252 Left Side

2005251 Right Side

19 2005294 Shim, Hinge Top

20 1112805 Guard, Wiring

21 2004994 Lock, Adjustable Bushing

22 2002903 Bushing

24 Spring, Door Closure

2004566 Refrigerator Side

2004567 Freezer Side

25 486194 Screw

26 2005008 Retaining Ring, Adjustable Bushing

27 1113227 Fastener (3)

28 2004867 Gap, Cover Assembly (Bottom)

29 Hinge (Bottom)

2004539 Freezer Side

2004507 Refrigerator Side

30 2005293 Bushing, Adjustable

31 3400207 Screw

33 2004516 Linkage, Door Closure

34 Grille Base, Front

2004531 Black

35 489238 Screw

36 2004512 Cover, Rear

37 1113123 Grommet, Wiring

39 2004595 Cup, Wiring

40 2004565 Bushing, Door Closure

41 1163283 Screw

42 2150347 Union

43 3400207 Screw (4)

1 2005256 Cabinet, Trim Right Side

2 2003857 Screw

3 1163283 Screw

4 2004537 Cabinet, Trim (Bottom)

5 486194 Screw

6 2003646 Cabinet, Trim Top

7 2005493 Cabinet, Trim Left Side

1 Liner (Not A Serviceable Part)

2 1113649 Bracket, Light

3 1113650 Lens

4 1112613 Light, Socket

5 548049 Light, Bulb

6 538533 Support Clip, Icemaker (2)

7 2000193 Grommet, Screw (2)

8 488552 Screw

12 486194 Screw

13 1112591 Spacer, Control Panel (3)

14 842534 Clip, Air Duct (4)

16 1112260 Support, Evaporator

17 2004068 Stud, Shelf (20)

18 487559 Screw

1 LINER (Not A Serviceable Part)

2 1112591 Spacer, Control Panel (3)

5 2001117 Ladder, Shelf (2)

6 520965 Screw Support, Ladder (8)

7 488357 Screw

8 486194 Screw

9 1112257 Hole Plug

10 2003579 Meat Pan, Air Duct Cover

11 2000337 Meat Pan, Air Duct

12 2003299 Inlay, Control Meat Pan

13 2001326 Seal, Air Duct

14 1112218 Damper Control, Meat Pan

15 2003811 Control Knob, Meat Pan

16 2003841 Retainer, Knob

17 2004484 Air Baffle Assembly

21 2001146 Seal

22 1116793 Cover, Thermistor

23 1116959 Thermistor

25 2003578 Air Baffle Cover

26 2003577 Guard, Air Return

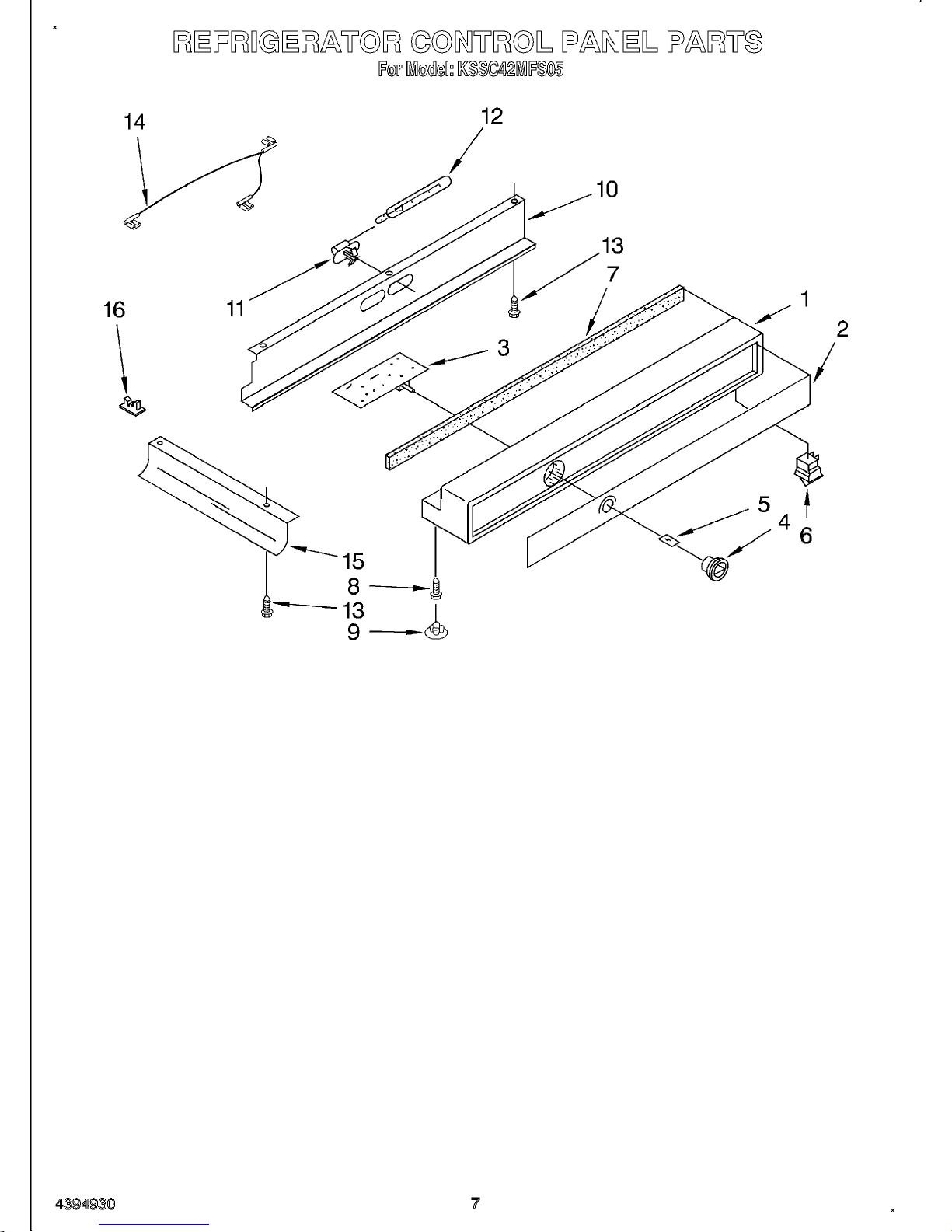

1 1112641 Control Panel

2 2003302 Inlay, Control Panel

3 2004005 Circuit Board

4 2003842 Control Knob

5 2003841 Retainer, Knob

6 1118894 Switch, Rocker Arm

7 1113135 Seal, Control Panel

8 489260 Screw (3)

9 2000153 Hole Plug (3)

10 1113774 Shield, Control Panel

11 1112613 Socket, Light (2)

12 548049 Light Bulb (2)

13 486194 Screw

14 2003758 Wire, Light

15 2001141 Channel, Wiring

16 1115375 Clip, Wiring (2)
