KitchenAid KSCK25FVBL00 Manuel utilisateur

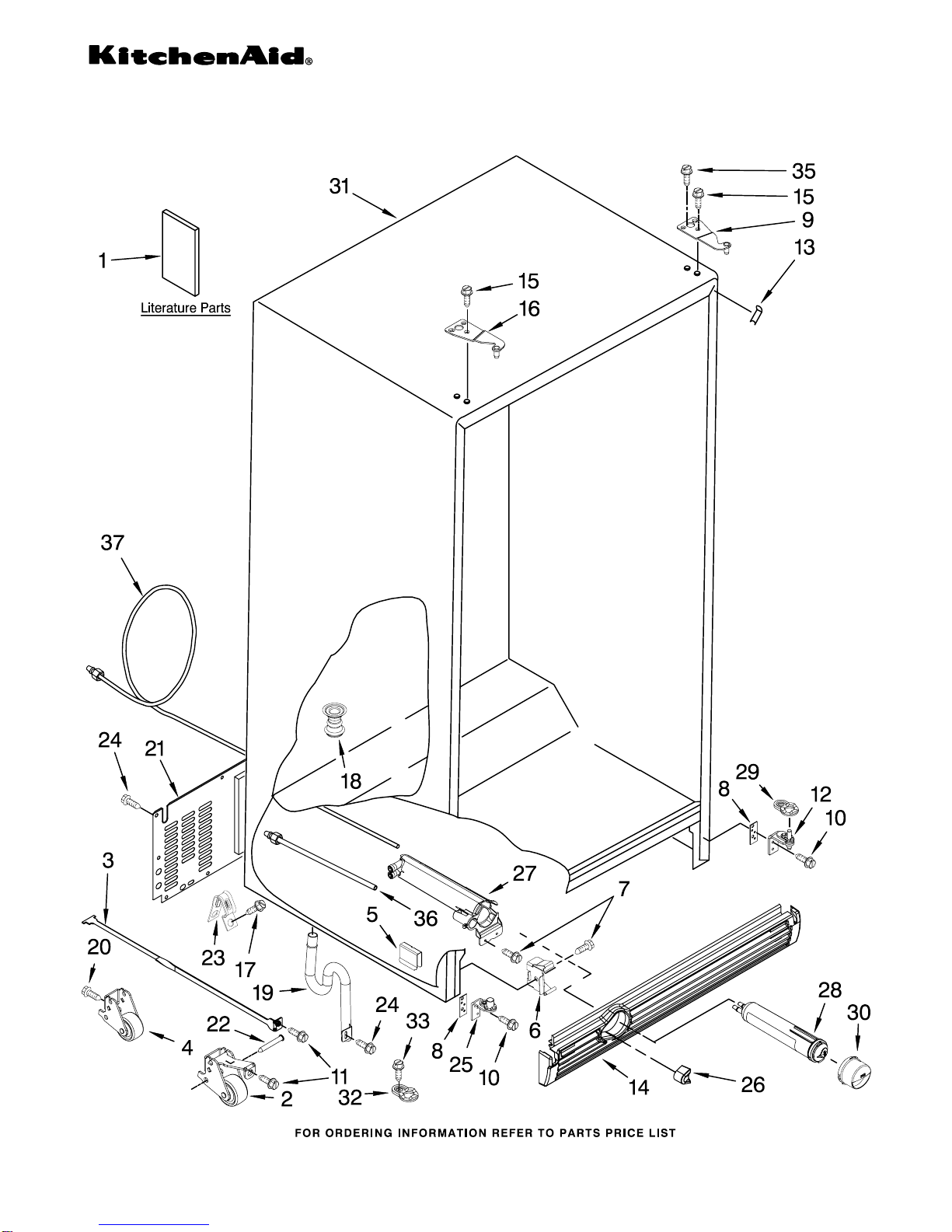

CABINET PARTS

For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00

(White) (Black) (Stainless Steel) (Monochromatic Stainless)

4−11 Printed In U.S.A. (jdc) (bay) Part No. W10218231 Rev. A

REFRIGERATOR

CABINET PARTS

For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00

(White) (Black) (Stainless Steel) (Monochromatic Stainless)

W10218231

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10168296

Use & Care Guide

W10203129

Service & Wiring

Sheet

2318510 Installation

Instructions

W10194757

Energy Guide

2220407 Modular Icemaker

Service Sheet

2 Front Roller Asm

2306950 Left Side

2306951 Right Side

3 2223263 Strap, Roller

4 2306949 Roller, Rear (2)

5 2223388 Clip, Retainer (4)

6 2155013 Clip, Grille

7 489478 Screw

8 2223545 Shim

9 Hinge Top, RC

2307008W White

2307008B Black

2307008AP

Apollo Gray

10 3400113 Screw

11 3400243 Screw

12 2307179 Hinge Assembly,

Bottom−RC

(Includes #29)

13 Filler, Wrapper

2223893W White

2223893B Black

2223893AP

Apollo Gray

14 Grille

W10194047

White

W10194057

Black

W10194061

Midnight Grey

15 3400108 Screw

16 Hinge, Top FC

2307007W White

2307007B Black

2307007AP

Apollo Gray

17 489464 Screw

18 2304888 Drain Fitting

19 2254566 Tube, Extension

20 489427 Screw

21 2223409 Cover, Unit

22 2223387 Pin, Roller (4)

23 549193 Clamp, Service

Cord

24 489084 Screw

25 2307152 Hinge Assembly,

Bottom−FC

(Includes #32)

26 Button, Water

Filter

2260503W White

2260503B Black

2260503MG

Midnight Grey

W10121140

Housing, Water

Filter

28 4396841 Water Filter

29 2307049 Door Closer, RC

30 Cap, Water

Filter

2260502W White

2260502B Black

2260502MG

Midnight Grey

31 Cabinet (Not A

Serviceable Part)

32 2307051 Door Closer, FC

33 489483 Screw

35 3400858 Screw

36 2224020 Tube, Filter

Outlet

37 2319867 Tube, Filter

Inlet

REFRIGERATOR LINER PARTS

For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00

(White) (Black) (Stainless Steel) (Monochromatic Stainless)

W10218231

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2223524 Escutcheon, Meat

Pan Control

3 2223339 Slide, Meat

Pan Control

4 1118894 Switch, Rocker

Arm

5 2188820 Thermistor

6 2223456 Ladder, Shelf (2)

7 2301234 Housing, Door

Control

8 489084 Screw

9 2301235 Slide, Door

Control

10 2171846 Release Valve

11 2179404K Rack, Wine & Egg

12 2317105 Cover, Thermistor

13 489478 Screw

14 2304597 Gasket,

Air Baffle

15 2223403 Cover,

Air Baffle

16 2224076 Air Diffuser

Assembly

W10185224

Air Baffle

18 2162085 Socket

19 2307107 Reservoir

20 2205813 Strap

W10194422

Light Bulb

22 2223663 Light Lens

23 488280 Screw

REFRIGERATOR SHELF PARTS

For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00

(White) (Black) (Stainless Steel) (Monochromatic Stainless)

W10218231

Illus. Part

No. No. DESCRIPTION

1 2224061 Shelf Assembly,

Cantilever (2)

2 2301025 Button, Humidity

3 2301026 Slide, Humidity

4 2301117 Gasket, Side (2)

5 2203027 Cover, Meat Pan

(Includes Items

13, 14, 15 & 20)

W10165556

Snack Pan

7 Glide Assembly,

Crisper Pan

2301548 Right Side

2301549 Left Side

8 2301001 Window,

Crisper Pan

9 2301567 Cover, Crisper

(Includes 2,

3, 4, 11, 12,

13, 14 & 19)

10 2301028 Glass, Cover

11 2301116 Gasket (Front)

12 2301115 Gasket (Rear)

13 2174478 Eyelet, Roller

14 2188212 Roller

15 489211 Screw

W10165599

Crisper Pan

17 2223790 Meat Pan

(Includes 13,

14, 19 & 22)

18 Glide Assembly,

Snack Pan

2301550 Right Side

2301551 Left Side

19 489261 Screw

20 2223487 Deflector

21 Support Assembly

2301569 Right Side

2301570 Left Side

22 2203031 Handle

25 2196485 Stud Assembly

26 2301566 Shelf, Snack Pan

27 3400894 Screw

28 2196483 Stud Assembly

29 8281158 Screw

30 2301006 Window, Snack Pan

31 Cap, Snack Pan

2301016 Right Side

2301017 Left Side

FREEZER LINER PARTS

For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00

(White) (Black) (Stainless Steel) (Monochromatic Stainless)

W10218231

FREEZER LINER PARTS

For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00

(White) (Black) (Stainless Steel) (Monochromatic Stainless)

W10218231

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 2223777 Spacer, Slide (2)

4 2196483 Stud Assembly

5 2223691 Basket, Deep (2)

6 8281158 Screw

7 2223500 Shelf Assembly,

Cantilever (2)

8 2224053 Front, Basket

9 Shelf Track

2223787 Right Side

2223788 Left Side

10 2254615 Shelf, Fixed

11 2223694 Basket, Lower

12 842534 Clip, Air Duct

13 Glide Assembly,

Basket (2)

2301544 Right Side

2301545 Left Side

14 2259487 Cover, Emitter

15 8534064 Screw

16 2198635 Spring

17 2198634 Pin

18 2198665 Tube, P.C. Board

19 1115373 Switch, Rocker Arm

W10193840

P.C. Board

Emitter

W10185438

Cover, Ice Maker

22 Slide, Ice Maker

Mounting

2212321 Right Side

2306900 Left Side

23 489478 Screw

24 489214 Screw

25 2162085 Light Socket

W10194422

Light Bulb

27 8281185 Screw

28 2198633 Flipper

W10173569

Cover, Receiver

30 2315398 Slide, Ice Maker

Shut Off

W10193666

P.C. Board,

Receiver

32 2198643 Lens

33 2198589 Light Shield

34 2212340 Light Lens

35 2198641 Bracket, Ice Maker

Cover

36 2155597 Socket, Light

37 3400893 Screw

38 Ladder

2223414 Left Side

2223415 Right Side

39 2303378 Shield, Wiring

MOTOR AND ICE CONTAINER PARTS

For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00

(White) (Black) (Stainless Steel) (Monochromatic Stainless)

W10218231

MOTOR AND ICE CONTAINER PARTS

For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00

(White) (Black) (Stainless Steel) (Monochromatic Stainless)

W10218231

Illus. Part

No. No. DESCRIPTION

1 2223317 Ice Bin

2 2317256 Crusher Bin

3 2317240 Auger

4 2258220 Washer

5 1119007 Spacer, Flat (4)

6 2317248 Cover, Crusher

7 2257024 Blade, Rotary

8 1119005 Spacer, Step (2)

9 2257020 Blade, Fixed

10 2257023 Blade, Rotary

11 2317239 Block, Blade

12 489229 Roll Pin

13 2257022 Blade, Rotary

14 489235 Washer, Plain

15 2198661 Washer, Coupling

16 2188918 Coupling

17 8281164 Screw

18 3400065 Screw

19 2317243 Wiper

20 2317277 Latch, Bin

21 2198608 Spring, Latch

22 2317250 Divider, Chamber

23 8281163 Screw

24 2188919 Holder

25 2198628 Seal

26 2188916 Drive Shaft

27 2322488 Enclosure, Motor

28 2322580 Dispenser, Motor

29 2212305 Cover

30 2315559 Sleeve, Coupling

W10193340

Wire Harness,

IDI Motor

100 2317268 Ice Container

(Complete)

REFRIGERATOR DOOR PARTS

For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00

(White) (Black) (Stainless Steel) (Monochromatic Stainless)

W10218231

REFRIGERATOR DOOR PARTS

For Models: KSCK25FVWH00, KSCK25FVBL00, KSCK25FVSS00, KSCK25FVMS00

(White) (Black) (Stainless Steel) (Monochromatic Stainless)

W10218231

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes #7)

W10128340

White

W10128342

Black

2307198S Stainless Steel

2307198SAP

Monochromatic

Stainless

2 2203087K Trim, Shelf

3 2255421 Dairy Door

4 2223883 Caddy, Can

6 2219698 Stud, Handle

7 Door Gasket,

Magnetic

2223326 Mist Beige

2223909 Black

2326341 Apollo Grey

8 Handle

(Includes #9)

2319727W White

2319727B Black

2319727S Stainless Steel

9 Screw

W10010140

Chrome

W10010150

Black

10 2223879 Dairy Compartment

11 488208 Screw

12 2307048 Door Closer,

Upper Cam

13 Thimble, Top

2308050 For White, Black,

Biscuit, and

Monochromatic

Stainless Models

2308091 For Stainless

Steel Model

14 489420 Screw

15 Bracket, Door Stop

2306940 Chrome

2306940B Black

16 2223860 Door Bin (3)

17 3400012 Screw

18 2224173 Door Bin,

Shallow

19 Nameplate

W10046670

White

W10046640

Black

W10046610

Gray

20 2156006K Plug, Trim
