Assembly instructions

501910200330_INST_GB_Sbs.qxp 20-11-2007 15:21 Pagina 1

501910200330_INST_GB_Sbs.qxp 20-11-2007 15:21 Pagina 2

Water connection 4

Electrical connection 4

Refrigerator levelling 5

Installation dimensions and requirements 6

Removing the freezer door (A) 7

Removing the refrigerator door (B) 7

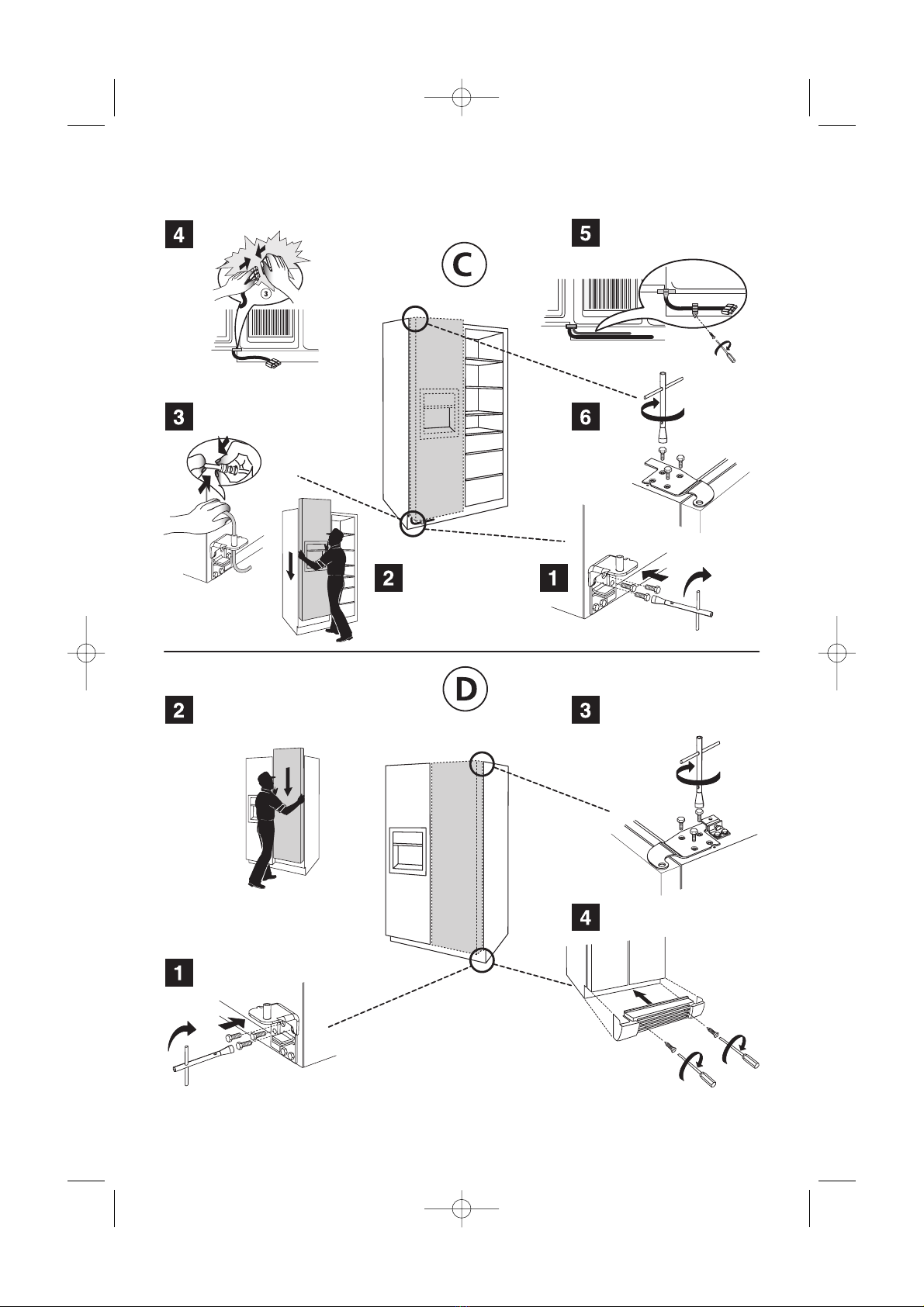

Fitting the freezer door (C) 8

Fitting the refrigerator door (D) 8

Horizontal alignment of freezer and refrigerator door (E) 9

Vertical alignment of freezer and refrigerator door (F) 9

501910200330_INST_GB_Sbs.qxp 20-11-2007 15:21 Pagina 3

Earthing of the appliance is compulsory by law.

The type of current and the mains voltage to which

the appliance is connected must correspond to that

given on the rating plate.

The connection socket must be accessible even

after installation, so that the appliance can be

unplugged if necessary.

If this is not possible, connect the appliance to the

mains by means of a two-pole switch, with contact

opening distance of at least 3mm, located in an

accessible place.

If the power cable plug and socket are not of the

same type, replace the socket.

Do not pull the power cable when unplugging the

appliance.

Electrical connection

Disconnect your refrigerator from the power

supply before starting the operation.

•Make sure to comply with the current local

regulations regarding connection to the water

system.

•The appliance is supplied with a water pipe

(2.330 m. long) already connected to the back

of the product.

•Remove the packing tape from the grey coiled

water pipe on the back of the product.

•Connect the transition connector (I) to the

household water supply (2).

•Make sure the water pipe is not twisted.

•Open the water tap and check for and eliminate

any leaks.

•The appliance does not require adjustments or

a water drain.

Water connection

501910200330_INST_GB_Sbs.qxp 20-11-2007 15:21 Pagina 4

The refrigerator has two front and two rear

wheels, located on each side at the bottom of

the appliance, that can be adjusted (see figure

A), or four wheels, of which only the two

front ones are adjustable (see figure B).

If the appliance seems unsteady or you want

the doors to close more easily, it is advisable

to adjust the inclination of the appliance

following the instructions given below

(depending on the model, as shown in the

figures opposite).

1. Check the installation position in order to

guarantee a space of at least 1 cm on all sides

including the top.

2. Connect the appliance to the power supply.

3. Move the refrigerator into its final position.

4. Open both doors and remove the kickplate to

access the levelling screws on the left and right

of the refrigerator base. The top screw (I)

adjusts the rear wheel, if present, whereas the

bottom screw (2) adjusts the front wheel.

5. Use the wrench provided to adjust the levelling

screws. Turn clockwise to raise the appliance,

or anticlockwise to lower it. The levelling

screws may have to be turned several times to

adjust refrigerator inclination.

Note: Do not unscrew the levelling screws too

much when lowering the appliance, otherwise

they could come out.

Aligning the doors:

If, after switching on the appliance and adjusting

the refrigerator and freezer doors, the doors are

misaligned, disconnect the appliance from the

power supply and adjust them as indicated in the

attached diagram.

Figure A

Figure B

Refrigerator levelling

501910200330_INST_GB_Sbs.qxp 20-11-2007 15:21 Pagina 5

501910200330_INST_GB_Sbs.qxp 20-11-2007 15:21 Pagina 6

501910200330_INST_GB_Sbs.qxp 20-11-2007 15:21 Pagina 7

501910200330_INST_GB_Sbs.qxp 20-11-2007 15:21 Pagina 8

501910200330_INST_GB_Sbs.qxp 20-11-2007 15:21 Pagina 9

501910200330_INST_GB_Sbs.qxp 20-11-2007 15:21 Pagina 10
