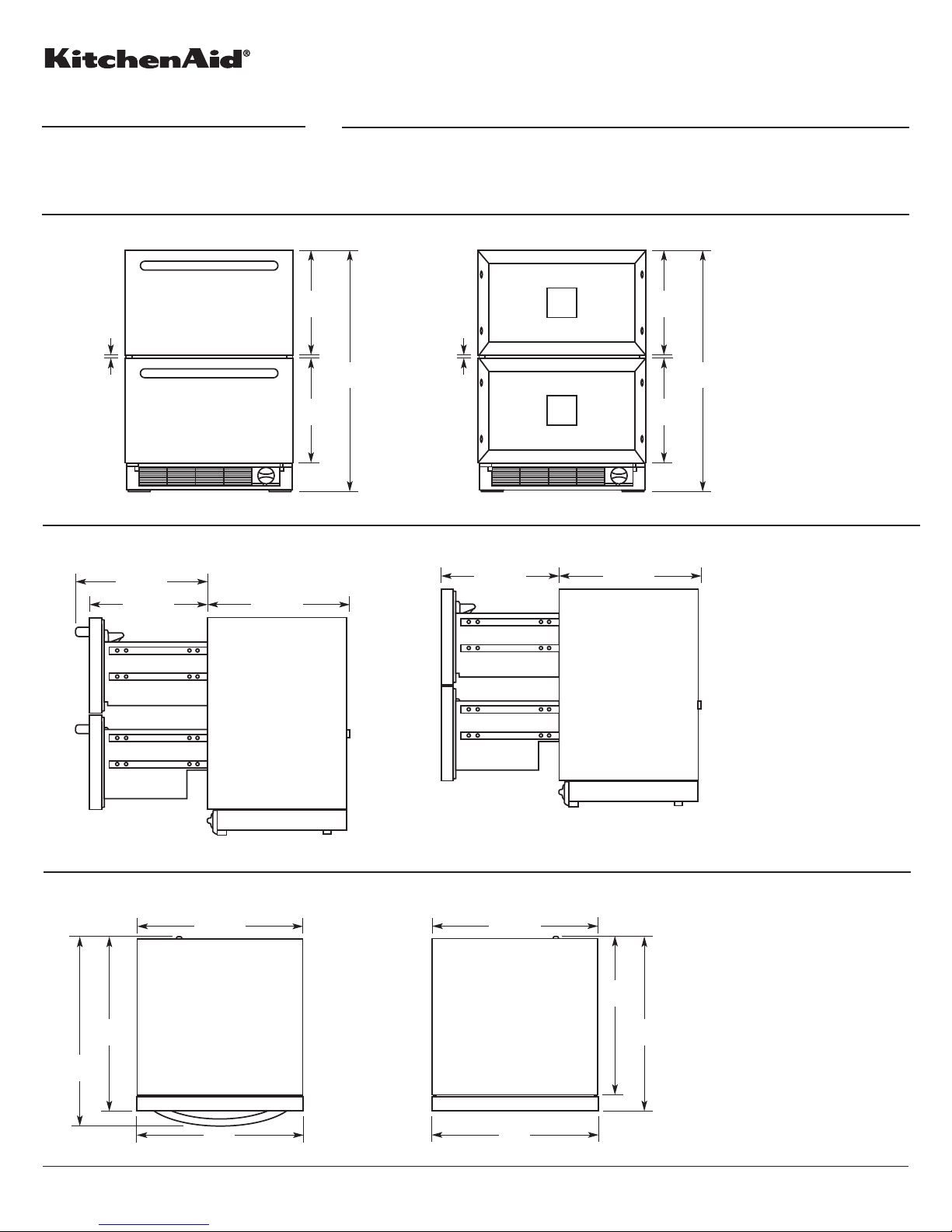

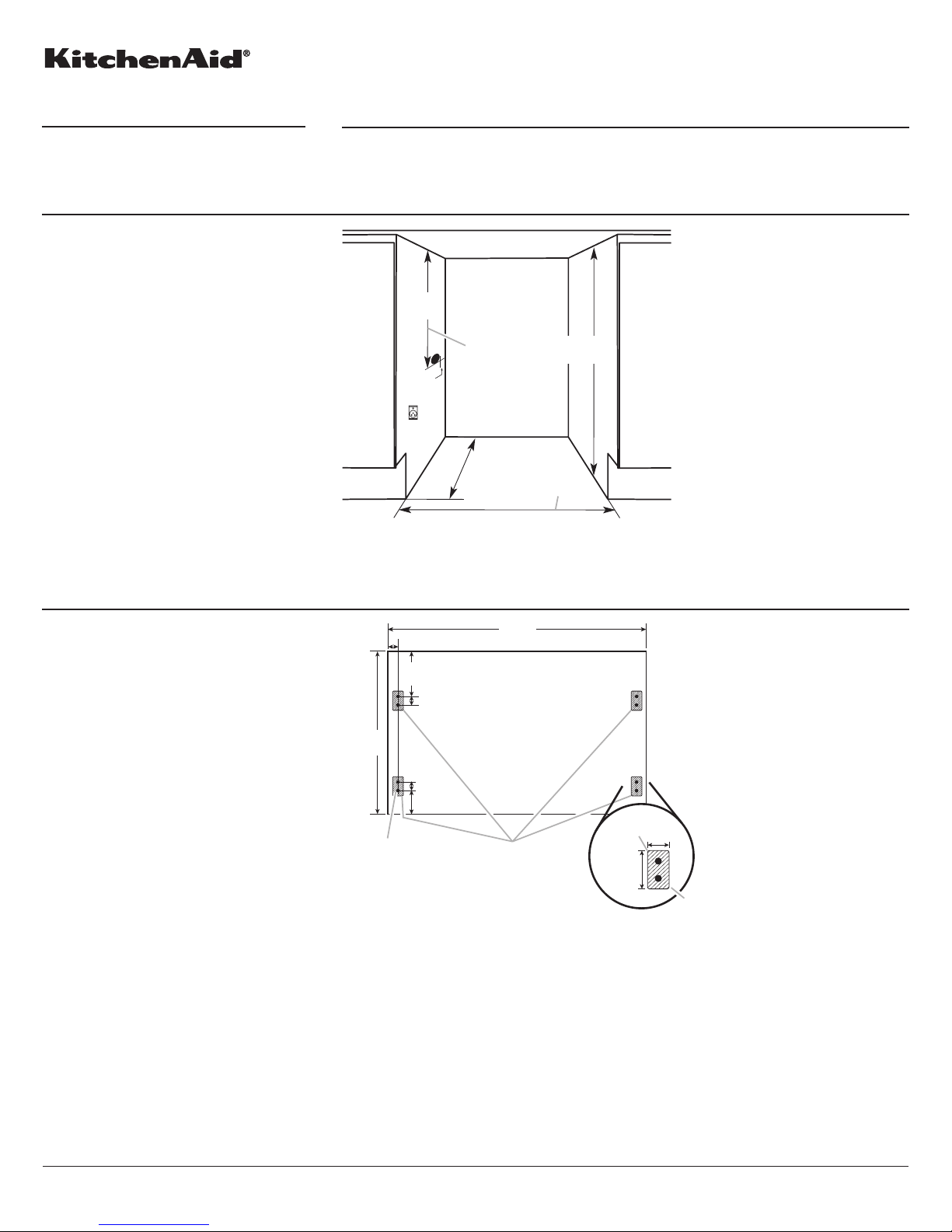

Double Refrigerator Drawers, Refrigerator/Freezer Drawers

and Double Freezer Drawers

PRODUCT MODEL NUMBERS

PRODUCT DIMENSIONS

DRAWER OPENING DIMENSIONS

KDDC24 KDDO24 115-Volt, 60-Hz, AC-only 15- or 20-amp fused, grounded electrical supply is required. It is

recommended that a separate circuit serving only your refrigerator drawers be provided. Use an

outlet that cannot be turned off by a switch. Do not use an extension cord.

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice. Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice. Ref. W10310148A

3/18/10

Style 1: Architect®Series Style 2: Overlay

14⁷⁄₈"

(37.8 cm)

14⁷⁄₈"

(37.8 cm)

34¹⁄₈"

(86.7 cm)

³⁄₈"

(1.0 cm)

14⁷⁄₈"

(37.8 cm)

14⁷⁄₈"

(37.8 cm)

34¹⁄₈"

(86.7 cm)

³⁄₈"

(1.0 cm)

■Height dimensions are shown

with the leveling legs extended

to the minimum height of ¹⁄₄"

(6.35 mm) below the

refrigerator drawers.

■When leveling legs are fully

extended to 1" (25 mm) below

the refrigerator drawers, add

³⁄₄" (19.05 mm) to the height

dimensions.

■The power cord is 60"

(152.4 cm) long.

Page 1 of 2

ELECTRICAL REQUIREMENTS

Style 1: Architect®Series

18⁹⁄₁₆"

(47.2 cm)

22¹⁄₂"

(57.2 cm)

20⁷⁄₈"

(53.0 cm)

Style 2: Overlay

17¹⁄₄"

(43.8 cm)

22¹⁄₂"

(57.2 cm)

DRAWER WIDTH DIMENSIONS

Style 1: Architect®Series Style 2: Overlay

23⁵⁄₈"

(60.0 cm)

23³⁄₄"

(60.4 cm)

24³⁄₄"

(60.4 cm)

27"

(68.6 cm)

23⁵⁄₈"

(60.0 cm)

23³⁄₄"

(60.4 cm)

22¹⁄₂"

(57.1 cm)

24¹⁄₈"

(61.2 cm)

Double Refrigerator Drawers, Refrigerator/Freezer Drawers

and Double Freezer Drawers

PRODUCT MODEL NUMBERS

KDDC24 KDDO24 115-Volt, 60-Hz, AC-only 15- or 20-amp fused, grounded electrical supply is required. It is

recommended that a separate circuit serving only your refrigerator drawers be provided. Use an

outlet that cannot be turned off by a switch. Do not use an extension cord.

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice. Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice. Ref. W10310148A

3/18/10

Page 2 of 2

ELECTRICAL REQUIREMENTS

OPENING DIMENSIONS (Both Styles)

■Height dimensions are shown with the leveling

legs extended to the minimum height of 1/4"

(6.35 mm) below the refrigerator drawers.

NOTE: When leveling legs are fully extended to

1" (25 mm) below the refrigerator drawers, add

3/4" (19.05 mm) to the height dimensions.

See “Product Dimensions.”

Critical Dimensions:

A. 14

³⁄₄

" (37.5 cm) utility opening

B. 24" (60.96 cm) minimum opening width

¹⁄₂"

(1.3 cm)

14³⁄₄"

(37.5 cm)

24"

(60.96 cm)

min.

24" (60.96 cm) min.

34³⁄₈" (87.3 cm) min.

35" (88.9 cm) max.

TOP AND BOTTOM OVERLAY DRAWER PANEL DIMENSIONS

■The thickness of the overlay panels must be ³⁄₄"

(19.05 mm).

■Each overlay panel must not weigh more than

10 lbs (4.5 kg).

■Do not exceed the height dimension for the overlay

panels.

■The width of the overlay panels may vary according

to the width of the cabinet opening.

A. Overlay hook locations

B. Route

¹⁄₈

" deep

Reverse Side

23⁵⁄₈"

(60.0 cm)

14⁷⁄₈"

(37.8 cm)

¹⁵⁄₁₆" (2.4 cm)

4¹⁄₈"

(10.5 cm)

¹³⁄₁₆"

(2.1 cm)

2³⁄₁₆"

(5.6 cm)

¹³⁄₁₆"

(2.1 cm)

¹⁵⁄₁₆"

(2.4 cm)

1³⁄₄"

(4.4 cm)

R ¹⁄₁₆"

(1.6 mm)

min.

Pilot Holes

¹⁄₁₆" (1.6 mm) diameter x

³⁄₈" (9.5 mm) deep

8 places
