KitchenAid KBRS19KT Guide de l'utilisateur

Bottom Mount Refrigerator

PRODUCT MODEL NUMBERS OVERALL DIMENSIONS

LOCATION REQUIREMENTS

KBLS19KT

KBLS20ET

KBLS22ET

KBLS22KT

KBRS19KT

KBRS20ET

KBRS22ET

KBRS22KT

Electrical: A 115 Volt, 60 Hz., AC only 15 or 20

amp fused, grounded electrical supply is required.

It is recommended that a separate circuit serving

only your refrigerator be provided. Use an outlet

that cannot be turned off by a switch. Do not use

an extension cord.

Water: Connect the ice maker to a cold water line

with water pressure between 35 and 100 psi

(241-689 kPa).

If a reverse osmosis water filtration system is

connected to your cold water supply, the water

pressure to the system needs to be a minimum of

approximately 40 to 60 psi (276-414 kPa).

IMPORTANT: The pressure of the water coming

out of a reverse osmosis system going to the

water inlet valve of the refrigerator needs to be

between 35 and 100 psi (241-689 kPa).

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Ref. 12828153

07-17-07

2¹⁄₈" (5.4 cm)

¹⁄₂" (1.25 cm)

Depth Cab. Width Cab. Height Overall Height

Model # "A" "B" "C" "D"

KBLS19KT 30 7/8" 29 5/8" 65 1/2" 66 3/4"

KBLS20ET 26 7/8" 35 5/8" 68 1/2" 69 3/4"

KBLS22ET 30 7/8" 32 5/8" 68 1/2" 69 3/4"

KBLS22KT 30 7/8" 32 5/8" 68 1/2" 69 3/4"

KBRS19KT 30 7/8" 29 5/8" 65 1/2" 66 3/4"

KBRS20ET 26 7/8" 35 5/8" 68 1/2" 69 3/4"

KBRS22ET 30 7/8" 32 5/8" 68 1/2" 69 3/4"

KBRS22KT 30 7/8" 32 5/8" 68 1/2" 69 3/4"

To ensure proper ventilation for your refrigerator, allow for 1⁄2" (1.25 cm) space on

each side, at the top and behind the refrigerator. When installing your refrigerator

next to a fixed wall, leave 2 1/8" (5.4 cm) minimum on the hinge side to allow for

the door to swing open. If your refrigerator has an ice maker, allow extra space at

the back for the water line connections.

NOTE: Do not install the refrigerator near an oven, radiator, or other heat source, nor

in a location where the temperature will fall below 55°F (13°C).

overall

top of

cabinet

not incl.

handle

Ce manuel convient aux modèles suivants

Autres manuels KitchenAid Réfrigérateur

KitchenAid

KitchenAid 2000493 Manuel utilisateur

KitchenAid

KitchenAid KSBS25INSS - 24.5 cu. Ft. Side Manuel utilisateur

KitchenAid

KitchenAid KSRS25QGAL05 Guide de dépannage

KitchenAid

KitchenAid KSCS25INWH01 Manuel utilisateur

KitchenAid

KitchenAid KSSC48FTS00 Manuel utilisateur

KitchenAid

KitchenAid KBSD602E Manuel utilisateur

KitchenAid

KitchenAid KFIS29BBMS03 Manuel utilisateur

KitchenAid

KitchenAid KSSS42DWW01 Manuel utilisateur

KitchenAid

KitchenAid JUD248CCRS00 Manuel utilisateur

KitchenAid

KitchenAid KSRV22FVBL - Architect II Series 21.6 Cub Manuel utilisateur

KitchenAid

KitchenAid WF-LC400V Manuel utilisateur

KitchenAid

KitchenAid KSRG22FTBL - Architect Series II: 21.8 cu. ft.... Manuel utilisateur

KitchenAid

KitchenAid KSF26C6XYY Instructions de montage

KitchenAid

KitchenAid KSRG25FVMS Manuel utilisateur

KitchenAid

KitchenAid KSSC42FMS02 Manuel utilisateur

KitchenAid

KitchenAid KSSO48FMX00 Manuel utilisateur

KitchenAid

KitchenAid KSSC48FMS02 Manuel utilisateur

KitchenAid

KitchenAid KSRS25IKBL03 Manuel utilisateur

KitchenAid

KitchenAid KSSC36FMS Manuel utilisateur

KitchenAid

KitchenAid KSC24C8EYB Manuel d'utilisation et d'entretien

KitchenAid

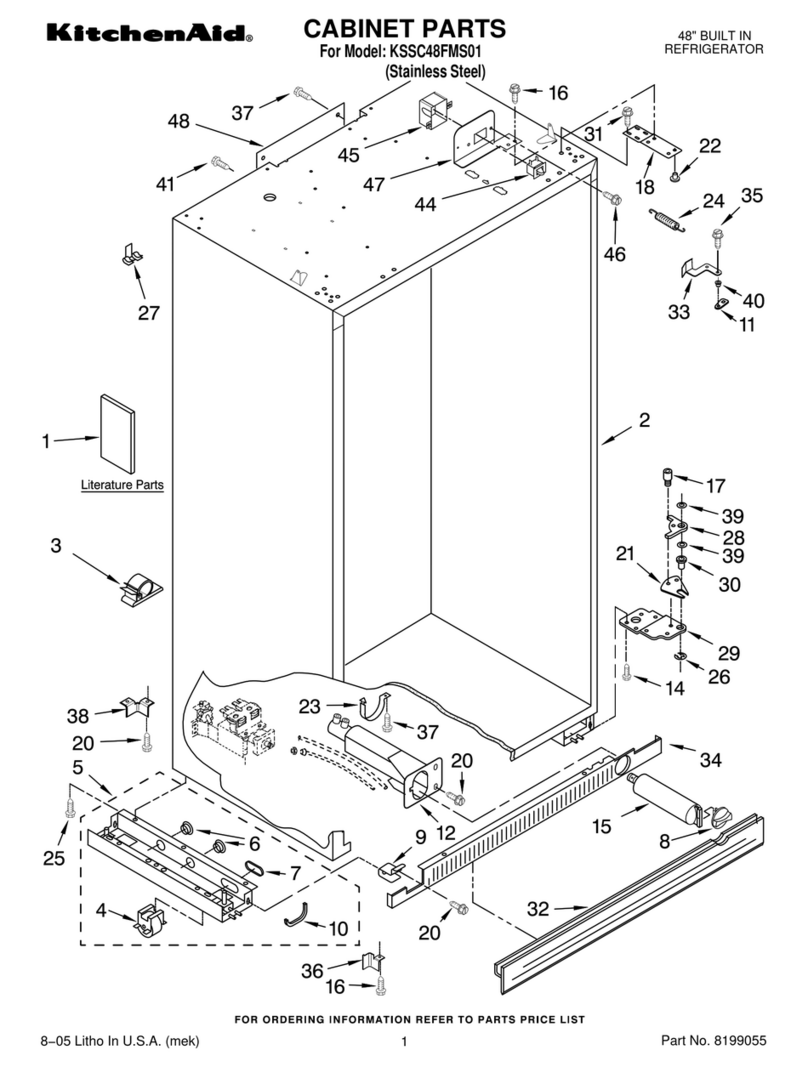

KitchenAid KSSC48FMS01 Manuel utilisateur
