KitchenAid KBFS25EVBL - 24.8 cu. ft. Refrigerator Manuel utilisateur

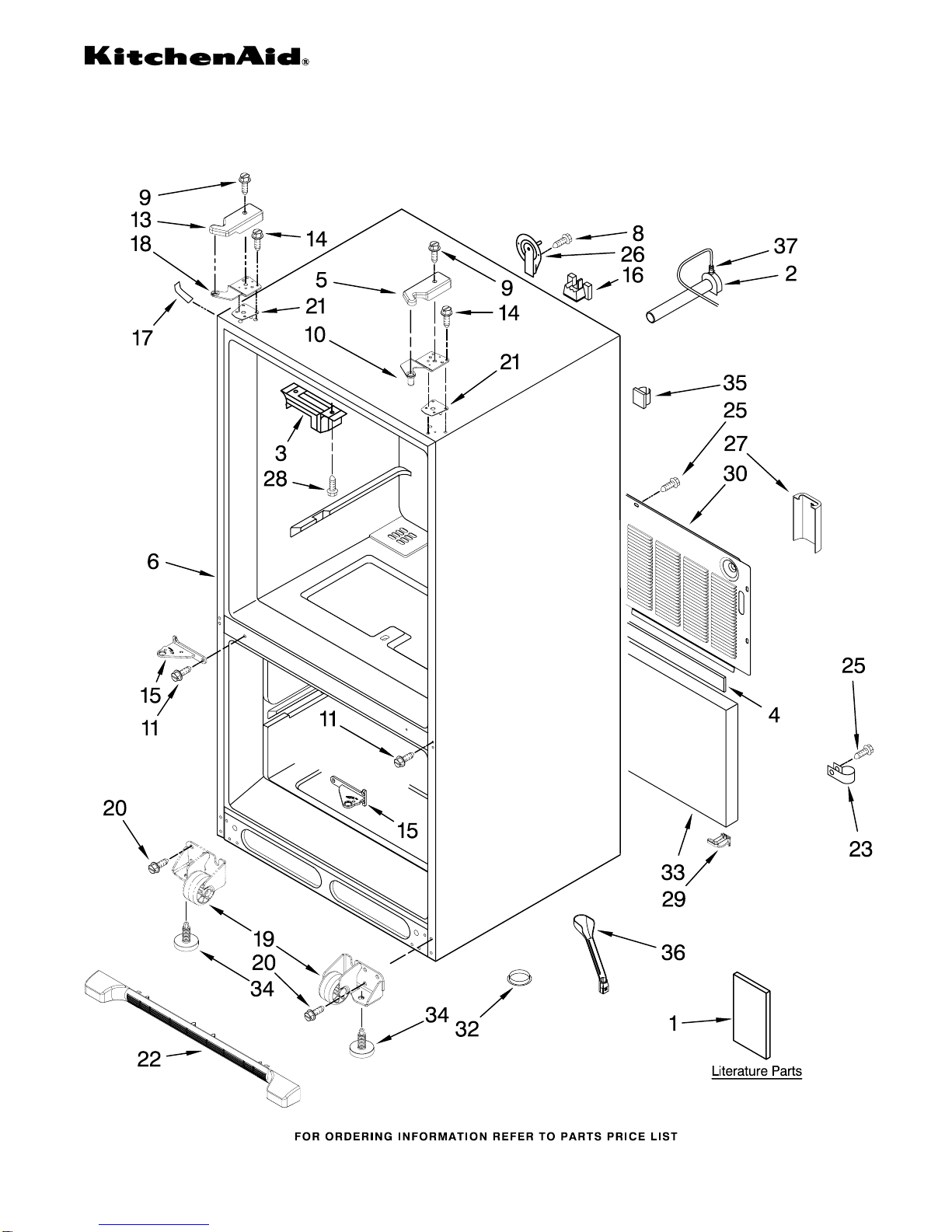

CABINET PARTS
1
For Models: KBFS25EVWH2, KBFS25EVBL2
(White) (Black)
5−10 Litho In U.S.A. (rrm)(bay) Part No. W10304454 Rev.B
REFRIGERATOR
CABINET PARTS
2
For Models: KBFS25EVWH2, KBFS25EVBL2
(White) (Black)
W10304454
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10279334
Tech Sheet
W10187309
Owners Manual
W10187812
Energy Guide
2
10463203SP
Elbow, Fill Tube
3 12698403 Block, Pivot
4 B5759649 Gasket
5 Cover, Right Hinge
12629801W
White
12629801B
Black
6 Cabinet (Not A
Serviceable Part)
8 12990504 Screw
9 12992602 Screw
10
12566604ED
Hinge, Top Right
11 12992201 Screw (6)
13 Cover, Left Hinge
W10217484
White
W10217485
Black
14 12992403 Screw (6)
15 Hinge, Center
12655102WD
White
12655103ED
Black
16 12777701 Block, Fill Tube
17 Cover, Corner (2)
12587703W
White
12587703B
Black
18
12566605ED
Hinge, Top Left
19 Roller Assembly
W10275850
Left
W10275849
Right
20 12991302 Screw (8)
21 12579702 Shim, Hinge
22 Grille, Toe
W10244559
White
W10244561
Black
23 M0108105 Clamp, Tube
25 12990511 Screw (10)
26 12726003 Cover, Water Line
27
W10208593
Guard, Water Valve
28 12990303 Screw (2)
29 12831101 Sweep, Dual Tube
30
W10211855
Cover, Unit
32 A3076901 Plug, Button
33 12820505 Insulation, Sound
34 10354002 Brake, Foot
35 M0104106 Clip (2)
36
W10210988
Tube, Drain
37
M0114003SP
Clip

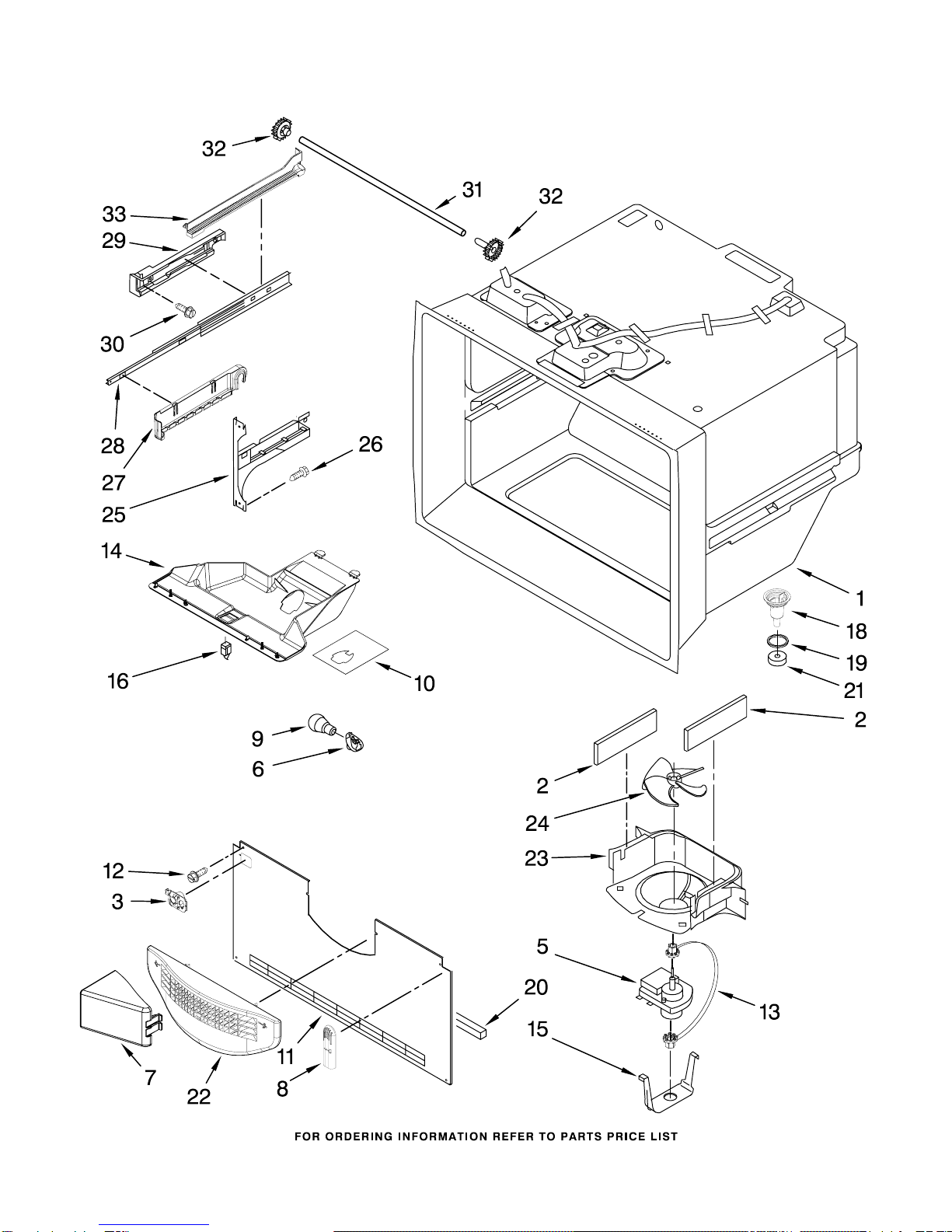

FREEZER LINER PARTS
3
For Models: KBFS25EVWH2, KBFS25EVBL2
(White) (Black)
W10304454
FREEZER LINER PARTS
4
For Models: KBFS25EVWH2, KBFS25EVBL2
(White) (Black)
W10304454
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 A3189392 Gasket, Foam
3 12932103 Guide, Fill Tube
5 13062901 Motor, Evaporator
6
12570701V
Socket, Light
7
W10157765
Diverter, Air
8 12815301 Cover, Thermistor
9
W10194422V
Bulb, Light
10
W10277466
Foil, Housing
11 12226112 Cover, Evaporator
12 12990511 Screw (4)
13
W10150583
Grommet
14
W10277025
Module, Light
15 13058002 Clip, Evap Motor
16 12466105 Switch, Light
18 D7753903 Funnel, Drain
19 M0500703 Seal
20 A3189396 Gasket, Bottom
21 B8381501 Gasket
22 13024803 Grille, Fz Air
23 13057901 Shroud, Evap Fan
24 2169142 Blade, Fan
(Evaporator)
25 Bracket, Door
W10122147
Left
W10122148
Right
26 12990521 Screw (8)
27 Cradle, Basket
W10280608
Left
W10280613
Right
28
W10120018
Slide, Drawer (2)
29 Adapter, Slide
W10149390
Left
W10149391
Right
30 12990501 Screw (6)
31
12812903WD
Shaft
32 12002497 Gear
33 Rack, Side
W10284694
LH
W10284695
RH
(Includes RH & LH)

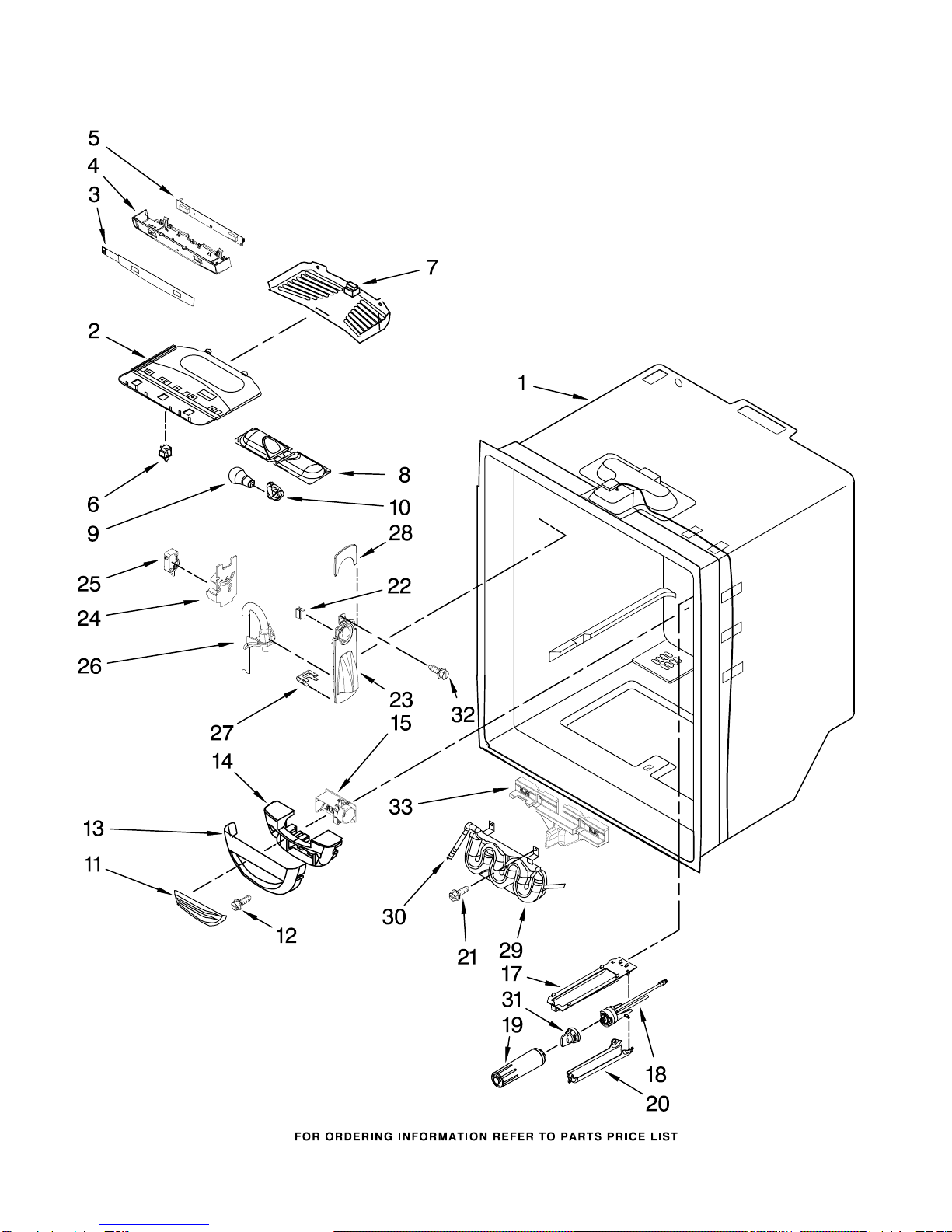

REFRIGERATOR LINER PARTS
5
For Models: KBFS25EVWH2, KBFS25EVBL2
(White) (Black)
W10304454
REFRIGERATOR LINER PARTS
6
For Models: KBFS25EVWH2, KBFS25EVBL2
(White) (Black)
W10304454
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 12806302 Module, Light
3
W10217739
Overlay
4 12806405 Housing, Control
5
W10217475
Board, Control
6
C3680310V
Switch, Light (2)
7 12806501 Cover, Light
8
12806601V
Housing, Light
9
W10194422V
Bulb, Light (2)
10
12570701V
Socket, Light (2)
11 12806801 Insert,
Damper Cover
12 12990604 Screw
13 12806701 Cover, Damper
14 13012402 Insulation
15
W10207517
Control, Damper
17 12704801 Plate
18 12590620 Head, Water Filter
19
UKF8001AXX
Filter, Water
20 12568001 Cover, Filter
21 12990512 Screw (2)
22
B8390302SP
Clip, Facade (2)
23
12706909SP
Facade, Disp.
24
12707303SP
Plate, Switch
25 12575501 Switch, Limit
26
12707206SP
Guide, Waterline
27
12251001SP
Clip, Waterline
28 12707005 Facade, Disp (Top)
29 12706112 Tank, Water
30 61006182 Union
31 61003146 Plug, Bypass
32 12990513 Screw
33
W10117358
Insulation, Water
Tank
Following Parts Not Illustrated
W10224292
Harness, Control
(Refrigerator)
(Includes
Thermistor)

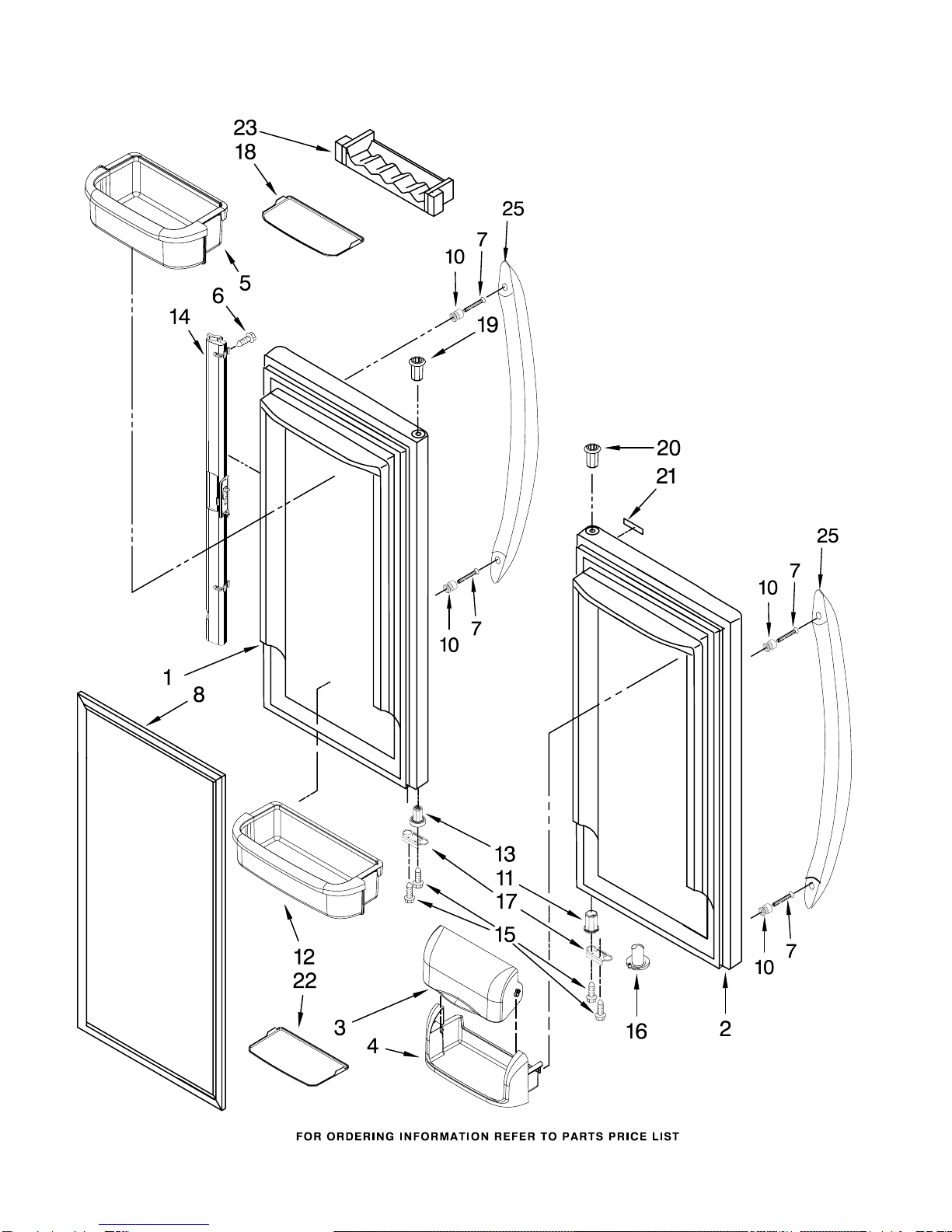

REFRIGERATOR DOOR PARTS
7
For Models: KBFS25EVWH2, KBFS25EVBL2
(White) (Black)
W10304454
REFRIGERATOR DOOR PARTS
8
For Models: KBFS25EVWH2, KBFS25EVBL2
(White) (Black)
W10304454
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Door, Left
13024048WQ
White
13024048BQ
Black
2 Door, Right
13024047WQ
White
13024047BQ
Black
3
12804701SP
Door, Dairy
4
12369502SP
Tray, Dairy
5 12699215 Bucket, Medium
6 12990204 Screw
7 3196181 Screw, Mount
8 Gasket, Door (2)
W10163894
White
W10163895
Black
10 12691403 Mount, Handle
11 Bushing, Door
(Bottom Right)
12028601W
White
12028601B
Black
12
12699210SP
Bucket, Gallon
13 Bushing, Door
(Bottom Left)
12699301W
White
12699301B
Black
14 Mullion, Door
12722803W
White
12722803B
Black
15 12990504 Screw
16 Closure, Door
12028505W
White
12028505B
Black
17 Stop, Door
10447111 White
10447112 Black
18
12567321SP
Mat, Medium
19 Bushing, Door
(Upper Left)
12395501W
White
12395501B
Black
20 Bushing, Door
(Upper Right)
10961006W
White
10961006B
Black
21 Nameplate
W10046670
White
W10046640
Black
22
12567320SP
Mat, Gallon
23 12690102 Caddy, Can
25 Handle, Door
W10119642
White
W10119643
Black

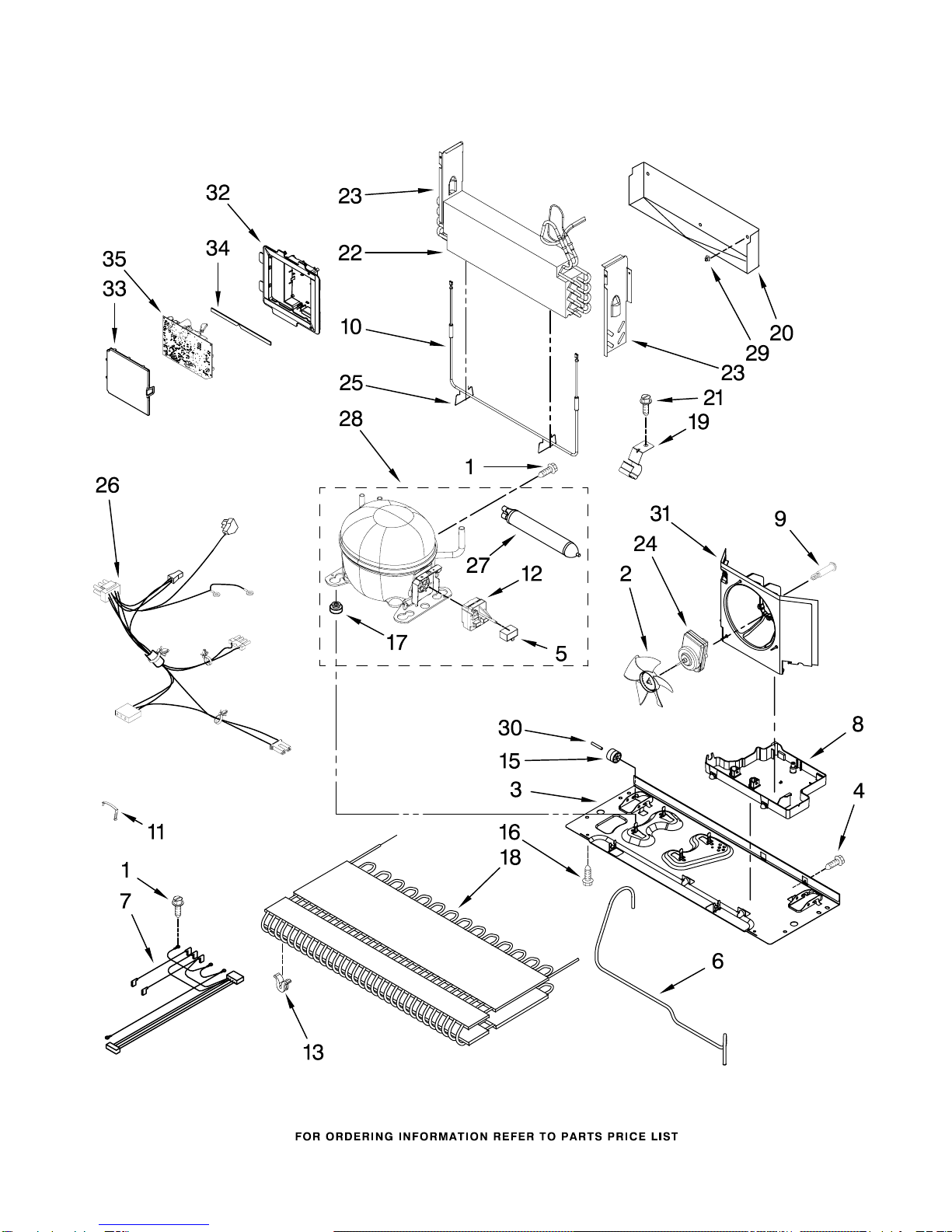

UNIT PARTS
9
For Models: KBFS25EVWH2, KBFS25EVBL2
(White) (Black)
W10304454
UNIT PARTS
10
For Models: KBFS25EVWH2, KBFS25EVBL2
(White) (Black)
W10304454
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 12992301 Screw
2 12825803 Blade, Fan
3
W10210985
Basepan
4 12990511 Screw
5 2264017 Capacitor
6
W10217747
Tube, Discharge
7
W10224515
Harness, Evap.
Heater
8
W10296785
Pan, Drain
9
W10216919
Screw, Shoulder
10 12729129 Heater, Defrost
11
W10204187
Strap, Bale
12
W10197428
Start Device
13
W10137529
Grommet, Cond (4)
15 12477102 Roller (2)
16 12992101 Screw
17
10835903SP
Grommet (4)
18
W10135026
Condenser
19 10547003 Clip, Drier
20
12225403WD
Tray, Drip
21 12990701 Screw
22 12726403 Evaporator
23 Dam
12225702 Right Side
12225602 Left Side
24 12825101 Motor, Fan
25 10428101 Clip, Heater
26
W10234025
Harness, Unit
with Power Cord
27
W10143759
Drier
28
W10134623
Compressor
(Includes items
11,12,17,27)
29 10623002 Clip, Evaporator
30 12477202 Axle, Roller (2)
31
W10189184
Shroud
32
W10257665
Box, HV Control
33 12957702 Lid, HV Box
34 12957801 Gasket, HV Box
35
W10205552
Board, Control
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.25 Ozs.
(R−134A)
