KitchenAid KGSS907SBL01 Manuel utilisateur

30"FREESTANDINGGASOVENCONVECTION

MODELS:

KGSS907SBL01(Black)

KGSS907SWH01(White)

KGSS907SBT01(Biscuit)

KGSS907SSS01(Stainless)

07/31/2013PartNo.W10168525Rev.C

COOKTOPPARTS

07/31/20132PartNo.W10168525Rev.C

COOKTOPPARTS

Illus.

No.PartNo.Description

1LiteratureParts

W10118262InstallationInstructions

W10118261Use&CareGuide

W10112145Sheet,Tech(English)

W10112146Sheet,Tech(French)

9757680Instructions,Anti-Tip

9762761Tips,SafeCooking

(English)

9759133SaferCookingTips

(French)

9763467Guide,EasySet

2W10153103BurnerBox

39761784Frame,Cooktop

4Cooktop

W10106250Black

W10106270White

W10106260Biscuit

53196537Screw

6W10109920Gasket(Tape)

73400843Screw

Illus.

No.PartNo.Description

88286181BurnerHead,Auxiliary

(6K)

(RightFront&LeftRear)

8286182BurnerHead,Rapid

(12K)

(RightRear)

99763445Bracket,Burner

109756821Support,Wiring

119763436Cover,TopRear

12Grate,BurnerRight

9761555CBCoalBlack

9761555SDSatinCumberland

9761555SNSatinMoleskin

13Grate,BurnerLeft

9761556CBMatteBlack

9761556SDSatinCumberland

9761556SNSatinMoleskin

149759627Cover,CooktopRear

153196160Screw

169759944Thermostat,70C

Illus.

No.PartNo.Description

17Vent,Center

9760225BLBlack

9760225WHWhite

9760225BTBiscuit

18Grate,Insert

9761557CBMatteBlack

9761557SDSatinCumberland

9761557SNSatinMoleskin

19Cap,Burner6K

(RightFront&LeftRear)

8284669CoalBlack

9761562SDSatinCumberland

9761562SNSatinMoleskin

Cap,Burner12.5K

(RightRear)

9761563CBCoalBlack

9761563SDSatinCumberland

9761563SNSatinMoleskin

204449809Screw

07/31/20133PartNo.W10168525Rev.C

COOKTOPBURNERPARTS

07/31/20134PartNo.W10168525Rev.C

COOKTOPBURNERPARTS

Illus.

No.PartNo.Description

1W10128446Assembly,OriceHolder

(RightFront&LeftRear)

W10128455Assembly,OriceHolder

(RightRear)

29761069Tubing,Burner

(RightFront)

39761070Tubing,Burner

(RightRear)

4W10110378Ignitor,Orice

Illus.

No.PartNo.Description

59761068Tubing,Burner

(LeftRear)

69762937Orice,Spud

(RightFront&LeftRear)

9762938Orice,Spud

(RightRear)

74456816Valve,Gas(Small)

84456817Valve,Gas(Large)

94453754Tubing,GDSTo

Manifold

Illus.

No.PartNo.Description

109761648Tube,Manifold

119761641Manifold,TripleCrown

Burner

9761642Manifold,Cooktop

123196537Screw

138273062Screw

148523704Screw

07/31/20135PartNo.W10168525Rev.C

TOPVENTINGPARTS

07/31/20136PartNo.W10168525Rev.C

TOPVENTINGPARTS

Illus.

No.PartNo.Description

1W10118278Front,AirDuct

2W10068590Top,AirDuct(Right)

W10068600Top,AirDuct(Left)

39759320Blower,60MM

Illus.

No.PartNo.Description

44451758Block,Foam

54449040Screw

64449809Screw

79757829Bracket,Transformer

Illus.

No.PartNo.Description

8W10111628Transformer,Control

93196537Screw

07/31/20137PartNo.W10168525Rev.C

CONTROLPANELPARTS

07/31/20138PartNo.W10168525Rev.C

CONTROLPANELPARTS

Illus.

No.PartNo.Description

1ControlPanel

W10117036Black

W10117038White

W10117037Biscuit

W10156273Stainless

29761566Assembly,Glass

Touchpad

39762794Control,Interface

4W10105370Shield,ConsoleVent

53196537Screw

Illus.

No.PartNo.Description

69757409Support,GasValve

79761745Bracket,Thermostat

9Knob,Burner

(RightFront,RightRear,

LeftRear)

W10130373Black

W10130374White

W10130375Biscuit

W10156265Stainless

109758080Module,Spark

Illus.

No.PartNo.Description

11Knob,TripleCrown

Burner

(LeftFront)

W10130383Black

W10130384White

W10130385Biscuit

W10156262Stainless

129780271Screw

07/31/20139PartNo.W10168525Rev.C

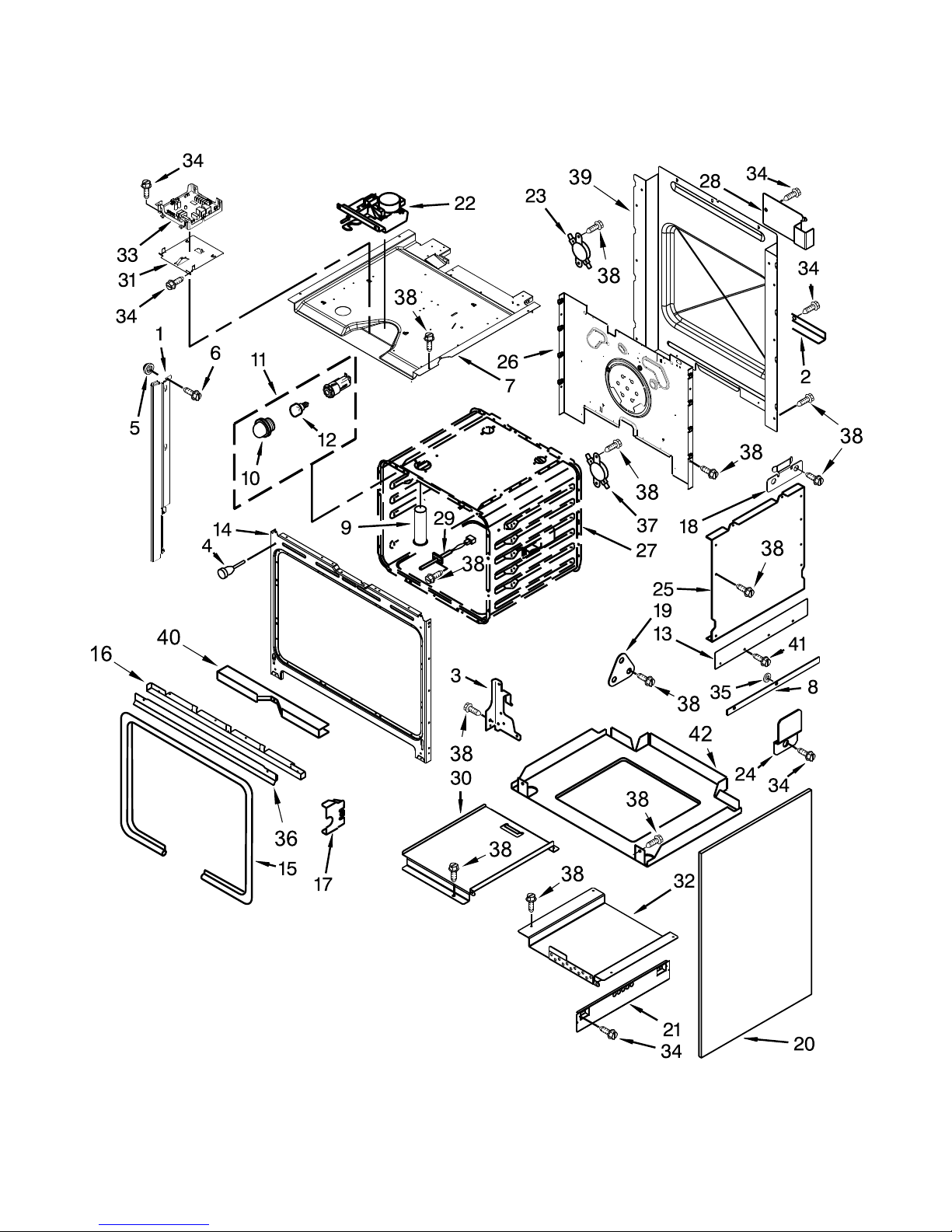

OVENPARTS

07/31/201310PartNo.W10168525Rev.C
