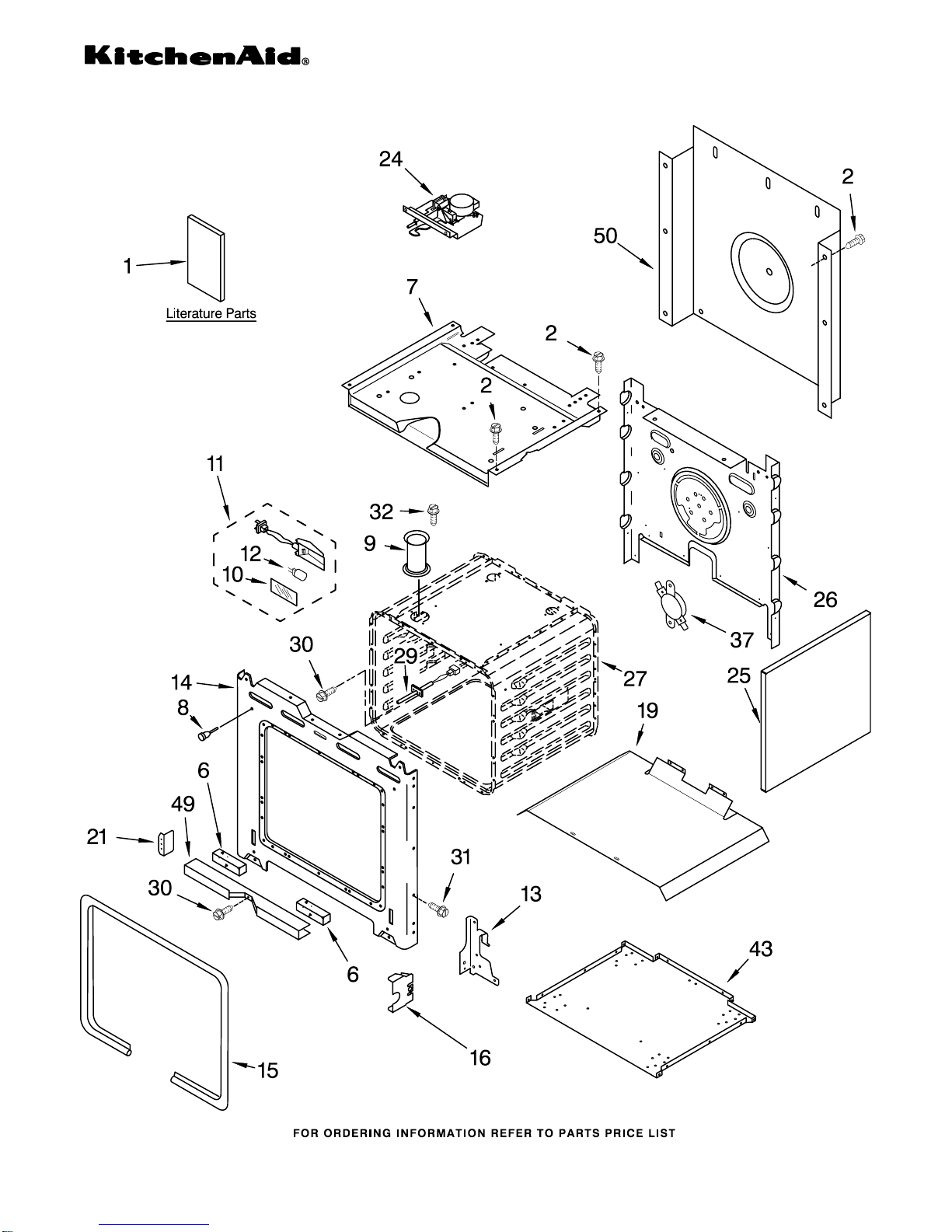

OVEN PARTS

For Model:KDRP467KSS04

(Stainless Steel)

5−07 Litho in U.S.A. (cre) Part No. 8186156

30" KITCHENAID

FREE STANDING RANGE

DUAL FUEL

OVEN PARTS

For Model:KDRP467KSS04

(Stainless Steel)

8186156

Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 Literature Parts

LIT8300988

Installation

Instructions

LIT4456611

Use & Care Guide

LIT4456556

Tech Sheet

LIT8301171

Conversion

Instructions

LIT3191638

Safer Cooking Tips

2 4449809 Screw, 8−18 x 3/8

6 4452260 Spacer, Foam

7 8301017 Top, Chassis

8 4448520 Bumper, Door

9 4452158 Tube, Vent

10 4452163 Lens, Light

11 4448972 Oven Light Assy

4449748 Screw

12 4452164 Bulb, Light

13 Hinge Receiver

4455605 Left Hand

4455606 Right Hand

14 8300150 Frame, Front

15 8300142 Gasket, Door

16 4452152 Bracket, Mounting

19 8300184 Support, Insulation

21 4455510 Bracket, Support

24 8302156 Latch, Motorized

25 4455641 Side, Chassis

26 8300193 Back, Chassis

27 Liner, Oven

(Not serviceable)

29 4455636 Sensor

30 4449154 Screw, 8−32 x .440

31 4449040 Screw, 8−18 x 3/8

32 3196176 Screw, 8−18 x 1/2

37 8300802 Thermostat (TOD)

(Temp.) SPST

43 8300965 Base, Chassis

49 4448933 Retainer, Gasket

50 4451747 Cover, Back

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

8300158 Insulation, Wrap

8300159 Insulation, Back

8300154 Insulation,

Bottom Vent

OVEN DOOR PARTS

For Model:KDRP467KSS04

(Stainless Steel)

8186156

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8300152 Door Liner

2 Hinge, Door

8300579 R.Side

8300580 L.Side

3 4449259 Glass, Inner

4 8300797 Insulation, Door

5 8300190 Retainer, Glass

7 4449263 Glass, Inner

8 4449743 Screw, 8−32 x 3/8

9 4451668 Retainer, Glass

12 8300172 Assy, Door Glass

13 4455852 Door Handle

14 Bracket, Handle

4455803 Right Hand

4455804 Left Hand

3400832 Screw

19 8300982 Shield, Heat

20 4449809 Screw, 8−18 x 3/8

21 8300153 Seal, Door Top

23 4451432 Retainer, Clip

3400832 Screw

24 3196184 Screw, 8−32 x .548

INTERNAL OVEN PARTS

For Model:KDRP467KSS04

(Stainless Steel)

8186156

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2 4456105 Element, Broil

4449154 Screw

3 3195996 Grill, Broiler

4 3196076 Pan, Broiler

5 3181534 Rack, Roasting

6 8300796 Rack, Oven

7 8300204 Element, Hidden

Bake

9 4451583 Motor, Convection

10 4452226 Blade, Fan

11 4448418 Cover, Fan

12 4452227 Nut

13 4452157 Element,

Convection

14 8300799 Tray, Hidden

Bake

15 8300800 Cover, Access

16 4449154 Screw, 8−32 x .440

17 4449809 Screw, 8−18 x 3/8

CONTROL PANEL PARTS

For Model:KDRP467KSS04

(Stainless Steel)

8186156

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8300208 Panel, Control

2 4453000 Bracket, Display

3 8300805 Bracket, Display

Mounting

4 3196537 Screw, 8−18 x 3/8

5 8300203 Control, Zodiac

6 4449746 Screw, 6−19 x 1

7 4452842 Switch, Rocker

8 4452999 Module, Display

9 2004333 Palnut

10 2005292 Nameplate

11 8300167 Face, Control

Panel

12 4455192 Bezel, Knob

13 4454970 Knob, Control

14 4455115 Knob, Temp/Time

15 4455141 Knob, Selector

16 4452998 Button, Cancel

17 4452997 Button, Enter

19 4455806 Glass, Display

20 3192439 Seal, Limiter

TOP VENTING PARTS

For Model:KDRP467KSS04

(Stainless Steel)

8186156

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4451759 Vent, Exhaust

2 4455178 Elbow, Vent−Top

3 8300223 Blower 60MM

4449809 Screw (4)

3400015 Screw (1)

4 4455177 Elbow, Vent−Bottom

5 6610122 Transformer, Light

6 8300642 Transformer,

Control

7 4449809 Screw, 8−18 x 3/8

8 4455352 Bracket, Blower

9 8300801 Bracket, Control

Mounting Bottom

11 4449868 Block, Terminal

14 4452442 Side, Control Top

21 4451758 Seal, Foam

22 4452489 Deflector, Vent

Box

23 4456527 Bracket, Control

Mounting

24 8300795 Control, Zodiac

25 4451985 Suppressor

3400080 Screw (4)

26 4453207 Insulator,

Control Board

COOKTOP PARTS

For Model:KDRP467KSS04

(Stainless Steel)

8186156

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4456865 Cooktop

2 Burner Head

4455849 (Turbi)

4455979 (Auxi)

3 3368921 Screw, 7−18 x 3/4

4 Cap, Burner

4455243 (14K)

8284669 (6K)

5 Orifice Holder

4456622 Turbi

4456920 Auxi

(Includes Orific &

Ignitor)

3400843 Screw

6 3177991 Screw, 8−18 x 1/4

7 4454963 Grate, Burner

9 4454962 Trim, Island

10 8284712 Support,

Backsplash

11 4454960 Trim, Backsplash

12 3400837 Screw, 8−18 x 3/8

15 4455109 Plate, Simmer

BURNER BOX AND MANIFOLD PARTS

For Model:KDRP467KSS04

(Stainless Steel)

8186156

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8300231 Tubing, Gas

Burner − RF

2 8300230 Tubing, Gas

Burner − RR

3 8300187 Tubing, Gas

Burner − LF

4 8300188 Tubing, Gas

Burner − LR

7 8301045 Manifold Assembly

Right Side

8 Valve, Burner

3192157 (Silver)

3191292 (Red)

9 8523704 Bolt, Gas Valve

10 4456551 Burner Switch &

Harness Assembly

3191387 Seal, Switch

11 4453033 Pressure Regulator

12 4457091 Box, Burner

13 8284964 Plate, Burner

Holder

14 8300229 Tubing, Gas

Burner − CF

15 Side, Burner Box

8285607 Right Side

8285606 Left Side

16 4456863 Support, Rear

17 4455925 Support, Cooktop

18 3192811 Bracket, Burner

19 3177991 Screw, 8−18 x 1/4

20 4454974 Rail, Support

RH & LH

21 8301252 Tube, Manifold

22 4455922 Cover, Manifold

23 Adapter

4453116 1/2" Female

4453115 1/2" Male

8284796 Plug, Close

4450118 Nut, 6−32 U Type

25 8522427 Module, Spark

26 8300216 Cover

27 8300232 Tubing, Gas

Burner − CR

CHASSIS PARTS

For Model:KDRP467KSS04

(Stainless Steel)

8186156

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4452803 Vent, Bottom

Lower

2 4449809 Screw, 8−18 x 3/8

3 4453329 Backer, Trim Lower

4 3400837 Screw, 8−18 x 3/8

5 4452801 Deflector, Center

6 8300978 Vent, Bottom Upper

7 4455983 Vent, Center

4453327 Gasket

3400805 Screw (4)

8 3196537 Screw, 8−18 x 3/8

9 4455604 Bracket, Mounting

Regulator

10 4452430 Foot Assembly

11 3400518 Screw,

5/16−12 x 5/8

12 4455644 Gusset

14 4452434 Brace, Rear

15 Trim, Front

4452804 Right Side

4453205 Left Side

16 3196537 Screw, 8−18 x 3/8

17 Side Chassis

4452418 Right Side

4452419 Left Side

18 8300154 Insulation

MISCELLANEOUS PARTS

For Model:KDRP467KSS04

(Stainless Steel)

8186156

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242829 Wire (12 Ga.

150 c Red)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242826 Wire (14 Ga.

150 c White)

242827 Wire (14 Ga.

150 c Yellow)

242832 Wire (14 Ga.

200 c Yellow)

WIRING HARNESS PARTS

4448444 Grommet, Rail

4456550 Harness, Wire

(Main)

4456552 Harness, Wire

(Spark Module)

4456628 Harness, Wire

(Ignitor 42")

4456627 Harness, Wire

(Ignitor 28")

3191506 Bushing, Conduit

1129449 Bushing

8301467 Conduit

4449809 Screw

112432 Nut

4450800 Screw, Ground

4454835 Tie, Cable

4452222 Spacer, Harness

Miscellaneous

814381 Pin Hinge Kit

8301282 Conv. Kit (LP)

4453141 Bracket, Anti−Tip

4453202 Bracket, Anti−Tip

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

4453192 Seal, Ribbon

Cable

4453191 Seal, Access

Panel
