DOOR PARTS

For Models: KCMS2055SSS0

(Stainless)

08−07 Litho in U.S.A. (rek) Part No. W10160568 Rev. A

MICROWAVE OVEN

2.0 CUBIC FOOT

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10114100

Guide, U & C

W10160564

Tech Sheet

W10114101

Cook Guide Label

W10160566

Front Screen

W10160543

Door Frame Asm

4 8205777 Choke Cover

W10160562

Tape, Seal

6 8184263 Latch

7 8183882 Spring, Latch

W10160561

Panel, Door

W10160557

Door Assembly

CONTROL PANEL PARTS

For Models: KCMS2055SSS0

(Stainless)

W10160568

Illus. Part

No. No. DESCRIPTION

W10160560

Button, Release

2 8184272 Spring, Button

W10160556

Membrane/Panel

W10160555

Microcomputer

5 8205451 Lever, Release

6 4358883 Screw

OVEN CAVITY PARTS

For Models: KCMS2055SSS0

(Stainless)

W10160568

Illus. Part

No. No. DESCRIPTION

1 8184278 Canopy

W10160554

Outer Case

W10160544

Tray, Glass

W10160542

Turntable Support

5 8184375 Motor, Synchronous

6 4358188 Screw

7 4358829 Screw

8 8171862 Screw

W10160547

Sensor, Humidity

10 8205457 Guide, Sensor

11 4358376 Screw

12 4358489 Screw

LATCH BOARD PARTS

For Models: KCMS2055SSS0

(Stainless)

W10160568

Illus. Part

No. No. DESCRIPTION

1 Latch Board Assembly

(Non−Serviceable)

2 8185271 Latch Board

3 8183561 Switch Micro

Primary/Secondary

4 8183562 Switch, Micro

Monitor

5 4358271 Screw

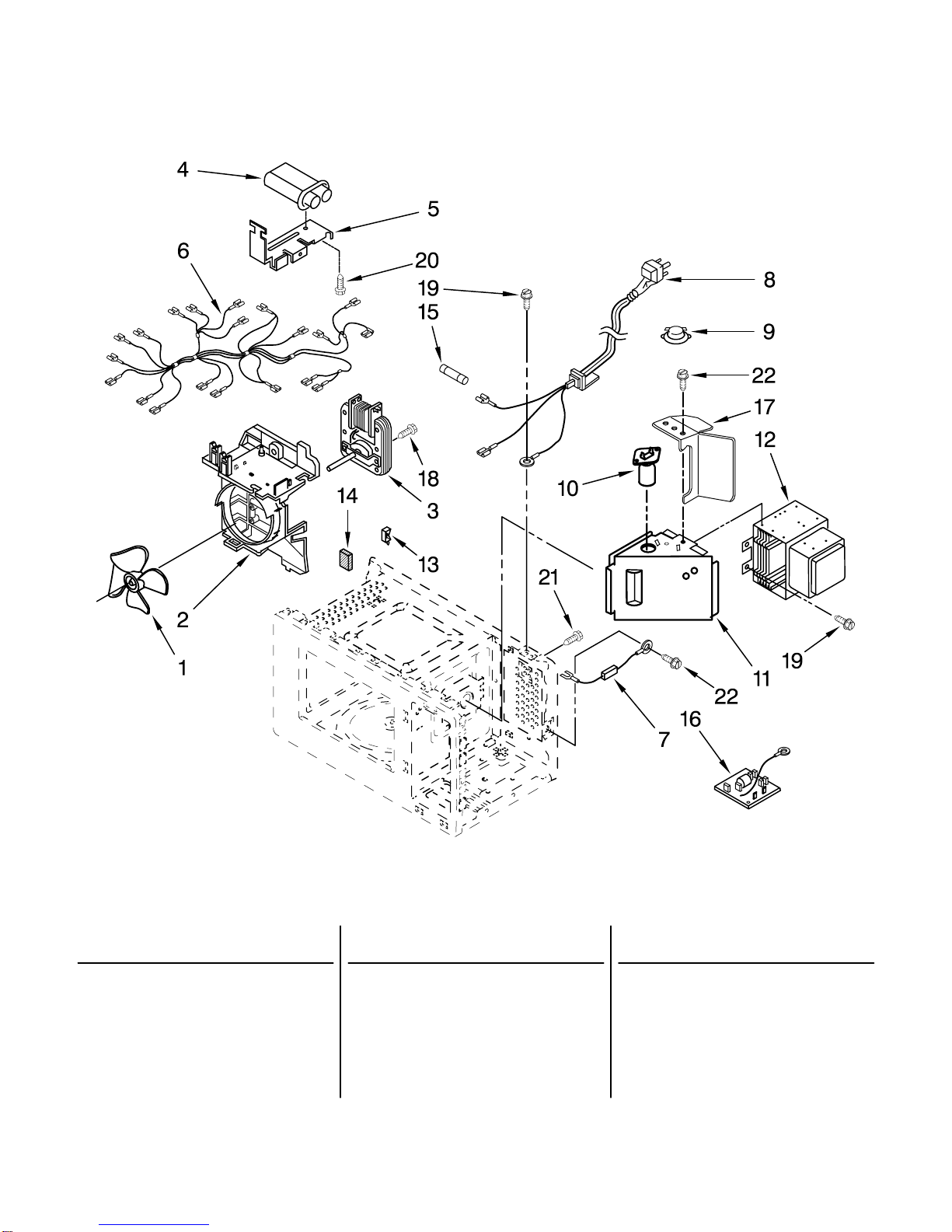

OVEN INTERIOR PARTS

For Models: KCMS2055SSS0

(Stainless)

W10160568

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8205458 Propeller

2 8205456 Guide, Suction

3 8205462 Motor, Fan

4 8185272 H.V. Capacitor

5 8184288 H.V.C Bracket

W10160549

Leadwire Assembly

W10160548

H.V. Diode Cable

8 8206281 Power Cord

W10160550

Thermostat

10 8171810 Lamp, Baseless

W10160545

Duct, Air

12 8205460 Magnetron

13 4359794 Holder

14 4359781 Damper

15 8183507 Fuse

16 8206270 Filter, Noise

17 8205509 Insulator

18 4358190 Screw

19 4358489 Screw

20 4358381 Screw

21 4358271 Screw

W10160553

Screw

BASE PLATE PARTS

For Models: KCMS2055SSS0

(Stainless)

W10160568

Illus. Part

No. No. DESCRIPTION

W10160551

Base Plate (L)

W10160552

Base Plate (R)

3 8184385 Leg

W10160546

Transformer

5 4358192 Screw

6 4358489 Screw
