PRODUCT MODEL SERIES OVERALL DIMENSIONS

KBMS1454S

Electrical: 120 volt, 60 Hz, AC only, 15- or 20-

amp fused electrical supply. A time-delay fuse or

circuit breaker and separate circuit is

recommended.

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Ref. W10111676

06-05-07

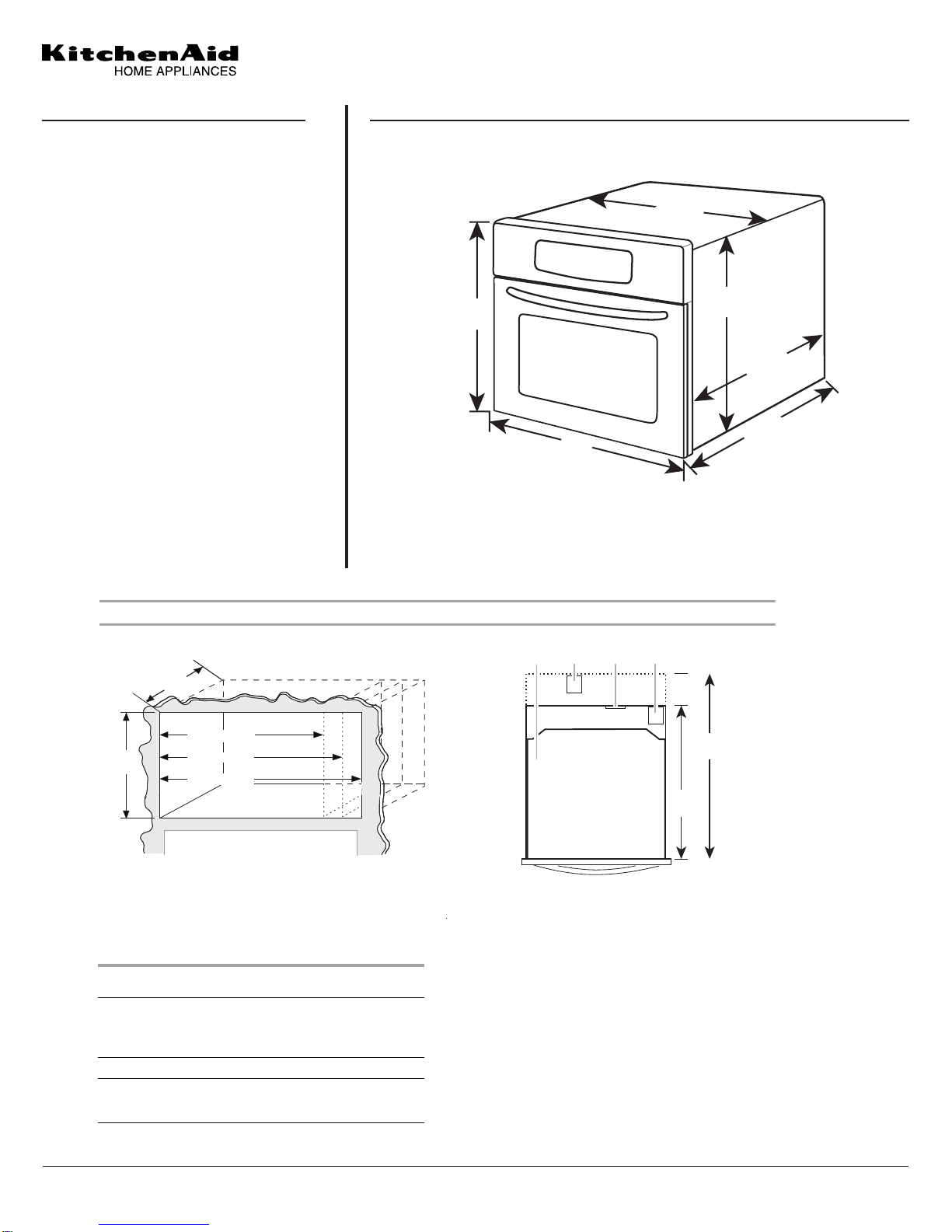

24" (61.0 CM), 27" (68.6 CM) AND 30" (76.2 CM) BUILT-IN

MICROWAVE OVEN

*Measurements include front facing of microwave oven. Depth

measurement also includes door handle.

21⁷⁄₈"

(55.6 cm)

17¹⁄₂"

(44.5 cm)

18¹⁄₄"

(46.4 cm)

21¹⁄₄"

(54.0 cm)*

23³⁄₄"

(60.3 cm)*

18"

(45.7 cm)*

Minimum Cutout Dimensions

NOTE: Depth dimension may be 21³⁄₄" (55.2 cm) with non-flush

receptacle only if the receptacle is located in upper right or upper

left corner. See “Cutout Top View.”

*With flush receptacle, or with non-flush receptacle located in

upper right or upper left corner of cutout.

**With non-flush receptacle.

Front View

DIM. 24" (61.0 CM)

INSTALLATION

27" (68.6 CM)

INSTALLATION

30" (76.2 CM)

INSTALLATION

Width 22¹⁄₄" (56.5 cm)

± 3/16" (4.8 mm)

25³⁄₄" (65.4 cm)

± 3/16" (4.8 mm)

Min. 25³⁄₄"

(65.4 cm)

Max. 28³⁄₄"

(73.0 cm)

Height 17⁵⁄₈" (44.8 cm) for all installations

Depth 21³⁄₄" (55.2 cm) with flush receptacle, or with non-flush

receptacle located in far corner;

26¹⁄₄" (66.7 cm) with non-flush receptacle

17⁵⁄₈"

(44.8 cm)

21³⁄₄" (55.2 cm)*

26¹⁄₄" (66.7 cm)**

22¹⁄₄" (56.5 cm)

25³⁄₄" (65.4 cm)

28³⁄₄" (73.0 cm)

A. Microwave oven

B. Non-flush receptacle

C. Flush receptacle

D. Non-flush receptacle located in upper right

or upper left corner

21³⁄₄"

(55.2 cm)

26¹⁄₄"

(66.7 cm)

A B C D

Top View
