OVEN PARTS

For Models: KBHS179SSS03

(Stainless)

6−10 Litho in U.S.A. (amd) (psw) Part No. W10206134 Rev. B

27" BUILT−IN MICROWAVE

OVEN PARTS

For Models: KBHS179SSS03

(Stainless)

W10206134

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8304424 Installation

Instructions

W10162181

Use & Care Guide

Tech Sheet

W10220960

English

W10220961

French

8304375 Easy Set Guide

Safer Cooking Tips

9762761 English

W10065852

French

2 4448444 Grommet,

Mounting Rail

3 8304570 Support, Microwave

Module

4 Rail, Mounting

Side

8304621BL

Right

8304622BL

Left

5 Side, Chassis

8304546 Right

8303539 Left

6 8304217 Base, Chassis

W10165448

Trim, Bottom

8 8304509 Chassis, Back

9 9760213 Transformer,

Microwave UI

10 3400832 Screw

11 4449809 Screw

12 8285593 Connector Cover

13 8303802 Cover, Top

14 8303538 Channel, Rear

15 3400893 Screw

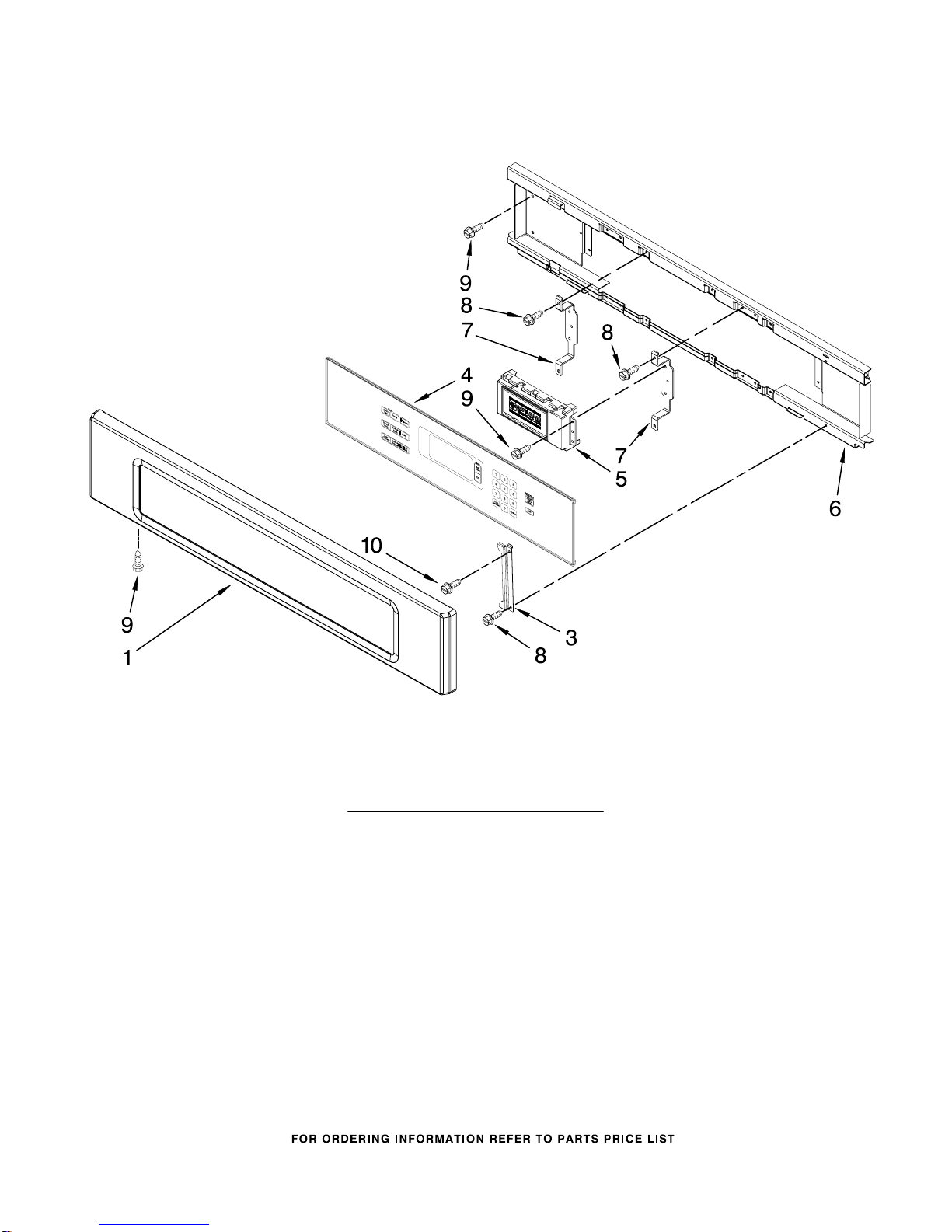

CONTROL PANEL PARTS

For Models: KBHS179SSS03

(Stainless)

W10206134

Illus. Part

No. No. DESCRIPTION

W10165446

Panel, Control

W10169348

Bracket, Glass

Touch

4 8304334 Keyboard,

Glass Touch

W10118736

User Inferface

6 8303720 Backer, Control

7 8303887 Bracket,Enclosure

8 4449154 Screw

9 3400805 Screw

10 4449809 Screw

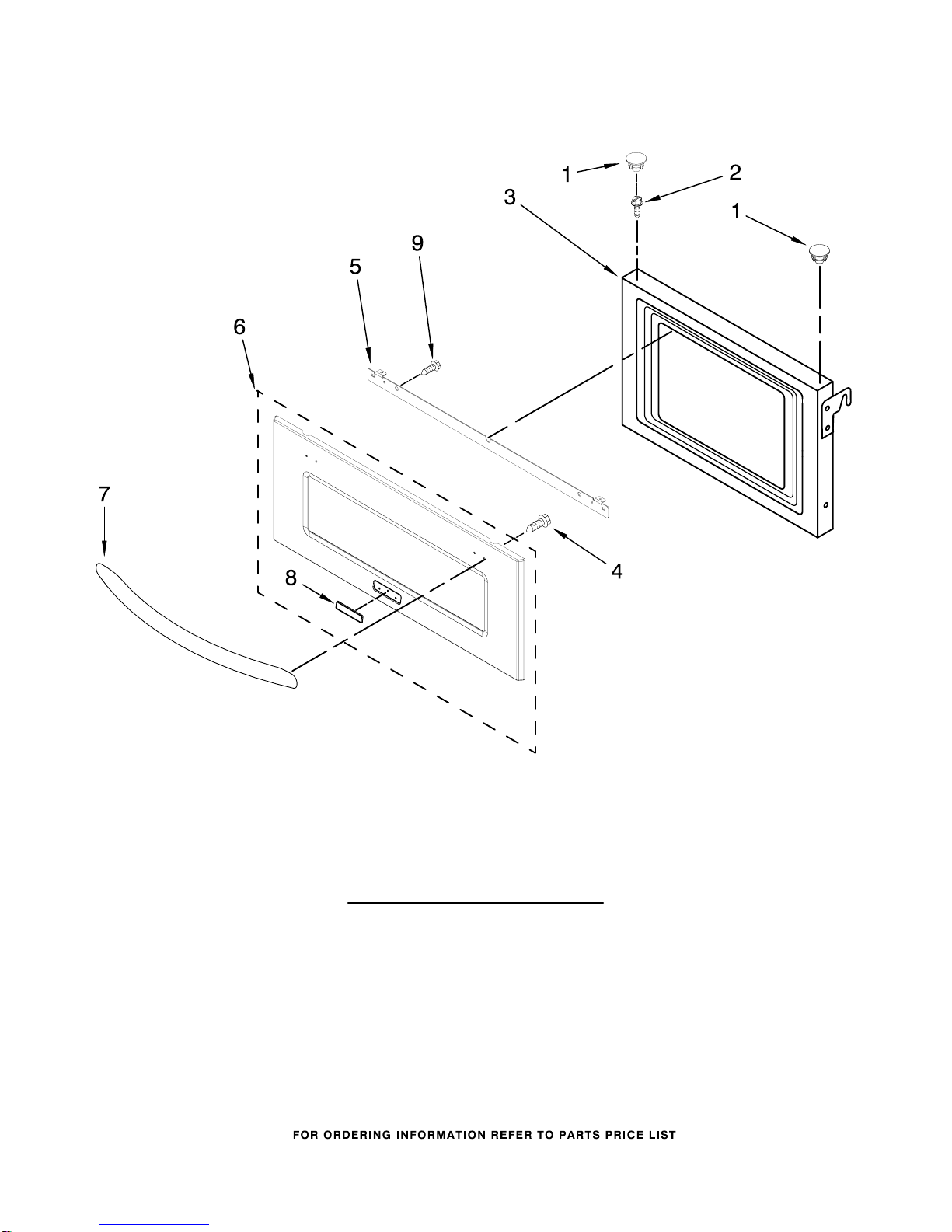

MICROWAVE DOOR PARTS

For Models: KBHS179SSS03

(Stainless)

W10206134

Illus. Part

No. No. DESCRIPTION

8304588BL

Button, Plug (2)

W10143304

Screw

W10120488

Door, Microwave

4 4449154 Screw (4)

5 8303033 Bracket, Handle

6 8304455 Glass Assembly

8303775SS

Handle, Door

8304603SS

Badge

W10143304

Screw

CABINET AND STIRRER PARTS

For Models: KBHS179SSS03

(Stainless)

W10206134

CABINET AND STIRRER PARTS

For Models: KBHS179SSS03

(Stainless)

W10206134

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10120227

Control, Electric

2 8205669 Support

W10130892

Plate, Air

W10130901

Insulation, Side

Left

W10120471

Cover, Side Left

W10120223

Thermostat

W10120224

Element,

Convection

8 4375418 Fan

W10120233

Nut, Speed

W10130891

Holder

W10120220

Noise Filter

W10120228

Control, Electric

Converter

W10130909

Bracket, Support

W10131249

Screw

15 8205692 Transformer

16 4375427 Actuator

17 4375321 Fuse

18 4375231 Block, Fuse

W10130897

Bracket, Support

20 8205653 Filter, Noise

21 8205654 Thermostat

W10120113

Magnetron

W10130895

Plate, Air

24 4375319 Spring, Lamp

25 8205685 Spring

26 8205658 Housing, Lamp

27 4375348 Lamp

W10120222

Thermostat

W10131248

Switch

30 8205683 Holder, Switch

31 4375320 Reflector

32 4375318 Lens, Lamp

W10120231

Clip. Spring

W10120476

Top Vent

36 Trim, Side

W10120472

Right

W10120474

Left

W10120469

Bushing

W10130905

Bracket, Support

39 8205708 Bracket, Support

40 8205682 Shaft, Turntable

Turntable

41 8205681 Cover, Motor

Turntable

W10120234

Cover

43 4375252 Gasket, Shaft

44 8205655 Motor, Turntable

45 4375202 Screw

46 8205707 Support

W10120478

Hinge, Door

W10130903

Cover, Plate

W10130904

Cover, Rear

50 8205680 Cover, Side Right

W10120221

Convection, Motor

Assmebly

52 8205721 Blower Assembly

W10130907

Cover, Inverter

W10120229

Inverter

W10130906

Holder, Inverter

W10130890

Screw

W10130908

Baffle, Air

W10130899

Plate, Air

W10120235

Rod, Release

W10120225

Sensor

61 8205685 Spring

64 8205683 Interlock

W10130900

Insulation

66 8205704 Spring

W10130902

Insulation

68 8205689 Spring

69 8205688 Arm

70 8205686 Support

W10120236

Arm

W10120470

Pin, Damper

73 8205690 Sensor

W10130898

Duct, Magnetron

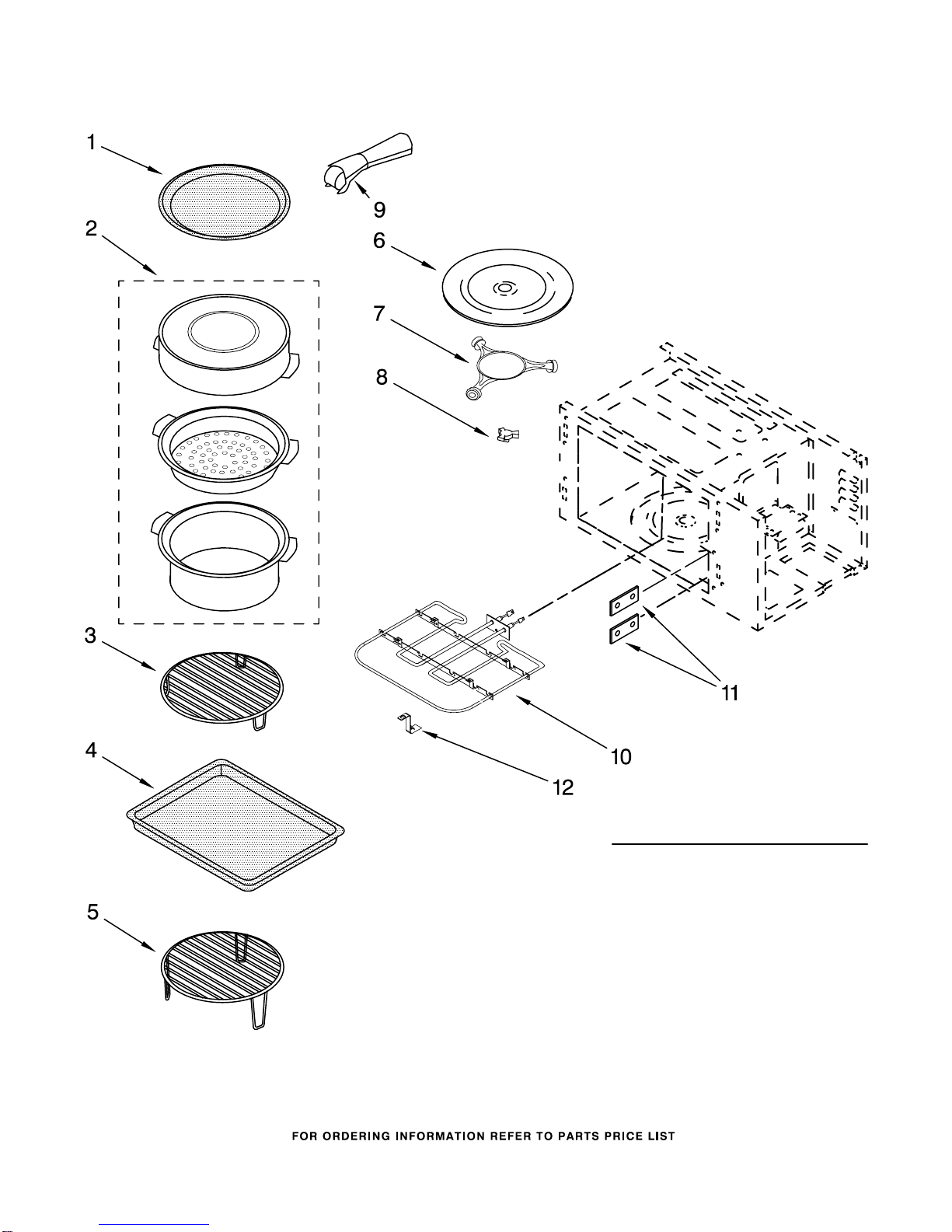

INTERNAL MICROWAVE PARTS

For Models: KBHS179SSS03

(Stainless)

W10206134

Illus. Part

No. No. DESCRIPTION

W10120480

Crisp Plate

W10120484

Steamer

3 4452220 Rack, Convection

W10120486

Plate, Baking

W10120483

Rack

6 8205676 Turntable

7 8205678 Ring

8 8205677 Drive, Turn Table

W10120481

Handle, Pan

W10120226

Grill Heater

W10120230

Cover, Plates (2)

W10120232

Bracket, Mounting

OPTIONAL PARTS

For Models: KBHS179SSS03

(Stainless)

W10206134

Illus. Part

No. No. DESCRIPTION

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

FOLLOWING PARTS

NOT ILLUSTRATED

482338 Sealer, Silastic

(3 oz.)

WIRING HARNESS PARTS

8304442 Harness, Main

8304373 Harness,

Communication

W10155291

Connector, Flex

4450800 Screw, Ground

W10140600

Conduit

4452400 Lead, Ground Strap
