KitchenAid KUIS185EAL0 Manuel utilisateur

1 2175698 Shell

2 2175619 Front, Shell

3 756330 Door, Inner Bin

4 758655 Liner, Door

5 593192 Plug, Hinge

6 593104 Strip, Tapping (2)

7 2180789 Trim, Door (Side)(2)

8 593184 Rail, R.S.

593185 Rail, L.S.

9 681459 Screw, 8-32 x 5/8 (6)

10 758492 Washer (2)

11 759213 Tube, Water Fill

12 2180752 Liner (Includes Illus. 10, 11, 17, 19, 21 & 35)

13 2172898 Gasket, Bottom

14 596023 Clamp (2)

15 758921 Gasket

16 487909 Screw #8 x 1/2

17 596807 Grommet

18 756891 Insulation, Bottom, Foam

19 681542 Nut

21 758220 Stud (2)

22 593183 Well, Bin Thermostat

23 596812 Clip, Panel (12)

24 2180791 Pocket, Handle

25 758745 Panel, Door (Pak)

26 758722 Panel, Front (Outer)(Pak)

28 593577 Connector, Hose

29 585158 Scoop

30 680811 Screw, 10-32 x 3/8

31 2180790 Handle, Recessed

32 2174781 Harness, Cabinet

34 680930 Thumbscrew, 10-1/2

35 596715 Well Nut (3)

36 2180793 Trim, Front Panel (Side)(2)

37 758608 Insulation, Door

38 681196 Screw

39 681419 Thumbscrew

42 681613 Washer

44 2180794 Trim, Front Panel (Top and Bottom)

47 2180778 Grill, Front

48 758770 Panel, Filler

49 758771 Panel, Inner

51 2180788 Trim, Door (Lower)

52 2175604 Support, Front

53 758844 Retainer, Wire

FOLLOWING PARTS NOT ILLUSTRATED

OPTIONAL PARTS NOT INCLUDED

503695 Sealer, Cork (1/4 Pound)

797403 Cement, Insulation (1 Oz.)

505587 Sealer, Mastic (1 Qt.)

212643 Sealer, Gum (22 Pcs. 3/16" x 7")

479976 Kit, Insulation (5 Pcs. 3" x 24" x 48")

978025 Valve, Access (1/4")

978026 Valve, Access (5/16")

978027 Valve, Access (3/8")

978028 Valve, Access (1/2")

978029 Valve, Access (5/8")

978030 Valve, Access (3/4")

LITERATURE PARTS

LIT2175674 Use & Care Guide

LIT2175675 Instructions, Installation

LIT2180830 Service and Wiring Sheet

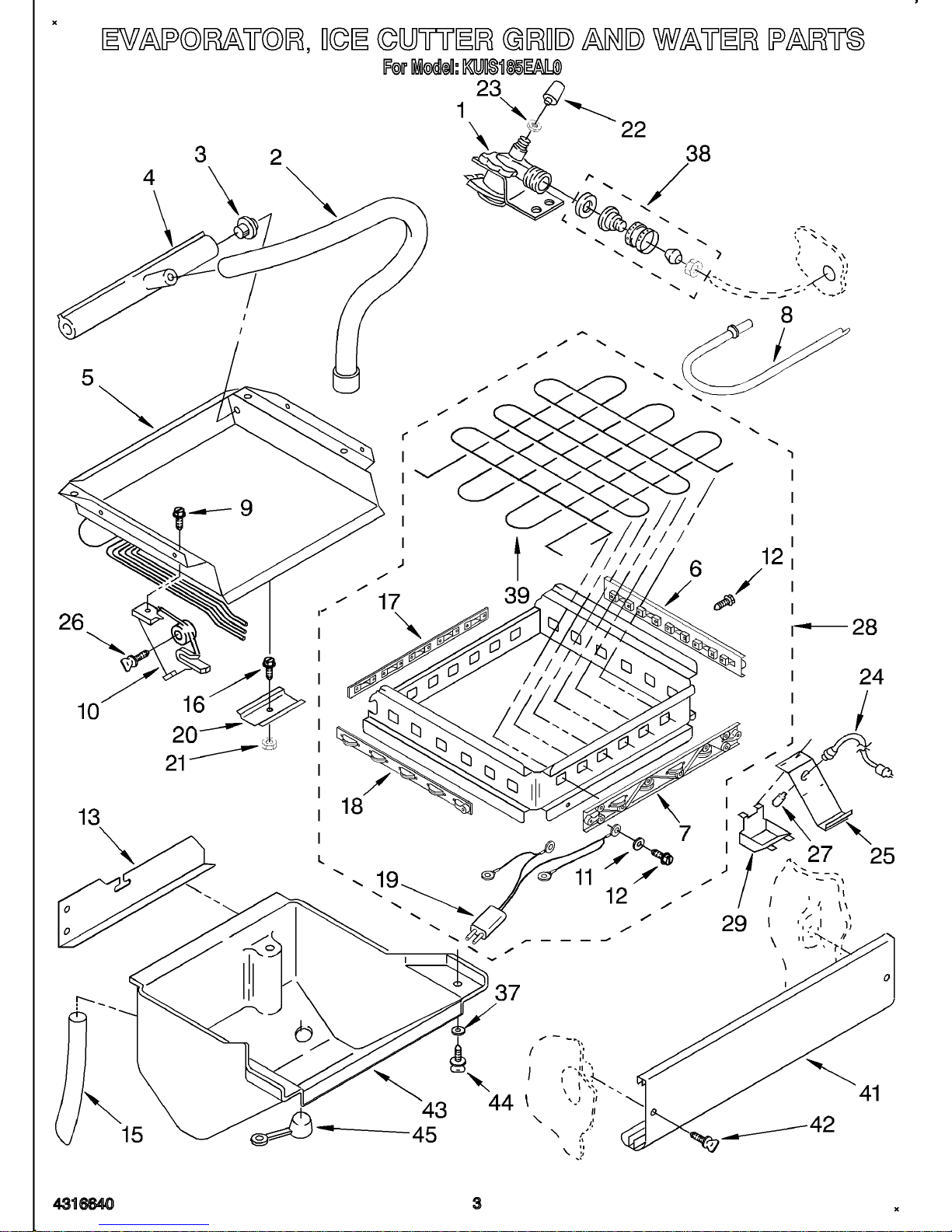

1 759296 Valve, Complete Water

2 585856 Tube, Plastic

3 758597 Plug (2)

4 1129798 Dispenser, Water

5 2180809 Evaporator

6 2174726 Spacer, Adjustable (Side)

7 2174724 Spacer, Adjustable (Front)

8 759213 Tube, Water Fill

9 489049 Screw 10-12 x 1/2

10 756564 Bracket, Grid Mounting (2)

11 489013 Washer, Plain

12 489443 Screw

13 585853 Shelf, Water Pan

15 759109 Hose, Overflow

16 596037 Screw, 10-32 x 1/2

17 2174725 Spacer, Fixed (Rear)

18 2174727 Spacer, Fixed (Side)

19 2174750 Harness, Grid

20 587662 Clamp

21 681676 Nut, Wing

22 841707 Insert

23 627018 Nut & Sleeve Assembly

24 758488 Harness, Light

25 758490 Bracket, Lamp

26 681611 Thumbscrew

27 745362 Bulb

28 2174752 Grid Assembly (Complete)

29 758489 Shield, Light

37 681245 Washer

38 2165477 Adapter

39 2174754 Wire, Grid Cutter

41 593171 Panel, Grid

42 681534 Thumbscrew, 10-32 x 5/8

43 756659 Pan

44 681419 Thumbscrew, 10 x 1/2

45 759043 Stopper, Water Pan

2 756124 Cover, Plug

3 681391 Screw, 8-18 x 3/4

4 583155 Housing, Motor

5 587096 Blade, Fan

6 1127834 Motor, Pump

7 583424 Washer

8 756122 Bracket, Pump

9 596016 Grommet (2)

10 593229 Sleeve

11 681390 Screw, 8-32 x 3/8

12 756782 Pump, Water (Complete)

13 583518 Pump

14 583426 Impeller (Includes Retaining Ring 15)

15 681301 Ring, Retainer

2 2165483 Transformer

3 2165530 Escutcheon, Panel

4 2172893 Switch, Service

5 2172846 Bracket, Control

7 595005 Screw, 8-32 x 1/4

8 2180785 Decal, Control Panel

9 2180782 Escutcheon

10 2180783 Decal, Escutcheon

11 759308 Thermostat, Evaporator

12 759309 Thermostat, Bin Control

13 681245 Washer

14 487909 Screw #8 x 1/2

15 681036 Screw

19 758567 Harness, Grid

20 2180786 Knob

21 2180773 Latch

22 Screw, 8-32 x 1/2
