KitchenAid KUDU03STBL2 Manuel utilisateur
DOOR AND PANEL PARTS
1
For Models: KUDU03STBL2, KUDU03STWH2, KUDU03STSS2
(Black) (White) (Stainless)
10−07 Litho in U.S.A. (els) Part No. W10163114 Rev. A
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10078153
Instructions,
Installation
W10164239
Energy Guide
W10084169
Guide, Use & Care
Spanish
W10084091
Guide, Use & Care
English/French
W10130990
Tech Sheet
2 Arm, Hinge
8534854 Left
8534853 Right
3 8564886 Stiffener, Door
4
W10073520
Insulation, Door
5 Access Panel
8573255 Black
8573256 White
6 Panel, Full Front
(Includes Items
4,10,16 & 17)
W10078003
Black
W10078004
White
W10137622
Stainless
7 Overlay
W10077798
Black
W10077799
White
W10077801
Stainless
8 Toe Panel
(Includes Items
11 & 18)
8558252 Black
8558253 White
9 Handle
(Includes Item 14)
W10083936
Black
W10083937
White
W10083935
Stainless
10 8564951 Stud, Mounting
11
W10073550
Insulation,
Toe Panel
12 Screw
302868 Black
3400836 White
13 304392 Screw
14 8534008 Screw
15 3400071 Screw
16 Nameplate
W10021860
Black
W10021870
White
W10021850
Stainless
17 2004333 Nut
18 8269016 Clip, Grounding
CONTROL PANEL PARTS
2
For Models: KUDU03STBL2, KUDU03STWH2, KUDU03STSS2
(Black) (White) (Stainless)
W10163114
Illus. Part
No. No. DESCRIPTION
1 Console Assembly
(Includes Insert)
W10084166
Black
W10084167
White
W10084168
Stainless
2 8531877 Cable, Ribbon
3 8546546 Clip, BI−Metal
4
W10134019
Switch, Door
5 8531873 Board,
Interconnect
6 661663 BI−Metal
7
W10077360
Latch Assembly
8 3369051 Screw
9
W10084141
Control,
Electronic
DOOR AND LATCH PARTS
3
For Models: KUDU03STBL2, KUDU03STWH2, KUDU03STSS2
(Black) (White) (Stainless)
W10163114
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
2 8281217 Screw
3
W10084288
Inner Door
Mastic Assembly
(Also Order
Item 6)
4
W10077883
Inlet, Air
5 8572611 Vent Assembly
(Also Order
Item 6)
6 8269259 Gasket, Vent
7
W10077877
Deflector, Vent
(Also Order
Item 6)
8
W10077882
Dispenser,
Assembly
9
W10077881
Knob, Rinse Aid
10 8545608 Harness, Vent
Motor
11
W10078202
Wiring Harness
12 8281154 Screw
13 8535660 Seal,
Console/door
14 8535637 Bracket,
Dispenser
15 8531865 Shield,
Dispenser
LOWER WASHARM AND STRAINER PARTS
4
For Models: KUDU03STBL2, KUDU03STWH2, KUDU03STSS2
(Black) (White) (Stainless)
W10163114
Illus. Part
No. No. DESCRIPTION
1
W10077965
Wash Arm Assembly
2
W10077899
Cap, Internal
Rear Feed
(Also Order
Item 3)
3 8268340 Seal, Sprayarm
4
W10077898
Hub, Lower
Sprayarm
(Also Order
Item 3)
HEATER PARTS
5
For Models: KUDU03STBL2, KUDU03STWH2, KUDU03STSS2
(Black) (White) (Stainless)
W10163114
Illus. Part
No. No. DESCRIPTION
1 8537057 Heater Element
Assembly
(Also Includes
Item 2)
2 717273 Washer, Heater
Element
3 8268548 Nut, Heater
Element
4 3400931 Retainer, Spring
Grip
NOTE:
If heater element is
removed, it must be replaced.
FILL, DRAIN AND OVERFILL PARTS
6
For Models: KUDU03STBL2, KUDU03STWH2, KUDU03STSS2
(Black) (White) (Stainless)
W10163114
Illus. Part
No. No. DESCRIPTION
1 8268892 Lever, Overfill
Switch
2 8531412 Hose, Inlet
3 8531325 Water Inlet
(Also Order
Item 4)
4 8531323 Gasket
5 8531327 Nut, Inlet
(Also Order
Item 4)
6 371505 Clamp, Hose
7 8563405 Fill Valve
Assembly
8 304392 Screw
9 8268909 Switch, Overfill
Control
10 8545946 Standpipe,
Overfill
(Includes Item 11)
11 8531743 Gasket, Flat
12 9741998 Nut, Standpipe
13
W10077871
Float & Retainer
Assembly
14 8269297 Miscellaneous
Parts Bag
(Includes 2 Screws
& 2 Hose Clamps)
15 356138 Clamp, Hose
16 8531022 Drain Loop
with Check Valve
TUB AND FRAME PARTS
7
For Models: KUDU03STBL2, KUDU03STWH2, KUDU03STSS2
(Black) (White) (Stainless)
W10163114
TUB AND FRAME PARTS
8
For Models: KUDU03STBL2, KUDU03STWH2, KUDU03STSS2
(Black) (White) (Stainless)
W10163114
Illus. Part
No. No. DESCRIPTION
1
W10084284
Tub Assembly
2 8574123 Barrier, Moisture
Undercounter
3
W10112096
Door Seal
4
W10082838
Plug Tub
5 3378128 Washer,
Pronged Cup
6 8572661 Actuator, Assembly
7 8269110 Seal, Cabinet
8 8573061 Strain Relief
9 8270021 Mount, Door
Balance
10 3367670 Screw
11 8269145 Bracket,
Undercounter
12 3400074 Screw
13 3400924 Retainer, Push−in
14 3370389 Screw
15 8268977 Wheel Leg
16 8524584 Leveler, Leg
17 8524474 Wheel, Door
Balance
18 8270020 Spring, Door
Balance
19
W10082769
Motor, Wax
20 3400892 Screw
21 8268991 Cover, Terminal
Box
22 8545574 Absorber, Sound
23 8535568 Link, Door
Balance
24 8268587 Insulator, Sound
25 304666 Retainer, Push
26 3400014 Screw
27 8573239 Shield, Sound
Tub
28 9742648 Bracket,
Thermostat
29 661566 Thermostat
30
W10077370
Strike, Latch

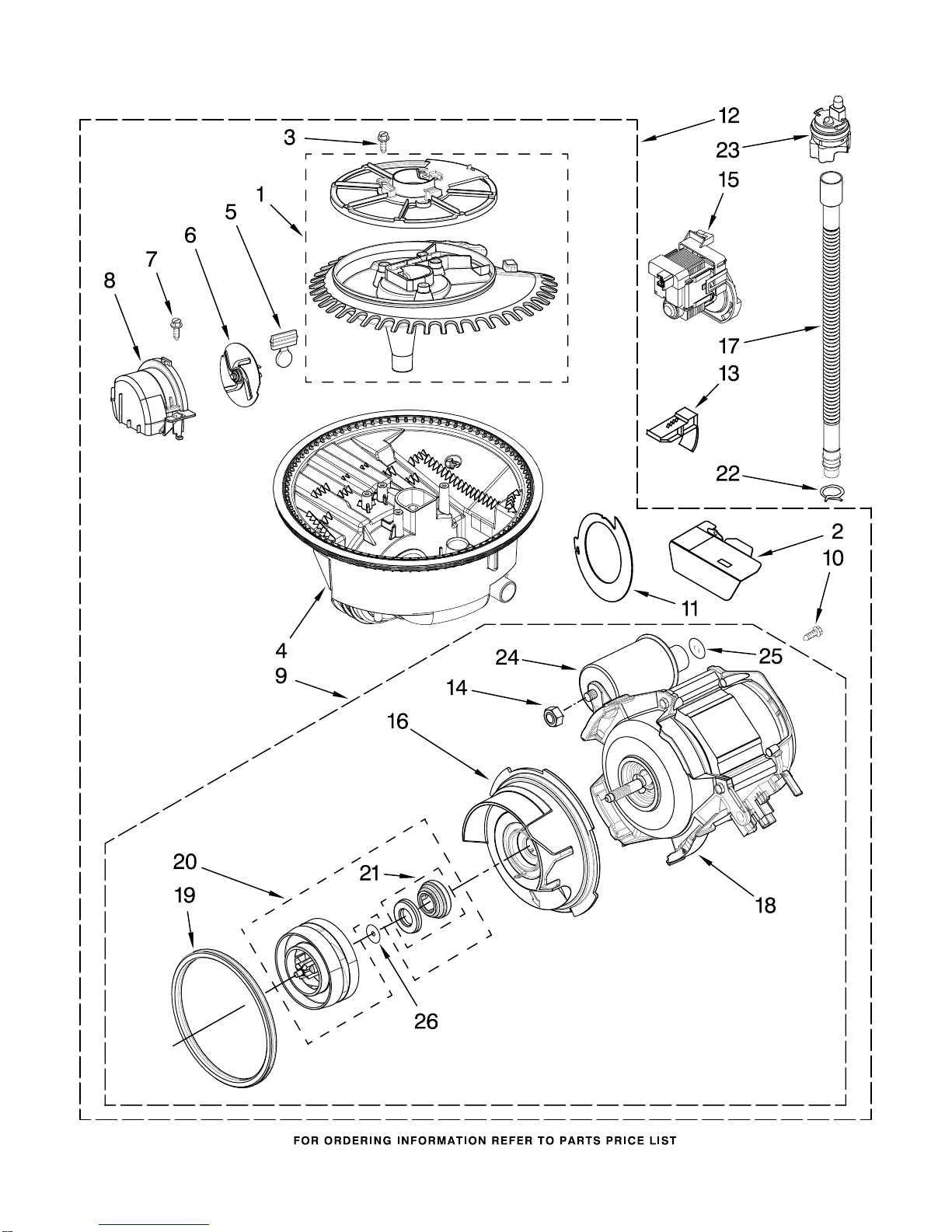

PUMP AND MOTOR PARTS
9
For Models: KUDU03STBL2, KUDU03STWH2, KUDU03STSS2
(Black) (White) (Stainless)
W10163114
PUMP AND MOTOR PARTS
10
For Models: KUDU03STBL2, KUDU03STWH2, KUDU03STSS2
(Black) (White) (Stainless)
W10163114
Illus. Part
No. No. DESCRIPTION
1 8534952 Accumulator Assy
2 8283527 Shield, Motor
3 3400069 Screw
4 8572618 Sump With Seal
5 8268375 Check Valve, Sump
6
W10083957
Chopper Assembly
7 9741232 Screw
8 8531857 Protector, Inlet
9 8535760 Motor Assembly
10 3400217 Screw
11 8268391 Screen, Separation
12
W10084107
Sump & Motor
Assembly
(Includes
Item 13)
13 8269524 Tab, Sump
14 8533949 Nut
15 661662 Pump, Drain
16 8531019 Volute, Back
(Also Order
Items 21 & 26)
17 8269144 Hose, Drain
18 8535759 Motor
19 8268397 Seal, Volute
20 8531017 Impeller Kit
21 8268403 Face Seal Assembly
(Also Order
Item 26)
22 356138 Clamp, Hose
23
W10082647
Optical Water
Indicator
24 8535474 Capacitor
25 8534946 Shield,
Capacitor
26 8531018 Washer
