DOOR AND PANEL PARTS
1
(Panel Ready)
For Model: KUDS03FTPA3
05−09 Litho in U.S.A. (els)(bay) Part No. W10201545 Rev. B
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10078153
Instructions,
Installation
W10056403
Energy Guide
W10193741
Guide, Use & Care
Spanish
W10193740
Guide, Use & Care
Enlish/French
W10130990
Tech Sheet
2 Arm, Hinge
8534854 Left
8534853 Right
3 8268983 Stiffener, Door
4 8535133 Panel, Front
5 Access Panel
8573255 Black
7 8531882 Screws, Bag
Door Assembly
8 Toe Panel
(Includes 9 & 10)
W10205336
Black
9 8269016 Clip, Ground
10
W10073540
Insulation,
Toe Panel
11 302868 Screw
12 304392 Screw
13 3400071 Screw
CONTROL PANEL PARTS
2
(Panel Ready)
For Model: KUDS03FTPA3
W10201545
Illus. Part
No. No. DESCRIPTION
1 Console Assembly
(Includes Insert)
W10084178
Black
2 8524447 Cable, Ribbon
3 8546546 Clip, BI−Metal
4
W10078079
User Interface
5 661663 BI−Metal
6 3369051 Screw
7
W10077360
Latch Assembly
8
W10084141
Control Assembly
9
W10134019
Switch, Door
DOOR AND LATCH PARTS
3
(Panel Ready)
For Model: KUDS03FTPA3
W10201545
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
2 8281217 Screw
3
W10056249
Inner Door
Mastic Assembly
(Also Order
Item 6)
4
W10077883
Inlet, Air
5 8572611 Vent Assembly
(Also Order
Item 6)
6 8269259 Gasket, Vent
7
W10077877
Deflector, Vent
(Also Order
Item 6)
8
W10224431
Dispenser,
Assembly
9
W10077881
Knob, Rinse Aid
10 8545608 Harness, Vent
Motor
11
W10078202
Wiring Harness
12
W10177098
Screw
13 8535660 Seal,
Console/door
14 8535637 Bracket,
Dispenser
15 8531865 Shield,
Dispenser
FILL, DRAIN AND OVERFILL PARTS
4
(Panel Ready)
For Model: KUDS03FTPA3
W10201545
Illus. Part
No. No. DESCRIPTION
1 8268892 Lever, Overfill
Switch
2 8531412 Hose, Inlet
3 8531325 Water Inlet
(Also Order
Item 4)
4 8531323 Gasket
5 8531327 Nut, Inlet
(Also Order
Item 4)
6 371505 Clamp, Hose
7
W10219505
Fill Valve
Assembly
8 304392 Screw
9 8268909 Switch, Overfill
Control
10 8545946 Standpipe,
Overfill
(Also Includes
Item 11)
11 8531743 Gasket, Flat
12 9741998 Nut, Standpipe
13
W10077871
Float & Retainer
Assembly
14 8269297 Miscellaneous
Parts Bag
(Includes 2 Screws
& 2 Hose Clamps)
15 356138 Hose, Clamp
16
W10137608
Drain Loop
with Check Valve
TUB AND FRAME PARTS
5
(Panel Ready)
For Model: KUDS03FTPA3
W10201545
TUB AND FRAME PARTS
6
(Panel Ready)
For Model: KUDS03FTPA3
W10201545
Illus. Part
No. No. DESCRIPTION
1
W10164353
Tub Assembly
(Includes Heater
Assembly)
2 8574123 Barrier, Moisture
3
W10112096
Door Seal
4
W10082838
Plug Tub
5 8572661 Actuator Assembly
6
W10082769
Motor, Wax
7 8269110 Seal, Cabinet
8 8573061 Strain Relief
9
W10084086
Door, Balance
Assembly
10 3367670 Screw
11 8269145 Bracket,
Undercounter
12 3400074 Screw
13 3400924 Retainer, Push−in
14 3370389 Screw
15 8268977 Wheel Leg
16 8524584 Leveler, Leg
17
W10078083
Wheel & Mount
Assembly (Also
Order #31)
18 8270020 Spring, Door
Balance
19 3400892 Screw
20 8268991 Cover, Terminal
Box
21
W10158291
Cable, Door
Balance
22 8268582 Insulator, Sound
23 304666 Retainer, Push
24 3400072 Screw
25 8573239 Shield, Sound
Tub
26 9742648 Bracket,
Thermostat
27 661566 Thermostat
28
W10077370
Strike, Plate
29 3378128 Washer,
Pronged Cup
30 3400014 Screw
31 9743002 Gasket
PUMP AND MOTOR PARTS
7
(Panel Ready)
For Model: KUDS03FTPA3
25

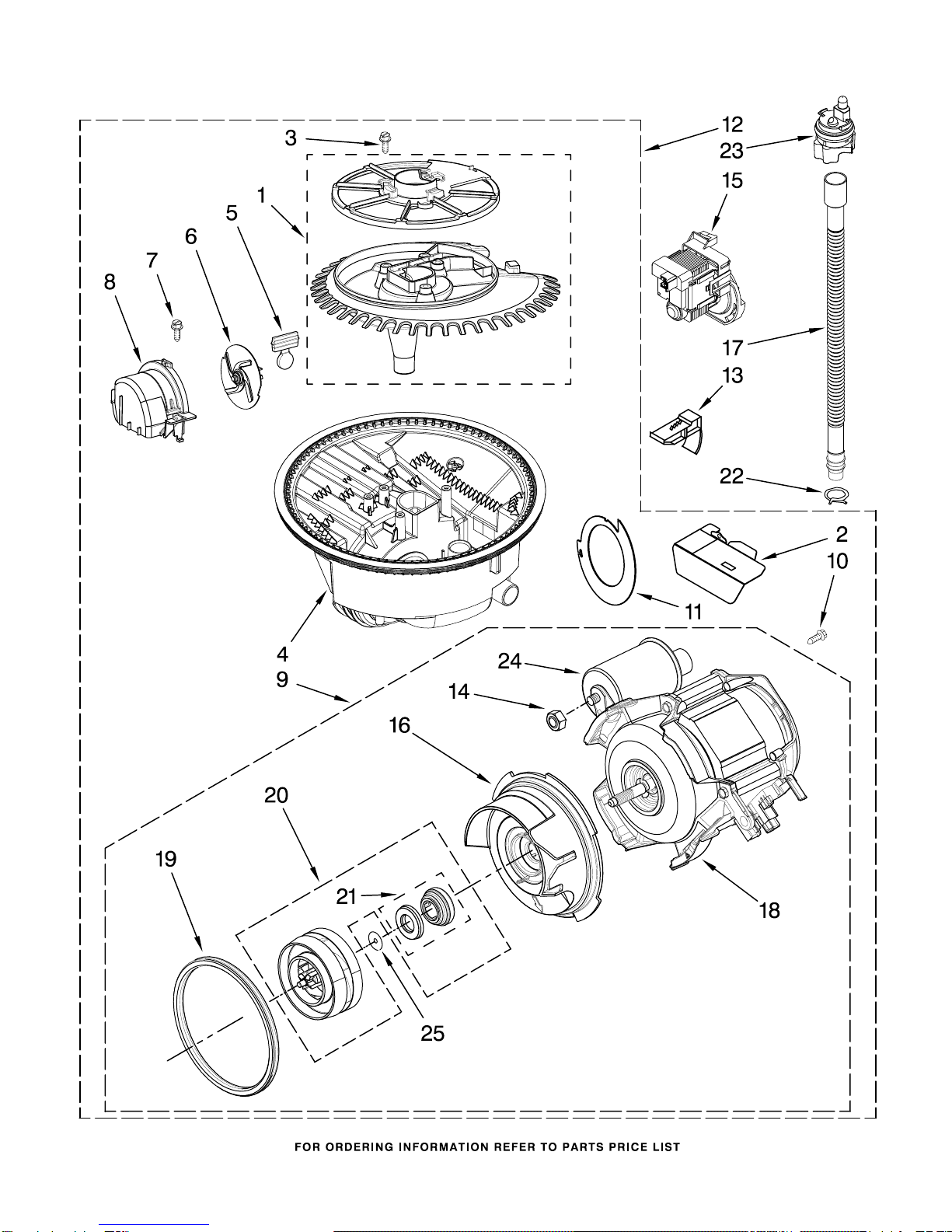

PUMP AND MOTOR PARTS
8
(Panel Ready)
For Model: KUDS03FTPA3
W10201545
Illus. Part
No. No. DESCRIPTION
1 8534952 Accumulator Assy
2 8283527 Shield, Motor
3 3400069 Screw
4 8572618 Sump With Seal
5 8268375 Check Valve, Sump
6
W10083957
Chopper Assembly
7 9741232 Screw
8 8531857 Protector, Inlet
9
W10239404
Motor Assembly
10 3400217 Screw
11
W10084567
Screen, Separation
12
W10237169
Sump & Motor
Assembly
(Includes
Item 13)
13 8269524 Tab, Sump
14 8533949 Nut
15 661662 Pump, Drain
16 8531019 Volute, Back
(Also Order
Items 21 & 25)
17 8269144 Hose, Drain
18
W10239401
Motor
19 8268397 Seal, Volute
20 8531017 Impeller Kit
21 8268403 Face Seal Assembly
(Also Order
Item 25)
22 356138 Clamp, Hose
23
W10134017
Optical Water
Indicator
24
W10216724
Capacitor
25 8531018 Washer
UPPER WASH AND RINSE PARTS
9
(Panel Ready)
For Model: KUDS03FTPA3
W10201545
Illus. Part
No. No. DESCRIPTION
1
W10077859
Feed Tube
Assembly
(Also Includes
Item 3)
2 8533889 Screw
3 8557720 Sprayarm, 3rd
Level
4
W10118464
Cover, Screw
5
W10082867
Mount
6
W10082949
Manifold
7
W10082832
Hanger
8 8268433 Seal, Sprayarm
9
W10082831
Probe, Manifold
10
W10082841
Sprayarm
11
W10077600
Manifold,
Turbo Zone
12
W10077903
Valve Assembly,
Manifold
HEATER PARTS
10
(Panel Ready)
For Model: KUDS03FTPA3
W10201545
Illus. Part
No. No. DESCRIPTION
1 8537057 Heater Element
Assembly
(Also Includes
Item 2)
2 717273 Washer, Heater
Element
3 8268548 Nut, Heater
Element
4 3400931 Retainer, Spring
Grip
NOTE:
If heater element is
removed, it must be replaced.
