KitchenAid KUDS03CTBL3 Manuel utilisateur

DOOR AND PANEL PARTS

UNDERCOUNTER

DISHWASHER

For Models: KUDS03CTBL3, KUDS03CTWH3, KUDS03CTSS3

(Black) (White) (Stainless)

10−09 Litho In U.S.A. (els) (eeb) Part No. W10200517 Rev. B

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10078153

Instructions,

Installation

W10056403

Energy Guide

W10193741

Guide, Use & Care

Spanish

W10193740

Guide, Use & Care

English/French

W10130990

Tech Sheet

2 Arm, Hinge

8534854 Left

8534853 Right

3 8564886 Stiffener, Door

W10073520

Insulation, Door

5 Access Panel

(Includes item 18)

8573255 Black

8573256 White

6 Panel, Full Front

(Includes Items

4, 10, 16 & 17)

W10077999

Black

W10078000

White

W10137621

Stainless

7 Overlay

W10077794

Black

W10077795

White

W10077797

Stainless

8 Toe Panel

(Includes

Items 11 & 19)

W10205336

Black

W10205337

White

9 Handle

(Includes

Items 14)

W10257146

Black

W10257147

White

W10257145

Stainless

10 8564951 Stud, Mounting

W10073540

Insulation,

Toe Panel

12 Screw

302868 Black

3400836 White

13 304392 Screw

14 8534008 Screw

15 3400071 Screw

16 Nameplate

W10021860

Black

W10021870

White

W10021850

Stainless

17 2004333 Nut

W10123421

Screw

19 8269016 Clip, Ground

W10133538

Plate, Backing

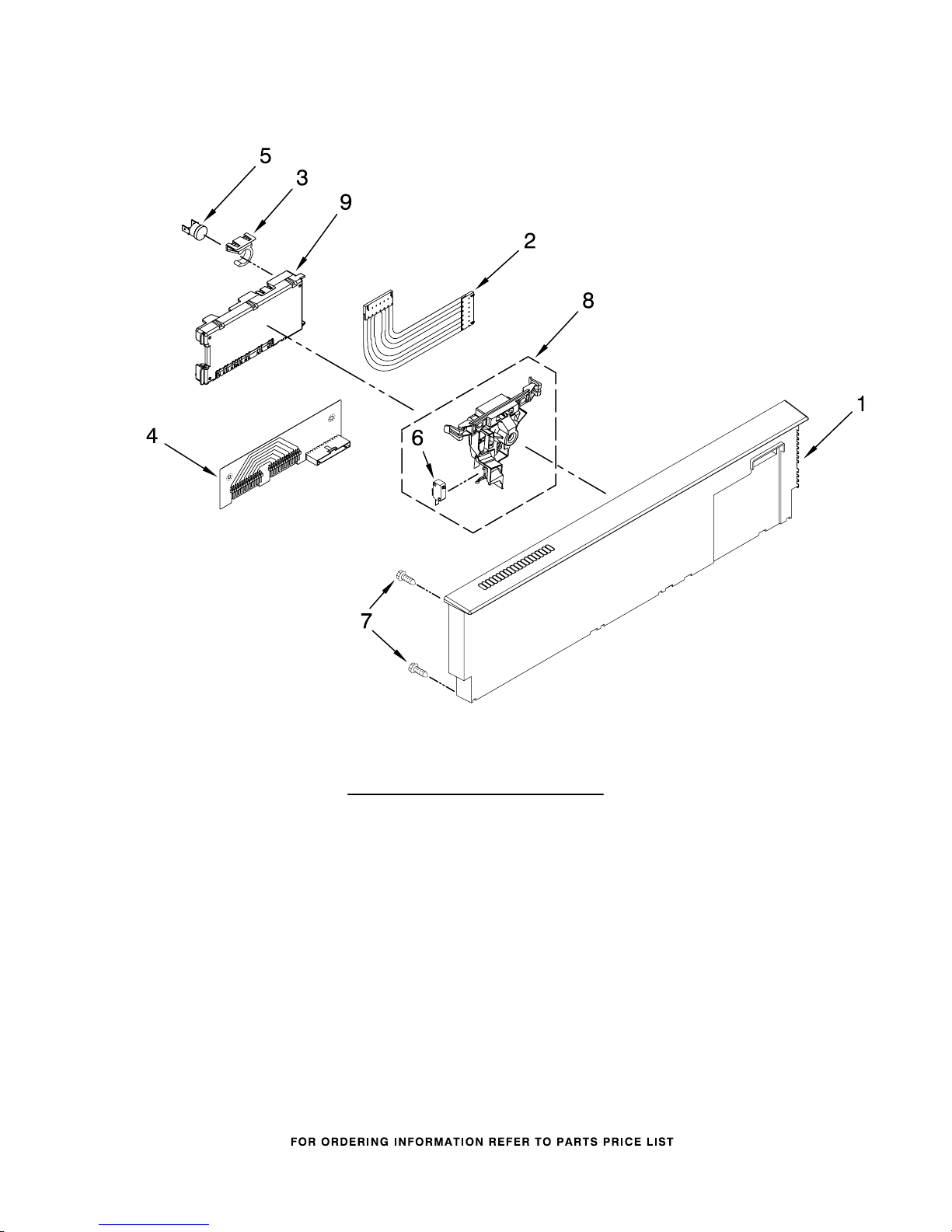

CONTROL PANEL PARTS

For Models: KUDS03CTBL3, KUDS03CTWH3, KUDS03CTSS3

(Black) (White) (Stainless)

W10200517

Illus. Part

No. No. DESCRIPTION

1 Console Assembly

W10084159

Black

W10084160

White

W10084162

Stainless

2 8531877 Cable, Ribbon

3 8546546 Clip, BI−Metal

4 8531873 Board,

Interconnect

5 661663 BI−Metal

W10134019

Switch, Door

7 3369051 Screw

W10077360

Latch Assembly

W10084141

Control,

Electronic

DOOR AND LATCH PARTS

For Models: KUDS03CTBL3, KUDS03CTWH3, KUDS03CTSS3

(Black) (White) (Stainless)

W10200517

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3369051 Screw, Door

2 8281217 Screw

W10056249

Inner Door

Mastic Assembly

(Also Order

Item 6)

W10077883

Inlet, Air

5 8572611 Vent Assembly

(Also Order

Item 6)

6 8269259 Gasket, Vent

W10077877

Deflector, Vent

(Also Order

Item 6)

W10224431

Dispenser,

Assembly

W10077881

Knob, Rinse Aid

10 8545608 Harness, Vent

Motor

W10078202

Wiring Harness

W10177098

Screw

13 8535660 Seal,

Console/door

14 8535637 Bracket,

Dispenser

16 8531865 Shield,

Dispenser

FILL, DRAIN AND OVERFILL PARTS

For Models: KUDS03CTBL3, KUDS03CTWH3, KUDS03CTSS3

(Black) (White) (Stainless)

W10200517

Illus. Part

No. No. DESCRIPTION

1 8268892 Lever, Overflow

Switch

2 8531412 Hose, Inlet

3 8531325 Water Inlet

(Also Order

Item 4)

4 8531323 Gasket

5 8531327 Nut, Inlet

(Also Order

Item 4)

6 371505 Clamp, Hose

W10219505

Fill Valve

Assembly

8 304392 Screw

9 8268909 Switch, Overfill

Control

10 8545946 Standpipe,

Overfill

(Includes Item 11)

11 8531743 Gasket, Flat

12 9741998 Nut, Standpipe

W10077871

Float & Retainer

Assembly

14 8269297 Miscellaneous

Parts Bag

(Includes 2 Screws

& 2 Hose Clamps)

15 356138 Clamp, Hose

W10137608

Drain Loop

with Check Valve

TUB AND FRAME PARTS

For Models: KUDS03CTBL3, KUDS03CTWH3, KUDS03CTSS3

(Black) (White) (Stainless)

W10200517

TUB AND FRAME PARTS

For Models: KUDS03CTBL3, KUDS03CTWH3, KUDS03CTSS3

(Black) (White) (Stainless)

W10200517

Illus. Part

No. No. DESCRIPTION

W10164353

Tub Assembly

(Includes Heater

Assembly)

2 8573061 Strain Relief

W10112096

Door Seal

W10082838

Plug Tub

5 8268582 Insulator, Sound

6 8269110 Seal, Cabinet

7 3400924 Retainer, Push

W10078083

Mount, Door

Balance

(Also Order

Item 30)

9 3367670 Screw

10 8269145 Bracket,

Undercounter

11 3400074 Screw

12 8574123 Barrier, Moisture

Undercounter

13 3370389 Screw

14 8268977 Wheel, Leg

15 8524584 Leveler, Leg

W10084086

Door Balance

Assembly

17 8270020 Spring, Door

Balance

18 8572661 Actuator Assembly

19 3400892 Screw

20 8268991 Cover, Terminal

Box

W10158291

Ccable,Door

Balance

22 304666 Retainer, Push

23 8573239 Shield, Sound

Tub

24 9742648 Bracket,

Thermostat

25 661566 Thermostat

W10077370

Strike, Latch

W10082769

Motor, Wax

28 3378128 Washer,

Pronged Cup

29 3400014 Screw

W10112096

Gasket, Bracket

Mounting

31 3400072 Screw

PUMP AND MOTOR PARTS

For Models: KUDS03CTBL3, KUDS03CTWH3, KUDS03CTSS3

(Black) (White) (Stainless)

W10200517

PUMP AND MOTOR PARTS

For Models: KUDS03CTBL3, KUDS03CTWH3, KUDS03CTSS3

(Black) (White) (Stainless)

W10200517

Illus. Part

No. No. DESCRIPTION

1 8534952 Accumulator Assy

2 8283527 Shield

3 3400069 Screw

4 8572618 Sump with Seal

5 8268375 Check Valve, Sump

W10083957

Chopper Assembly

7 9741232 Screw

8 8531857 Protector, Inlet

W10239404

Motor Assembly

10 3400217 Screw

W10084567

Screen, Separation

W10237169

Sump & Motor

Assembly

13 8269524 Tab, Sump

14 8533949 Nut

15 661662 Pump, Drain

16 8531019 Volute, Back

(Also Order

Items 21 & 26)

17 8269144 Hose, Drain

W10239401

Motor

19 8268397 Seal, Volute

20 8531017 Impeller Kit

21 8268403 Face Seal Assembly

(Also Order

Item 26)

22 356138 Clamp, Hose

W10134017

Optical Water

Indicator

W10216724

Capacitor

25 8531018 Washer

UPPER WASH AND RINSE PARTS

For Models: KUDS03CTBL3, KUDS03CTWH3, KUDS03CTSS3

(Black) (White) (Stainless)

W10200517

Illus. Part

No. No. DESCRIPTION

W10077859

Feed Tube

Assembly

(Also Includes

Item 3)

2 8533889 Screw

3 8557720 Sprayarm, 3rd

Level

W10118464

Cover, Screw

W10082867

Mount

W10082949

Manifold

W10082832

Hanger

8 8268433 Seal, Sprayarm

W10082831

Probe, Manifold

W10082841

Sprayarm

W10077600

Manifold, Spray

Zone

W10077903

Valve Assembly,

Manifold

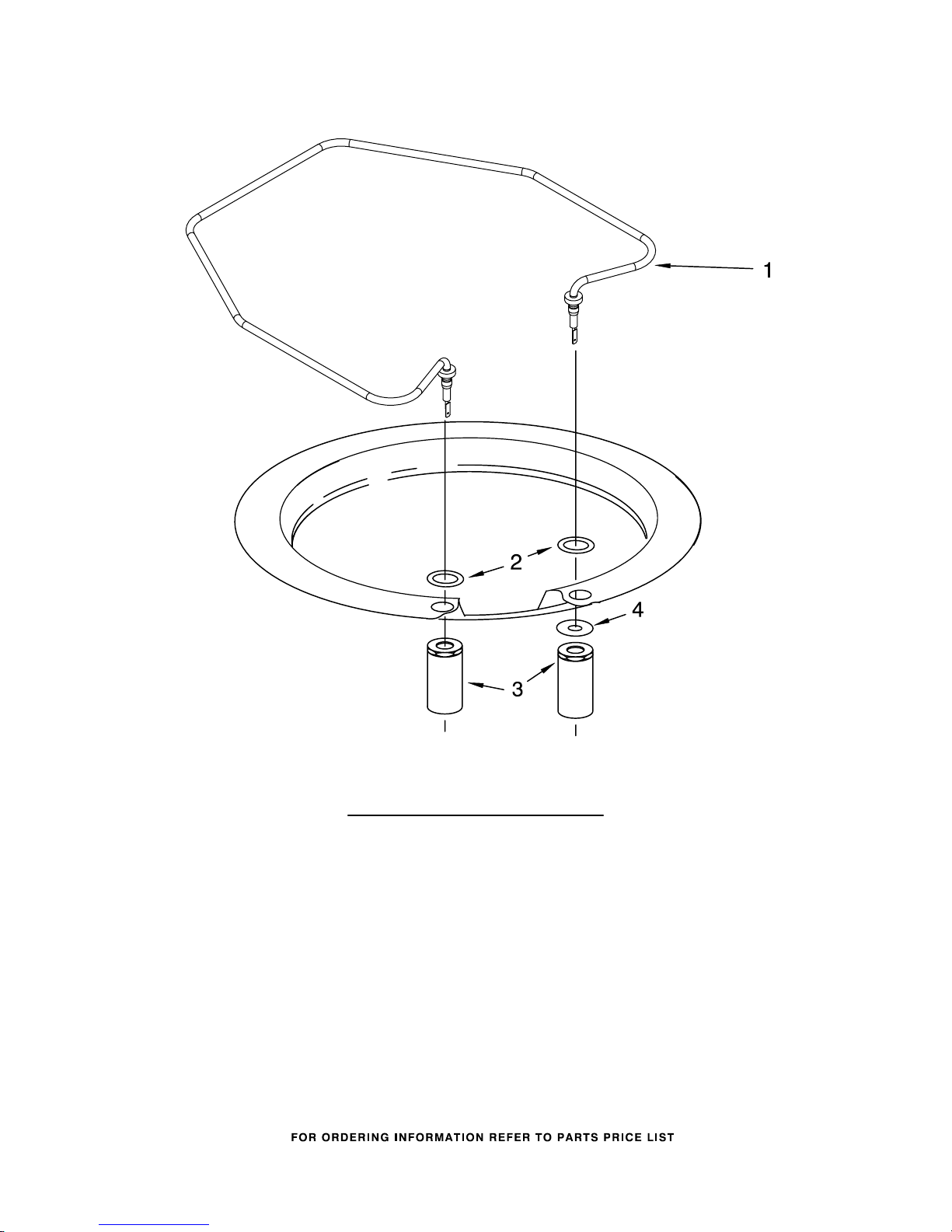

HEATER PARTS

For Models: KUDS03CTBL3, KUDS03CTWH3, KUDS03CTSS3

(Black) (White) (Stainless)

W10200517

Illus. Part

No. No. DESCRIPTION

1 8537057 Heater Element

Assembly

(Also Includes

Item 2)

2 717273 Washer, Heater

Element

3 8268548 Nut, Heater

Element

4 3400931 Retainer, Spring

Grip

NOTE:

If heater element is

removed, it must be replaced.
