KitchenAid KUDC03IVBS - 24" Dishwasher Manuel utilisateur
1

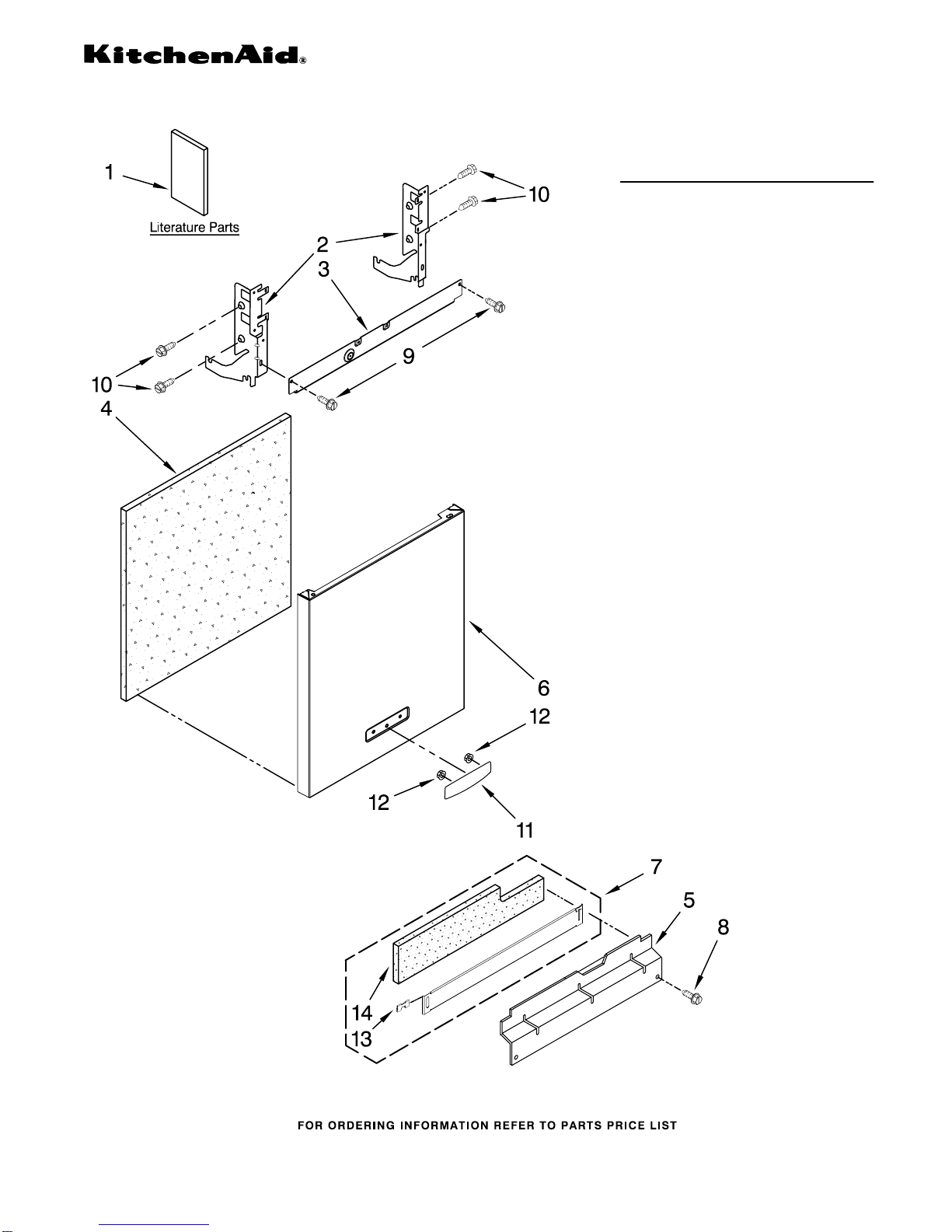

DOOR AND PANEL PARTS
For Models: KUDC03IVBL4, KUDC03IVWH4, KUDC03IVBS4
(Black) (White) (Black/Stainless)
4−10 Litho in U.S.A. (ELS)(bay) Part No. W10324743 Rev. A
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10056407
Instructions,
Installation
W10247456
Energy Guide
Guide, Use & Care
W10300233
English/French
W10300234
Spanish
W10142800
Tech Sheet
2 Arm, Hinge
8534854 Left
8534853 Right
3 8268983 Stiffener, Door
4
W10073520
Insulation, Door
5 Access Panel
8573255 Black
8573256 White
6 Panel, Full Front
(Includes Items
4,11 & 12)
W10077995
Black
W10077996
White
W10137620
Stainless Steel
7 Toe Panel
(Includes 13 & 14)
W10205336
Black
W10205337
White
8 Screw
302868 Black
3400836 White
9 304392 Screw
10 3400071 Screw
11 Nameplate
W10021860
Black
W10021870
White
W10021850
Stainless Steel
12 2004333 Nut
13 8269016 Clip, Ground
14
W10073540
Insulation,
Toe Panel

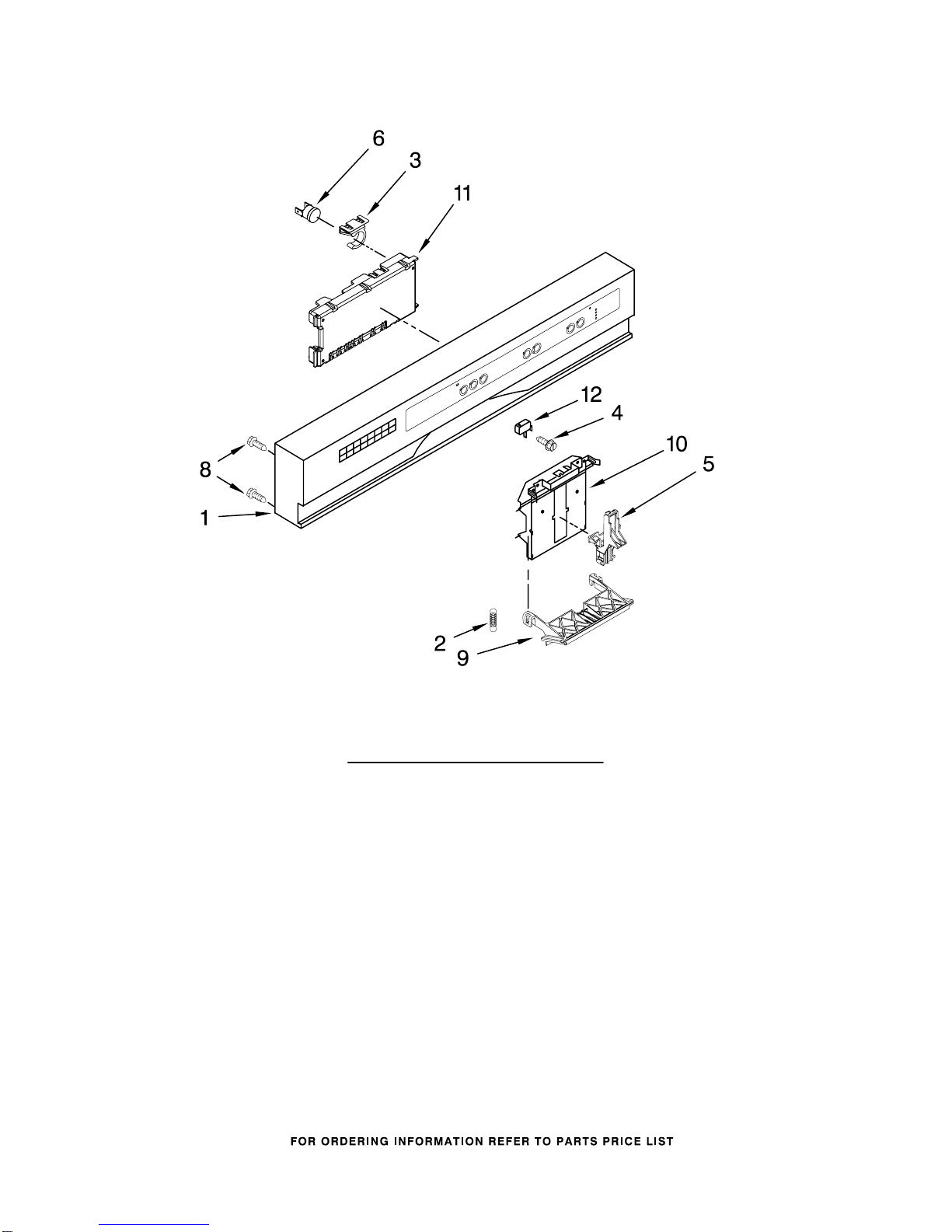

CONTROL PANEL AND LATCH PARTS
2
For Models: KUDC03IVBL4, KUDC03IVWH4, KUDC03IVBS4
(Black) (White) (Black/Stainless)
W10324743
Illus. Part
No. No. DESCRIPTION
1 Console Assembly
(Includes Insert)
W10243231
Black
W10243232
White
2 8268540 Spring, Handle
3 8546546 Clip, BI−Metal
4 3400412 Screw
5 8524471 Actuator, Latch
6 661663 Bi−Metal
8 3369051 Screw
9 Handle, Latch
8269117 Black
8269167 White
10 8524476 Bolt, Latch
11
W10285180
Control,
Electronic
12 8269209 Switch, Door

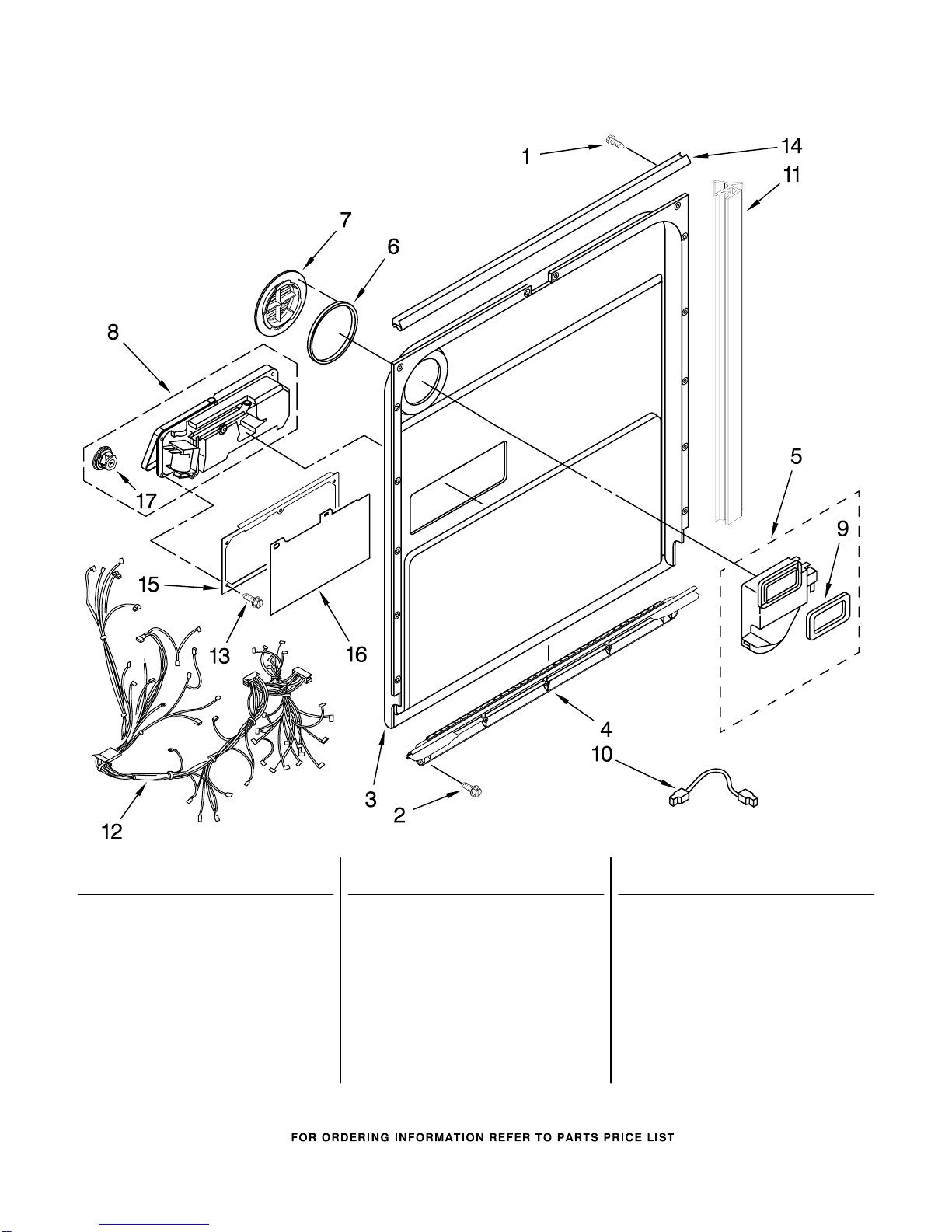

INNER DOOR PARTS
3
For Models: KUDC03IVBL4, KUDC03IVWH4, KUDC03IVBS4
(Black) (White) (Black/Stainless)
W10324743
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
2 8281217 Screw
3
W10056249
Inner Door
Mastic Assembly
(Also Order
Item 6)
4
W10077883
Inlet, Air
5
W10164259
Vent Assembly
(Also Order
Item 6)
6 8269259 Gasket, Vent
7
W10077877
Deflector, Vent
(Also Order
Item 6)
8
W10224431
Dispenser,
Assembly
9 8269258 Seal, Front
10 8545608 Harness, Vent
Motor
11 8574160 Seal, Side
12
W10224464
Wiring Harness
13
W10177098
Screw
14 8535660 Seal,
Console/door
15 8535637 Bracket,
Dispenser
16 8531865 Shield,
Dispenser
17
W10077881
Knob, Rinse Aid

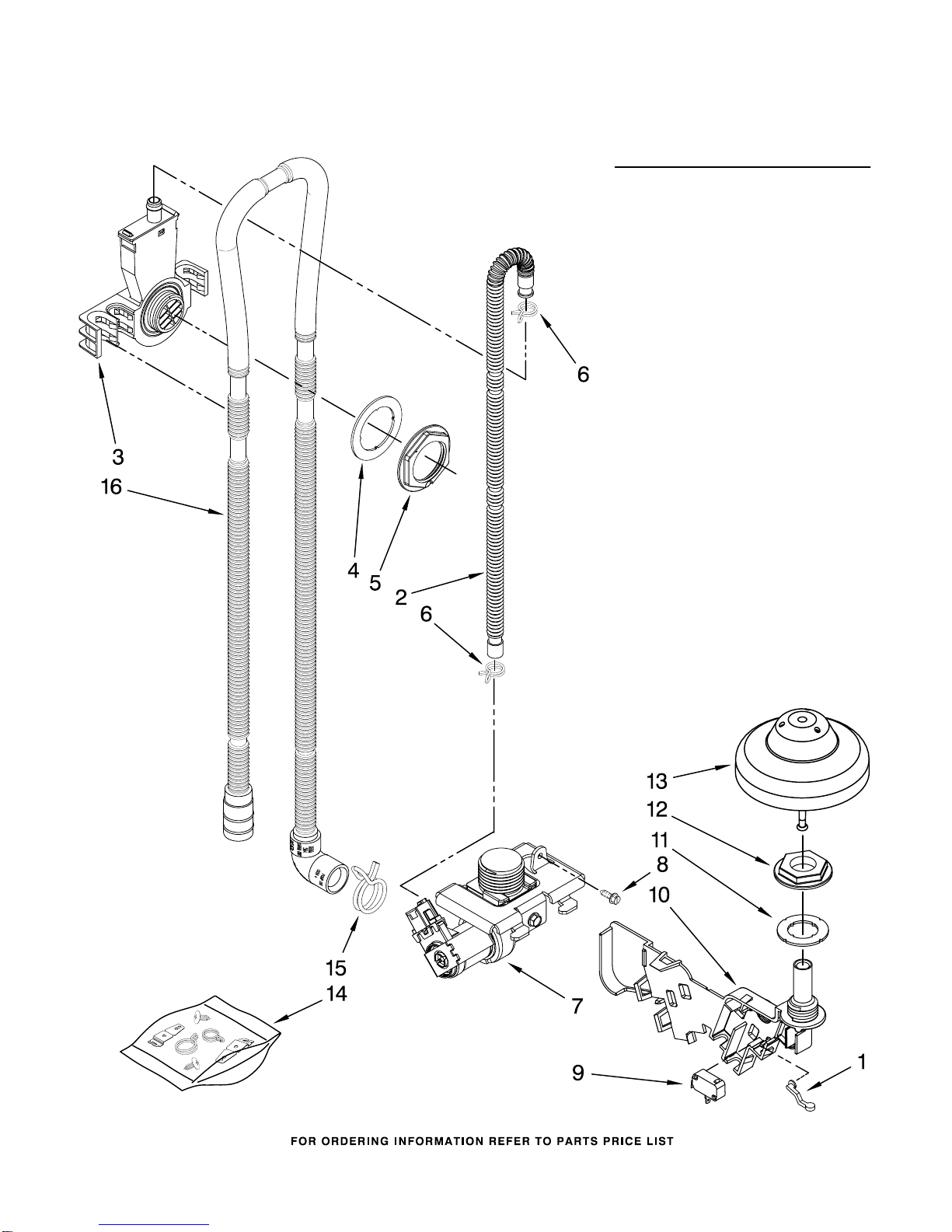

FILL, DRAIN AND OVERFILL PARTS
4
For Models: KUDC03IVBL4, KUDC03IVWH4, KUDC03IVBS4
(Black) (White) (Black/Stainless)
W10324743
Illus. Part
No. No. DESCRIPTION
1 8268892 Lever, Overfill
Switch
2 8531412 Hose, Inlet
3
W10195536
Water Inlet
(Also Order
Item 4)
4 8531323 Gasket
5
W10213826
Nut, Inlet
(Also Order
Item 4)
6 371505 Clamp, Hose
7
W10195049
Fill Valve
Assembly
8 304392 Screw
9 8268909 Switch, Overfill
Control
10 8545946 Standpipe,
Overfill
(Includes Item 11)
11 8531743 Gasket, Flat
12 9741998 Nut, Standpipe
13
W10077871
Float & Retainer
Assembly
14
W10292152
Miscellaneous
Parts Bag
(Includes 2 Screws
2 Hose Clamps,
& 2 Brackets)
15 356138 Clamp, Hose
16
W10137608
Drain Loop
with Check Valve

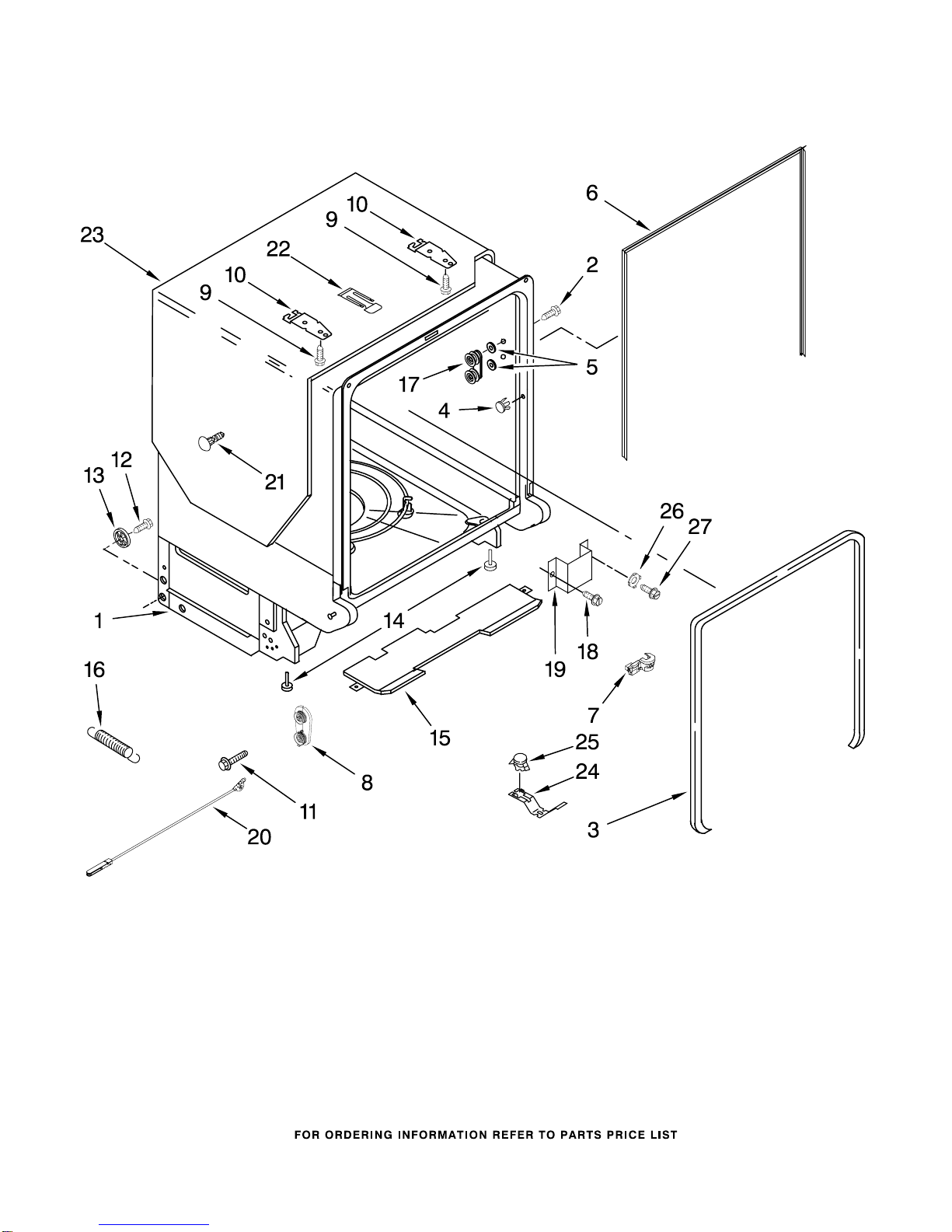

TUB AND FRAME PARTS
5
For Models: KUDC03IVBL4, KUDC03IVWH4, KUDC03IVBS4
(Black) (White) (Black/Stainless)
W10324743
TUB AND FRAME PARTS
6
For Models: KUDC03IVBL4, KUDC03IVWH4, KUDC03IVBS4
(Black) (White) (Black/Stainless)
W10324743
Illus. Part
No. No. DESCRIPTION
1
W10213822
Tub Assembly
(Includes Heater
Assembly)
2 3400072 Screw
3
W10112096
Door Seal
4
W10082838
Plug Tub
5 9743002 Gasket, Bracket
Mounting
6 8269110 Seal, Cabinet
7 8573061 Strain Relief
8
W10084086
Door Balance
Assembly
9 3367670 Screw
10 8269145 Bracket,
Undercounter
11 3400074 Screw
12 3370389 Screw
13 8268977 Wheel Leg
14 8524584 Leveler, Leg
15
W10266857
Insulation, Sound
Bottom
16 8270020 Spring, Door
Balance
17
W10078083
Wheel & Mount
Assembly
(Also Order #5)
18 3400892 Screw
19 8268991 Cover, Terminal
Box
20
W10158291
Link, Door
Balance
21 304666 Retainer, Push
22 8580309 Strike, Latch
23 8573241 Shield, Sound
24 9742648 Bracket,
Thermostat
25 661566 Thermostat
26 3378128 Washer,
Pronged Cup
27 3400014 Screw

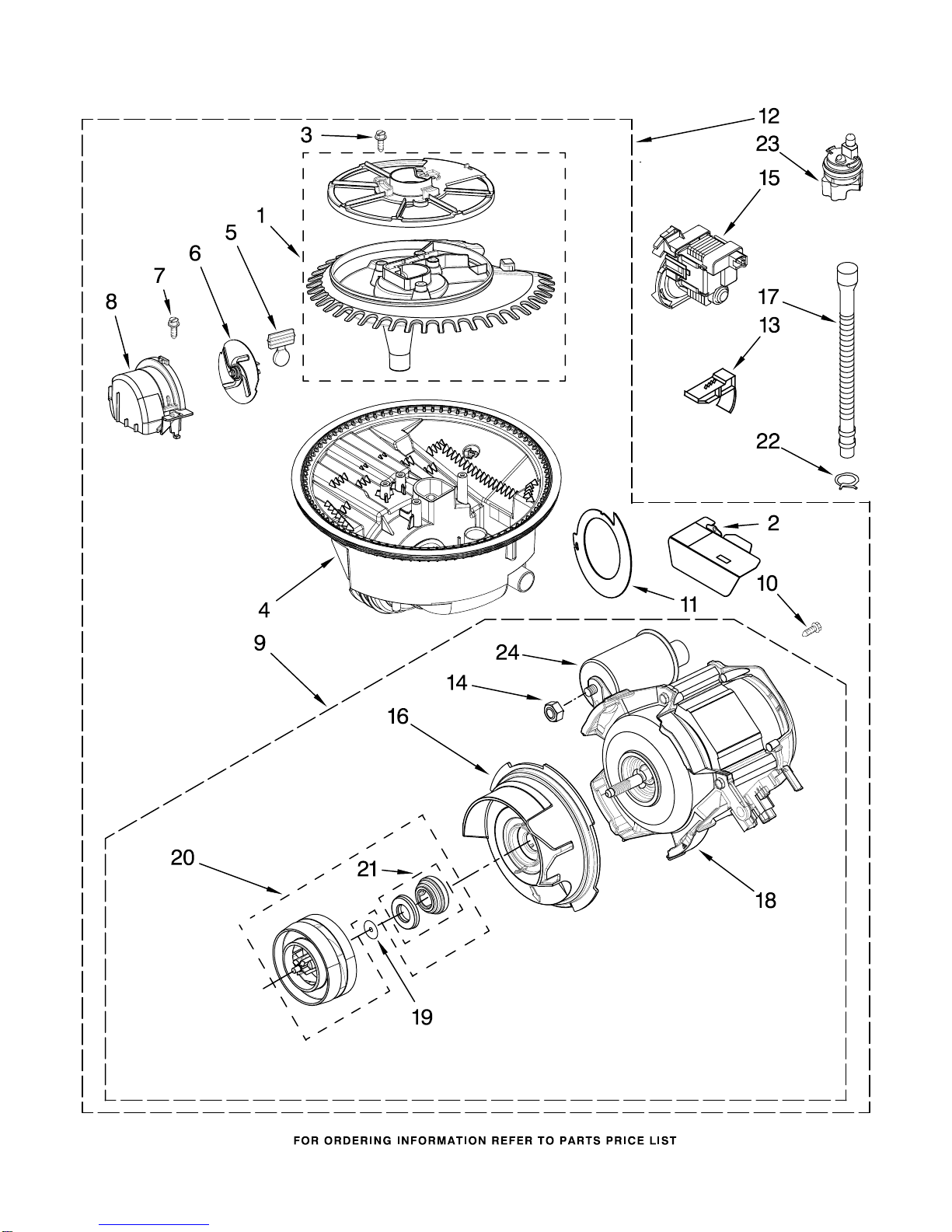

PUMP AND MOTOR PARTS
7
For Models: KUDC03IVBL4, KUDC03IVWH4, KUDC03IVBS4
(Black) (White) (Black/Stainless)
W10324743
PUMP AND MOTOR PARTS
8
For Models: KUDC03IVBL4, KUDC03IVWH4, KUDC03IVBS4
(Black) (White) (Black/Stainless)
W10324743
Illus. Part
No. No. DESCRIPTION
1 8534952 Accumulator Assy
2 8283527 Shield, Motor
3 3400069 Screw
4 8572618 Sump With Seal
5 8268375 Check Valve, Sump
6
W10083957
Chopper Assembly
7 9741232 Screw
8 8531857 Protector, Inlet
9
W10239401
Motor Assembly
10 3400217 Screw
11
W10084567
Screen, Separation
12
W10237169
Sump & Motor
Assembly
13 8269524 Tab, Sump
14 8533949 Nut
15 8558995 Pump, Drain
16
W10142656
Volute W/Seal
(Also Order
Items 19 & 21)
17 8269144 Hose, Drain
18
W10239401
Motor
19 8531018 Washer
20
W10239404
Impeller Kit
(Also Order
& Item 19)
21 8268403 Face Seal Assembly
(Also Order
& Item 19)
22 356138 Clamp, Hose
23
W10134017
Optical Water
Indicator
24
W10216724
Capacitor

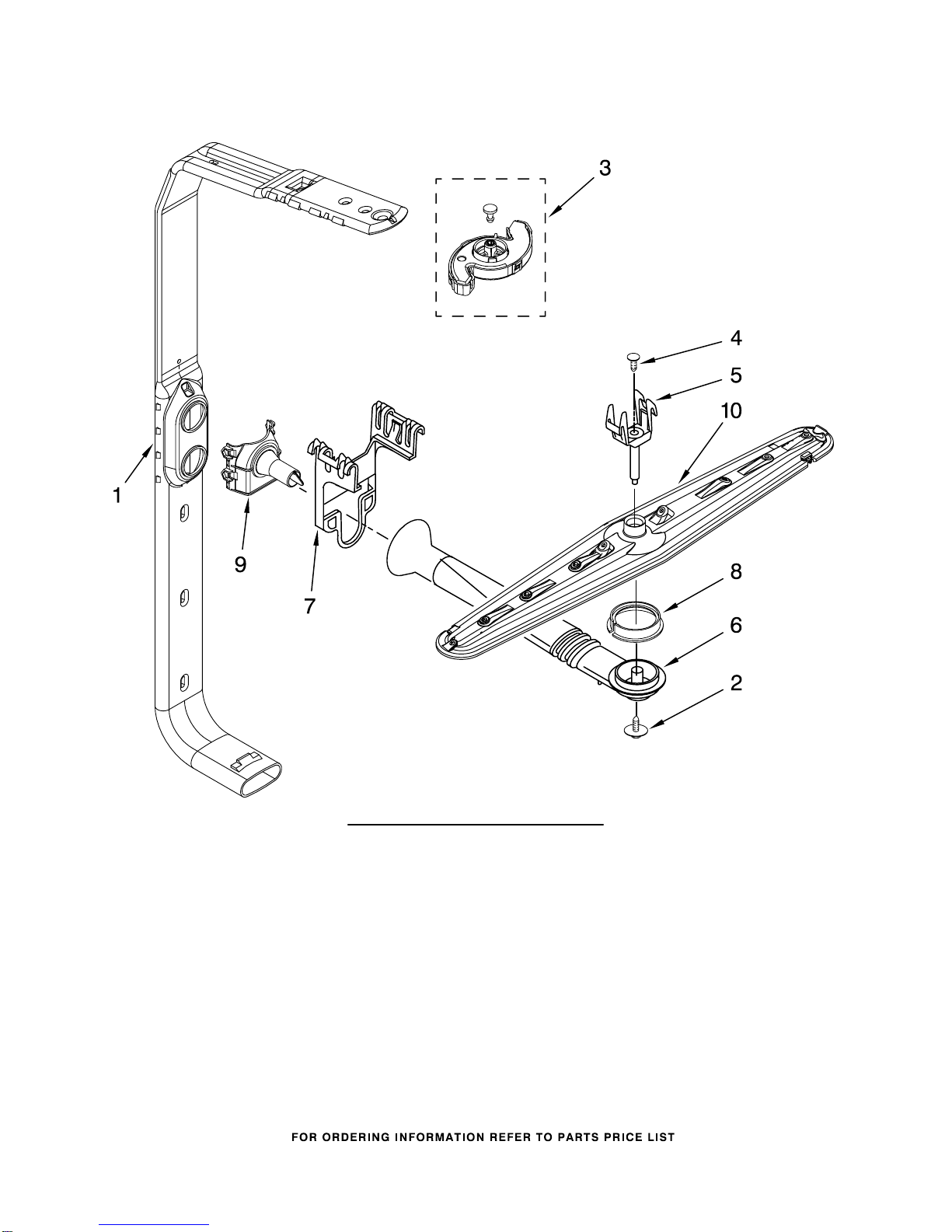

UPPER WASH AND RINSE PARTS
9
For Models: KUDC03IVBL4, KUDC03IVWH4, KUDC03IVBS4
(Black) (White) (Black/Stainless)
W10324743
Illus. Part
No. No. DESCRIPTION
1
W10077896
Feed Tube
Assembly
(Also Includes
Item 3)
2 8533889 Screw
3 8557720 Sprayarm, 3rd
Level
4
W10118464
Cover, Screw
5
W10082867
Mount
6
W10082833
Manifold
7
W10082832
Hanger
8 8268433 Seal, Sprayarm
9
W10077923
Nozzle−Feed
10
W10082841
Sprayarm

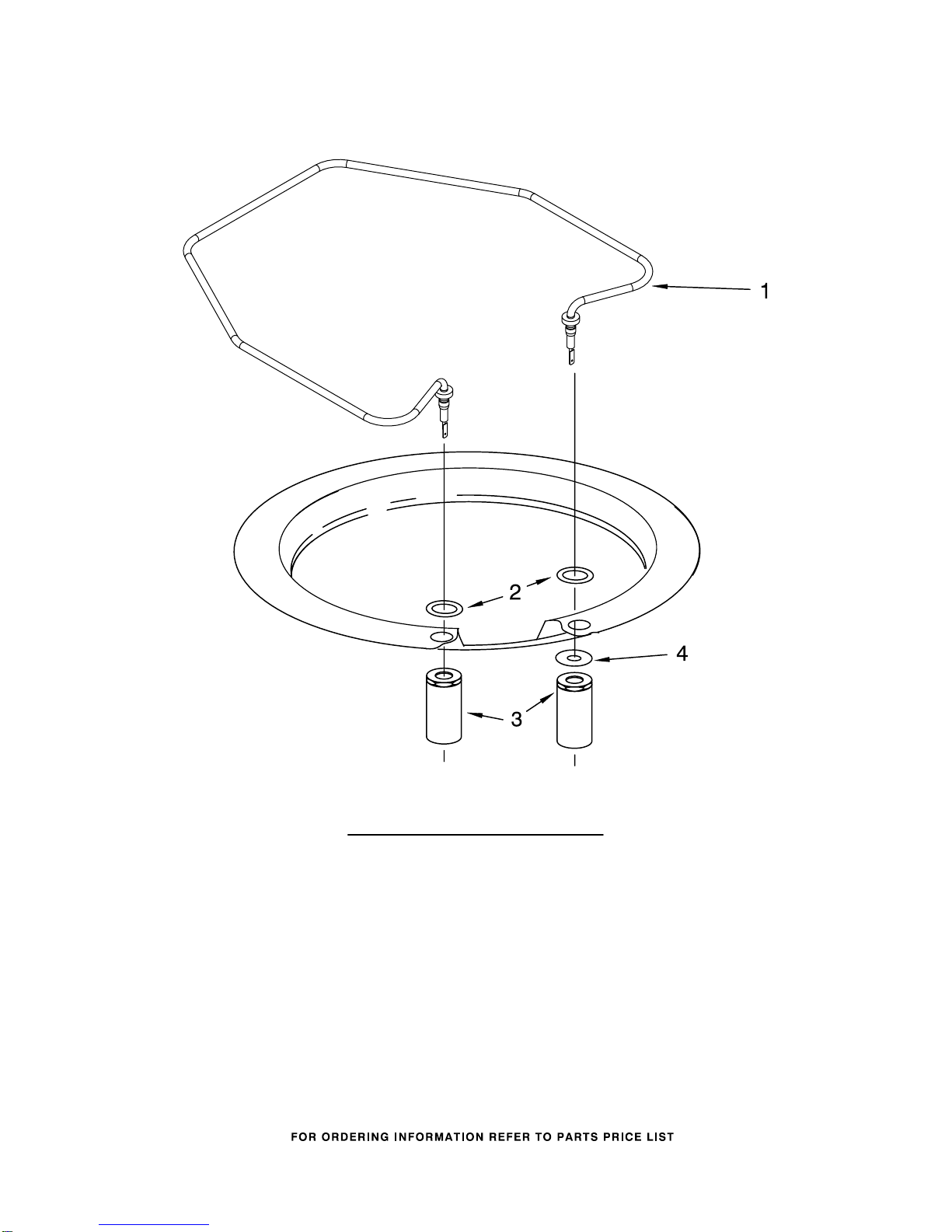

HEATER PARTS
10
For Models: KUDC03IVBL4, KUDC03IVWH4, KUDC03IVBS4
(Black) (White) (Black/Stainless)
W10324743
Illus. Part
No. No. DESCRIPTION
1
W10082892
Heater Element
Assembly
(Also Includes
Item 2)
2 717273 Washer, Heater
Element
3 8268548 Nut, Heater
Element
4 3400931 Retainer, Spring
Grip
NOTE:
If heater element is
removed, it must be replaced.
