KitchenAid KUDC03FTSS0 Manuel utilisateur

DOOR AND PANEL PARTS

For Models: KUDC03FTSS0

(Stainless)

5−07 Litho In U.S.A. (els) Part No. W10128996 Rev. B

UNDERCOUNTER

DISHWASHER

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10078153

Instructions,

Installation

W10111124

Energy Guide

8574093 Guide, Use & Care

W10082651

Tech Sheet

W10077822

Guide, Consumer

Reference

2 Arm, Hinge

8534854 Left

8534853 Right

3 8564886 Stiffener,

Door

4 8542577 Insulation, Door

5 Access Panel

8573255 Black

6 8534008 Screw

7 Panel, Front

(Includes Items

4, 10, 11 & 14)

W10078010

Stainless

8 Toe Panel

8573286 Black

Includes Item 16)

9 Handle

(Includes Item 6)

W10083935

Stainless

10 8564951 Stud, Mounting

11 Nameplate

W10021850

Stainless

12 Screw

302868 Black

13 304392 Screw

14 2004333 Nut

15 3400071 Screw (2)

16 8269016 Clip, Grounding

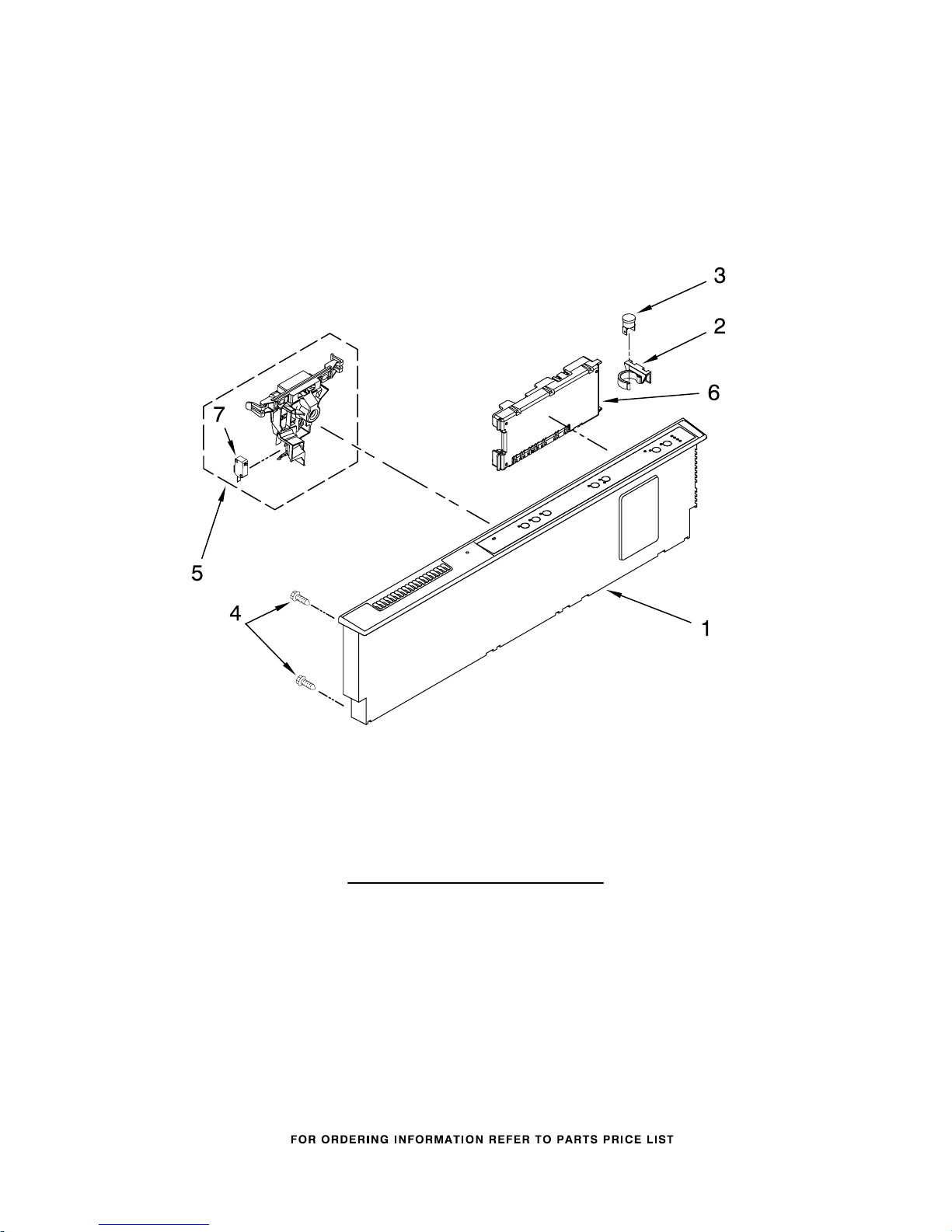

CONTROL PANEL PARTS

For Models: KUDC03FTSS0

(Stainless)

W10128996

Illus. Part

No. No. DESCRIPTION

1 Console Asm.

(Includes Insert)

W10084130

Stainless

2 8546546 Clip, BI−Metal

3 661663 Bi−Metal

4 3369051 Screw (6)

W10077360

Latch Assembly

6 8575277 Control,

Electronic

W10134019

Switch, Door

DOOR AND LATCH PARTS

For Models: KUDC03FTSS0

(Stainless)

W10128996

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3369051 Screw, Door

2 8281217 Screw

3 8530900 Inner Door

Mastic Assembly

(Also Order

Item 6)

W10077883

Inlet, Air

5 8572611 Vent Assembly

(Also Order

Item 6)

6 8269259 Gasket, Vent

W10077877

Deflector, Vent

(Also Order

Item 6)

W10077882

Dispenser,

Assembly

9 8545608 Harness, Vent

Motor

10 8531865 Shield, Dispenser

W10078201

Wiring Harness

Main

12 8281154 Screw (6)

13 8535660 Seal,

Console/door

14 8535637 Bracket,

Dispenser

W10077881

Knob, Rinse Aid

LOWER WASHARM AND STRAINER PARTS

For Models: KUDC03FTSS0

(Stainless)

W10128996

Illus. Part

No. No. DESCRIPTION

W10077965

Wash Arm Assembly

W10077899

Cap, Internal

Rear Feed

(Also Order

Item 3)

3 8268340 Seal, Sprayarm

W10077898

Hub, Lower

Sprayarm

(Also Order

Item 3)

HEATER PARTS

For Models: KUDC03FTSS0

(Stainless)

W10128996

Illus. Part

No. No. DESCRIPTION

1 8537057 Heater Element

Assembly

(Also Includes

Item 2)

2 717273 Washer, Heater

Element

3 8268548 Nut, Heater

Element

4 3400931 Retainer, Spring

Grip

NOTE:

If heater element is

removed, it must be replaced.

FILL, DRAIN AND OVERFILL PARTS

For Models: KUDC03FTSS0

(Stainless)

W10128996

Illus. Part

No. No. DESCRIPTION

1 8268892 Lever, Overfill

Switch

2 8531412 Hose, Inlet

3 8531325 Water Inlet

(Also Order

Item 4)

4 8531323 Gasket

5 8531327 Nut, Inlet

(Also Order

Item 4)

6 371505 Clamp, Hose

7 8563405 Fill Valve

Assembly

8 304392 Screw

9 8268909 Switch, Overfill

Control

10 8545946 Standpipe,

Overfill

(Includes Item 11)

11 8531743 Gasket, Flat

12 9741998 Nut, Standpipe

W10077871

Float & Retainer

Assembly

14 8269297 Miscellaneous

Parts Bag

(Includes 2 Screws

& 2 Hose Clamps)

15 356138 Clamp, Hose

16 8531022 Drain Loop

with Check Valve

TUB AND FRAME PARTS

For Models: KUDC03FTSS0

(Stainless)

W10128996

TUB AND FRAME PARTS

For Models: KUDC03FTSS0

(Stainless)

W10128996

Illus. Part

No. No. DESCRIPTION

W10053090

Tub Assembly

2 8573061 Strain Relief

W10112096

Door Seal

4 8270119 Plug Tub (2)

5 9743002 Gasket, Bracket

Mounting

6 8269110 Seal, Cabinet

7 3400072 Screw

8 8270021 Mount, Door

Balance

9 3367670 Screw

10 8269145 Bracket,

Undercounter

11 3400074 Screw (2)

12 8574123 Barrier, Moisture

Undercounter

13 3370389 Screw (2)

14 8268977 Wheel Leg

15 8524584 Leveler, Leg

16 8524474 Wheel, door

Balance

17 8270020 Spring, Door

Balance

W10078083

Wheel & Mount

Assembly

(Also Order

Item 5)

19 3400892 Screw

20 8268991 Cover, Terminal

Box

21 8535568 Link, Door

Balance

22 304666 Retainer, Push (2)

23 8573241 Shield, Sound

Tub

24 9742648 Bracket,

Thermostat

25 661566 Thermostat

W10077370

Strike, Latch

PUMP AND MOTOR PARTS

For Models: KUDC03FTSS0

(Stainless)

W10128996

PUMP AND MOTOR PARTS

For Models: KUDC03FTSS0

(Stainless)

W10128996

Illus. Part

No. No. DESCRIPTION

1 8534952 Accumulator Assy

2 8283527 Shield

3 3400069 Screw

4 8572618 Sump with Seal

5 8268375 Check Valve, Sump

W10083957

Chopper Assembly

7 9741232 Screw

8 8531857 Protector, Inlet

9 8535760 Motor Assembly

10 3400217 Screw

11 8268391 Screen, Separation

W10084107

Sump & Motor

Assembly

13 8269524 Tab, Sump

14 8533949 Nut

15 661662 Pump, Drain

16 8531019 Volute, Back

(Also Order

Items 21 & 26)

17 8269144 Hose, Drain

18 8535759 Motor

19 8268397 Seal, Volute

20 8531017 Impeller Kit

21 8268403 Face Seal Assembly

(Also Order

Item 26)

22 356138 Clamp, Hose

W10082647

Optical Water

Indicator

24 8535474 Capacitor

25 8534946 Shield, Capacitor

26 8531018 Washer
