COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP487JSS06

(Stainless Steel)

10−04 Litho in U.S.A. (cre) Part No.8186167

48" Stainless Steel

Professional Cooktop

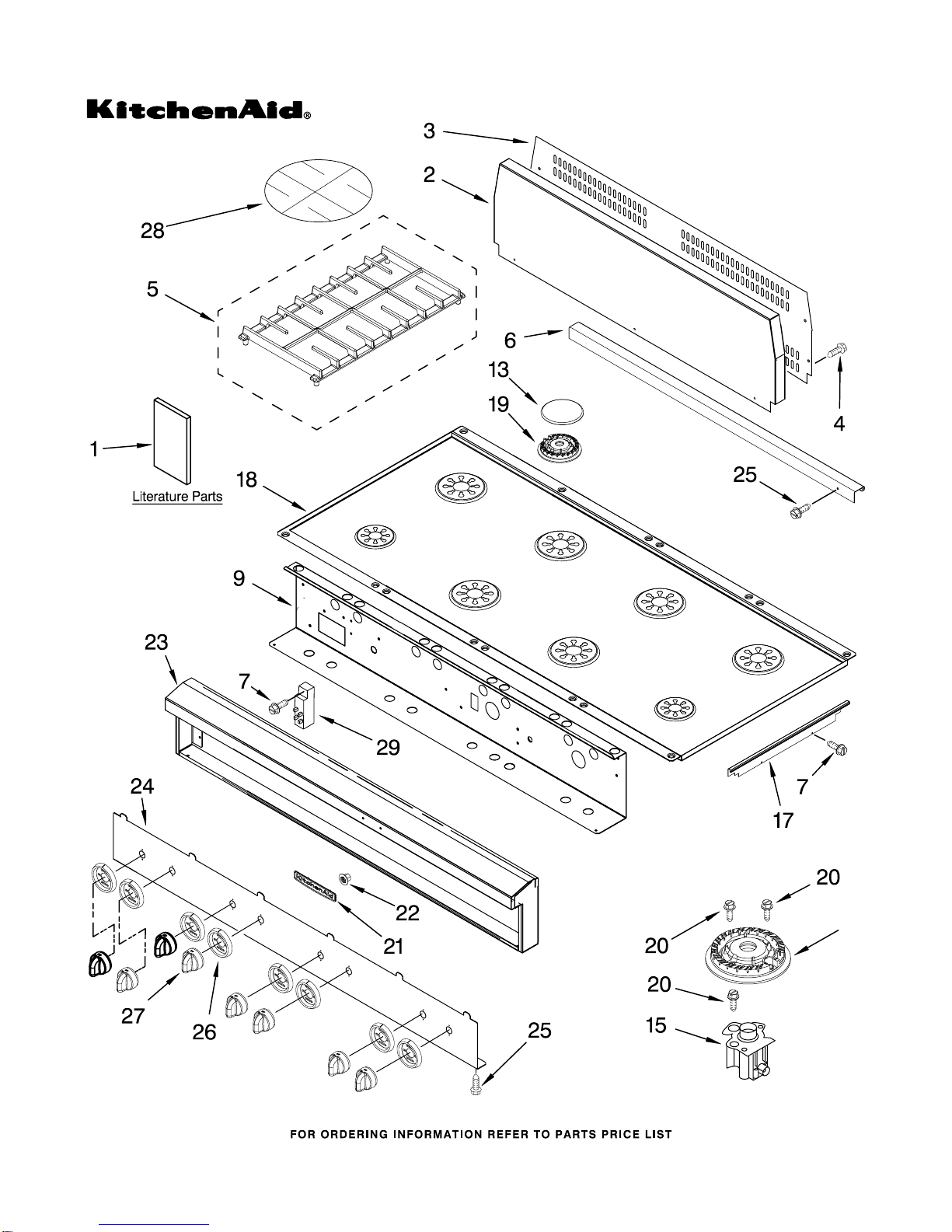

COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP487JSS06

(Stainless Steel)

8186167

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8285063 Instructions,

Island Trim

8284671 Wiring Diagram

8285588 Use & Care Guide

8285497 Installation

Instructions

8284780 Instructions,

LP Conversion

2 8285057 Backsplash

3 8285058 Support,Backsplash

4 3196537 Screw, 8−18 x 3/8

5 4457149 Grate, Burner

6 8302389 Trim, Island

7 3177991 Screw, 8−18 x 1/4

9 8285486 Support, Control

Panel

13 Cap, Burner

4455243 Turbo, 14K (6)

8284669 Auxi, 6K LF−RF

15 Base, Burner

4456622 Turbo, 14K (6)

4456920 Auxi, 6K LF−RF

Includes Orifice

3400843 Screw

17 Trim, Side

4457296 Right Hand

4457297 Left Hand

18 8284726 Cooktop, Black

4449040 Screw

19 Burner Head

4455849 Turbo, 14K (6)

4455979 Auxi, 6K LF−RF

20 3368921 Screw, 7−18 x 3/4

21 2005292 Nameplate

22 2004333 Palnut

23 8284939 Control Frame

24 4457157 Panel, Control

25 3196176 Screw, 8−18 x 1/2

26 4455192 Bezel, Knob

27 4454970 Knob, Burner

28 4455109 Plate, Simmer

29 8522423 Module, Spark

4−Burner

3400843 Screw

BURNER BOX, GAS VALVES, AND SWITCHES

For Model: KGCP487JSS06

(Stainless Steel)

8186167

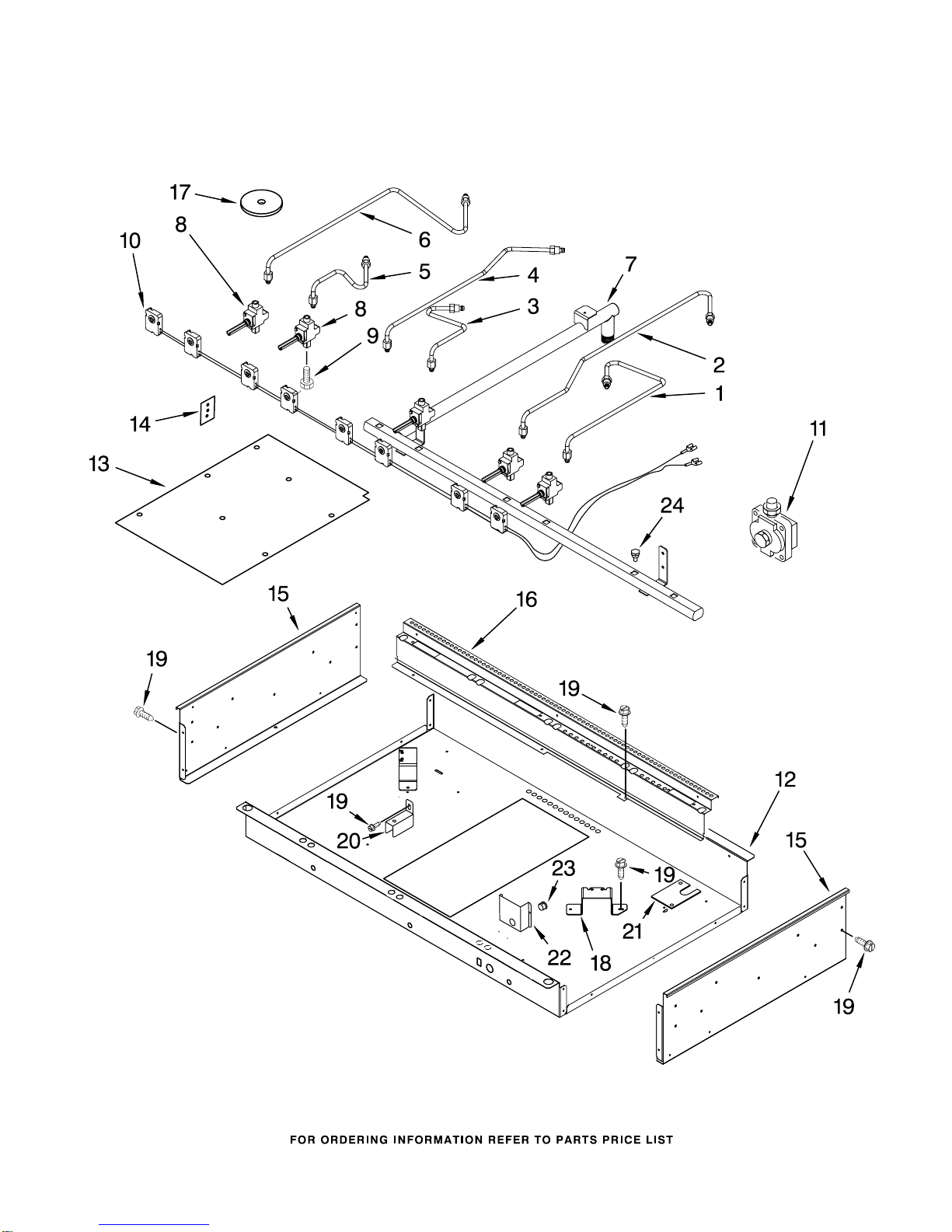

BURNER BOX, GAS VALVES, AND SWITCHES

For Model: KGCP487JSS06

(Stainless Steel)

8186167

Illus. Part

No. No. DESCRIPTION

1 4455040 Tubing, Gas

Burner − RF

2 4455041 Tubing, Gas

Burner − RR

3 4455151 Tubing, Gas

Burner − CF

4 4455152 Tubing, Gas

Burner − CR

5 4455153 Tubing, Gas

Burner − LF

6 4455154 Tubing, Gas

Burner − LR

7 8284737 Manifold

8 Valve, Burner

4456818 Large (6)

4456816 Small, LF−RF

9 3186217 Bolt, Valve

10 4456906 Burner Switch &

Harness Assembly

11 9759091 Regulator,Pressure

12 4457095 Burner Box

13 8284964 Plate, Burner

Holder

3400843 Screw

14 3192439 Seal, Switch

15 Side, Burner Box

8285487 Right Hand

8285488 Left Hand

16 9759137 Support, Rear

17 3191387 Seal, Switch

18 3192811 Bracket, Burner

19 3177991 Screw, 8−18 x 1/4

20 4449845 Bracket, Support

21 8285361 Cover, Manifold

Slot

22 8284680 Cover, Shelf

23 8284722 Bushing, Cover

Shelf

24 8284796 Plug, Manifold

(close)

OPTIONAL PARTS

Illus. Part

No. No. DESCRIPTION

For Model: KGCP487JSS06

(Stainless Steel)

8186167

WIRING HARNESS PARTS

3192231 Power Cord

1129449 Bushing

8285025 Harness, Wire

Jumper

Harness, Wire

Ignitor

4456628 42"

4456627 28"

8171420 Cleaner

Miscellaneous

8284934 Conversion Kit

8284782 L.P. Orifice Spud

Pack
