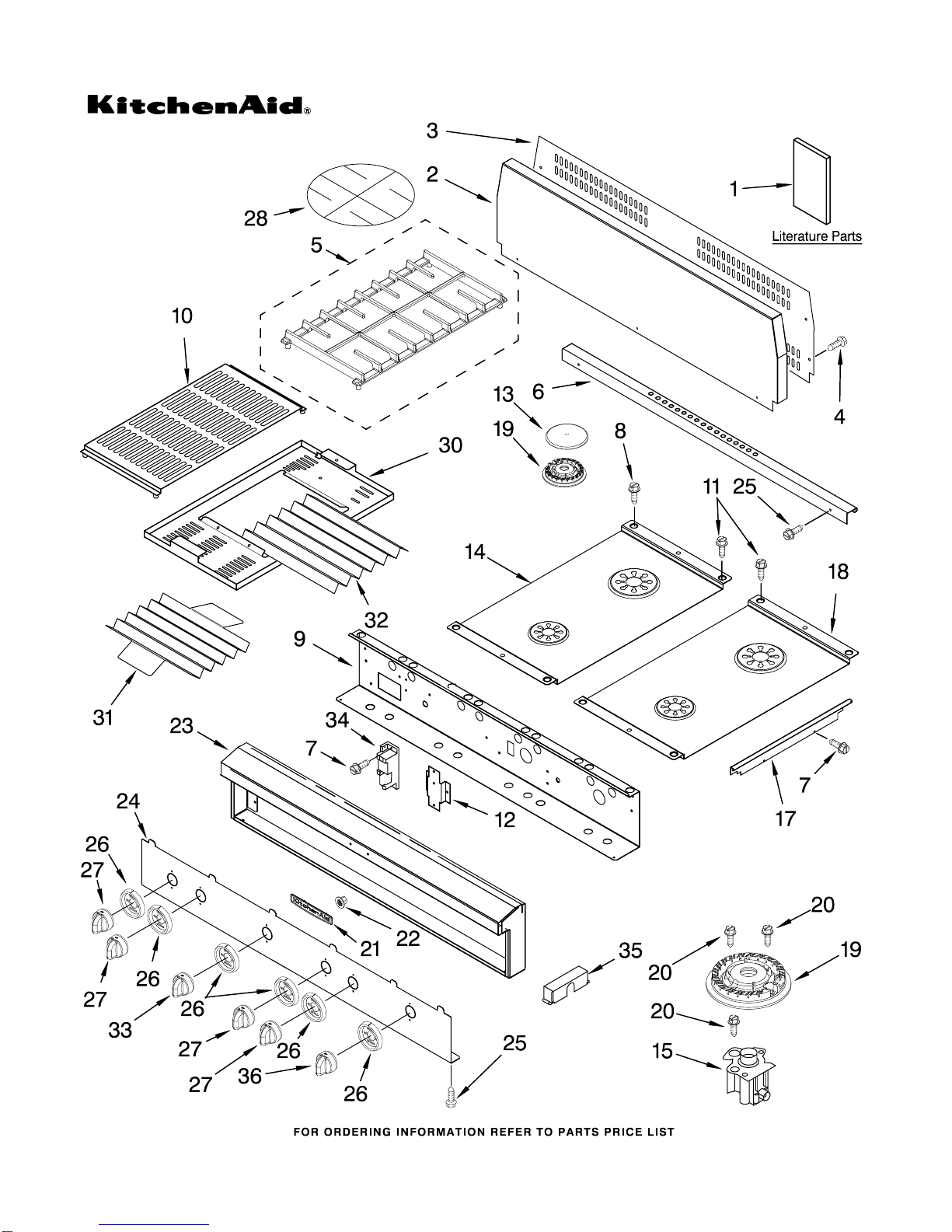

COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP484KSS04

(Stainless Steel)

12−05 Litho in U.S.A. (cre) Part No.8186498

48" Stainless Steel

Professional Cooktop

(with grill & griddle)

COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP484KSS04

(Stainless Steel)

8186498

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8284959 Wiring Diagram

8286611 Use & Care Guide

8285479 Installation

Instructions

9759442 Instructions,

LP Conversion

2 8284730 Backsplash

3 8284760 Support,Backsplash

4 3196537 Screw, 8−18 x 3/8

5 4457149 Grate, Burner

6 8285066 Trim, Island

7 3400843 Screw, 8−18 x 1/4

8 4449743 Screw

9 8285486 Support, Control

Panel

10 4457151 Grate, Grill

11 4449040 Screw

12 4457260 Bracket, Spark

Module

13 Cap, Burner

4455243 14K (2)

8284669 6K (2)

14 9760867 Cooktop (12")

(Sm & Lg Burners)

15 Holder, Orifice

Includes Orifice

4456622 Turbo (3)

4456920 Auxillary

17 Trim, Side

9759541 Right Hand

4457297 Left Hand

18 9760863 Cooktop (12")

(2 Lrg Burners)

19 Burner Head 14K

4455849 Turbo (2)

4455979 Auxillary

20 3368921 Screw, 7−18 x 3/4

21 2005292 Nameplate

22 2004333 Palnut

23 8284939 Control Frame

24 4457162 Panel, Control

25 3196176 Screw, 8−18 x 1/2

26 4455192 Bezel, Knob

27 4454970 Knob, Burner

28 4455109 Plate, Simmer

30 8284918 Frame, Wave Tray

31 8284919 Plate, Wave

32 8284917 Plate, Wave tray

3177991 Screw

33 8284742 Knob, Grill

34 8522422 Module, Spark

2 burner (2)

35 8285038 Cover, Burner

Spud

36 8284743 Knob, Griddle

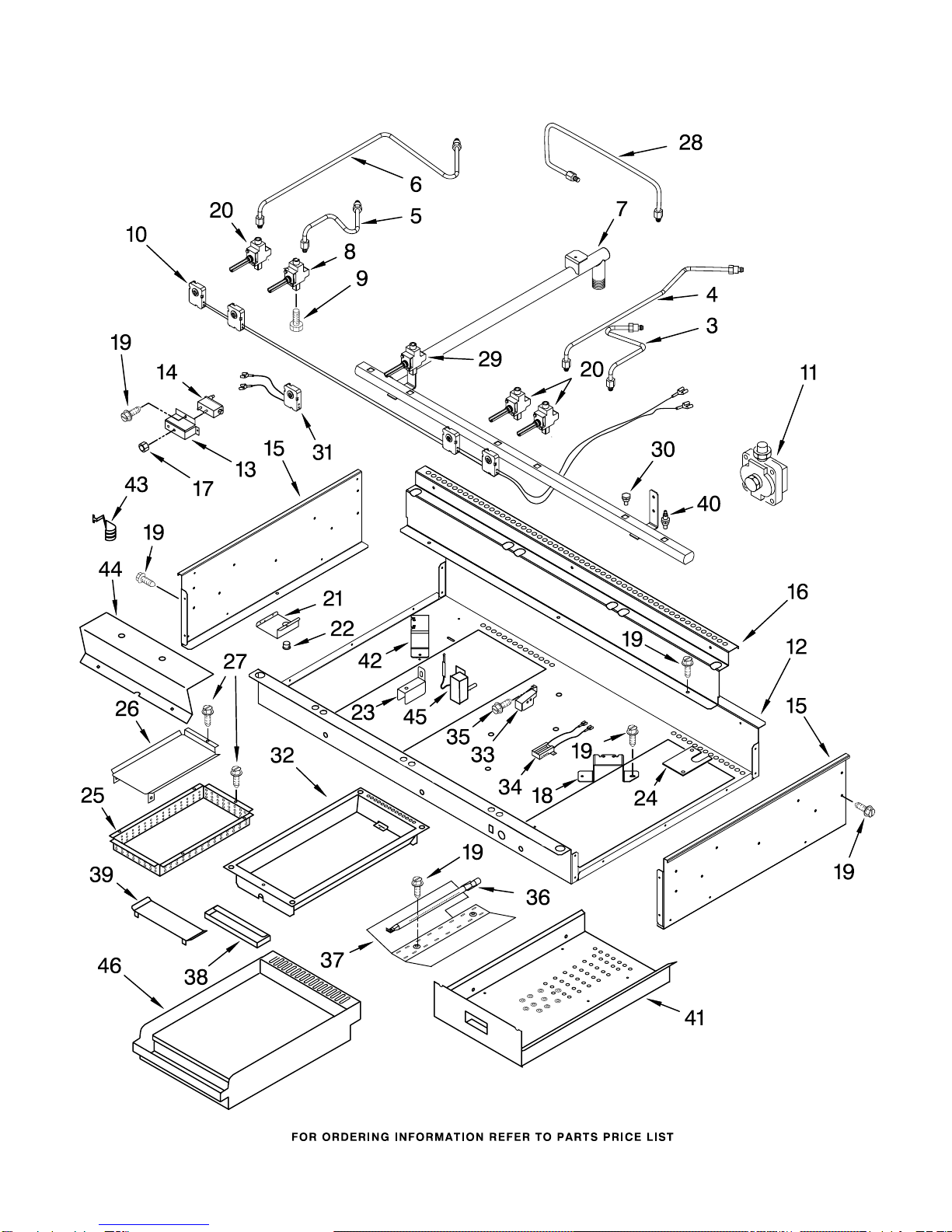

BURNER BOX, GAS VALVES, AND SWITCHES

For Model: KGCP484KSS04

(Stainless Steel)

8186498

BURNER BOX, GAS VALVES, AND SWITCHES

For Model: KGCP484KSS04

(Stainless Steel)

8186498

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

3 4455151 Tubing, Gas

Burner − CF

4 4455152 Tubing, Gas

5 4455153 Tubing, Gas

Burner − CR

Burner − LF

6 4455154 Tubing, Gas

Burner − LR

7 8284737 Manifold

(Includes Items

#9 & #30)

8 4456816 Valve, Burner

Small (Red)

9 8523704 Bolt, Valve

10 4456908 Burner Switch &

Harness Assembly

3191387 Seal, Switch

11 9759091 Regulator,Pressure

12 4457096 Burner Box

13 Bracket,

9760835 Grill Valve

9760834 Griddle Valve

14 Valve,

8284858 Grill

8284788 Griddle

15 Side, Burner Box

8285487 Right Hand

8285488 Left Hand

16 9759138 Support, Rear

17 488130 Hex Nut

18 3192811 Bracket, Burner

19 3177991 Screw, 8−18 x 1/4

20 4456818 Valve, Burner

Turbi (Bronze)

21 8284680 Cover Shelf

22 8284722 Bushing, Cover

Shelf

23 4449845 Bracket, Support

24 8285361 Cover, Panel

25 8285031 Box, Burner

Lower

26 8284960 Guard, Rear Spill

27 3400843 Screw

28 Tube,

8284790 Grill

8284966 Griddle

29 4456819 Valve, Gas Grill

30 8284796 Plug, Manifold

(Close)

31 4457185 Harness, Switch

Grill

32 8284787 Module, Grill

33 Bracket, Ignitor

8284968 Grill

8284800 Griddle

34 8284941 Ignitor, Grill

35 3400855 Screw

36 Log Burner,

8285052 Grill

8285051 Griddle

37 8284900 Deflector

38 Tray, Drip

8284791 Grill

8285569 Griddle

39 8285030 Guard, Spill

40 8284804 Plug, Manifold

(open)

41 8285056 Enclosure,

Griddle

42 8284993 Bracket, Thermo

43 313382 Clip, Bulb

44 8284811 Bracket

45 8284765 Griddle, Thermo

46 8284759 Module, Griddle

OPTIONAL PARTS

For Model: KGCP484KSS04

(Stainless Steel)

8186498

Illus. Part

No. No. DESCRIPTION

WIRING HARNESS PARTS

9763116 Power Cord

1129449 Bushing

FE02349 Bushing, Electric

8285047 Harness,

Spark Jmp Combo

8285048 Harness, Wire

Jumper (white)

8285000 Harness, Wire

Jumper (black)

8284847 Harness,

Jumper Valve

4456627 Harness,

Ignitor

Miscellaneous

8284782 L.P. Orifice Spud

Pack

8537055 Cleaner, S.Steel
