COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP484KSS02

(Stainless Steel)

4−04 Litho in U.S.A. (cre) Part No.8186163

48" Stainless Steel

Professional Cooktop

(with grill & griddle)

COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP484KSS02

(Stainless Steel)

8186163

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT8284959

Wiring Diagram

LIT8285588

Use & Care Guide

LIT8284979

Installation

Instructions

LIT8285589

Instructions,

LP Conversion

2 8284730 Backsplash

3 8284760 Support,Backsplash

4 3196537 Screw, 8−18 x 3/8

5 4454963 Grate, Burner

6 8285066 Trim, Island

7 3400843 Screw, 8−18 x 1/4

9 8285486 Support, Control

Panel

10 8284741 Grate, Grill

11 4449040 Screw

12 8285005 Bracket, Spark

Module

13 Cap, Burner

4455243 14K (2)

8284669 6K (2)

14 8284985 Cooktop (12")

(2 Lg Burners)

15 Holder, Orifice

Includes Orifice

4456622 Turbo (3)

4456920 Auxillary

16 8285042 Support Rail

17 Trim, Side

8285489 Right Hand

8285490 Left Hand

18 8284812 Cooktop (12")

(Sm & Lrg Burners)

19 Burner Head 14K

4455849 Turbo (2)

4455979 Auxillary

20 3368921 Screw, 7−18 x 3/4

21 2005292 Nameplate

22 2004333 Palnut

23 8284939 Control Frame

24 8284903 Panel, Control

25 3196176 Screw, 8−18 x 1/2

26 4455192 Bezel, Knob

27 4454970 Knob, Burner

28 4455109 Plate, Simmer

30 8284918 Frame, Wave Tray

31 8284919 Plate, Wave

32 8284917 Plate, Wave tray

3177991 Screw

33 8284742 Knob, Grill

34 8522422 Module, Spark

2 burner (2)

35 8285038 Cover, Burner

Spud

36 8284743 Knob, Griddle

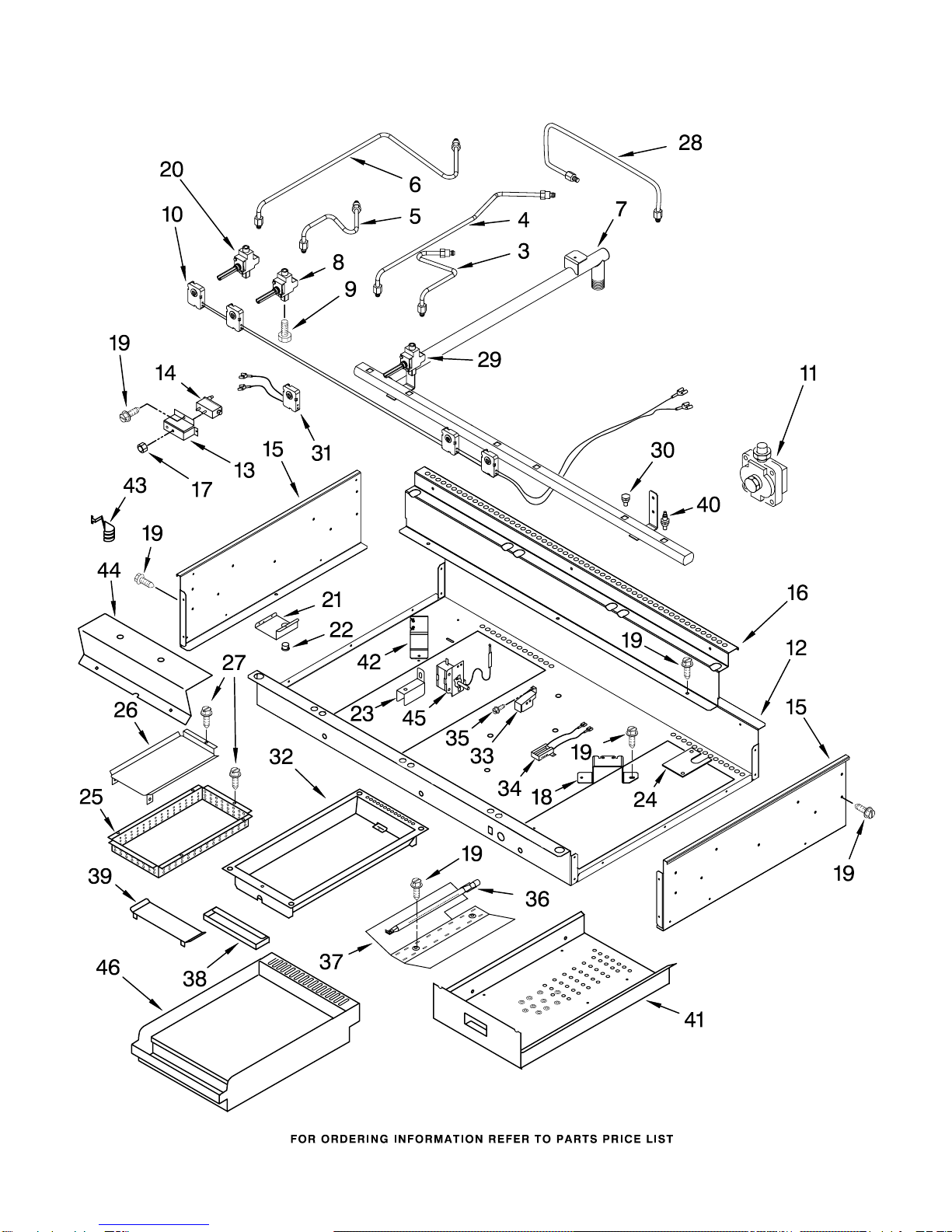

BURNER BOX, GAS VALVES, AND SWITCHES

For Model: KGCP484KSS02

(Stainless Steel)

8186163

BURNER BOX, GAS VALVES, AND SWITCHES

PARTS NOT ILLUSTRATED

For Model: KGCP484KSS02

(Stainless Steel)

8186163

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

3 4455151 Tubing, Gas

Burner − CF

4 4455152 Tubing, Gas

5 4455153 Tubing, Gas

Burner − CR

Burner − LF

6 4455154 Tubing, Gas

Burner − LR

7 8284737 Manifold

(Includes Items

#9 & #30)

8 3192157 Valve, Burner

(Turbo)

9 8523704 Bolt, Valve

10 4456908 Burner Switch &

Harness Assembly

3191387 Seal, Switch

11 4455157 Regulator,Pressure

12 4457096 Burner Box

13 Bracket,

8284795 Grill Valve

8284805 Griddle Valve

14 Valve,

8284858 Grill

8284788 Griddle

15 Side, Burner Box

8285487 Right Hand

8285488 Left Hand

16 8285055 Support, Rear

17 488130 Hex Nut

18 3192811 Bracket, Burner

19 3177991 Screw, 8−18 x 1/4

20 3191292 Valve, Burner

Auxillary

21 8284680 Cover Shelf

22 8284722 Bushing, Cover

Shelf

23 4449845 Bracket, Support

24 8285361 Cover, Panel

25 8285031 Box, Burner

Lower

26 8284960 Guard, Rear Spill

27 3400843 Screw

28 Tube,

8284790 Grill

8284966 Griddle

29 8284922 Valve, Gas Grill

30 8284796 Plug, Manifold

(close)

31 8284974 Harness, Switch

Grill

32 8284787 Module, Grill

33 Bracket, Ignitor

8284968 Grill

8284800 Griddle

34 8284941 Ignitor, Grill

35 3400855 Screw

36 Log Burner,

8285052 Grill

8285051 Griddle

37 8284900 Deflector

38 Tray, Drip

8284791 Grill

8285569 Griddle

39 8285030 Guard, Spill

40 8284804 Plug, Manifold

(open)

41 8285056 Enclosure,

Griddle

42 8284993 Bracket, Thermo

43 313382 Clip, Bulb

44 8284811 Bracket

45 8284765 Griddle, Thermo

46 8284759 Module, Griddle

Illus. Part

No. No. DESCRIPTION

WIRING HARNESS PARTS

3192231 Power Cord

1129449 Bushing

FE02349 Bushing, Electric

8285047 Harness,

Spark Jmp Combo

8285048 Harness, Wire

Jumper (white)

8285000 Harness, Wire

Jumper (black)

4456627 Harness,

Ignitor

Miscellaneous

8284782 L.P. Orifice Spud

Pack
