KitchenAid KGCC506RBL03 Manuel utilisateur

30"GASCOOKTOP

MODELS:

KGCC506RBL03(Black)

KGCC506RWW03(White)

02/28/2013PartNo.W10203833Rev.B

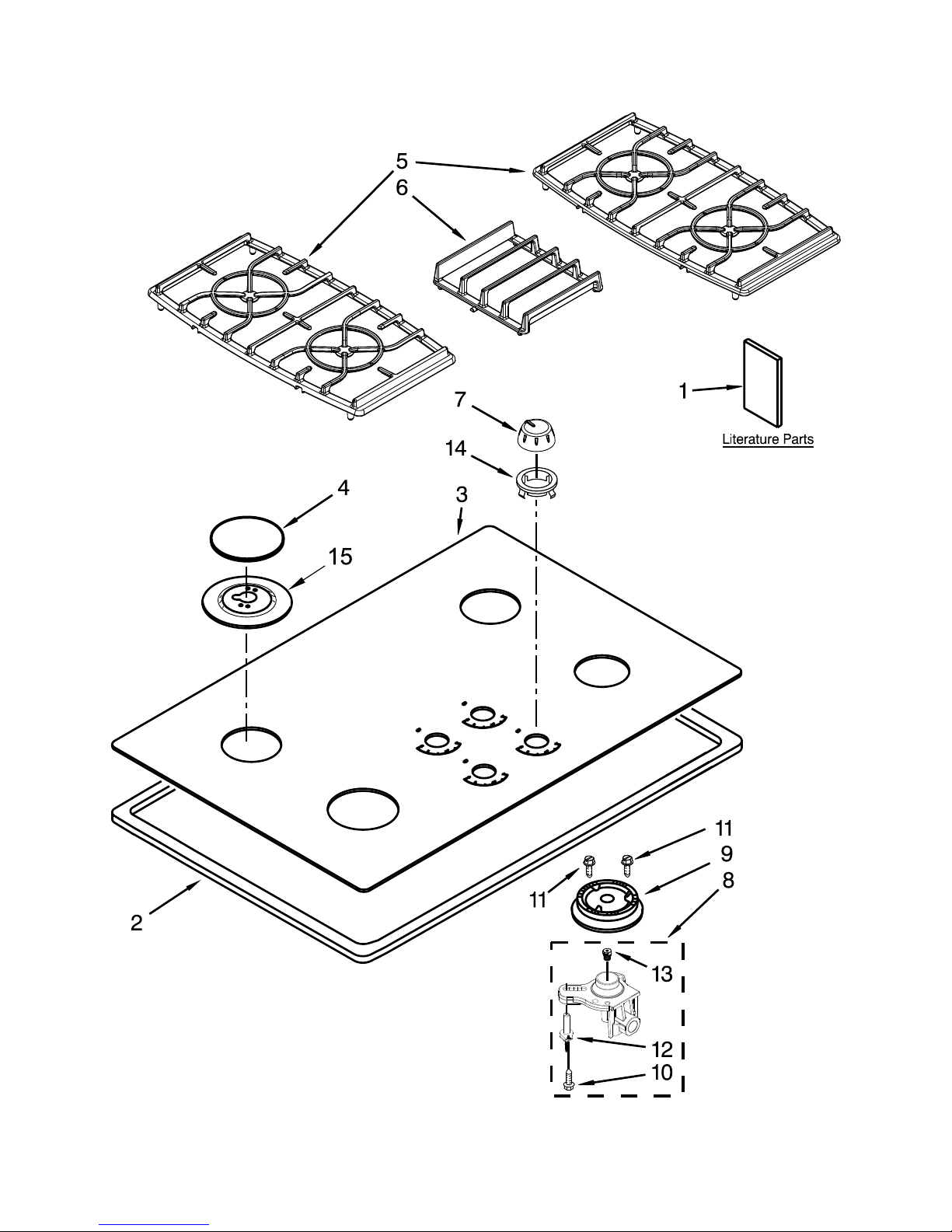

COOKTOP ,BURNERANDGRATEPARTS

02/28/20132PartNo.W10203833Rev.B

COOKTOP ,BURNERANDGRATEPARTS

Illus.

No.PartNo.Description

1LiteratureParts

8286304InstallationInstructions

8304571Instructions,

Undercounter

W10162188Use&CareGuide

8286620Instructions,LP

Conversion

9762761Tips,SafeCooking

(English)

W10065852Tips,SafeCooking

(French)

23191932Seal,Foam

3Cooktop

W10141011Black

8286171White

4Cap,Burner

8286153CBCoalBlack

(RightRear)

8286154CBCoalBlack

(LeftRear)

8286155CBCoalBlack

(RightFront)

8286156CBCoalBlack

(LeftFront)

8286153CGCumberlandGrey

(RightRear)

8286154CGCumberlandGrey

(LeftRear)

8286155CGCumberlandGrey

(RightFront)

8286156CGCumberlandGrey

(LeftFront)

Illus.

No.PartNo.Description

5Grate,Burner

8285879CBCoalBlack

8285879CGCumberlandGrey

6Grate,Center

8285880CBCoalBlack

8285880CGCumberlandGrey

7Knob,Control

8286094BLBlack

8286094WHWhite

8W10128448Assembly,OriceHolder

(RightRear)

W10128450Assembly,OriceHolder

(LeftRear)

W10128451Assembly,OriceHolder

(RightFront)

W10128445Assembly,OriceHolder

(LeftFront)

98286181BurnerHead,Auxiliary

(6K)

(RightRear)

8286184BurnerHead,Semi

(LeftRear)

8286182BurnerHead,Rapid

(12K)

(RightFront)

8286183BurnerHead,Ultra

Rapid(17K)

(LeftFront)

108273062Screw

113368921Screw

Illus.

No.PartNo.Description

129782116Electrode

133192529Orice

(RightRear)

3192523Orice

(LeftRear)

8286551Orice

(RightFront)

8286474Orice

(LeftFront)

14Grommet,Glass

3180079Black

3180081White

15Bezel

9753601BLBlack(6K)

(RightRear)

9753602BLBlack(12K)

(LeftRear&RightFront)

8285779BLBlack(17K)

(LeftFront)

9753601CGGrey(6K)

(RightRear)

9753602CGGrey(12K)

(LeftRear&RightFront)

8285779CGGrey(17K)

(LeftFront)

02/28/20133PartNo.W10203833Rev.B

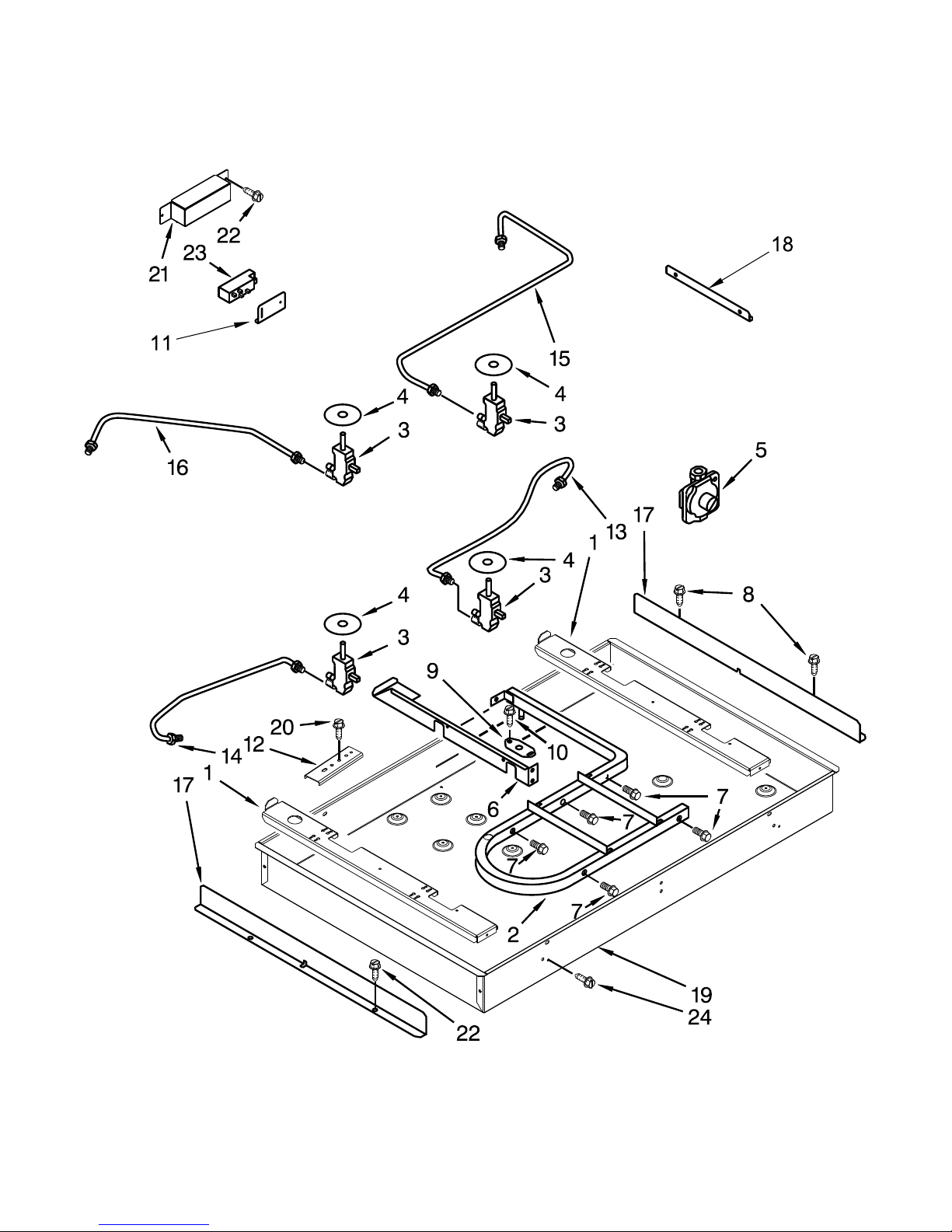

BURNERBOX,GASVALVESANDSWITCHES

02/28/20134PartNo.W10203833Rev.B

BURNERBOX,GASVALVESANDSWITCHES

Illus.

No.PartNo.Description

18285796Rail,Burner

28286069Pipe,Manifold

38286559Valve,GasBurner

(RightRear)

4456817Valve,Burner

(LeftRear)

8286560Valve,GasBurner

(RightFront)

8286561Valve,GasBurner

(LeftFront)

43191387Seal,Shaft

54454571Regulator,Pressure

Illus.

No.PartNo.Description

68285791Rail,Center

78523704Screw

83400843Screw

93192491Bracket,Manifold

103196160Screw

114455837Bracket,SparkModule

124455917Bracket,Mounting

138285793Tubing,GasBurner

(RightFront)

148285794Tubing,GasBurner

(LeftFront)

Illus.

No.PartNo.Description

158285792Tubing,GasBurner

(RightRear)

168285795Tubing,GasBurner

(LeftRear)

173191462Shield,Heat

189759145Bracket,Manifold

Support

198285774BurnerBox

203400093Screw

218285788Shield,Heat

223177991Screw

238522423Module,Spark

244449809Screw

02/28/20135PartNo.W10203833Rev.B

PARTSNOTILLUSTRATED

FOLLOWINGPARTSNOT

ILLUSTRATED

Illus.

No.PartNo.Description

9763116Cord,Power

3177991Screw

MISCELLANEOUS

Illus.

No.PartNo.Description

8286320SpudKit

WIRINGHARNESSPARTS

Illus.

No.PartNo.Description

4456626Harness,Ignitor15"

4456627Harness,Ignition28"

4456905Harness,Switch

8286642Tape,Foam

02/28/20136PartNo.W10203833Rev.B
