KitchenAid KEBS278BAL1 Manuel utilisateur

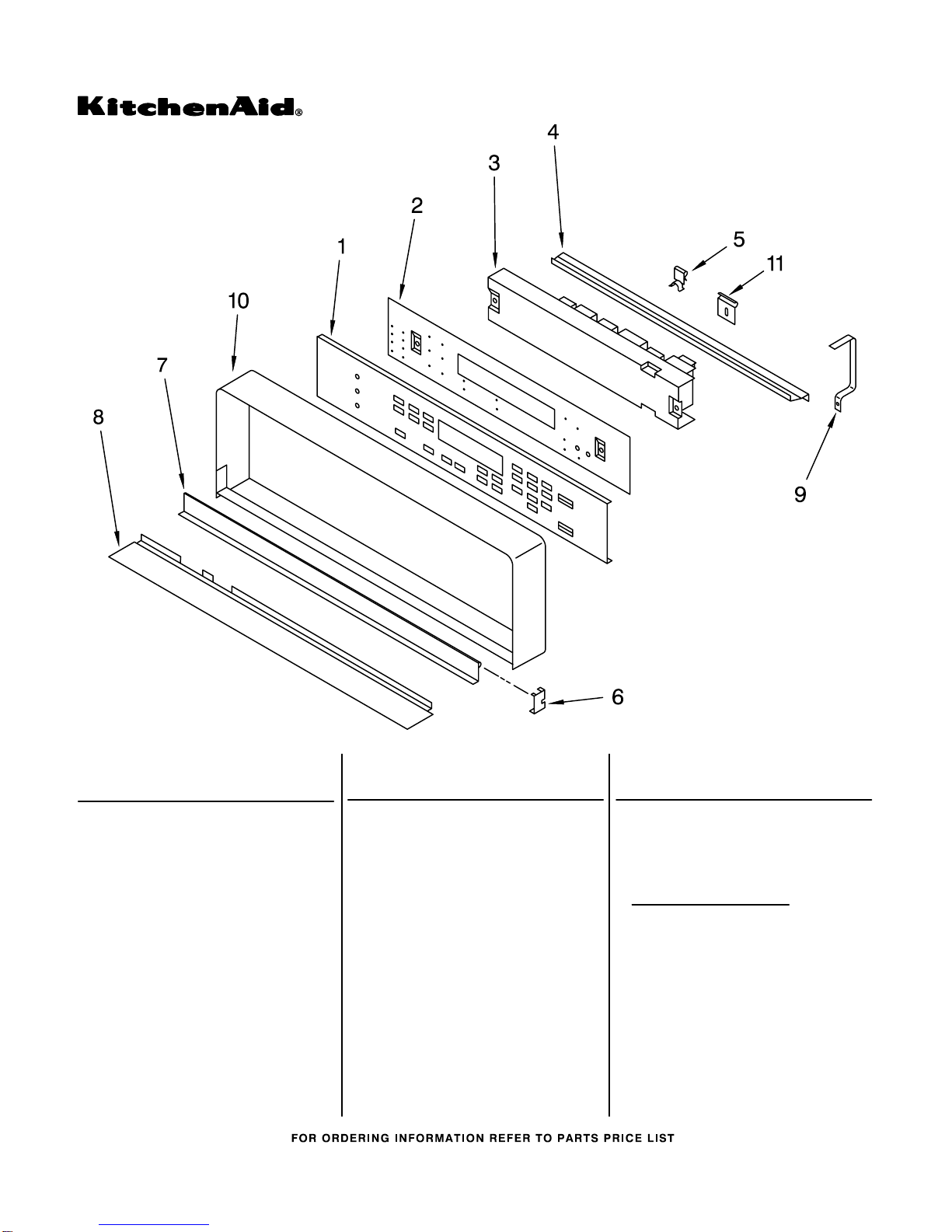

CONTROL PANEL PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

SUPERBA

27" BUILT−IN ELECTRIC

DUAL THERMAL CONVECTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 Membrane, Switch

3187064 Black

3187065 White

3187066 Almond

2 3181889 Bracket, Mounting

Membrane Switch

3 3187895 Microcomputer

3185648 Screw (2)

4 3183705 Retainer, Bracket

3182939 Screw

3148443 Screw

5 3182985 Clip, (3)

Retainer

6 3182162 Hinge, Vent Door

7 Door, Latch Handle

3182151 Black

3182157 Almond

3182154 White

3178001 Screw (2)

8 3183702 Trim, Panel

9 3184321 Bracket (2)

3182939 Screw (2)

10 Frame, Control

Panel

3187954 Black Model

3187955 White Model

3187956 Almond Model

11 3184567 Clip, Control

Frame

3148443 Screw

LITERATURE PARTS

LIT3187226 Tech Sheet

LIT3187360 Installation

Instructions

LIT3188197 Use & Care Guide

LIT3150693 Cookbook

LIT3183987 Guide, Auto Set

For Models: KEBS278BBL1, KEBS278BAL1, KEBS278BWH1

(Black) (Almond) (White)

11−96 Litho in U.S.A.(jcn) Part No. 4174413 Rev. A

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

OPTIONAL PARTS (NOT INCLUDED)

24174413

FOLLOWING PARTS

NOT ILLUSTRATED

SPLICING WIRES−−25FT.

LENGTH

18 Ga. 80 c Rating

350806 Yellow

16 Ga. 80 c Rating

242829 Blue

14 Ga. 150 c Rating

242820 Black

242821 Blue

242822 Brown

242823 Green

242824 Orange

242825 Red

242826 White

242827 Yellow

14 Ga. 200 c Rating

242830 Brown

242831 Red

242832 Yellow

12 Ga. 150 c Rating

242828 Black

242829 Red

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

72110 Harvest Gold

72112 Toast

72113 Platinum

72032 Black

261869 Citrine White

PAINT, PRESSURIZED SPRAY

(13 oz.)

350930 White

350956 Almond

261890 Harvest Gold

285365 Toast

285366 Platinum

830864 Black

350942 Primer

350941 Leveler (Primer)

PAINT, BULK (1 qt.)

799344 White

978883 Almond

261891 Harvest Gold

285367 Toast

285368 Platinum

ADHESIVE

482338 Sealer, Silastic

(3 Oz.)

591014 Adhesive, Loctite

(1/3 Oz.)

For Models: KEBS278BBL1, KEBS278BAL1, KEBS278BWH1

(Black) (Almond) (White)

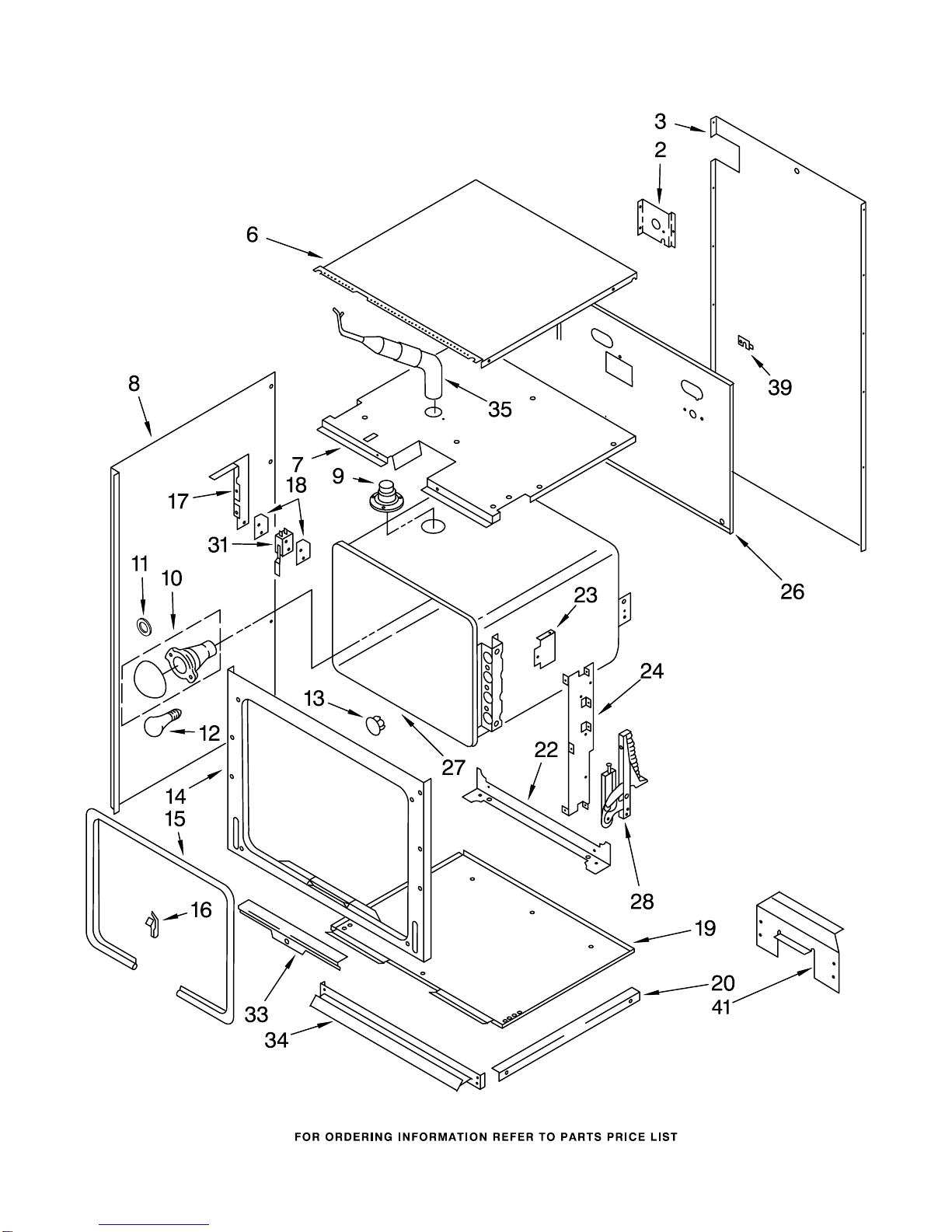

UPPER OVEN PARTS

4174413

For Models: KEBS278BBL1, KEBS278BAL1, KEBS278BWH1

(Black) (Almond) (White)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

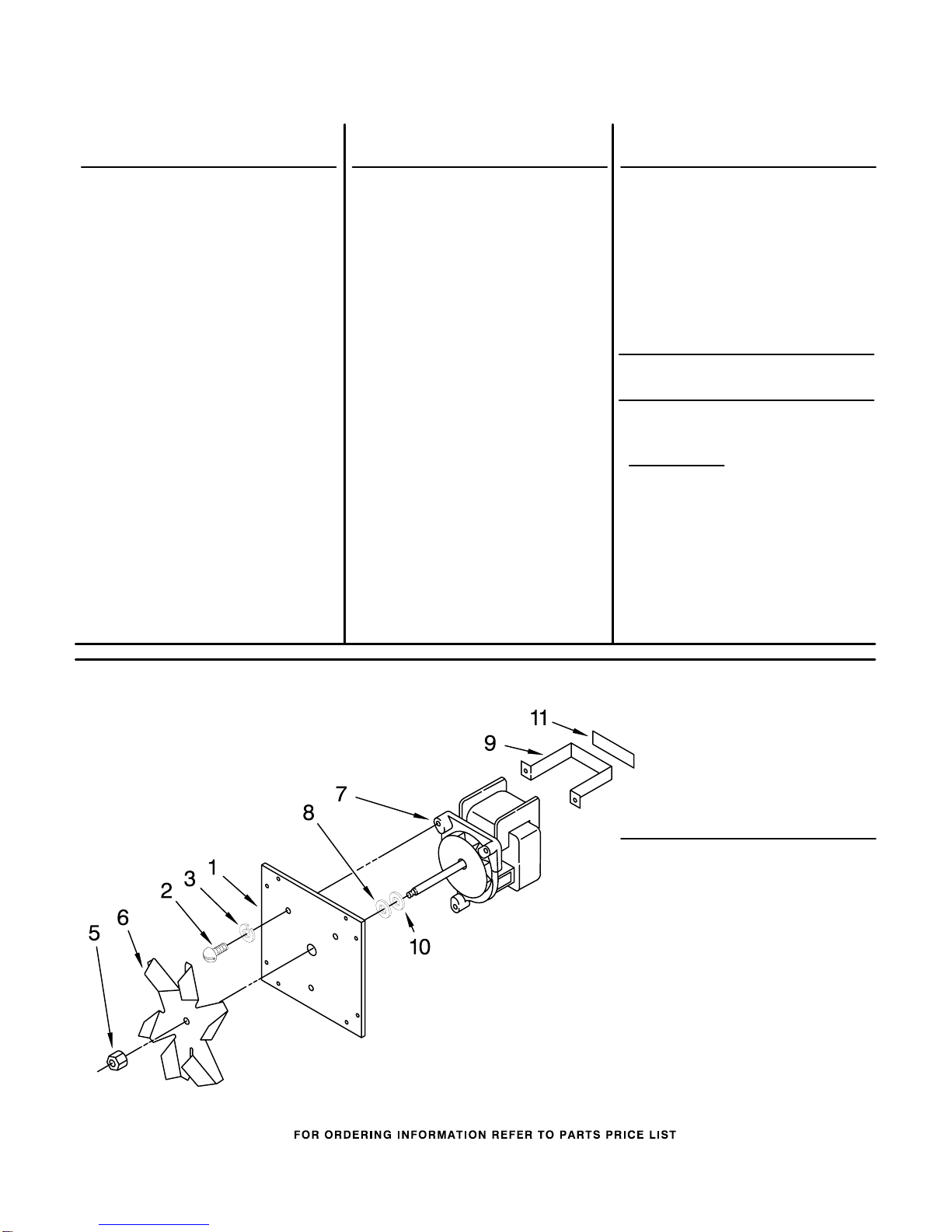

CONVECTION FAN PARTS

UPPER OVEN PARTS

44174413

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

2 3177545 Bracket, Conduit

3 3177741 Cabinet, Back

3185647 Screw

6 3178143 Cabinet, Top

3185647 Screw

7 3183748 Top, Module

3185647 Screw

8 Side, Cabinet

3177440 Right Hand

3177443 Left Hand

3185647 Screw

9 3181699 Tube, Vent

3185648 Screw (3)

10 3150505 Oven Light Assy.

11 3184533 Gasket, Light

12 311255 Bulb, Oven

Light

13 3185085 Plug, Button

Bulb

14 3186950 Frame, Front

15 3179813 Seal, Door

16 3179848 Clip, Oven Seal

17 3177681 Bracket, Switch

18 3177923 Insulator, Switch

19 3177621 Module, Bottom

20 3179220 Rail, Support (4)

3185647 Screw

22 3177434 Support, Oven

3185647 Screw

23 3178612 Shield, Radiation

3179795 Screw (6)

3185647 Screw

24 3177433 Bracket, Hinge

3185647 Screw

26 3177561 Back, Module

3185647 Screw

27 3185563 Liner, Oven

28 3178298 Hinge, Door (2)

31 4173553 Switch, Door

4159117 Nut (2)

313489 Screw (2)

33 3179587 Retainer, Seal

4168863 Screw (2)

34 Vent, Middle Trim

3187883 Black Model

3187885 White Model

3187887 Almond Model

35 3183791 Vent, Tube

39 4168203 Cover, Cap Tube

41 3183752 Bracket, Control

3177991 Screw

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

3185551 Insulation, Wrap

3177872 Insulation, Back

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 3178512 Mounting Plate

2 4173193 Screw (3)

3 4173194 Lockwasher (3)

5 4173237 Nut(Left Hand)

6 4173236 Fan

7 3182088 Motor

8 4173238 E−Ring

9 4173185 Bracket Guard

10 4173230 Flatwasher

11 3179790 Gasket, Foam

For Models: KEBS278BBL1, KEBS278BAL1, KEBS278BWH1

(Black) (Almond) (White)

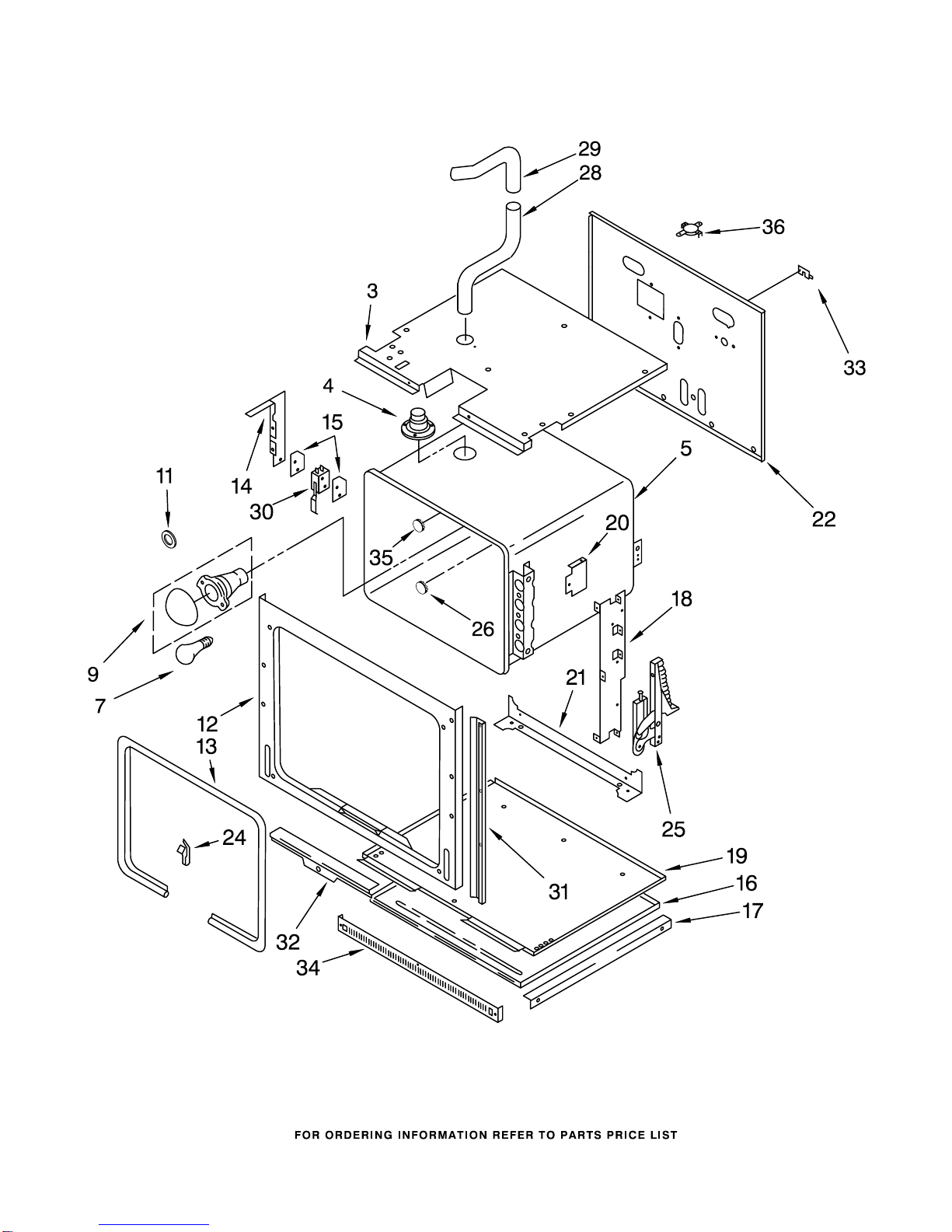

LOWER OVEN PARTS

4174413

For Models: KEBS278BBL1, KEBS278BAL1, KEBS278BWH1

(Black) (Almond) (White)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LOWER OVEN PARTS

64174413

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

3 3183748 Top, Module

3185647 Screw

4 3181699 Tube, Vent

3185648 Screw (3)

5 3185563 Liner, Oven

7 311255 Bulb, Oven Light

9 3150505 Oven Light Assy.

11 3184533 Gasket, Light

12 3188161 Frame, Front

13 3179813 Seal, Door

3179848 Clip, Oven Seal

14 3177681 Bracket, Switch

3177991 Screw (2)

15 3177923 Insulator, Switch

16 3177551 Bottom, Oven

17 3179220 Rail, Support (2)

3185647 Screw

18 3177433 Bracket, Hinge (2)

3179795 Screw (6)

3185647 Screw

19 3177621 Bottom, Module

20 3178612 Shield, Radiation

3179795 Screw (6)

3185647 Screw

21 3177434 Support, Oevn

3185647 Screw

22 3177561 Back, Module

3185647 Screw

24 3179848 Clip, Seal (3)

25 3178298 Hinge, Door (2)

26 3185085 Button, Plug

28 3182159 Vent Tube, Lower

3185647 Screw

29 3182160 Vent Tube, Upper

30 4173553 Switch, Door

4159117 Nut (2)

313489 Screw (2)

31 Side Trim,

Door (2)

3187875 Black Model

3187878 White Model

3187881 Almond Model

32 3179587 Retainer, Seal

33 4168203 Cover, Cap Tube

4159445 Screw

34 Trim, Lower Vent

3177787 Black

3177789 Brushed Chrome

35 4163883 Cover, Probe

36 3149652 SPST Thermostat

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

3185551 Insulation, Wrap

3177872 Insulation, Back

For Models: KEBS278BBL1, KEBS278BAL1, KEBS278BWH1

(Black) (Almond) (White)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

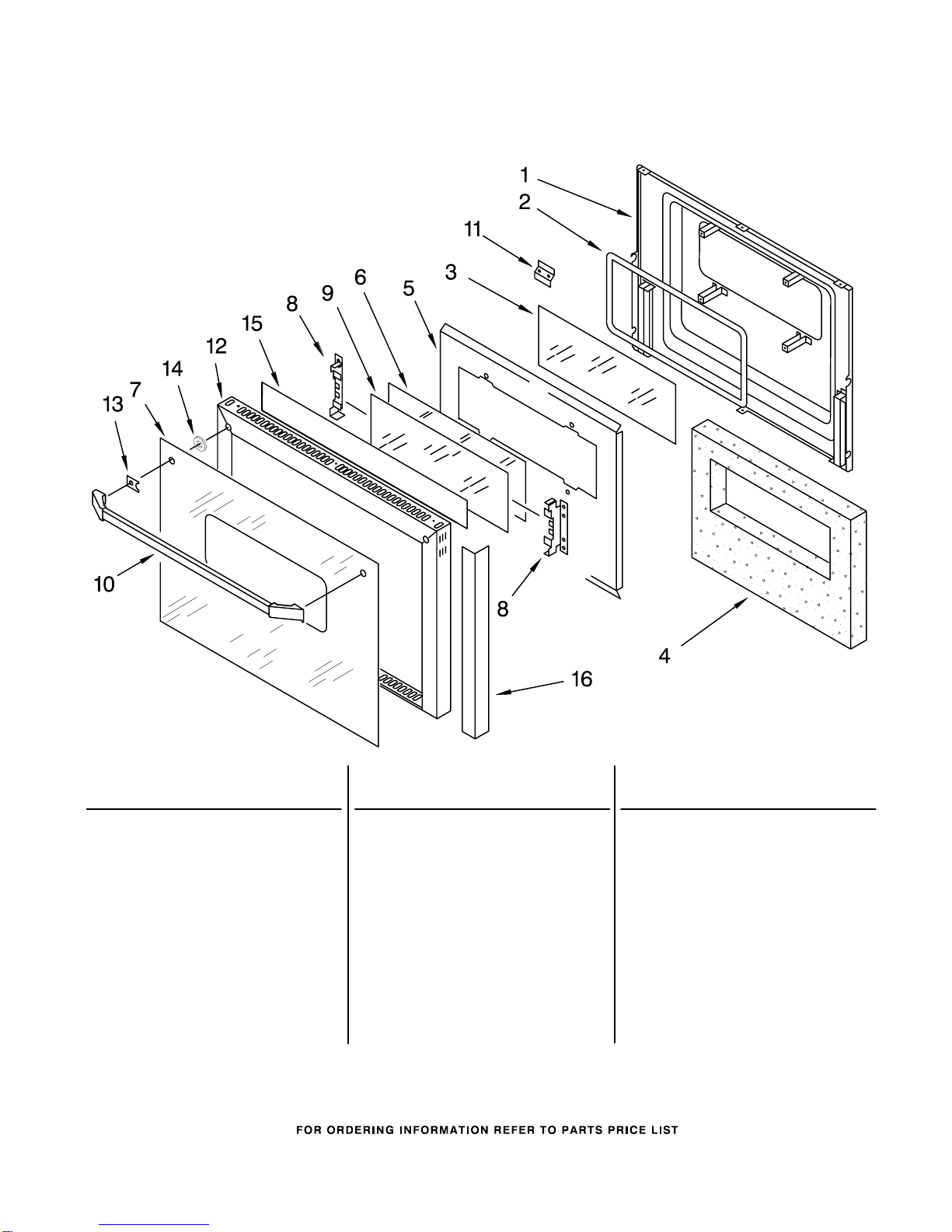

OVEN DOOR PARTS

4174413

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 3185497 Liner, Door

2 3185462 Gasket, Window

3 3185457 Glass, Clear

4 3185460 Insulation, Door

5 3188815 Insulation

Retainer

4168863 Screw (4)

6 3185458 Glass, Reflective

7 Glass, Door

3187863 Black

3187867 Almond

3187865 White

8 3185439 Retainer, Glass

9 3185459 Glass, Clear

10 Handle, Door

3185986 Black Model

3185988 Almond Model

3185987 White Model

11 3185438 Plate, Latch

12 Frame, Door

3187850 Black Model

3187852 White Model

3187854 Almond Model

13 3182138 Spacer, Handle

14 3188599 Bushing, Handle

3181637 Screw

342043 Screw

15 3188635 Foil, Adhesive

16 3188633 Foil, Adhesive

For Models: KEBS278BBL1, KEBS278BAL1, KEBS278BWH1

(Black) (Almond) (White)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

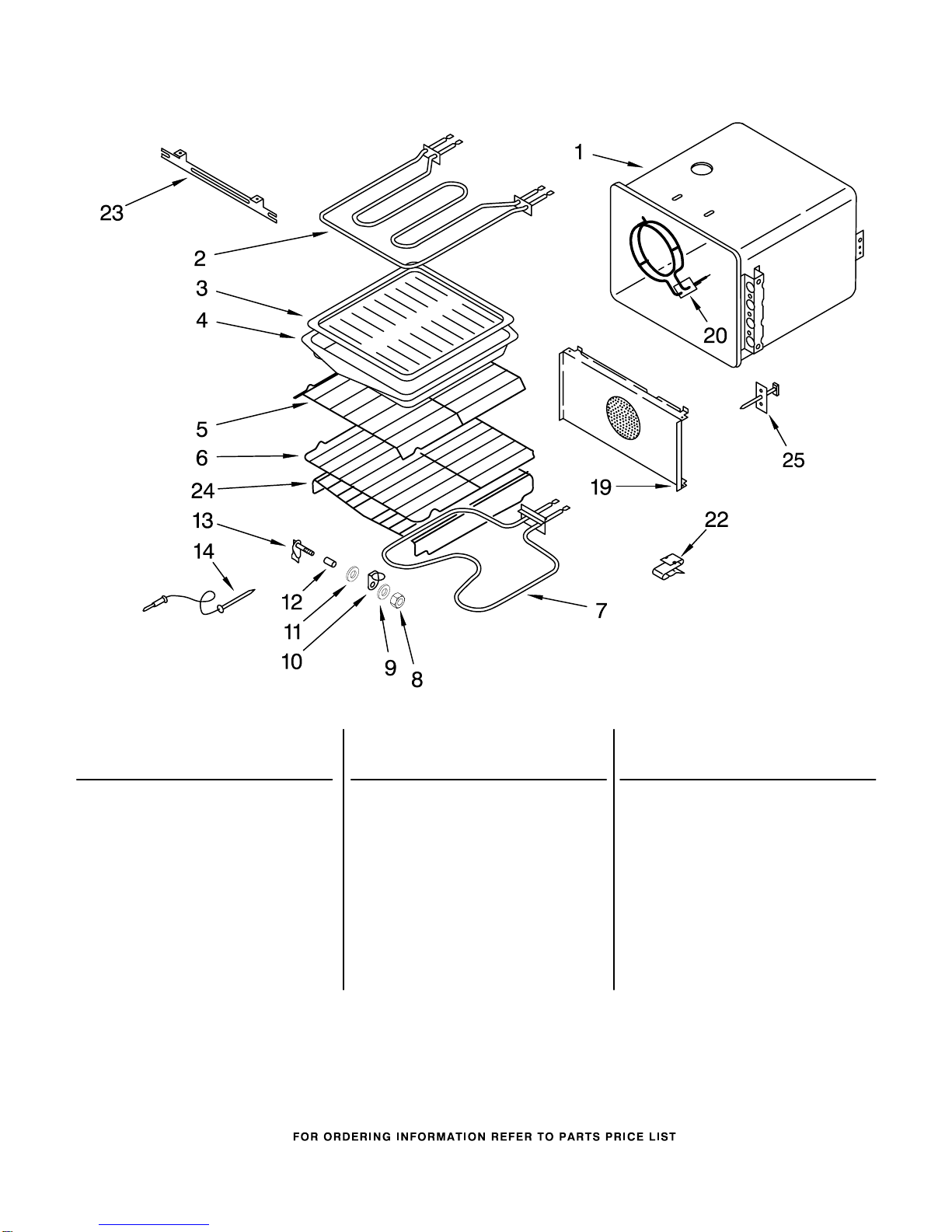

INTERNAL OVEN PARTS

84174413

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 3185563 Liner, Oven

2 661415 Element, Broil

3 3147563 Grill, Broiler

4 3147845 Pan, Broiler

5 3185367 Rack, Offset

6 3185368 Rack, Oven

7 661416 Element, Bake

3185648 Screw (2)

8 4167277 Nut, Meat Probe

9 4163975 Gasket, Meat Probe

10 4167266 Probe Cover

11 4159557 Washer

12 3179672 Spacer − Tubing

13 3150107 Meat Probe Jack

14 3150144 Meat Probe

19 3180815 Cover, Fan

3185648 Screw (4)

20 3178517 Element, Convect.

3185648 Screw (3)

22 313570 Clip, Tubing

23 3180694 Bracket, Element

3185648 Screw (2)

24 3181534 Rack, Roasting T/C

25 3148440 Sensor

For Models: KEBS278BBL1, KEBS278BAL1, KEBS278BWH1

(Black) (Almond) (White)

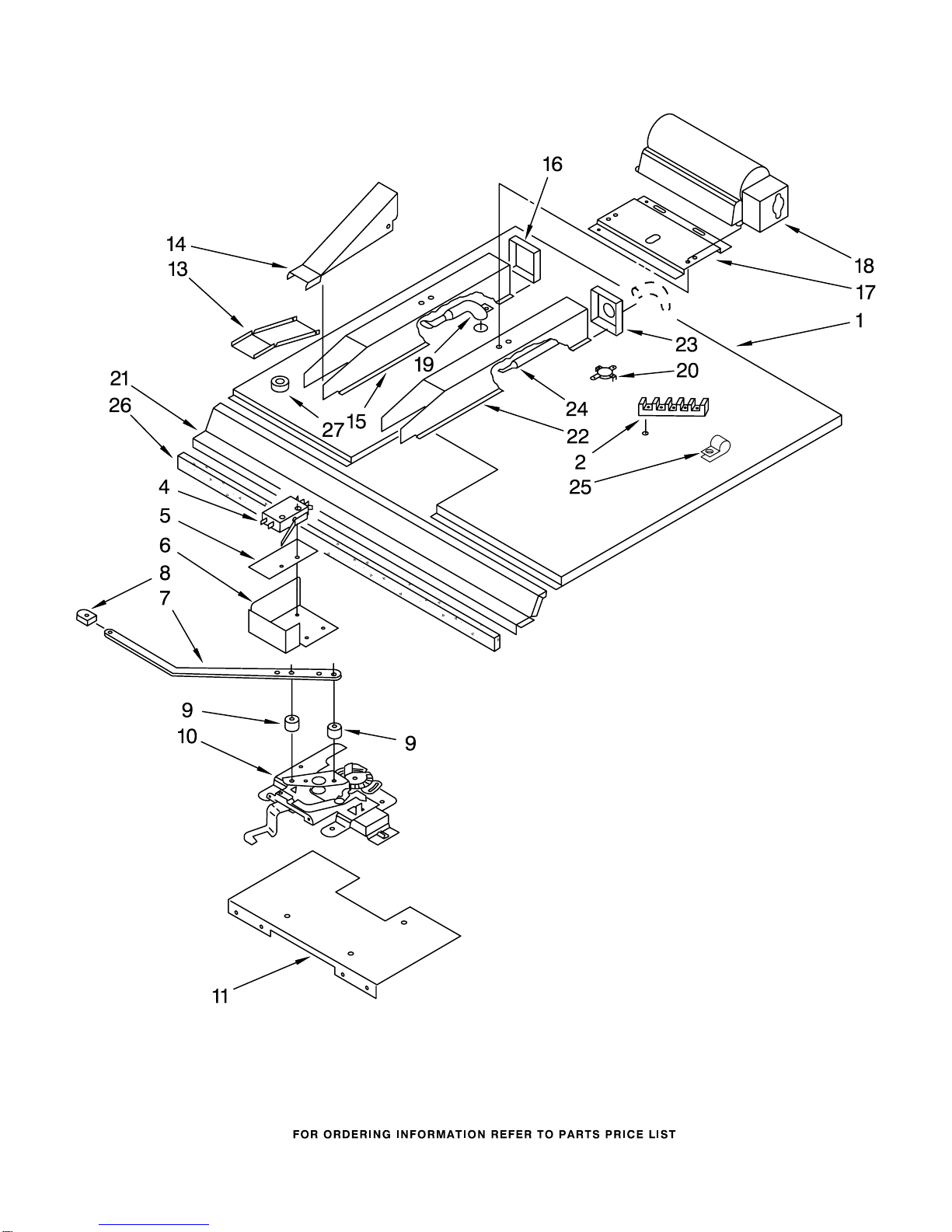

LATCH AND VENT PARTS

4174413

For Models: KEBS278BBL1, KEBS278BAL1, KEBS278BWH1

(Black) (Almond) (White)

LATCH AND VENT PARTS

Illus. Part

No. No. DESCRIPTION

10 4174413

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 3183748 Module, Top

2 258076 Block, Terminal

308043 Screw

4 3183784 Switch, Latch

98106 Screw

254225 Screw

5 3178185 Insulator, Switch

6 3177662 Guard, Latch

3177991 Screw

7 Handle, Latch

3177969 Upper Oven

3184037 Screw (2)

3181963 Lower Over

3185414 Screw

8 3184039 Knob, Handle

3183294 Screw

9 3184040 Spacer, Latch

Handle

3184037 Screw

10 3178410 Latch Mechanism

11 3177496 Plate, Mounting

3177991 Screw

13 3183954 Nozzle, Vent

Bottom (2)

14 3183955 Nozzle, Vent

Top (2)

15 3183999 Box, Vent

4173231 Screw

16 3183964 End, Vent Box

3185647 Screw

17 3183533 Bracket, Mounting

Fan

3177991 Screw

18 3183720 Blower, Fan

19 3183791 Vent, Tube

20 3149650 SPST Thermostat

3185647 Screw

21 3183785 Shield, Heat

3177991 Screw

22 3183953 Box, Vent

4173231 Screw

3179116 Screw

23 3183965 End, Vent Box

3185647 Screw

24 3183793 Vent Tube, Lower

Oven

25 3183532 Clamp, Tube

26 313755 Seal, Foam

27 4159035 Bushing

For Models: KEBS278BBL1, KEBS278BAL1, KEBS278BWH1

(Black) (Almond) (White)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels KitchenAid Four à convection

KitchenAid

KitchenAid KOSC104FSS Manuel utilisateur

KitchenAid

KitchenAid SUPERBA KEMS378 Manuel utilisateur

KitchenAid

KitchenAid W10284348A Manuel utilisateur

KitchenAid

KitchenAid 9759536B Manuel utilisateur

KitchenAid

KitchenAid KEMS377Y Manuel utilisateur

KitchenAid

KitchenAid ELECTRIC SLIDE-IN 9751596 Manuel utilisateur

KitchenAid

KitchenAid JMC2430LL Manuel utilisateur

KitchenAid

KitchenAid KDRU767VSS Manuel utilisateur

KitchenAid

KitchenAid KMBP107ESS Manuel utilisateur

KitchenAid

KitchenAid SUPERBA KEMS308 Manuel utilisateur

KitchenAid

KitchenAid KEHU309 Manuel utilisateur

KitchenAid

KitchenAid KDRP487M Manuel de la liste des pièces

KitchenAid

KitchenAid KDRS467VSS Manuel utilisateur

KitchenAid

KitchenAid KEBS107B Manuel utilisateur

KitchenAid

KitchenAid Cooktop Manuel utilisateur

KitchenAid

KitchenAid KOMP 6610 Manuel utilisateur

KitchenAid

KitchenAid Superba KEBS278 Manuel utilisateur

KitchenAid

KitchenAid KEBS107Y Manuel utilisateur

KitchenAid

KitchenAid KDRS467VBU00 Manuel utilisateur

KitchenAid

KitchenAid SUPERBA KEMS308 Manuel utilisateur

KitchenAid

KitchenAid W10285550A Manuel utilisateur

KitchenAid

KitchenAid KEBC149BSS Manuel utilisateur

KitchenAid

KitchenAid KDRP707R Manuel de la liste des pièces

KitchenAid

KitchenAid KERA205PBL1 Manuel utilisateur

Manuels Four à convection populaires d'autres marques

Aroma

Aroma ABT-266SC Manuel utilisateur

Smeg

Smeg ALFA341VE Manuel utilisateur

homark

homark 01-711000 Mode d’emploi

Vulcan-Hart

Vulcan-Hart C4ED Manuel utilisateur

Whirlpool

Whirlpool OBI M50 Manuel utilisateur

Jenn-Air

Jenn-Air SVE47600 Manuel utilisateur

Waring

Waring WCO500 Manuel utilisateur

Dometic

Dometic DOTRC11B Manuel utilisateur

NuWave

NuWave PRO PLUS 2 Manuel utilisateur

Moffat

Moffat turbofan E25 Manuel utilisateur

Whirlpool

Whirlpool GSC278 Manuel utilisateur

Deni

Deni Quick-n-Easy 10400 Manuel du propriétaire

Sharp

Sharp R-980J Manuel utilisateur

Wells

Wells WVOC-4HF Manuel utilisateur

Convotherm

Convotherm The MINI OES-6.08 Manuel utilisateur

DeLonghi

DeLonghi AD699 Manuel utilisateur

LG LSWS306ST Manuel utilisateur

DeLonghi

DeLonghi AS-1070 Manuel utilisateur
