UC1000 Universal Controller
KING Quest™ Satellite Antenna System
Makes the
compatible with
DIRECTV® DISH®Bell TV™
11200 Hampshire Avenue South, Bloomington, MN 55438
PH 952.922.6889 || FAX 952.922.8424 || kingconnect.com
®
Please read the
“BEFORE YOU START”
section on the inside of this cover
before using the UC1000 Controller.
! !

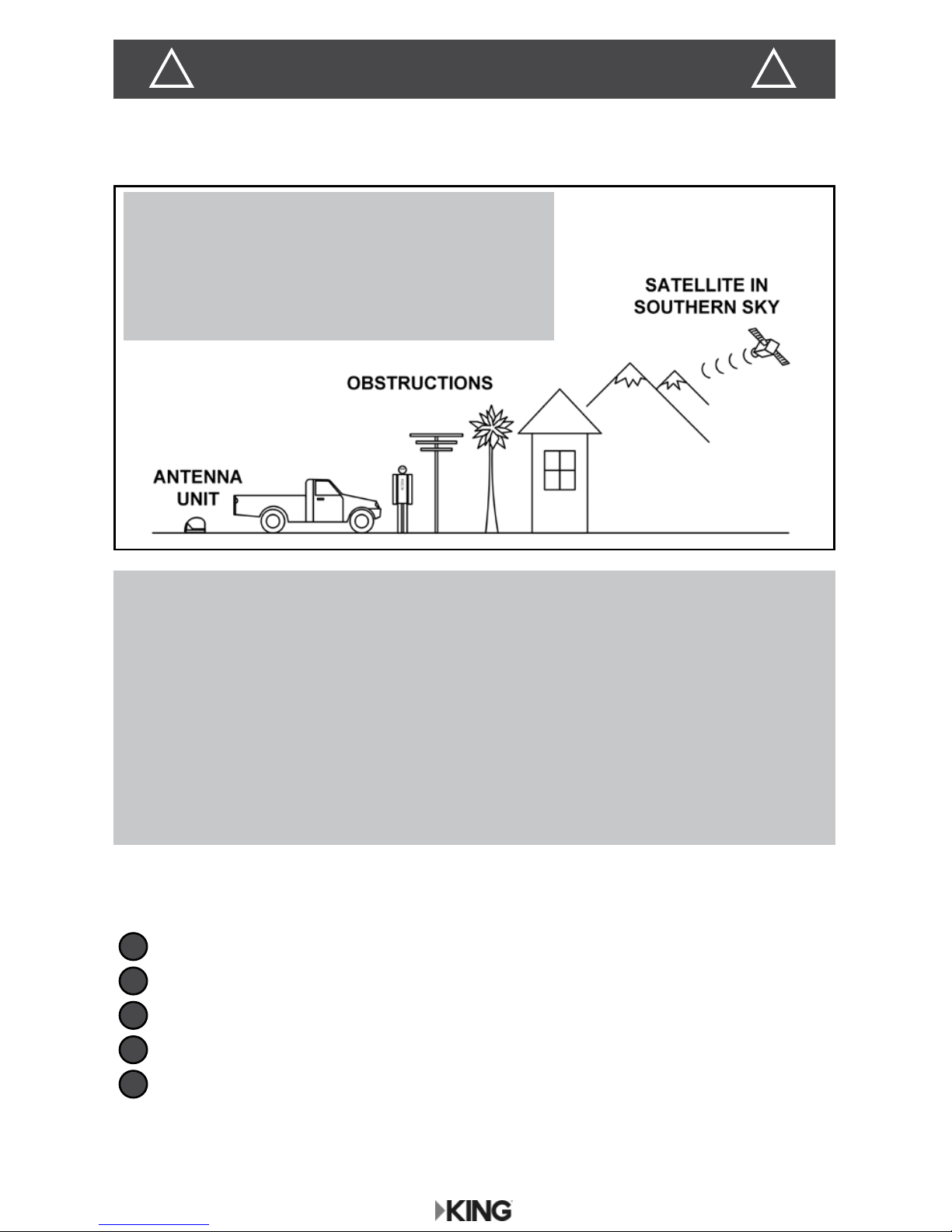

The antenna unit requires a direct line-of-
sight to the satellites in the southern sky.
Any tall objects or objects too close to
the antenna can block the signal.
BEFORE YOU START
IMPORTANT! DISH CUSTOMERS ONLY!
If you have a DISH Wally®receiver, or a model ViP®211z, ViP211k, ViP211 or
411 single tuner HD receiver, you can use the simplied KING®Tailgater®user
interface on your receiver.
To do so, complete sections 1 and 2, and when you get to section 3
ANTENNA CONFIGURATION, choose Tailgater Mode.
DO NOT USE SECTIONS 4 AND 5. Instead, turn on your TV, receiver and
controller and follow the on-screen instructions.
Complete these ve sections to start watching TV!
CONNECTIONS
ALARM MODE
ANTENNA CONFIGURATION
RECEIVER CONFIGURATION
OPERATION
1
2
3
4
5
PLEASE READ ALL OF THE INFORMATION ON THIS PAGE
BEFORE USING YOUR UC1000 CONTROLLER.
! !
IMPORTANT!
Never use the UC1000 Controller in
combination with the power injector.
If your current KING Quest system uses a power injector,
remove and replace it with the UC1000 Controller.
CONNECTIONS 1
! !
This unit is shipped from the factory with the alarm feature in the ON mode. If
you wish to have the alarm in the ON mode, you can skip this section and go
to section 3. To disable the alarm, follow the instructions below.
ALARM MODE
2
Press and IMMEDIATELY RELEASE POWER to turn on
controller.
Wait for lights to stop ashing and COAX CONNECTION
light to stay on (about 10 seconds).
1
• Single Beep (beep...beep...beep) Alarm is OFF.
• Double Beep (beep beep...beep beep) Alarm is ON.
Simultaneously press and HOLD POWER and
SCAN until controller begins beeping.
2
Press and IMMEDIATELY RELEASE SCAN repeatedly to
toggle between the on and off modes.
Beep pattern will change to indicate new mode.
3
When alarm is in desired mode, press and HOLD SCAN until
COAX CONNECTION light stops ashing.
Controller saves alarm setting.
4
6Go to section 3.
Press and HOLD POWER until controller turns off.
About 3 seconds.
5
ALARM OPERATION
If the coax cable is disconnected from the antenna unit or the controller while
the system is turned on or in standby mode, the controller will sound an alarm.
To turn off the alarm when it is sounding, press and HOLD POWER until the
controller turns off (about 3 seconds).
You can change the alarm mode at any time by following the steps on the
previous page.
The KING UC1000 Controller is factory preset for DISH HD and SD (satellites
110, 119 and 129).
If this is your desired service option, you do not need to congure your
antenna. Go to section 4.
If you wish to use a different DISH service option, or if you have DIRECTV or
Bell TV service, you will need to recongure the antenna as shown below.
Press and IMMEDIATELY RELEASE POWER to turn on
controller.
Wait for lights to stop ashing and COAX CONNECTION
light to stay on (about 10 seconds).
1
6
Press and HOLD SCAN until SCAN PROGRESS lights ash
(controller enters service mode).
About 10 seconds.
2
Press and IMMEDIATELY RELEASE SCAN repeatedly to
scroll thru service options.
Match up lights on controller to lights in chart on opposite
page for desired service.
3
Press and HOLD SCAN until SCAN PROGRESS lights turn
off (controller saves service setting).
About 3 seconds.
4
Go to section 4.
Press and HOLD POWER until controller turns off.
About 3 seconds.
5
ANTENNA CONFIGURATION
3
RECEIVER CONFIGURATION
1. In the receiver’s satellite setup menu screens, change the switch and dish
type settings to:
DIRECTV SD
Switch Type: 02:Multiswitch • Dish Type: 01: 18” Round
DIRECTV SD with Locals
Switch Type: 02:Multiswitch • Dish Type: 02: 3-LNB (18 x 20”)
If your receiver does not offer one of these settings, call KING at
(952) 922-6889 ext. 173 for assistance.
2. Go to section 5.
DIRECTV RECEIVER CONFIGURATION
DISH AND BELL TV
DIRECTV
Older receivers: choose round dish-1 satellite
Older receivers: choose oval dish-2 satellites
The KING Quest will not work with SWM only receivers.
4
DISH only: Automatic satellite switching:
DISH SD: KING recommends using a DISH model 311 receiver.
DISH HD and SD: You can use any of these receivers:
Wally • ViP211z • ViP211k • ViP211 • 411.
If using any of these receivers, we highly recommend using Tailgater mode for
simplied operation with the receiver’s built in Tailgater interface (see section
3 to choose Tailgater Mode). This eliminates the need to congure your
receiver as shown in this section.
DISH and Bell TV: If you do not have a clear view of the satellites, the
switch will not load correctly.
The SW21 and SW64 switches are a receiver software conguration that is
loaded into the receiver after successfully running a check switch test with the
dish locked on and congured for the appropriate service.
This one time procedure will not need to be repeated after successful
installation, unless:
a) check switch test is run again while the receiver is connected to a home
dish system.
b) check switch test is run when the receiver is not connected.
c) you travel outside your coverage area and recongure the antenna for a
different service.
d) you are parked in an area where the selected satellites are blocked, but
are able to select alternate satellites and get signal.
1. Go to section 5, perform a scan as outlined in steps 1 - 3c, then return here.
The antenna must locate all of the appropriate satellites before successfully
completing the search process so it can properly congure your receiver.
If you congured the antenna for DISH HD and SD and the antenna
cannot acquire the 110, 119, and 129 satellites, you may need to
congure the antenna for DISH HD and SD Alternate (section 3).
Continue conguration process on next page.
DISH AND BELL TV RECEIVER CONFIGURATION
2. Use the receiver remote to go to the DISH Diagnostics page.
Highlight “Test Installation 5” and press SELECT.
3. When test is complete, verify the correct satellites were found.
Example shown: DISH HD and SD
The receiver will perform
a check switch test. This
process can take a little while
so PLEASE BE PATIENT.
WALLY RECEIVERS
Satellite 110 119 129 Conn
Tuner 1
4. Go to section 5.
Screen graphics may vary.
