Systems Assembly Instructions

Xsite®Page 1 of 2

Attach Privacy Panel to Xsite

Tools Required

■Level ■Phillips Screwdriver

Package Contents

■Caster ■Double-sided Adhesive Tape

■Clamp Plate ■Attachment Bracket

■Base Pivot Bracket ■2 10-24 x 1⁄2" Flathead

with Carpet Gripper Machine Screws

Installation

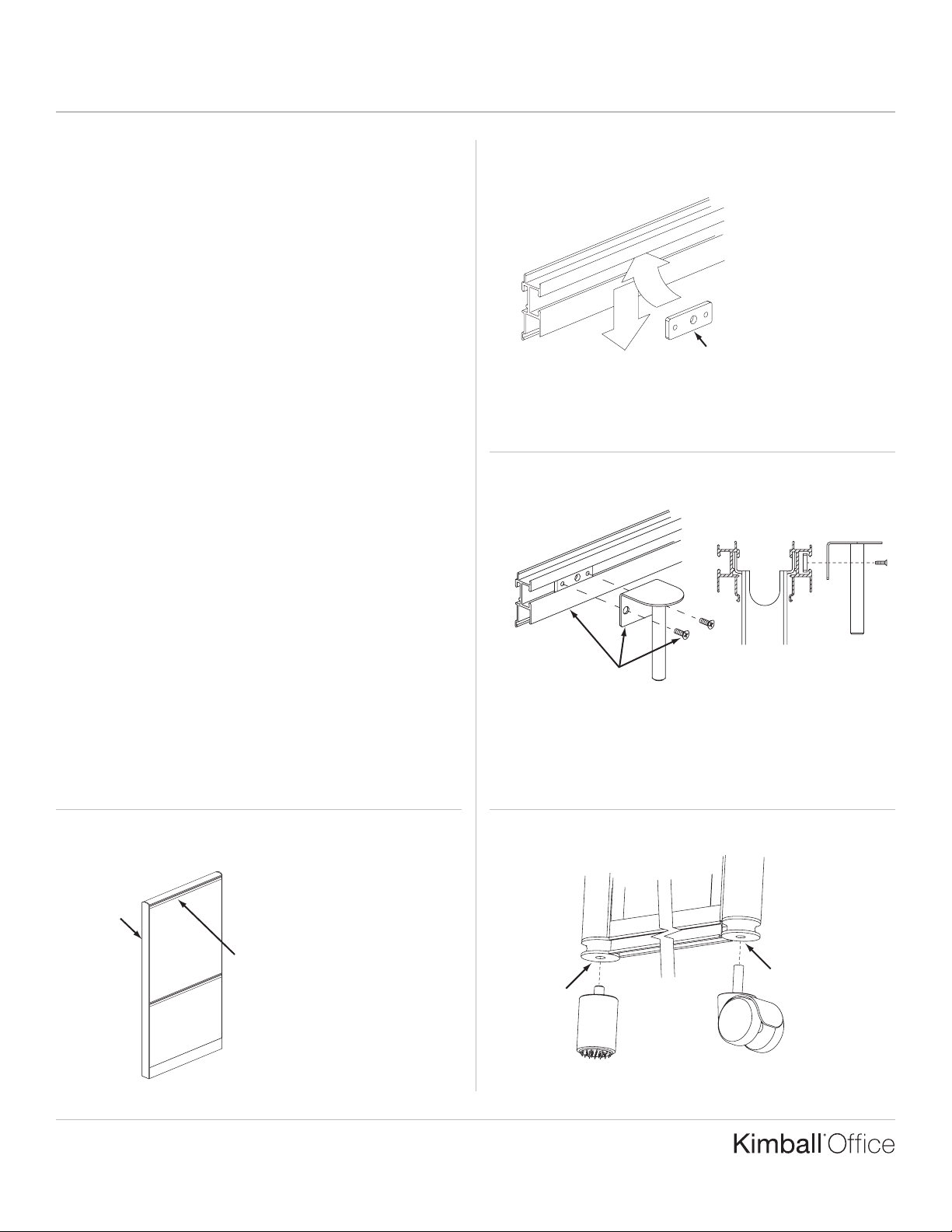

Note: On Xsite panels, the privacy panel attachment bracket can be

installed at the 5-high position only. (Figure A).

1. Tilt clamp plate slightly and insert the plate into the

Xsite Traxx channel at the desired position.

Note: Privacy panel can be installed at any location along

an Xsite Traxx. (Figure B).

2. Position the attachment bracket over the clamp plate and

use the screws provided to connect the attachment bracket

to the plate. Tighten screws securely when attachment

bracket is in desired position. (Figure C).

3. Insert base pivot bracket and caster into openings in

bottom of the posts on privacy panel. Make sure bracket

and caster fully seat. (Figure D).

Figure B

Figure C

Figure A Figure D

Attachment bracket

can be installed at

5-high position only

Xsite

panel

Clamp Plate

Insert into

Traxx channel

Use screws to connect

attachment bracket to

clamp plate

Insert base

pivot bracket

Insert caster

Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.

If you have any questions concerning these instructions, please call Kimball Office Customer Service.

Part No. 2015812 Revision A-06

Systems Assembly Instructions

Xsite

Page 2 of 2

Installation (continued)

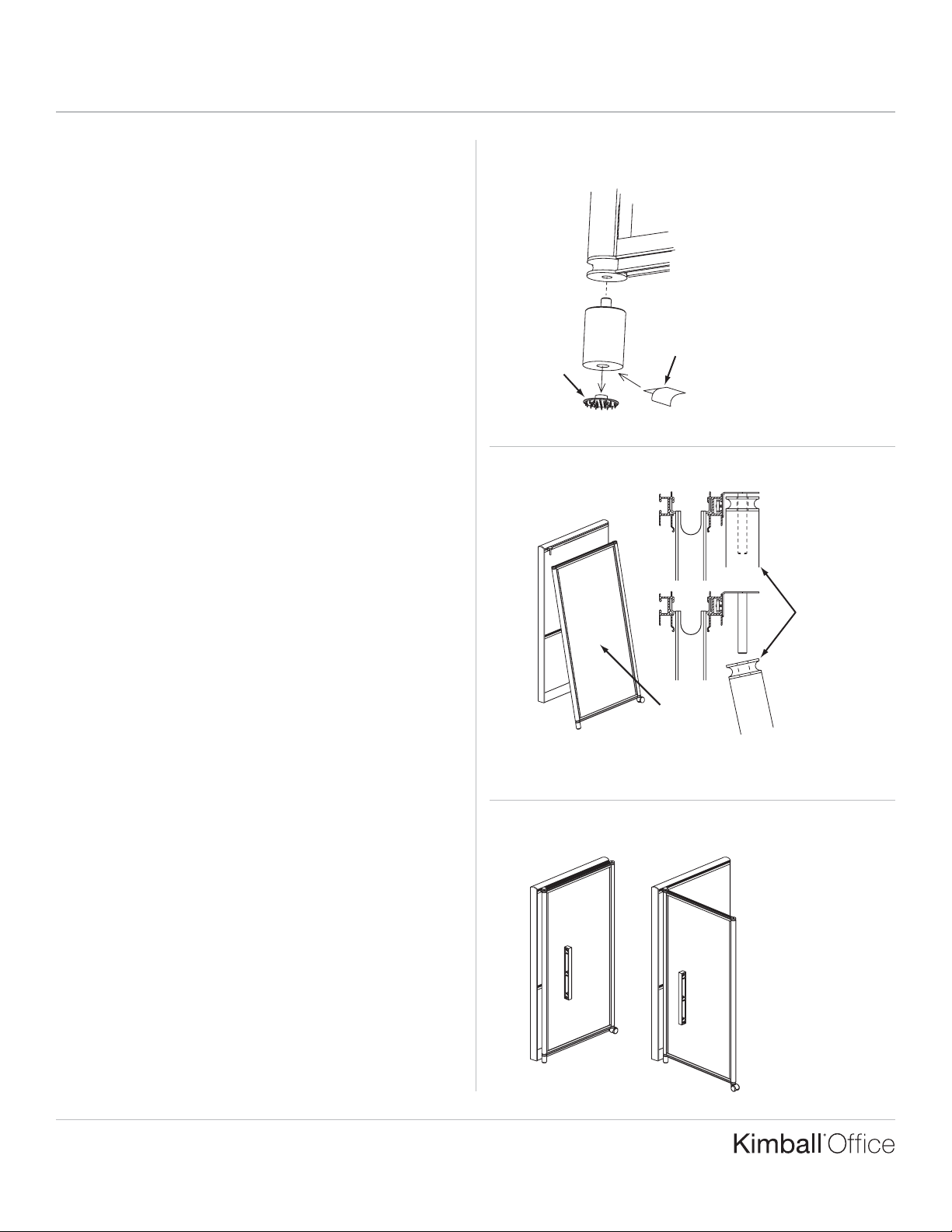

4. In situations where the base pivot bracket will sit on a

non-carpeted floor, remove the carpet gripper from

the bottom of the base pivot bracket and attach a piece

of the double-sided adhesive tape provided. (Figure E).

5. Tilt the top of the privacy panel towards the Xsite panel

and insert attachment bracket into the hole in top of the

same post on the privacy panel where base pivot bracket

is installed. Rotate the bottom of the privacy panel inward

toward the Xsite panel. (Figure F).

6. For correct operation the privacy panel must be level.

You can adjust the location of the base pivot bracket,

top attachment bracket, and caster to position the panel

correctly. Ensure that the panel is level in the open and

closed positions. When leveled, press down slightly on

panel to engage the carpet gripper or double-sided tape

on bottom of base pivot bracket. (Figure G).

Figure E

Figure F

Figure G

Pry out

carpet

gripper

Attach double-sided

adhesive tape to bottom

of base pivot bracket

Tilt panel to

install onto

attachment

bracket

Insert attachment

bracket into hole in

top of panel post

Level panel in

open and closed

positions

For non-carpeted situations:

Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.

If you have any questions concerning these instructions, please call Kimball Office Customer Service.

Part No. 2015812 Revision A-06
