KidKraft 53153 Manuel utilisateur

Pastel Island Kitchen

Assembly Instructions

Customer Service

1-800-933-0771

www.kidkraft.com

USE AND MAINTENANCE:

-Use on level surfaces only

-Please check assembly at regular intervals,

and frequently tighten hardware if neces-

sary. If maintenance is not carried out, the

product could cease to function properly

PARTS LIST

Item #53153

Please retain this information

for future reference

To order replacement parts,

please visit www.kidkraft.com

WARNING: CHOKING HAZARD

Small parts and sharp points, not

suitable for children under 3 years.

CAUTION: Adult Assembly Required.

Hardware contains small screws with

sharp points. Keep unassembled parts

out of reach of small children.

15 16

26 28

33 34 39 40 41

x 2 47

x 2

57 56

The following tool

(not included) is

required for

assembly.

Phillips®

Screwdriver

A. Pink Cross Dowel

Bolt x 18 pcs

2 1/8 in , 53 mm

I. Cross Dowel Bolt

x 1 pc

1 3/16 in , 30 mm

C. Pink Cross Dowel

Bolt x 8 pcs

2 1/8 in , 53 mm

G. Hex Bolt x 2 pcs

2 in , 50 mm

H. Bolt x 1 pc

2 in , 50 mm

M. Flat Bolt x 2 pcs

1 1/16 in , 27 mm

U. Pink Flat Bolt

x 2 pcs

1 in , 25 mm

N. Pink Flat Bolt

x 2 pcs

3/4 in , 19 mm

B. Cross Dowel Bolt

x 2 pcs

2 1/8 in, 53 mm

E. Cross Dowel Nut

x 18 pcs

F. Cross Dowel Nut

x 12 pcs

J. Screw x 8 pcs

1 in, 25 mm

O. Screw x 8 pcs

5/16 in, 8 mm

L. Hex Screw x 2 pcs

1 3/16 in, 30 mm

K. Pink Screw

x 16 pcs

1 in, 25 mm

P. Pink Cap Nut

x 4 pcs

Q. Large Nylon Nut

x 1 pc

V. Small Nylon

Nut x 2 pcs

R. Washer x 3 pcs

S. Large Washer

x 1 pc

T. Latch x 4 pcs

D. Cross Dowel Bolt

x 4 pcs

2 1/8 in, 53 mm

6Ø

4Ø

Allen Wrench

x 1 pc

Wrench x 1 pcs

Pastel Island Kitchen

Assembly Instructions

Customer Service

1-800-933-0771

www.kidkraft.com

Item #53153

HARDWARE

Step 1

Helpful Hint: Check all predrilled

holes for excess sawdust and

clean out the holes with a flathead

screwdriver if necessary.

Before calling customer service, please

locate the batch code number

(example: 2693/65006/04) found on the

bottom or back of your product.

Pastel Island Kitchen

Assembly Instructions

Customer Service

1-800-933-0771

www.kidkraft.com

Item #53153

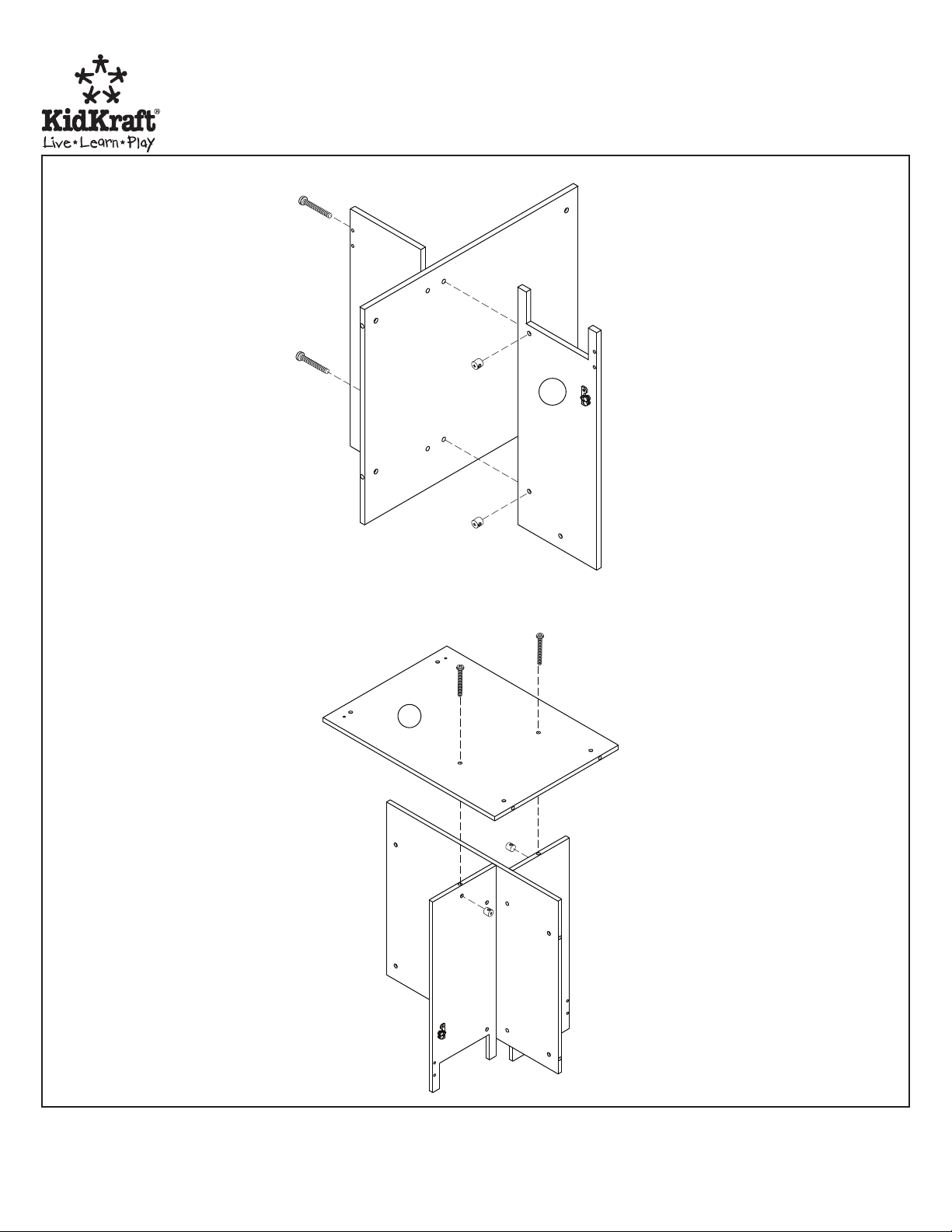

Step 2

Step 3

Pastel Island Kitchen

Assembly Instructions

Customer Service

1-800-933-0771

www.kidkraft.com

Item #53153

Step 4

Step 5

Pastel Island Kitchen

Assembly Instructions

Customer Service

1-800-933-0771

www.kidkraft.com

Item #53153

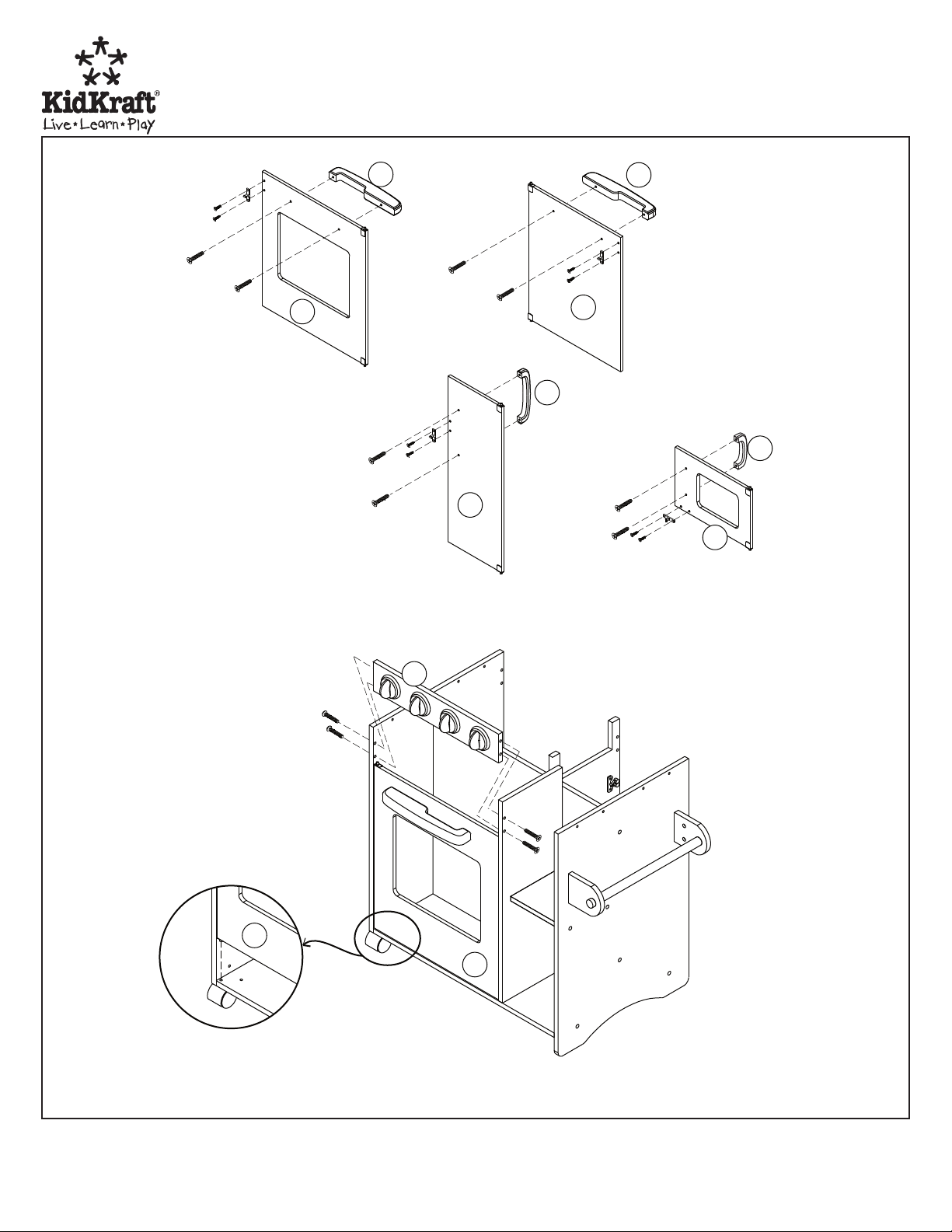

Step 6

Step 7

Pastel Island Kitchen

Assembly Instructions

Customer Service

1-800-933-0771

www.kidkraft.com

Item #53153

Step 8

Step 9

J46

Pastel Island Kitchen

Assembly Instructions

Customer Service

1-800-933-0771

www.kidkraft.com

Item #53153

Step 10

Step 11

Pastel Island Kitchen

Assembly Instructions

Customer Service

1-800-933-0771

www.kidkraft.com

Item #53153

Step 12

Step 13

K K

Blocks with dashed markings

are underneath the counter top.

G L

Pastel Island Kitchen

Assembly Instructions

Customer Service

1-800-933-0771

www.kidkraft.com

Item #53153

Step 14

Step 15

Pastel Island Kitchen

Assembly Instructions

Customer Service

1-800-933-0771

www.kidkraft.com

Item #53153

Step 16

Step 17
