Smoke Alarm

User’s Guide

i9070CA

with Front loading

battery door

i9070CA

9VBattery Operated

SINGLE STATION

SMOKE ALARM

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-12

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-16

Fire Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-20

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Contents

Introduction

Thank you for purchasing this smoke alarm. It is an important

part of your family’s home safety plan. You can trust this

product to provide the highest quality safety protection. We

know you expect nothing less when the lives of your family are

at stake.

Please take a few minutes to thoroughly read this alarm manual,

and save it for future reference. Teach children how to respond

to the alarms, and that they should never play with the unit.

If you have any questions about the operation or installation of

your alarm, please call our toll free Consumer Hotline at

1-800-880-6788.

Image1C will help you determine the correct location of safety

products that will help make your home a safer place.

Made in China. Patents Pending

Kidde Canada Inc.

P.O. Box 40, Apsley, ON K0L 1A0

www.kiddecanada.com

This product is designed to detect products of combustion using

the ionization technique. It contains 0.9 microcurie of Americium

241, a radioactive material. Distributed under U.S. NRC License

No. 32-23858-01E. Manufactured in compliance with U.S. NRC

safety criteria in 10 CFR 32.27. The purchaser is exempt from any

regulatory requirements.

This smoke alarm uses an extremely small amount of radioactive

element in the ionization sensor chamber. Do not try to repair the

smoke alarm yourself. Refer to the instructions in Warranty for

service.

WARNING! Removal of the smoke alarm battery will render the

smoke alarm inoperative.

IMPORTANT! Read all instructions before installation and keep

this manual near the alarm for future reference.

Installation

Recommended Locations

• Locate the first alarm in the immediate area of the sleeping

rooms. Try to monitor the exit path, as the sleeping rooms are

usually farthest from the exit. If more than one sleeping area

exists, locate additional alarms in each sleeping area (Image 1A).

• Locate additional alarms to monitor any stairway as stairways act

like chimneys for smoke and heat.

• Locate at least one alarm on every floor level (Image 1B).

• Locate an alarm in every sleeping room.

• Locate an alarm in every room where electrical appliances are

operated (i.e. portable heaters or humidifiers).

•Locate an alarm in every room where someone sleeps with the

door closed. The closed door may prevent an alarm not located in

that room from waking the sleeper.

• Smoke, heat, and combustion products rise to the ceiling and

spread horizontally. Mounting the smoke alarm on the ceiling in

the center of the room places it closest to all points in the room.

Ceiling mounting is preferred in ordinary residential construction.

• For mobile home installation, select locations carefully to avoid

thermal barriers that may form at the ceiling. For more details, see

Mobile Homes.

• When mounting an alarm on the ceiling, locate it at a minimum of

10 cm (4") from the side wall (Image 2A).

• When mounting the alarm on the wall, use an inside wall with the

top edge of the alarm at a minimum of 10 cm (4") and a

maximum of 30.5 cm (12") belowthe ceiling (Image2A and 2B).

•Put smokealarms atboth ends of ahallway or large room if the

hallway or room is more than 9.1 m (30 ft) long. For large rooms,

one smoke alarm is recommended for every 500 square feet of

floor space.

•Install smokealarms on sloped, peaked or cathedral ceilings at or

within 0.9 m (3') of the highest point (measured horizontally).

NFPA 72 states: “Smoke alarms in rooms with ceiling slopes

greater than 0.3 m in 2.4 m (1 foot in 8 feet) horizontallyshall be

located on the high side of the room.” NFPA 72 states: “A row of

detectors shall be spaced and located within 0.9 m (3') of the peak

of the ceiling measured horizontally” (Image 2B and 2C).

Installation

DINING

ROOM

LIVING

ROOM

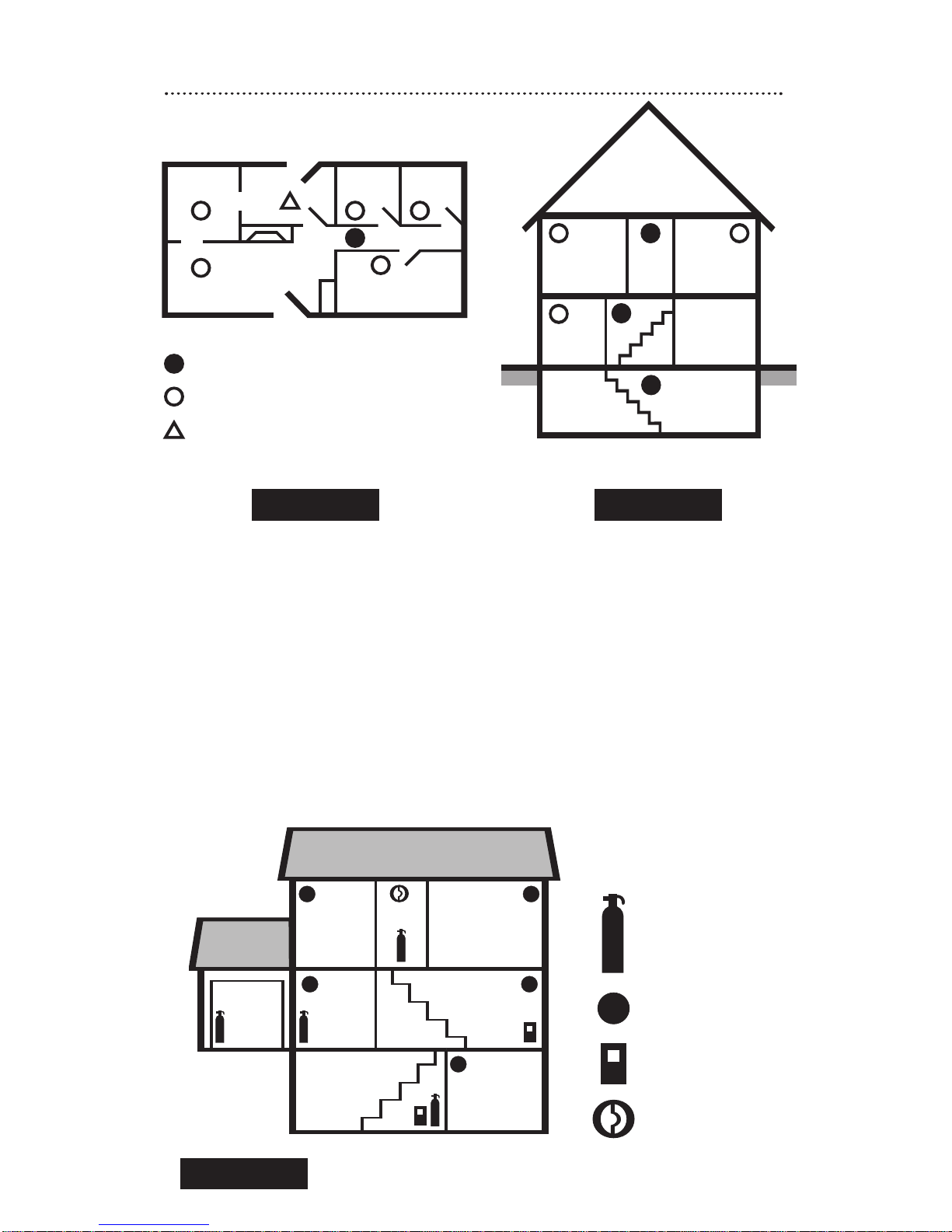

Smoke Alarms for Minimum Protection

Ionization Type Smoke Alarm with

Hush

Control or Photoelectric Type

Smoke Alarms for Additional Protection

KITCHEN BEDROOM

BEDROOM

LIVING

ROOM KITCHEN

BEDROOMBEDROOM HALL

BASEMENT

IMAGE 1A

IMAGE 1C

IMAGE 1B

SINGLE FLOOR PLAN MULTIPLE FLOOR PLAN

BEDROOM

FAMILY ROOM

WORKSHOPBASEMENT

KITCHEN

HALL

GARAGE

MASTER

BEDROOM

FIRE

EXTINGUISHERS

SMOKE

ALARMS

CARBON

MONOXIDE

ALARMS

TALKING

SMOKE/CO

ALARM

TOTAL HOME PROTECTION

• In homes that are not well insulated, extreme heat or cold can

be transferred from the outside to the inside through poorly

insulated walls and roof. This may create a thermal barrier

which can prevent the smoke from reaching an alarm mounted

on the ceiling. If you are not sure about the insulation in your

home, or if you notice that the outer walls and ceiling are either

hot or cold, install the alarm on an inside wall. In such homes,

install the smoke alarm with the top edge of the alarm at a

minimum of 10 cm (4") and a maximum of 30.5 cm (12")

below the ceiling (Image 2A).

• Install Smoke Alarms on tray-shaped ceilings (coffered ceilings) on

the highest portion of the ceiling or on the sloped portion of the

ceiling within 12” (305mm) vertically down from the highest point

(Image 2D).

Locations to Avoid

• Do not install within 0.9 m (3') of the following: The door to a

kitchen, or a bathroom that contains a tub or shower, forced

air supply ducts used for heating or cooling, ceiling or whole

house ventilating fans, or other high air-flow areas.

• Do not place the alarm where drapes or other objects will

block the sensor. Smoke must be able to reach the sensor to

accurately detect conditions.

• Do not install in peaks of vaulted ceilings, “A” frame ceilings

or gabled roofs. (Less than 10 cm (4") from the peak of an “A”

frame type ceiling.)

• Install at least 30.5 cm (12") away from fluorescent lights as

electronic noise may cause nuisance alarms.

• Keep out of insect infested areas. Avoid excessively dusty, dirty

or greasy areas. Dust particles may cause nuisance alarms or

failure to alarm.

• Extreme temperatures may effect the sensitivity of the alarm.

Do not install in areas where the temperature is colder than

4.4°C (40°F) or hotter than 37.8°C (100°F), such as garages

and unfinished attics.

• Do not install in areas where the relative humidity (RH) is

greater than 85%. Very humid areas, with moisture or steam,

can cause nuisance alarms.

• Avoid placing ionization smoke alarms in kitchen areas.

Normal cooking may cause nuisance alarms. If a kitchen alarm

is desired, it should have an alarm silence feature or be a

photoelectric type.

• Do not place in the garage. Particles of combustion are

present when you start your automobile.

• Smoke alarms are not to be used with detector guards unless

the combination (alarm and guard) has been evaluated and

found suitable for that purpose.

Installation

IMAGE 2A

IMAGE 2C

HORIZONTAL DISTANCE FROM PEAK

CEILING

10 cm (4”)

MINIMUM

10 cm (4”)

MINIMUM

30.5 cm (12”)

MAXIMUM

SIDE WALL

BEST

PLACEMENT

ACCEPTABLE

PLACEMENT

NEVER HERE

STAGNANT

AIR

10 cm (4”)

0.9 m (3’) 0.9 m (3’)

NOTIN

THIS AREA

ANYWHERE IN THIS

AREA

10 cm (4”)

NOTIN

THIS AREA

ANYWHERE IN THIS

AREA

0.9 m (3’)

IMAGE 2B

Mobile Homes

Modern mobile homes have been designed and built to be energy

efficient. Install smoke alarms as recommended in Recommended

Locations and Image 2A.

In mobile homes that are not well insulated compared to present

standards, extreme heat or cold can be transferred from the

outside to the inside through poorly insulated walls and roof. This

may create a thermal barrier that can prevent the smoke from

reaching an alarm mounted on the ceiling. In such units, install

the smoke alarm on an inside wall with the top edge of the alarm

at a minimum of 10 cm (4") and a maximum of 30.5 cm (12")

below the ceiling (Image 2A).

If you are not sure about the insulation in your mobile home, or

if you notice that the outer walls and ceiling are either hot or

cold, install the alarm on an inside wall. For minimum protection,

install at least one alarm close to the sleeping areas. For additional

protection, see Image 1A.

WARNING: Test your smoke alarm operation after R.V. or mobile

home vehicle has been in storage, before each trip and at least

once a week during use.

Mounting

CAUTION: This unit is sealed. The cover is not removable!

CAUTION: When wall mounting, the unit must be mounted so

that battery door faces down! (Image 3C) Incorrect orientation

of wall mounted smoke alarms will decrease operational

effectiveness.

Installation

ANYWHERE IN THIS

AREA

30cm (12")

IMAGE 2D

Installation

• After selecting the proper smoke alarm location as described

previously, hold the mounting plate against the selected

installation location (wall or ceiling) and mark the center of the

holes with a pencil. To ensure aesthetic alignment of the alarm

with the hall-way, or wall, the “A” line on the mounting plate

should be parallel with the hallway when ceiling mounted, or

horizontal when wall mounted (Image 3A and 3B). Drill a

hole through the pencil marks and use the enclosed screws and

anchors to secure. Use 3/16” drill for anchor holes. Align the

alarm with the mounting plate and rotate clockwise (right) until

the unit is aligned.

A A

IMAGE 3A

IMAGE 3C IMAGE 3D

“A” LINE

ALIGNMENT MARKS

WALL MOUNTING

POSITION ROTATE TO MOUNT OR

TO REMOVE

IMAGE 3B

Install

Remove

Installation

• Install the alarm on the mounting plate and rotate the alarm in

the direction of the “ON” arrow on the cover until the alarm

ratchets into place (Image 3D). This ratcheting function allows

for aesthetic alignment.

Note: The alarm will attach to the mounting plate in

4 positions (every 90 degrees). When wall mounting, make

sure the battery door is at the bottom of the unit (Image 3C).

Battery

This unit will not function without a properly installed battery,

and is equipped with a battery lockout feature which prevents the

battery door from closing if a battery is not installed correctly.

See Maintenance section for additional information concerning

battery installation.

• For initial installation a pre-installed 9 V battery is included

with a battery pull tab that allows for easy connection. Simply

pull the tab out, and the battery is connected! See

Maintenance for additional information concerning battery

installation.

•Pull the Battery Pull Tab (yellow tab protruding from the unit)

completely out of the unit. This will automatically connect the

battery.

Testing

• Test the unit to ensure proper operation by pressing the Test

button.

CAUTION: Due to the loudness (85 decibels) of the alarm, always

stand an arms-length away from the unit when testing.

The smoke alarm is operating once a fresh battery is installed and

testing is complete. When the smoke alarm ionization sensor

chamber senses products of combustion, the horn will sound a loud

(85db) alarm until the sensing chamber is cleared of smoke particles.

Operation

Table des matières

Autres manuels Kidde Détecteur de fumée

Kidde

Kidde P4010ACLEDSCA Manuel utilisateur

Kidde

Kidde 0916LL Manuel utilisateur

Kidde

Kidde RF-SM-DC Manuel utilisateur

Kidde

Kidde KN-COSM-BCA Manuel utilisateur

Kidde

Kidde P4010ACSCO Manuel utilisateur

Kidde

Kidde 0916E Manuel utilisateur

Kidde

Kidde 19HI Manuel utilisateur

Kidde

Kidde 0910UK Manuel utilisateur

Kidde

Kidde I240C Manuel utilisateur

Kidde

Kidde FX-PDD Instructions de montage

Kidde

Kidde P4010DCS-W Manuel utilisateur

Kidde

Kidde 1275E Mode d’emploi

Kidde

Kidde I12020 Manuel utilisateur

Kidde

Kidde I9030 Manuel utilisateur

Kidde

Kidde P4010DCSCO-W Manuel utilisateur

Kidde

Kidde TRUSENSE 3050-VASC10 Manuel utilisateur

Kidde

Kidde 10Y29 Manuel utilisateur

Kidde

Kidde i9010 Manuel utilisateur

Kidde

Kidde I9070 Manuel utilisateur

Kidde

Kidde P9040 Manuel utilisateur

Kidde

Kidde 918 Manuel utilisateur

Kidde

Kidde i12010SCO Manuel utilisateur

Kidde

Kidde Fire Smart FS301 Manuel utilisateur

Kidde

Kidde TRUSENSE SMOKE Manuel utilisateur

Manuels Détecteur de fumée populaires d'autres marques

x-sense

x-sense SD19-W Manuel utilisateur

BRK electronic

BRK electronic First Alert P1010 Manuel utilisateur

FireAngel

FireAngel Thermoptek ST-622 Manuel utilisateur

teko

teko Astra-42A Manuel utilisateur

Safetec

Safetec SDS-2/6 Manuel du propriétaire

Siemens

Siemens PE-11C Manuel utilisateur

System Sensor

System Sensor DH500ACDC Manuel utilisateur

Resolution Products

Resolution Products RE612 CryptiX Manuel utilisateur

First Alert

First Alert PC900V Manuel utilisateur

Eminent

Eminent EM6590 E-Domotica Manuel utilisateur

Ei Electronics

Ei Electronics Ei Ei168RC Manuel utilisateur

Carrier

Carrier Kidde Quell Q301 Manuel utilisateur

VESDA

VESDA VLF-500 Manuel utilisateur

ELRO

ELRO FS8110 Manuel utilisateur

Heiman

Heiman SMOKI NS-626PHS Manuel utilisateur

Regin

Regin SDD-S65 Manuel utilisateur

Family Gard

Family Gard FG225 Manuel utilisateur

Greystone

Greystone DSD120 Manuel utilisateur

Kidde i9070CA Manuel utilisateur

Manuels Détecteur de fumée populaires d'autres marques
