Kidde K10LLCO Manuel utilisateur

User and Installer Guide

Sealed Battery, Long Life Carbon Monoxide Alarms

Quick Start Instructions

included at the back of

this User Guide

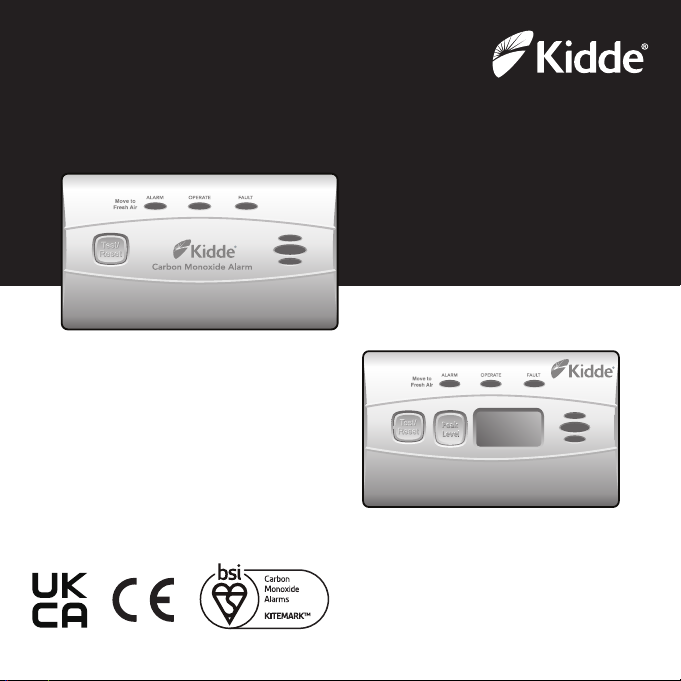

Model: K10LLCO

Model: K10LLDCO

Model: K10LLCO

Model: K10LLDCO

PPM of CO displayed

Lb= Low Battery

End= End of Unit Life

BS EN 50291-1:2018

LICENSE NO. KM 738897

P/N: K10LLCO-7201-01

Carbon Monoxide Alarm

Thank You for Purchasing this Kidde Alarm

only), and a Reset function to temporarily silence nuisance alarms.

Teach children how to respond to the alarm and that they should never play with the unit. This alarm is

designed to detect carbon monoxide from any source of combustion in a residential environment. It is not

designed for use in a caravans, motor homes or boats.

NOTE: Please thoroughly read this user guide and save the document for future reference and to pass on

to any subsequent owner.

IMPORTANT: Additional markings can be found on the back of the unit.

The manufacturer recommends replacing this alarm ten years from the install date on the side of alarm.

Model: ______________________________

Date Code (on side): ____________________

Date of Purchase: ______________________

Where Purchased: ______________________

Date to Replace: ________________________

Product Support: 0800 917 0722

Please write down the below information

and have this at hand when you call.

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household

waste. Please recycle where facilities exist. Check with Local Authority

or Supplier for recycling advice.

Product contains sealed in lithium batteries.

Removal can be done only by qualied professionals

in recycling points.

Model: ______________________________

Date Code (on side): ____________________

Date of Purchase: ______________________

Where Purchased: ______________________

Date to Replace: ________________________

Contents

1. Carbon Monoxide Alarm: What To Do When the Alarm Sounds.................................................................................... 4

2. Other Alarm Visual and Audible Indicators.................................................................................................................................... 5

3. Troubleshooting Guide.............................................................................................................................................................................. 6

4. Introduction, Product Features and Specifications.................................................................................................................. 7

5. Limitations of CO Alarms........................................................................................................................................................................ 9

6. Recommended Locations for Alarms..............................................................................................................................................10

7. Locations to Avoid.......................................................................................................................................................................................11

8. Installation.........................................................................................................................................................................................................12

9. Operation and Testing............................................................................................................................................................................. 13

10. Recognizing Nuisance Alarms............................................................................................................................................................. 14

11. Battery ................................................................................................................................................................................................................ 14

12. Permanently Disable Alarm / Discharge Battery ......................................................................................................................15

13. General Carbon Monoxide (CO) Information............................................................................................................................. 16

14. Cleaning Your Alarm.................................................................................................................................................................................. 18

15. Service and Warranty................................................................................................................................................................................. 19

Quick Start Instructions .......................................................................................................................................................................... 20

1. Carbon Monoxide Alarm: What To Do When the Alarm Sounds

The carbon monoxide (CO) alarm pattern is four quick beeps repeating every 5 seconds. The red LED blinks in sync

with the beep pattern. The digital display on model K10LLDCO will show the PPM level of CO detected.

WARNING: CARBON MONOXIDE ALARM ACTIVATION INDICATES THE PRESENCE OF CARBON

MONOXI O AT HIGH CONCENTRATIONS WHICH CAN KILL YOU.

Based on recommendations from EN 50292, follow these steps if alarm sounds:

1. Keep calm and open all doors and windows. Turn off all fuel-burning appliances if possible. Note: it is possible

that outdoor conditions could influence domestic CO alarms (bad traffic pollution in cold weather, for

example). In these circumstances, the level of indoor CO might actually increase when doors and windows

are opened.

2. If the alarm continues to sound, even after being reset (where appropriate), then evacuate the premises,

alerting other occupants to the risk. Leave doors and windows open. Do not re-enter the premises.

3. Get medical help for anyone suffering the effects of CO poisoning, and advise that CO inhalation is suspected.

4. Call Gas Emergency Services: 0800 111 999, or your local Gas Safe Registered Engineer:

PHONE NUMBER:

Never restart the source of the CO problem until it has been corrected.

Never ignore the sound of the alarm!

NOTE: See Section RECOGNIZING NUISANCE ALARMS, for nuisance alarm situations.

2. Other Alarm Visual and Audible Indicators

Operational Mode Visual Indications Audible Indications Action/Note:

Normal (standby) Green LED blinks approx every

30 sec.

Test (button press when

no alarm condition is

present) Red LED blinks in sync with beep

pattern.

Model K10LLDCO digital display

will show 3 dashes and then

“888”.

4 loud pulses, a pause,

4 loud pulses.

Single beep

Perform test button press

once a week to verify proper

alarm operation.

CO Alarm Memory (unit

has experienced a CO

alarm event or 100 ppm

or more CO within the

last 14 days)

Red LED blinks every 60 sec. None. Model K10LLCO: Push button

to clear Alarm Memory.

Model K10LLDCO: Push Test/

Reset while the Peak Level

button is depressed to clear

Alarm Memory.

Peak Level CO

K10LLDCO only

Digital display shows the highest

CO reading between 11 and 999

ppm since the peak level was

reset.*

None. Push test/reset button while

peak level button is depressed

to clear peak level memory.

CO alarm reset Red LED continues to signal the

alarm pattern.

After button push: CO

alarm pattern stops. present or if it experienced a

nuisance situation. Re-alarm

means danger. Move to fresh

air and call 0800 111 999.

* NOTE: CO levels up to 30ppm can occur under normal non-dangerous conditions. Such conditions could include

Green and amber LEDs illuminate.

3. Troubleshooting Guide

NOTE: If at any time your alarm fails to operate correctly (erratic or low sound, for example), or if you require further

information, please contact customer support at 0800 917 0722.

Trouble Condition Visual Indications Audible Indications Action:

Low Battery Amber LED blinks every

60 sec.

Model K10LLDCO digital

display will show “Lb”.

Chirp every 60 sec. * Push test button once to silence for 24 hrs.

Note: 30 days after Low Battery begins, the

* If the unit is cold, allow the unit to warm up

for a couple of hours.

* Remove, discharge, dispose unit, and replace

as soon as possible.

Fault Mode Amber LED blinks every

30 sec.

Model K10LLDCO digital

display will show “Err”.

Chirp every 30 sec. * See Cleaning Your Alarm section.

* Push test button once to attempt to reset

the unit.

End of Unit Life Amber LED blinks twice

every 60 sec.

Model K10LLDCO digital

display will show “End”.

Two chirps every

60 sec.

* Push button once to silence for 24 hrs.

Note: 30 days after End of Unit Life begins, the

* Remove, discharge, dispose unit, and replace

as soon as possible.

MCU FailureNone. Constant tone. * Remove, discharge, dispose unit, and replace

as soon as possible.

Stuck Button Amber LED blinks

every 5 sec.

Chirp every 5 sec. * Push button to dislodge it from being stuck. If

button cannot be unstuck, remove, discharge,

dispose unit, and replace as soon as possible.

3. Troubleshooting Guide

4. Introduction, Product Features and Specifications

Introduction

This alarm detects carbon monoxide using an electrochemical cell. Many times throughout this User Guide,

we will refer to Carbon Monoxide as “CO.”

Ten (10) years after the unit was installed, this unit will automatically alert you that it is time to replace the unit.

This is called “End of Unit Life” mode. See Troubleshooting Guide. To help track the life of your alarm, write the

installation date in the space provided on the side of the alarm. A label has been provided that has important

information on what to do in case of a CO alarm. Place the label at eye level on a wall near the alarm after it is

mounted.

Product Features and Specifications:

Temperature Operating Range: -10°C to 45°C

Humidity Operating Range: up to 90% RH non-condensing

Audible Alarm: 85+ dB(A) at 3 m, 3.0 to 3.5 kHz pulsing alarm

Digital Display (K10LLDCO only)

NOTE: Depending on the ambient condition (temperature, humidity) and the condition of the sensor,

the display readings may vary. The digital readings tolerances are 0-999 ± 30% +15ppm during these condi-

tions: 27°C ± 12°C (80°F ± 10°F), atmospheric pressure ±10%, 40% ± 3% relative humidity

CO Sensor: Electrochemical

Peak Level Memory (K10LLDCO only)

CO Alarm Reset

Storage and Transport Conditions: -20° C to +60° C, 5-95% RH (non-condensing)

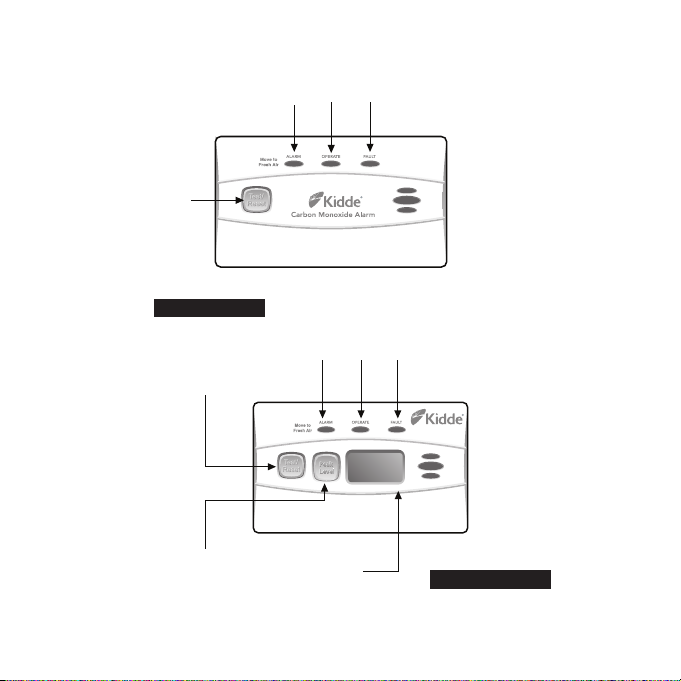

Product Features

Gr een,

Pow er LED

Red,

Alarm LED

Test / Reset

Button

Model: K10LLCO

Model: K10LLDCO

PPM of CO displayed

Lb= Low Battery

End= End of Unit Life

Gr e Amber,

Fault LED

Amber,

Fault LED

en,

Pow er LE D

Red,

Ala rm LED

Test / Reset

Button

Peak Level Button

Digital Display

with digital display

Model: K10LLDCO

Model: K10LLCO

5. Limitations of CO Alarms

WARNING: PLEASE READ CAREFULLY AND THOROUGHLY

This alarm is not intended to alert hearing impaired individuals.

LIMITATIONS OF CO ALARMS

•IMPORTANT: This alarm is designed to detect carbon monoxide gas from ANY source of combustion. It is

NOT designed to detect any other gas. This alarm has not been tested specically for use in caravans or

boats. Only CO alarms certied to EN50291-2 are fully approved for this purpose.

CAUTION: This alarm will only indicate the presence of carbon monoxide gas at the sensor. Carbon

monoxide gas may be present in other areas. Never restart the source of a CO problem until it has been

xed. NEVER IGNORE THE ALARM!

WARNING: THIS PRODUCT IS INTENDED FOR USE IN ORDINARY INDOOR LOCATIONS OF

FAMILY LIVING UNITS. IT IS NOT DESIGNED TO MEASURE COMPLIANCE WITH COMMERCIAL

AND INDUSTRIAL STANDARDS. THIS ALARM IS NOT SUITABLE FOR INSTALLATION IN

HAZARDOUS LOCATIONS.

IMPORTANT: THIS CARBON MONOXIDE ALARM IS DESIGNED TO DETECT CARBON MONOXIDE

FROM ANY SOURCE OF COMBUSTION INCLUDING IMPROPER OR MALFUNCTIONING

APPLIANCES. THE INSTALLATION OF THIS DEVICE SHOULD NOT BE USED AS A SUBSTITUTE FOR

PROPER INSTALLATION, USE AND MAINTENANCE OF FUEL BURNING APPLIANCES INCLUDING

APPROPRIATE VENTILATION AND EXHAUST SYSTEMS.

•This alarm does not prevent CO from occurring, nor can it solve any existing CO problem.

WARNING: THIS DEVICE IS DESIGNED TO PROTECT INDIVIDUALS FROM ACUTE EFFECTS OF

CARBON MONOXIDE EXPOSURE. IT WILL NOT FULLY SAFEGUARD INDIVIDUALS WITH SPECIFIC

MEDICAL CONDITIONS. IF IN DOUBT, CONSULT A MEDICAL PRACTITIONER. INDIVIDUALS WITH

MEDICAL PROBLEMS MAY CONSIDER USING WARNING DEVICES WHICH PROVIDE AUDIBLE AND

VISUAL SIGNALS FOR CARBON MONOXIDE CONCENTRATIONS UNDER 30 PPM.

•This alarm has not been investigated for carbon monoxide detection below 50 PPM.

•This alarm requires a continuous supply of electrical power – it will not work without power.

WARNING: THIS CARBON MONOXIDE ALARM IS NOT A SUBSTITUTE FOR INSTALLING AND

MAINTAINING AN APPROPRIATE NUMBER OF SMOKE ALARMS IN YOUR HOME. THIS ALARM

WILL NOT SENSE SMOKE, FIRE, OR ANY POISONOUS GAS OTHER THAN CARBON MONOXIDE.

FOR THIS REASON YOU MUST INSTALL SMOKE ALARMS TO PROVIDE EARLY WARNING OF FIRE

AND TO PROTECT YOU AND YOUR FAMILY FROM FIRE AND ITS RELATED HAZARDS.

6. Recommended Locations for CO Alarms

NOTE: CO alarms should be installed following the guidance of relevant local standards, such as EN 50292.

Whether the alarm is wall-mounted or ceiling mounted, place the alarm a horizontal distance of between

1 metre and 3 metres from a fuel burning appliance.

When mounting the alarm on the wall, use an inside wall with the top edge of the alarm at a minimum

of 150 mm below the ceiling. The bottom of the alarm should also be at a level greater than the height

of any door or window.

Locate within hearing distance of bedrooms* and place at sleeping height if a heating appliance is in the

bedroom.

CO alarms in rooms with sloped ceilings should be located on the high side of the room.

Ceiling mounted alarms should be at least 300 mm from any wall.

If there is a partition in the room, locate the alarm on the same side of the partition as the potential source.

* A CO alarm should be installed in all rooms containing a fuel burning appliance. Additional CO alarms

should be installed in rooms where most awake time is spent, in every sleeping area, and on every level of

the home.

Autres manuels pour K10LLCO

Table des matières

Autres manuels Kidde Alarme au monoxyde de carbone

Kidde

Kidde C3010 Manuel utilisateur

Kidde

Kidde KHU100-28 Manuel utilisateur

Kidde

Kidde 9CO5 Manuel utilisateur

Kidde

Kidde 900-0259 Manuel utilisateur

Kidde

Kidde KN-COSM-B Manuel utilisateur

Kidde

Kidde CO120X Manuel utilisateur

Kidde

Kidde 900-0213CA Manuel utilisateur

Kidde

Kidde NIGHTHAWK KN-COSM-B Manuel utilisateur

Kidde

Kidde KN-COB-B-LS Manuel utilisateur

Kidde

Kidde KN-COSM-B-RF Manuel utilisateur

Kidde

Kidde 900-0215 Manuel utilisateur

Kidde

Kidde KN-COPP-3-UK Manuel utilisateur

Kidde

Kidde KN-COPP-3 Manuel utilisateur

Kidde

Kidde KN-COB-B-LPM Manuel utilisateur

Kidde

Kidde KN-COSM-IB Manuel utilisateur

Kidde

Kidde KN-COB-DP-H) Manuel utilisateur

Kidde

Kidde KN-COB-B-LP Manuel utilisateur

Kidde

Kidde KN-COPP-B-LS Manuel utilisateur

Kidde

Kidde 9CO5-LP Manuel utilisateur

Kidde

Kidde KN-COPD-3-UK Manuel utilisateur

Kidde

Kidde P4010ACLEDSCOCA Manuel utilisateur

Kidde

Kidde KN-COB-LCB-A Manuel utilisateur

Kidde

Kidde KN-COB-B-LPM Manuel utilisateur

Kidde

Kidde KN-COB-B-LS (900-0233) Manuel utilisateur

Manuels Alarme au monoxyde de carbone populaires d'autres marques

Honeywell

Honeywell H450EN Manuel utilisateur

First Alert

First Alert FCD2B Manuel utilisateur

Honeywell

Honeywell SF350RVUL Manuel utilisateur

Poolguard

Poolguard DAPT-2 Manuel utilisateur

Ei Electronics

Ei Electronics Ei 261D Manuel

Bacharach

Bacharach Model 105 Manuel

Firex

Firex COZ-1 Manuel utilisateur

Costar

Costar 12RV-D Manuel utilisateur

First Alert

First Alert CO410 Manuel utilisateur

FireAngel

FireAngel CO-9X Manuel utilisateur

Costar

Costar 12-24SIR Manuel utilisateur

System Sensor

System Sensor CO1224T Manuel utilisateur

Deltronic Security

Deltronic Security CN-1231 Manuel utilisateur

GE Interlogix

GE Interlogix 240 COE - Carbon Monoxide Alarm Manuel utilisateur

Sygonix

Sygonix 2377794 Manuel utilisateur

Convoy Tech

Convoy Tech CO311 Manuel utilisateur

nest

nest PROTECT Manuel utilisateur

Bosch

Bosch CRS-WLCD-TA869 Manuel utilisateur
