Overview

IMPORTANT SAFETY WARNING

PROLONGED CONTINUOUS OPERATION OF AN AMPLIFIER, SPEAKER, OR

SUBWOOFER IN A DISTORTED, CLIPPED OR OVER-POWERED MANNER

CAN CAUSE YOUR AUDIO SYSTEM TO OVERHEAT, POSSIBLY CATCHING

FIRE AND RESULTING IN SERIOUS DAMAGE TO YOUR COMPONENTS

AND/OR VEHICLE. AMPLIFIERS REQUIRE UP TO 4 INCHES (10CM) OPEN

VENTILATION. SUBWOOFERS SHOULD BE MOUNTED WITH AT LEAST 1

INCH (2.5CM) CLEARANCE BETWEEN THE FRONT OF THE SPEAKER AND

ANY SURFACE. KICKER PRODUCTS ARE CAPABLE OF PRODUCING SOUND

LEVELS THAT CAN PERMANENTLY DAMAGE YOUR HEARING! TURNING UP A

SYSTEM TO A LEVEL THAT HAS AUDIBLE DISTORTION IS MORE DAMAGING

TO YOUR EARS THAN LISTENING TO AN UNDISTORTED SYSTEM AT THE

SAME VOLUME LEVEL. THE THRESHOLD OF PAIN IS ALWAYS AN INDICATOR

THAT THE SOUND LEVEL IS TOO LOUD AND MAY PERMANENTLY DAMAGE

YOUR HEARING. PLEASE USE COMMON SENSE WHEN CONTROLLING

VOLUME.

The KICKER Competition GOLD-series

subwoofers celebrate the history and

innovation of KICKER subs, combining

the latest engineering upgrades with

the toughness and low-end frequency

response that are KICKER hallmarks. The

Gold-Series introduce the latest KICKER

innovation of Forced-Air Cooling, which

uses the excursion of the woofer to

force out hot air while drawing in cool air.

This results in a 20% reduction in heat,

increasing the already industry-leading

reliability of our subs. The massive power-

handling and motor, double-stitched

surround and other features you’ve come to

expect are also present. Whether upgrading

an existing audio system or decking out

a new one, these subwoofers are the

foundation for your music.

4English

Speciﬁcations

Note: All speciﬁcations and performance

ﬁgures are subject to change. Please visit

www.kicker.com for the most current

information. To get the best performance

from your new KICKER speakers, we

recommend using genuine KICKER

accessories and wiring. Please allow two

weeks of break-in time for the speakers to

reach optimum performance.

Pro Tip: You’re a KICKER ampliﬁer and a

few cables away from a full system upgrade

that will dominate any factory system!

KICKER line of ampliﬁers make it easy to

upgrade to solid bass with your existing

or stock source unit. Also, ask your dealer

about KICKER Speaker upgrades.

GOLD10 GOLD12 GOLD15

Woofer [in, mm] 10, 25 12, 30 15, 38

Recommended Ampliﬁer Power [Watts RMS] 200–400 250–500 400–800

Peak Power Handling [Watts] 800 1000 1600

Sensitivity [1W, 1m] 85.7 87.1 89.7

Rated Impedance [Ω] 4 4 4

Fs [Hz] 41.4 37 33.7

Xmax (Linear Excursion) [mm] 17.5 17.5 17.5

Outer Frame Dimension [in, cm] 10-5/8, 27 12-1/2, 31.8 15-3/8, 39.1

Mounting Depth [in, cm] 5-1/4, 13.3 5-3/4, 14.5 7-15/16, 20.1

Mounting Cutout [in, cm] 9-1/8, 23.1 11, 27.9 13-3/4, 35

Frequency Response [Hz] 30–500 25–500 25–500

5English

Wiring Conﬁguration

GOLD-Series subwoofers are made with

dual 4Ω voice coils. Both coils must be

connected to a source of ampliﬁcation.

They will provide a 2Ω load wired in parallel

or 8Ω load wired in series. Make sure

your source unit or ampliﬁer is rated

at the correct ohm load for operation.

The speaker wire should be kept away

from sharp edges and avoid the possibility

of getting pinched by the trunk. If a factory

hole and grommet do not exist or are

inaccessible, you must drill a hole through

which to run the wire. Be careful not to drill

into other wiring or existing mechanisms.

Any time a wire is run through a hole, it

is necessary to insert a rubber or plastic

grommet to protect the wire from damage.

Installation

6English

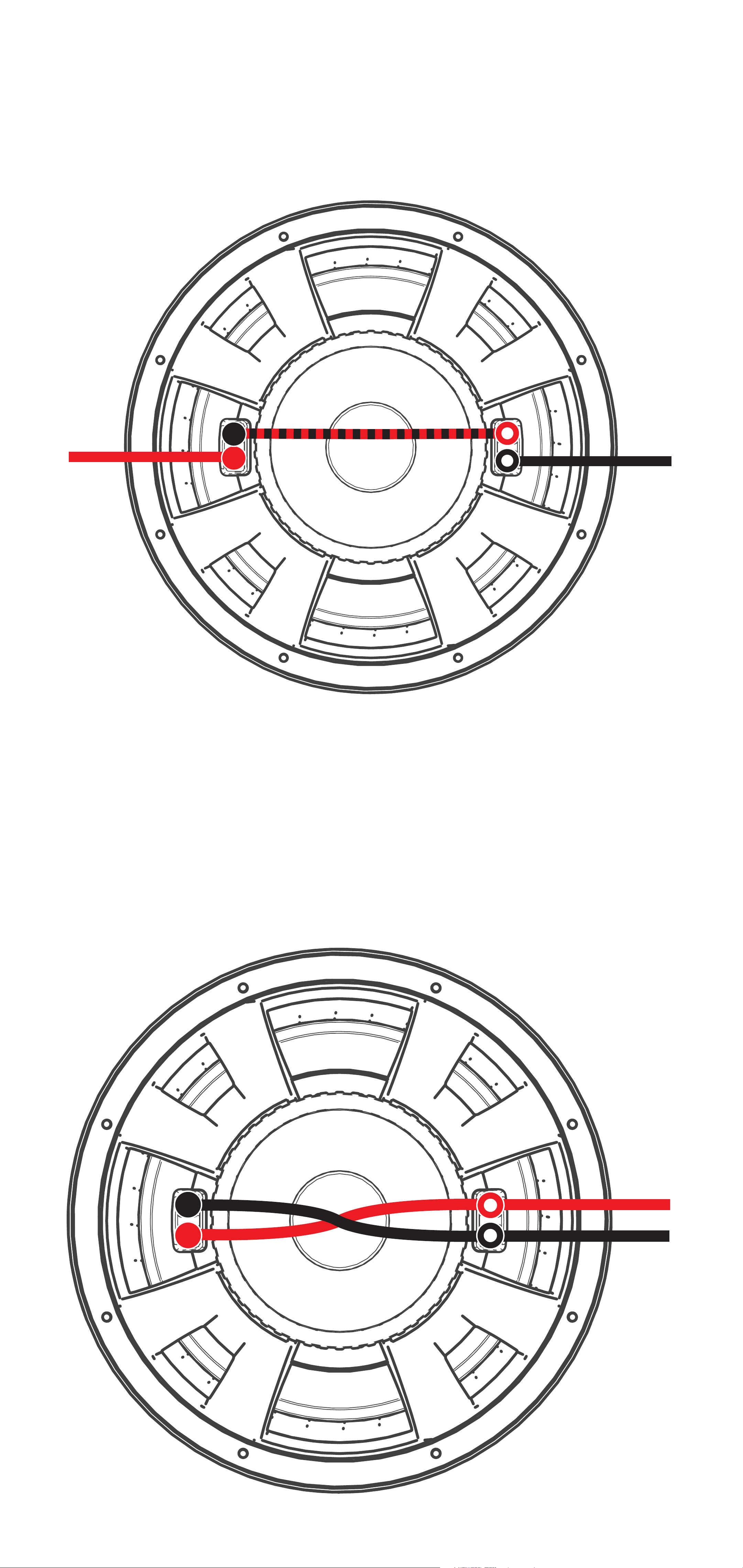

Series Wiring

Parallel Wiring

Dual 4Ω Voice

Coils = 8Ω Load

Dual 4Ω Voice

Coils = 2Ω Load

7English

Box Building Notes

Use 3/4” (1.9cm) or thicker MDF (medium

density ﬁberboard) and seal the joints with

silicone. Use the “template” inside your

GOLD subwoofer’s shipping carton to mark

the mounting hole, then cut directly on the

line. These designs need internal bracing.

Add triangular bracing between each of the

larger unsupported panels.

All the cubic feet (L) measurements in this

manual include the displacement of the

woofer. For the vented enclosures the

displacement of the port must be calculated

and added to the internal volume of the

ﬁnal design. Use the outer dimensions of

the port and multiply “X x Y x Z”, convert to

cubic feet, for example the GOLD12 Vented

Minimum design’s external port dimensions

are, using 3/4” (1.9cm) MDF:

(12.5” + 1.5” total MDF wall thickness) x

(2.5” + 1.5” total MDF wall thickness) x

(20”) x (1 ft3/ 1728 in3) = .65 ft3

Then, add this number to the internal

volume of the enclosure. 1.75 ft3+ .65 ft3=

2.4 ft3

Due to the necessary length of these ports,

you may want to fold the port along the

bottom and back walls. It will be impractical

to use round ports for these designs.

8English

Do not install a port opening against a solid

surface, such as an internal brace, back-

panel or trunk wall, seat or interior panel of

your vehicle. The port opening must remain

unobstructed. Use the smallest dimension

of the rectangular port as the minimum

amount of space between the port opening

and any solid surface to insure unrestricted

airﬂow.

You can loosely ﬁll your enclosure with

poly-ﬁl stufﬁng. Ported designs will require

covering the end of the port (located inside

the box) with grill cloth, chicken wire, or

expanded metal to prevent the poly-ﬁl

from exiting the port. The use of poly-ﬁl will

slightly decrease efﬁciency, but will deepen

and extend the low frequency output by

making your subwoofer think it’s in a bigger

box.

9English

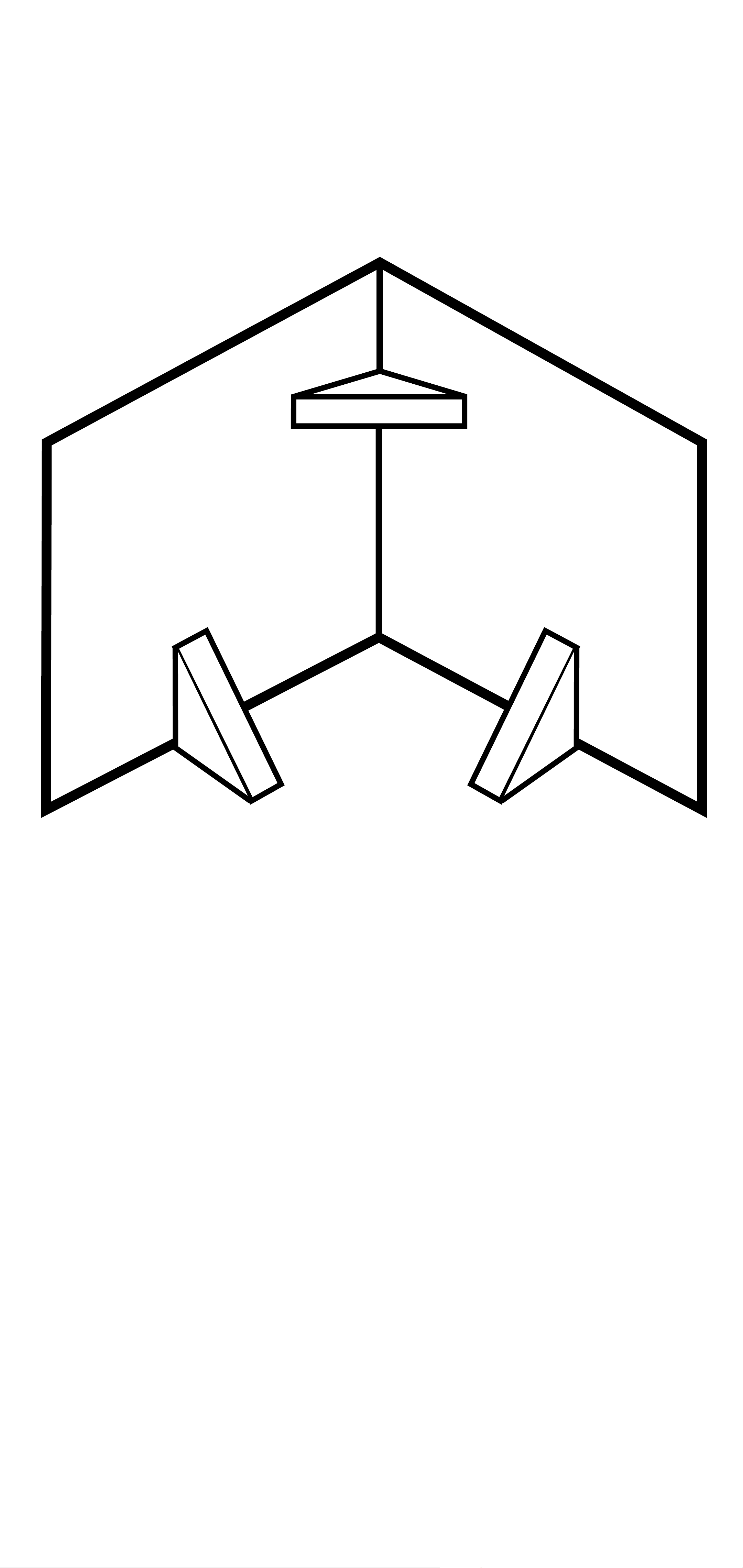

Add triangular bracing between each of the

larger unsupported panels.

For more advice on box building, refer to

your Authorized Kicker Dealer, or click on

the Support tab on the Kicker homepage,

www.kicker.com. Please e-mail support@

kicker.com or call Technical Support at

(405) 624-8583 for speciﬁc or unanswered

questions.

GOLD12, GOLD15: D = 3” x 3” (8cm x 8cm)

GOLD10: D = 2” x 2” (5cm x 5cm)

10English

Sealed Enclosures

These sealed enclosure designs give the

smoothest response with increased energy

at the lowest frequencies, 20 to 30Hz.

These designs deliver massive amounts of

highly-accurate bass and can be driven with

punishing levels of ampliﬁer power.

The GOLD-Series high performance

suspension system can operate in a larger

sealed enclosure. This maximum enclosure

volume application is ideal for SQ (ultra

sound quality) installations. The Maximum

enclosure generates a very ﬂat response

curve and superbly extends the sub-bass

response.

Minimum Sealed

Model Volume ft3(L) Power Handling

GOLD10 .8 (22.7) 400W RMS

GOLD12 1 (28.3) 500W RMS

GOLD15 1.8 (51) 800W RMS

Model Volume ft3(L) Power Handling

GOLD10 1.25 (35.4) 400W RMS

GOLD12 2 (56.64) 500W RMS

GOLD15 3 (85) 800W RMS

Maximum Sealed
