Kichler Lighting EYRIE Manuel utilisateur
13" EYRIETM
INSTRUCTION MANUAL
Product images may vary slightly from actual product.
TABLE OF CONTENTS
SAFETY RULES.......................................................................... 4
5
5
6
7
10
11
13
TOOLS REQUIRED....................................................................
PACKAGE CONTENTS.............................................................
MOUNTING OPTIONS.............................................................
HANGING THE FAN..................................................................
INSTALLATION OF SAFETY SUPPORT..........................
ELECTRICAL CONNECTIONS.............................................
FINISHING THE INSTALLATION........................................
INSTALLING THE LED LAMPS.......................................... 14
15
15
17
18
19
INSTALLING THE BATTERIES.............................................
OPERATING INSTRUCTIONS.............................................
INSTALLING THE WALL CONTROL
SYSTEM WALL PLATE...........................................................
OPERATION INSTRUCTIONS.............................................
TROUBLESHOOTING.............................................................
13" EYRIETM | 3
4 | KICHLER.COM
SAFETY RULES
CAUTION-RISK OF FIRE CONSULT A QUALIFIED ELECTRICIAN
TO ENSURE CORRECT BRANCH CIRCUIT CONDUCTOR.
1. To reduce the risk of electric shock, insure electricity has been
turned o at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical Code
and local electrical codes. Electrical installation should be
performed by a qualified licensed electrician.
3. WARNING: Not suitable for use with solid-state speed controls.
4. WARNING: To reduce the risk of fire, electric shock, or personal
injury, mount to outlet box marked "acceptable for fan support of
15.8 kg (35 lbs.) or less" and use mounting screws provided with
the outlet box. Most outlet boxes commonly used for the support
of light fixtures are not acceptable for fan support and may need
to be replaced. Due to the complexity of the installation of this fan,
a qualified licensed electrician is strongly recommended.
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
OR PERSONAL INJURY, MOUNT FAN TO OUTLET BOX MARKED
"ACCEPTABLE FOR FAN SUPPORT".
5. The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 50 pounds. Use
only CUL Listed outlet boxes marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum of 10 feet clearance
from the trailing edge of the blades to the floor.
7. Avoid placing objects in the path of the blades.
8. To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
9. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be suitable
for most cleaning.
10. After marking electrical connections, spliced conductors should
be turned upward and pushed carefully up into outlet box. The
wires should be spread apart with the grounded conductor and
the equipment-grounding conductor on one side of the outlet
box.
11. Electrical diagrams are reference only. Light kits that are not
packed with the fan must be CUL Listed and marked suitable for
use with the model fan you are installing. Switches must be CUL
General Use Switches. Refer to the Instructions packaged with
the light kits and switches for proper assembly.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO
NOT BEND THE BLADE BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR AFTER INSTALLATION. DO
NOT INSERT OBJECTS IN THE PATH OF THE BLADES.
Special Notice: This appliance is equipped with a "Wattage Limiting
Device" required by the United States Department of Energy. The
device has been installed at the factory and can not be removed.
Installing Lamps in excess of 75 total watts will disable the units light
fixture. If this should happen, you will need to reset the lighting
fixture by turning the power o to the ceiling fan and/or light fixture,
reinstalling lamps totaling less that 75 watts and then turning the
power back on.

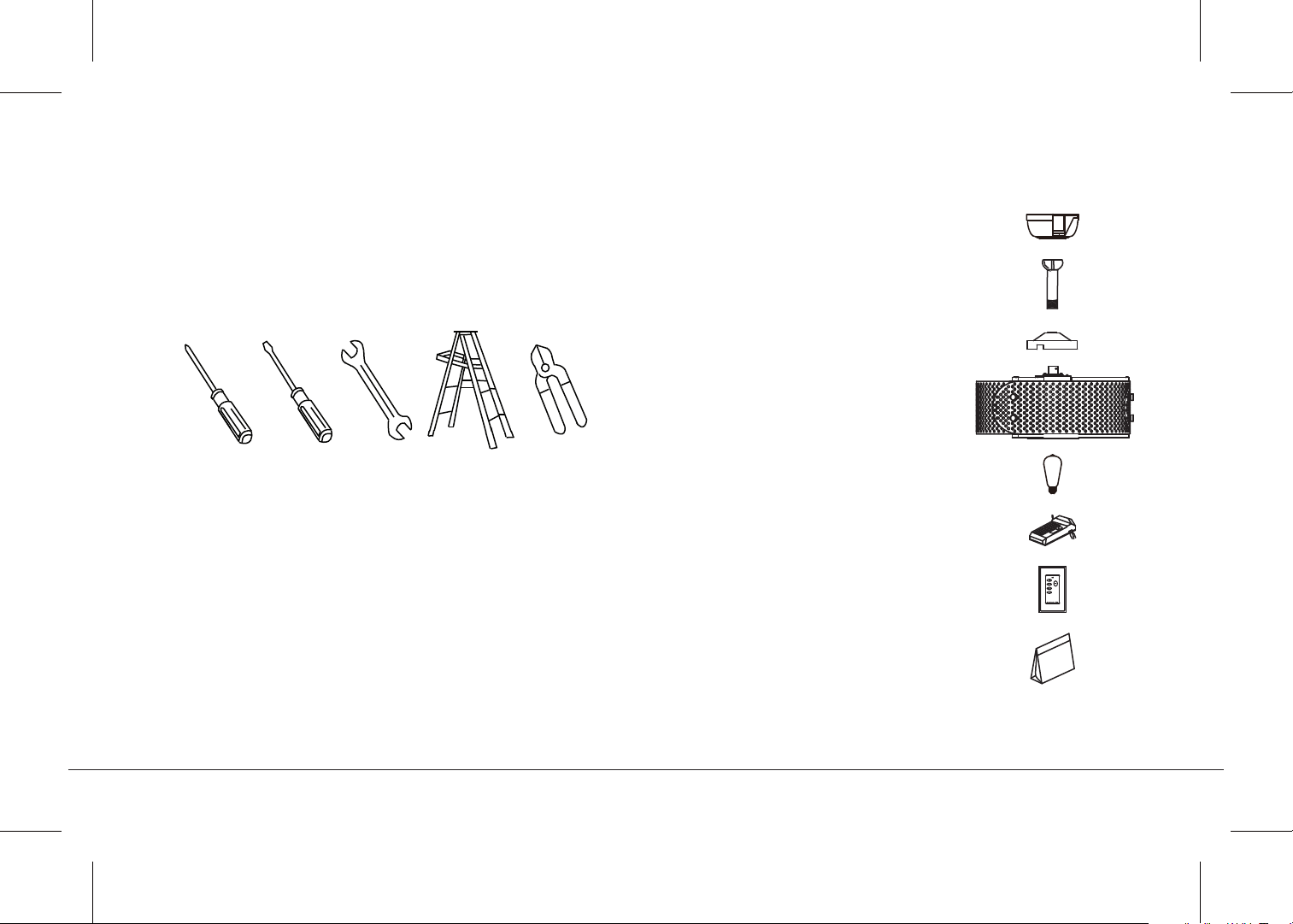

TOOLS REQUIRED
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
PACKAGE CONTENTS
f
g
h
a
b
c
d
e
Unpack your fan and check the
contents. You should have the
following items:
a. Canopy & Ceiling mounting
bracket
b. Ball/downrod assembly
c. Coupling cover
d. Fan motor assembly
e. 7 Watt E26, LED Lamp (3)
f. Receiver
g. Wall Transmitter
h. Part bag contents
1) Mounting hardware:
wood screws (2), flat washers (2),
star washers (2), lock washers (2),
wire nuts (3), screws (2)
2) Safety cable hardware:
wood screw, spring washer,
flat washer
13" EYRIETM | 5
6 | KICHLER.COM
If there isn't an existing UL (cUL for Canadian Installation) listed
mounting box, then read the following instructions. Disconnect the
power by removing fuses or turning o circuit breakers.
Secure the outlet box directly to the building structure. Use
appropriate fasteners and building materials. The outlet box and its
support must be able to fully support the moving weight of the fan
(at least 50 lbs). Do not use plastic outlet boxes.
Figures 1, 2 and 3 are examples of dierent ways to mount the outlet
box.
NOTE: If you are installing the ceiling fan on a sloped (vaulted)
ceiling, you may need a longer downrod to maintain proper
clearance between the tip of the blade and the ceiling. A minimum
clearance of 12" is suggested for optimal operation.
NOTE: Depending on the location you have selected for installation,
you may need to purchase and install a "Joist Hanger" for the
support of the outlet box. Make sure the joist hanger you purchase
has been designed for use with ceiling fans. (Fig. 4)
MOUNTING OPTIONS
Fig. 1
Outlet box
Outlet box
Fig. 2
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Fig. 3
ANGLED CEILING
MAXIMUM 30° ANGLE
Outlet box
Fig. 4
Fig. 5
Fig. 7
Fig. 6
Hanger bracket
Ceiling
canopy
Canopy
cover
HANGING THE FAN
REMEMBER to turn o the power before you begin.
To properly install your ceiling fan, follow the steps below.

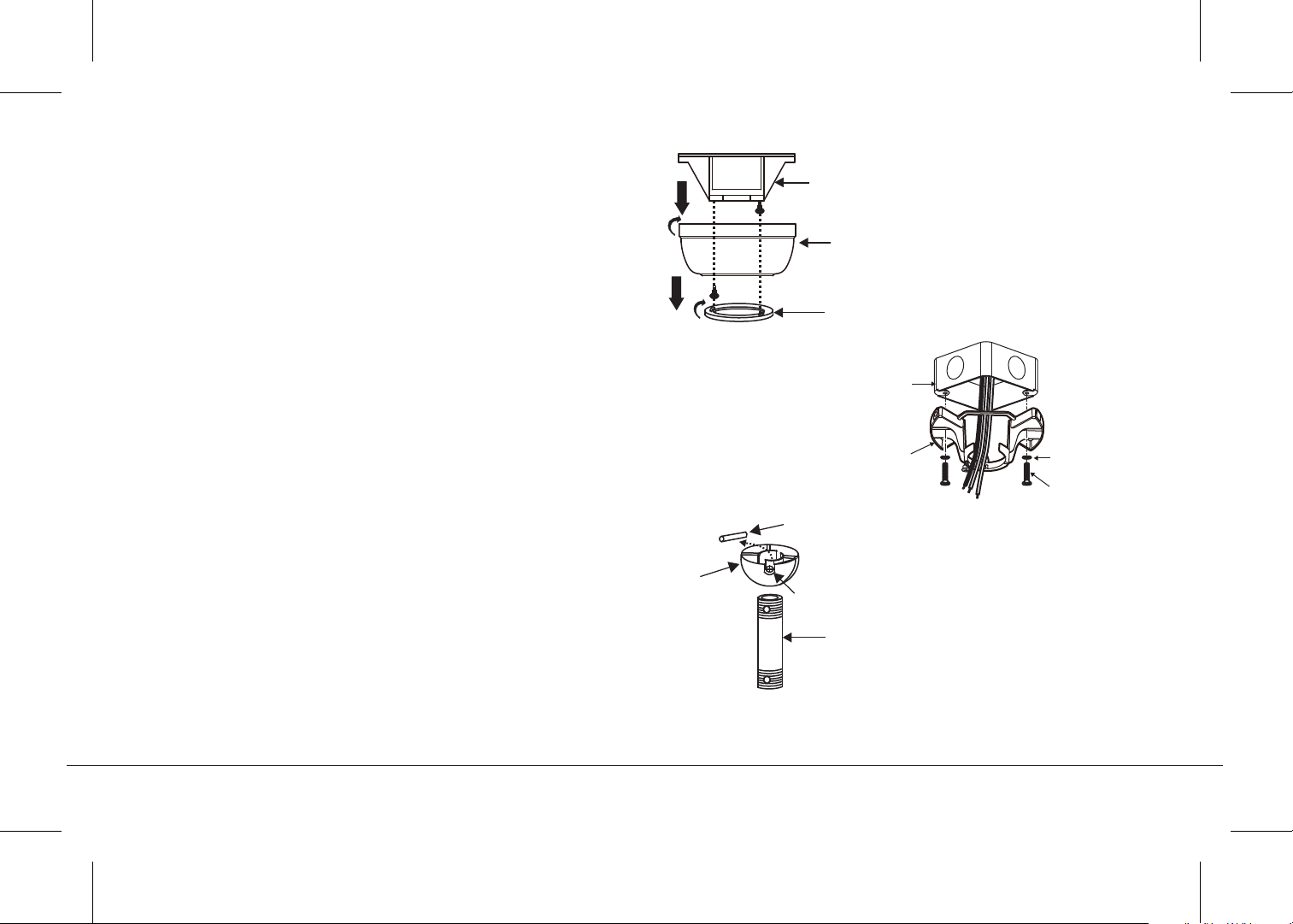

Step 1. Remove the decorative canopy bottom cover from the
canopy by turning the cover counter clockwise. (Fig. 5)
Step 2. Remove the ceiling mounting bracket from the canopy by
removing (and save one of the two screws. Loosen the remaining
screw by a half turn. (Fig. 5)
Step 3. Pass the 120 volt supply wires from the ceiling outlet box
through the center of the ceiling mounting bracket. (Fig. 6)
Step 4. Attach the ceiling mounting bracket to the outlet box using
the screws and washers included with the outlet box. (Fig. 6)
Step 5. Remove the hanger ball from the downrod assembly by
loosening the set screw, unscrewing and removing the cross pin and
unscrewing the ball o the rod. (Fig. 7)
Downrod
Cross pin
Hanger
ball Set screw
13" EYRIETM | 7
120V Wires
Ceiling
hanger
bracket Mounting screws
(supplied with
electrical box)
UL Listed
electrial
box
Washers
8 | KICHLER.COM
Step 6. Loosen the two set screws and remove the hitch pin and
retaining clip from the coupling on top of the motor assembly. (Fig.
8)
Step 7. Carefully feed the electrical lead wires from the fan up
through the downrod. Thread the downrod into the coupling until
the Hitch pin holes are aligned.
Next, replace the hitch pin and retaining clip. Tighten both set
screws. (Fig. 8)
HANGING THE FAN(continued)
Fig. 8
Supply wires
Downrod
Hitch pin
Retaining clip Set screws
Set screws
Reverse switch
Fig. 9
Fig. 10
HANGING THE FAN (continued)

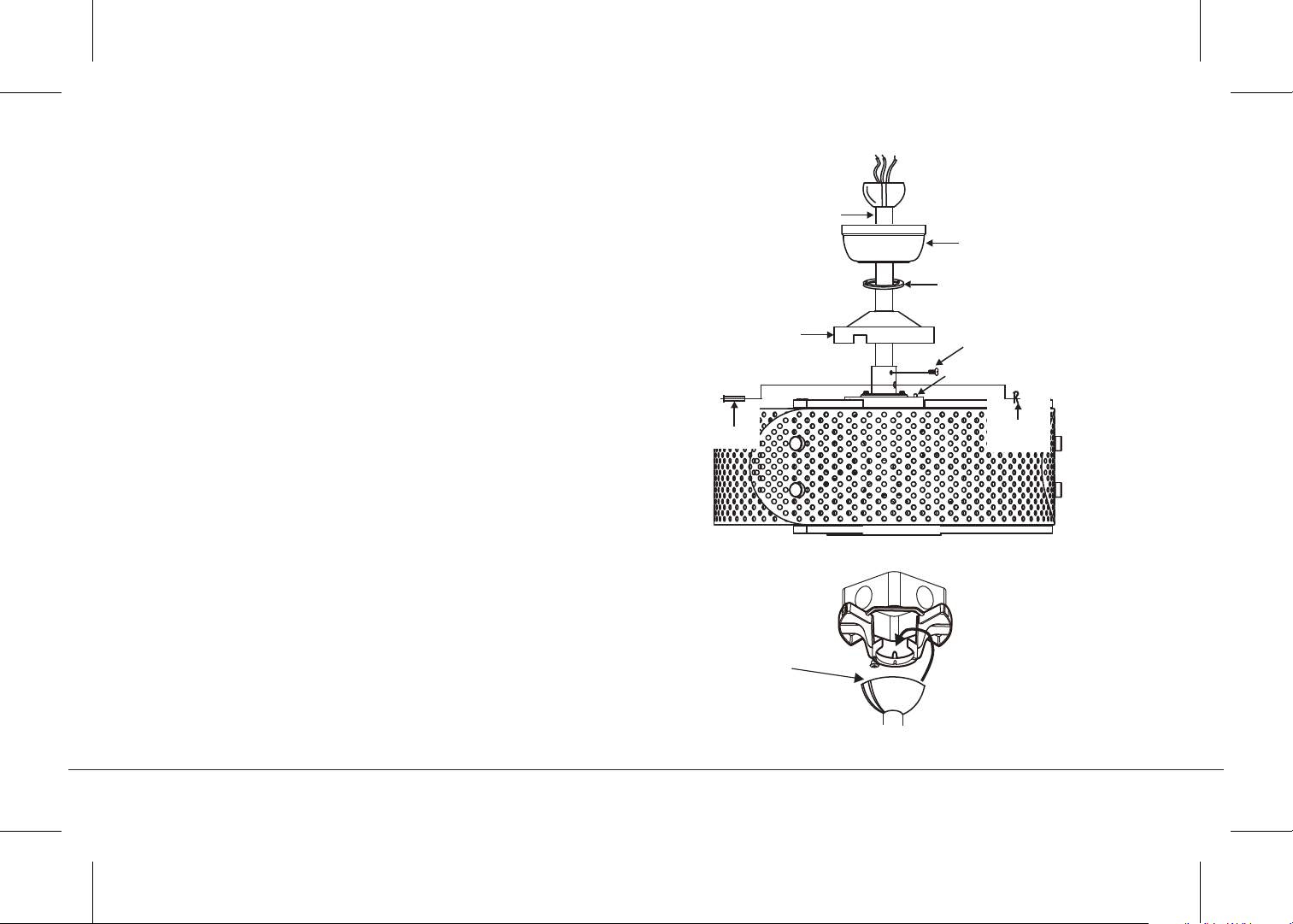

Step 8. Slip the coupling cover, canopy cover and canopy onto the
downrod. (Fig. 9)
Thread the hanger ball onto the downrod, insert the cross pin
through the downrod and tighten. Now tighten the set screw.
Step 9. Lift the motor assembly into position and place the hanger
ball into the ceiling mounting bracket.
Rotate the entire assembly until the "Check Tab" has dropped into
the "Registration Slot" and seats firmly. (Fig. 10)
The entire motor assembly should not rotate (left or right) when
seated properly.
WARNING: Failure to reattach the cross pin and seat the "Check
Tab" can cause the fan to fall from the ceiling during operation. Take
special care to make sure this pin is reattached.
Registration slot
Downrod
Canopy
Canopy cover
Set screws
Reverse switch
Hitch pin Retaining
clip
Coupling cover
13" EYRIETM | 9
10 | KICHLER.COM

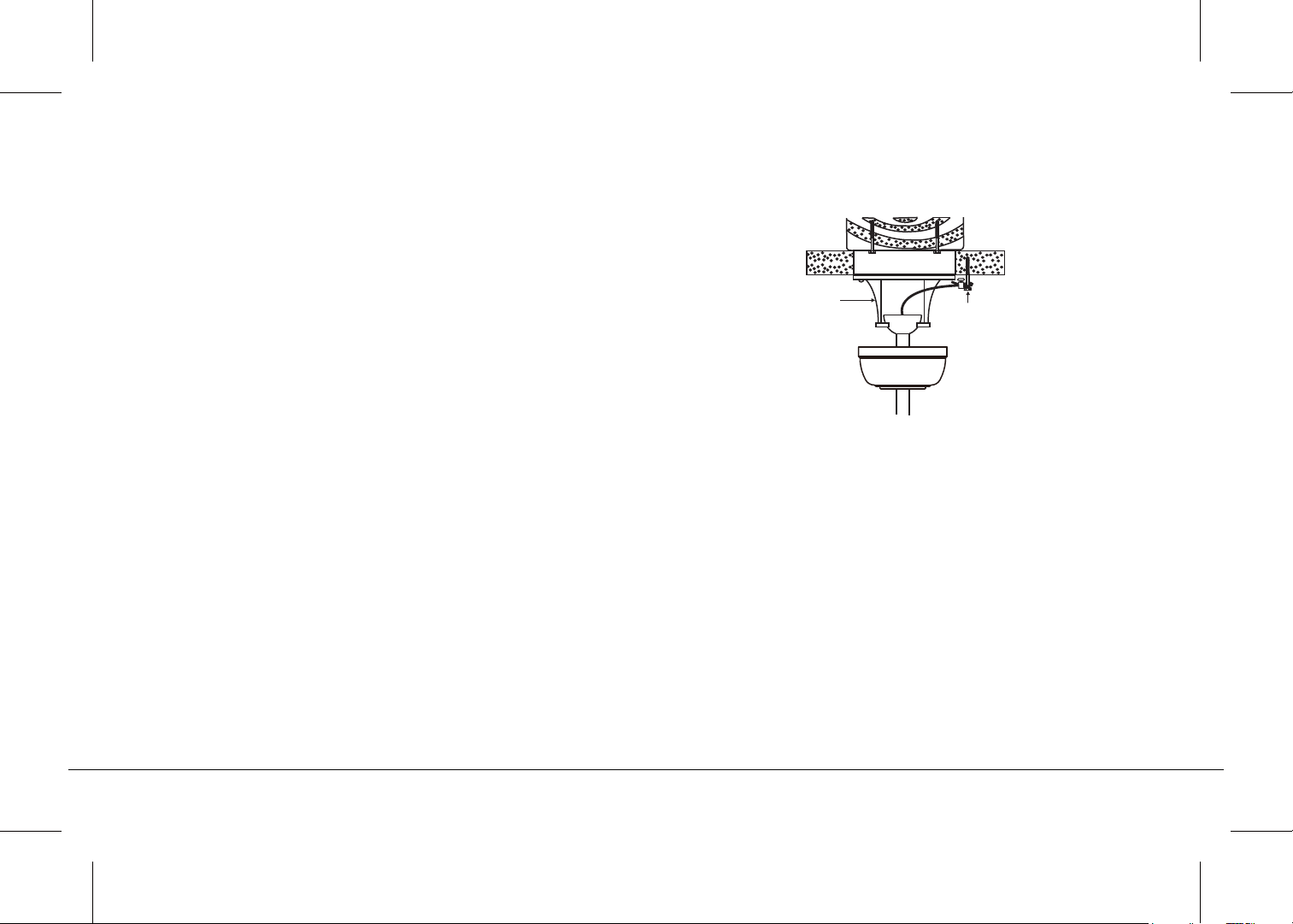

A safety support cable is provided to help prevent the ceiling fan
from falling.
Step 1. Attach the provided wood screw and washers to the ceiling
joist next to the mounting bracket but do not tighten. (Fig. 11)
Step 2. Adjust the length of the safety cable to reach the screw and
washers by pulling the extra cable through the cable clamp until the
overall length is correct, put the end of the cable back through the
cable clamp, forming a loop at the end of the cable. Tighten the
cable clamp securely. Now, put the loop in the end of the safety
cable over the wood screw and under the washer. Tighten the wood
screw securely.
NOTE: Although the safety support cable is required for Canadian
installations only. It's a good idea to make the attachment with any
installation.
INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
Fig. 11
Ceiling mounting
bracket
Attach
safety cable
to ceiling joist
with screw and
washer
Table des matières
Langues :
Autres manuels Kichler Lighting Équipement d'éclairage
Kichler Lighting
Kichler Lighting TIMMIN Manuel utilisateur
Kichler Lighting
Kichler Lighting PENDANT 34720 Manuel utilisateur
Kichler Lighting
Kichler Lighting 11141LED Manuel utilisateur
Kichler Lighting
Kichler Lighting 2700K Manuel utilisateur
Kichler Lighting
Kichler Lighting 16100 Series Manuel utilisateur
Kichler Lighting
Kichler Lighting 82354 Manuel utilisateur
Kichler Lighting
Kichler Lighting 15665BKT Manuel utilisateur
Kichler Lighting
Kichler Lighting PENDANT 34689 Instructions originales
Kichler Lighting
Kichler Lighting ROSEWOOD 37541 Manuel utilisateur
Kichler Lighting
Kichler Lighting 11304NILED Manuel utilisateur
Kichler Lighting
Kichler Lighting Ellerbeck 1 Light Manuel utilisateur
Kichler Lighting
Kichler Lighting elan Manuel utilisateur
Kichler Lighting
Kichler Lighting 15505CBR Manuel utilisateur
Kichler Lighting
Kichler Lighting 49829OZ Manuel utilisateur
Kichler Lighting
Kichler Lighting 1TEC1RDSF8SIL Manuel utilisateur
Kichler Lighting
Kichler Lighting 4 Square Manuel utilisateur
Kichler Lighting
Kichler Lighting 16027SS30 Manuel utilisateur
Kichler Lighting
Kichler Lighting Is-350210 Manuel utilisateur
Kichler Lighting
Kichler Lighting 16022 Manuel utilisateur
Kichler Lighting
Kichler Lighting 12391WH30 Manuel utilisateur
Manuels Équipement d'éclairage populaires d'autres marques
Qazqa
Qazqa Suplux SL 3 Black 103062 Manuel utilisateur
Commercial Electric
Commercial Electric 54568141 Manuel utilisateur
CREE LIGHTING
CREE LIGHTING 304 Series Manuel utilisateur
Goobay
Goobay 49867 Manuel utilisateur
ECOMAN ITALIA
ECOMAN ITALIA LED T8 Manuel utilisateur
Alkalite
Alkalite Krypton KT-81 Manuel utilisateur
