Keystone visage Manuel utilisateur
36" WOOD BURNING OUTDOOR FIREPLACE
INSTALLATION INSTRUCTIONS
2 Keystone Step-by-StepKits
VISAGE WOOD BURNING OUTDOOR FIREPLACE
Gloves
Exterior Grade
Construction Adhesive
Level(s)
Safety Glasses Layout Stakes
Hand Compactor
Concrete Saw
BASIC TOOLS
Shovel Wheel Barrow
safety alterations layout
finishing
leveling general
Mallet
Line
Caulking Gun
MalletStone Chisel
KIT CONTAINS
12" and 48"
Chimney Sections
Storm CollarContemporary
Termination Round
Fireplace Insert
with Grate
Steel Lintel Fireplace
Trim Piece
Keystone Step-by-StepKits 3
www.KeystoneRetailProducts.com
VISAGE WOOD BURNING OUTDOOR FIREPLACE
www.KeystoneRetailProducts.com
You will need:
132 - Visage - 16"/12"unit
158 - Visage - 16"/14"unit
100 - Visage Cap units
200 - Alignment Pins (approximate)
25 - Tubes exterior grade concrete adhesive
6 - 1½" x 1½" x 20" - zinc plated slotted angles (14+ gauge)
2 - 1½" x 1½" x 17" - zinc plated slotted angles (14+ gauge)
1 - Mantel Piece (3"h x 70"w x 10"d)
Concrete Slab - 18.8 cf
Fireplace Insert (contact Keystone for specs & retail options)
Note: All units are 6"h x 8"d.
General Note:
In consideration of freeze / thaw issues
during the cold weather season it is
recommended that this Fireplace
element be protected from
rain, snow and ice as necessary.
4 Keystone Step-by-StepKits
VISAGE WOOD BURNING OUTDOOR FIREPLACE
Keystone Step-by-StepKits 5
www.keystonewalls.com

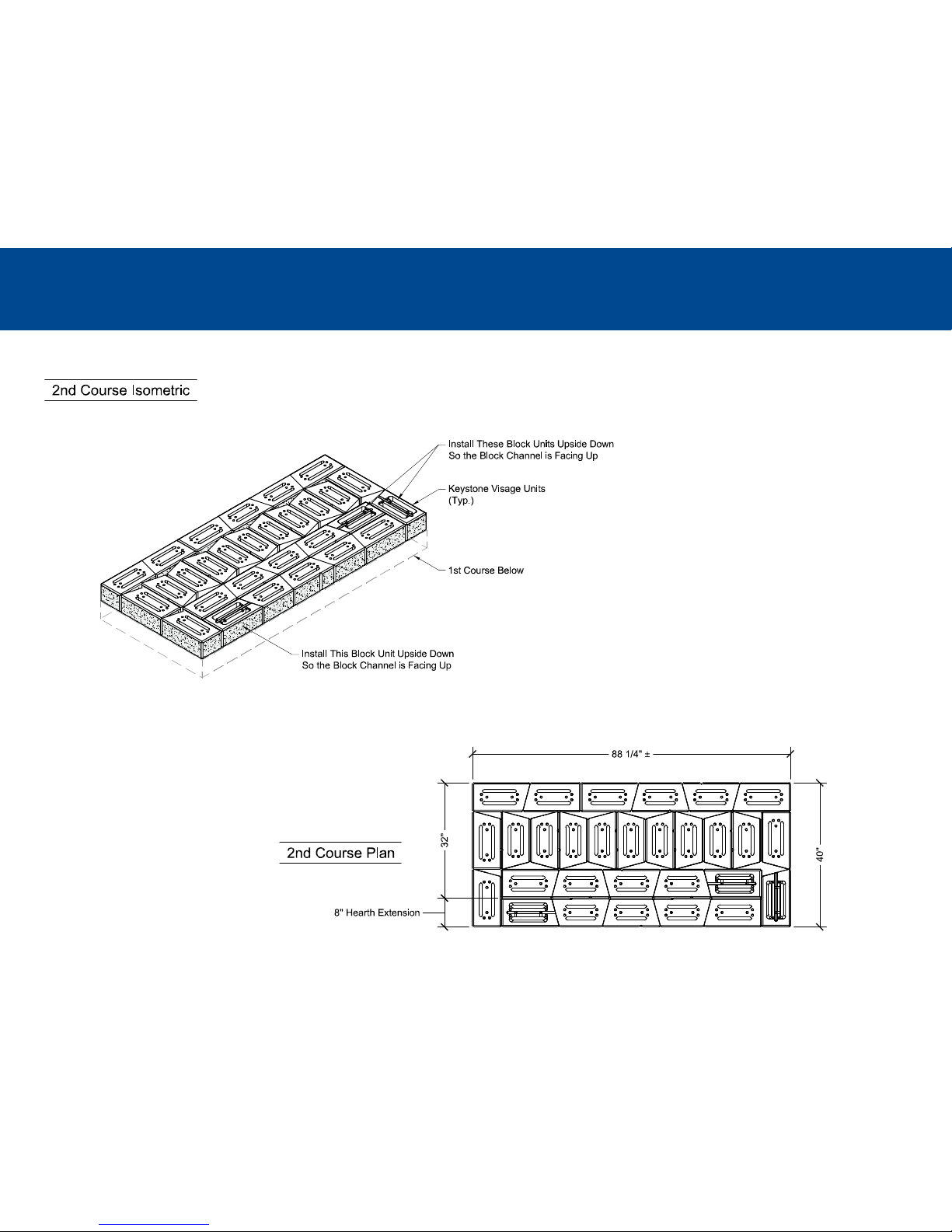

COURSE BY COURSE INSTRUCTIONS
6 Keystone Step-by-Step Kits
COURSE BY COURSE INSTRUCTIONS
Note:
Due to block outside face texture variances
when building the fireplace courses, the outside
dimensions of the courses may get wider than
desired. If required, cut an interior perimeter unit
to get the required outside dimension.
Keystone Step-by-Step Kits 7
www.keystonewalls.com
COURSE BY COURSE INSTRUCTIONS
8 Keystone Step-by-Step Kits
COURSE BY COURSE INSTRUCTIONS
Block Cutting Note:
Using a concrete saw or wheel grinder tool w/
masonry disk, cut block units as needed.
Keystone Step-by-Step Kits 9
www.keystonewalls.com
COURSE BY COURSE INSTRUCTIONS
Cap Cutting:
Using a concrete saw or wheel grinder tool w/
masonry disk, cut block units as needed.
10 Keystone Step-by-Step Kits
COURSE BY COURSE INSTRUCTIONS
Cap Cutting:
Using a concrete saw or wheel grinder tool w/
masonry disk, cut block units as needed.
Fireplace Placement Note:
Prior to placing the fireplace insert for
proper removal of the fireplace stainless
steel face protective wrap, peel back the
outside portions of the protective wrap
where it will come in contact with block
units, cap units and top trim piece.
Fireplace Note:
Install fireplace and chimney
components as per fireplace
manufacturers installation
instructions.
