Keysight Y1133A

Low-Thermal External DMM

Scanning Kit

(for the 34401A, 34410A, 34411A, and L4411A DMMs)

Product Description

and Installation

Keysight Technologies

Y1133A Low-Thermal

External DMM Scanning Kit

(for the 34401A,34410A,34411A,and L4411A DMMs)

Product Description and Installation

WARNING

Before connecting the cable kit to the instruments, be sure to disconnect all live external

voltages present on the multiplexer and analog bus.

To prevent a possible shock hazard, do not remove the input terminal block cover.

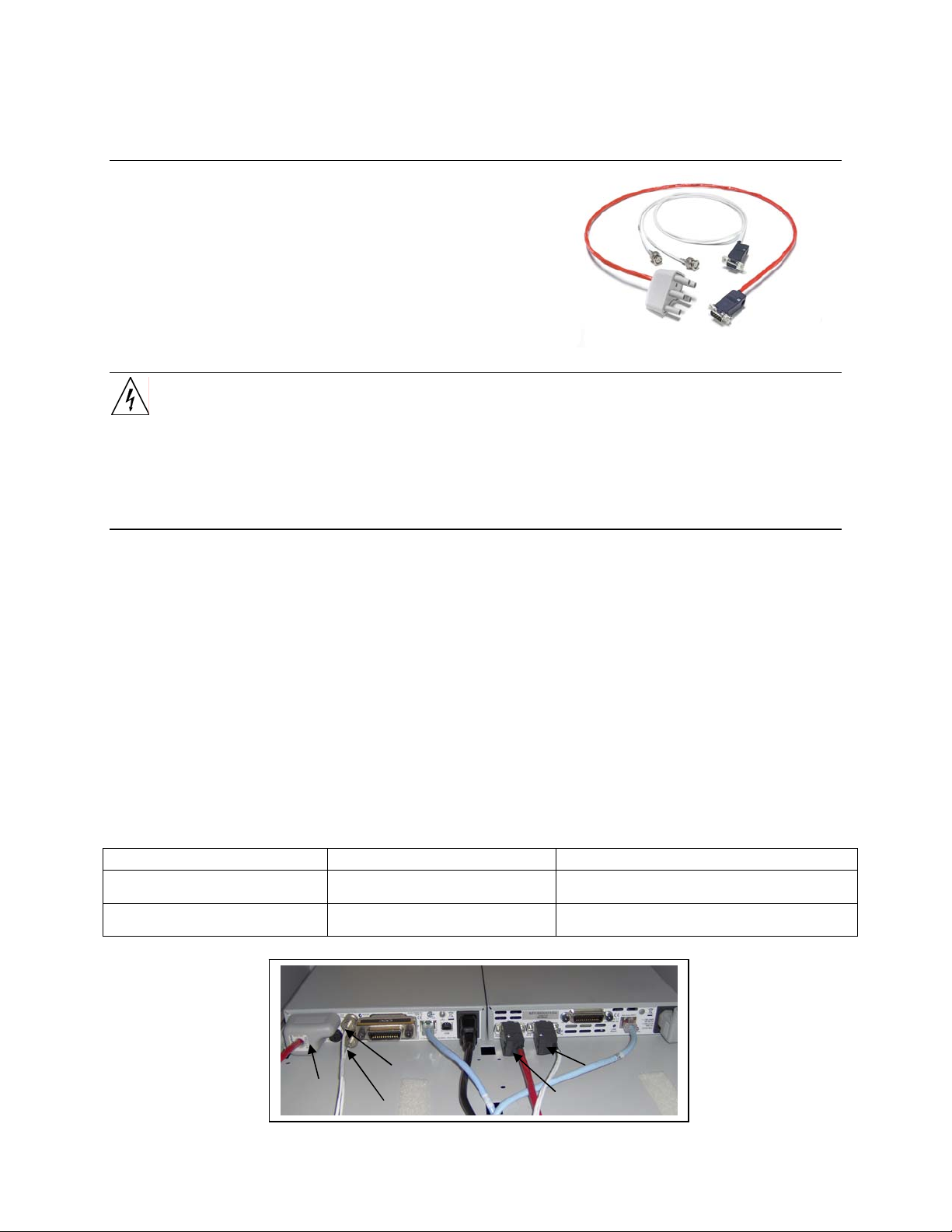

Description

The Keysight Y1133A scanning kit enables system-level scanning and measurements

between standalone Keysight multiplexers and digital multimeters (DMMs). The kit consists

of a measurement cable (Y1133-61601) for the transfer ofinput signals, anda trigger

cable (Y1133-61602) which controls the scanning sequence. The cables arecompatible

with multiplexers such asthe L4421A 40-Channel Armature Multiplexer and L4433A

Dual/Quad 4x8 Reed Matrix, and the 34401A, 34410A, 34411A, andL4411A DMMs.

Connecting the Cables

The scanning kit cables are connected between the multiplexer/matrix and DMM as

described below. An example using the L4411A and L4421A is shown in the figure.

Cable Multiplexer / Matrix DMM

Measurement: (Y1133-61601) Connector: “Analog Busses”

(9-pin D-sub)

Connector: front/rear panel input terminals

Triggering: (Y1133-61602) Connector: “Ext Trig”

(9-pin D-sub)

Connector: rear panel “Ext Trig ” (BNC)

rear panel “VM Comp” (BNC)

L4421A

L4411A

Y1133-61602

Y1133-61601

Ext Trig

VM Comp

DMM

uts

Input Terminal and Connector Pin Out Descriptions

The cables in the Y1133A kit are configured to provide the appropriate routing of the input

and scan control signals. The pin-outs and signal descriptions are shown below.

CAUTION

The maximum voltage limit on the Y1133-61601 cable is 300V DC, AC RMS. Refer to your

DMM and multiplexer user documentation for information on instrument input signal

specifications.

For programming information related to scanning with external (standalone) instruments,

refer to the product’s user documentation.

L (4)

H (9)

H (8)

Sense

L (3)

Sense

I (5)

Y1133-61601

Cable Pin Analog Bus Line

ABUS1 HI

ABUS1 LO

ABUS2 HI

ABUS2 LO

Current

Y1133-61602

EXT TRIG

VM COMP

(5)

(6)

Cable Pin Signal

Channel Closed

Channel Adv

Gnd (shield)

multiplexer end

DMM end

multiplexer end

DMM end

This information is subject to change without notice.

Edition 2, August 2014

*Y1133-90030*

Y1133-90030

www.keysight.com
