Kettler Unix M Manuel utilisateur

Montageanleitung Crosstrainer „Unix M”

Art.-Nr. 07650-100

Abb. ähnlich

Auf 100% Altpapier gedruckt!

A 138 cm

B 58 cm

C 155 cm

60,8 kg

max.

150 kg

30 – 45 Min.

RUS

SLO

SRB

Please read these instructions carefully prior to carrying out assembly and using for the first time. They contain infor-

mation which is important for your safety as well as for the use and maintenance of the appliance. Keep these in-

structions in a safe place for reference purposes, maintenance work and to assist you when ordering spare parts.

For Your Safety

RISK! While assembly of the product keep off children’s

reach (Choking hazard - contains small parts).

RISK! Any other use of the equipment is prohibited and may

be dangerous. The manufacturer cannot be held liable for da-

mage or injury caused by improper use of the equipment.

RISK! Instruct people using the equipment (in particular child-

ren) on possible sources of danger during exercising.

RISK! Incorrect repairs and structural modifications (e.g. re-

moval or replacement of original parts) may endanger the sa-

fety of the user.

RISK! Heart rate monitoring systems may be inaccurate. Over

exercise may result in serious injury or death. If you feel faint

stop exercising immediately.

RISK! All electric appliances emit electromagnetic radiation

when in operation. Please do not leave especially radiation-

intensive appliances (e.g. mobile telephones) directly next to

the cockpit or the electronic controlsystem as otherwise values

displayed might be distorted (e.g. pulse measurement.

WARNING! The training device should be used only for its

intended purpose, i.e. for physical exercise by adult people.

WARNING! Before beginning your program of training, stu-

dy the instructions for training carefully.

WARNING! Any interference with parts of the product that

are not described within the manual may cause damage, or

endanger the person using this machine. Extensive repairs

must only be carried out by KETTLER service staff or qualified

personnel trained by KETTLER.

WARNING! This training device is for home use only.

■The training device has been designed in accordance with

the latest standards of safety. Any features which may have

been a possible cause of injury have been avoided or made

as safe as possible.

■The training device corresponds with DIN EN 957-1/-9, class

HB.

■In case of enquiry, please contact your KETTLER dealer.

■If the equipment is in regular use, check all its components

thoroughly every 1–2 months. Pay particular attention to the

tightness of bolts and nuts. This is particularly true for the

attachment of grip strap, running plate and fastening of the

handlebar and front tube.

■Before beginning your program of exercise, consult your doc-

tor to ensure that you are fit enough to use the equipment.

Base your program of exercise on the advice given by your

doctor. Incorrect or excessive exercise may damage your

health!

■Before use, always check all screws and plug-in connections

as well as respective safety devices fit correctly.

■Always wear suitable shoes when using.

■Our products are subject to a constant innovative quality as-

surance. We reserve the right to perform technical modifica-

tions.

■In choosing the location of the apparatus, ensure a sufficient

safety distance from any obstacles. The apparatus must not be

mounted in the immediate vicinity of main passageways (pa-

ths, doorways, corridors). The safety distance surrounding

must extend at least 1 meter further than the practice area.

■Always observe the general safety rules and precautions for

working with electrical equipment.

■Nobody may be in the moving range of a training person du-

ring training

■This exercise machine may only be used for exercises indica-

ted in the training instructions.

■This training device has to be set up on a horizontal surface

under all circumstances. Place rubber or straw mats under it

to deaden any noise or impacts. Only for appliances with

weights. Avoid powerful oscillations of the dumbbells!

■When mounting the product please take the recommended

torque information into account (M = xx Nm).

Instructions for Assembly

RISK! Ensure that your working area is free of possible sour-

ces of danger, for example don’t leave any tools lying aro-

und. Always dispose packaging material in such a way that

it may not cause any danger. There is always a risk of suffo-

cation if children play with plastic bags!

WARNING! Please note that there is always a danger of in-

jury when working with tools or doing manual work. Therefo-

re please be careful when assembling this machine.

■Ensure that you have received all the parts required (see

check list) and that they are undamaged. Should you have

any cause for complaint, please contact your KETTLER dealer.

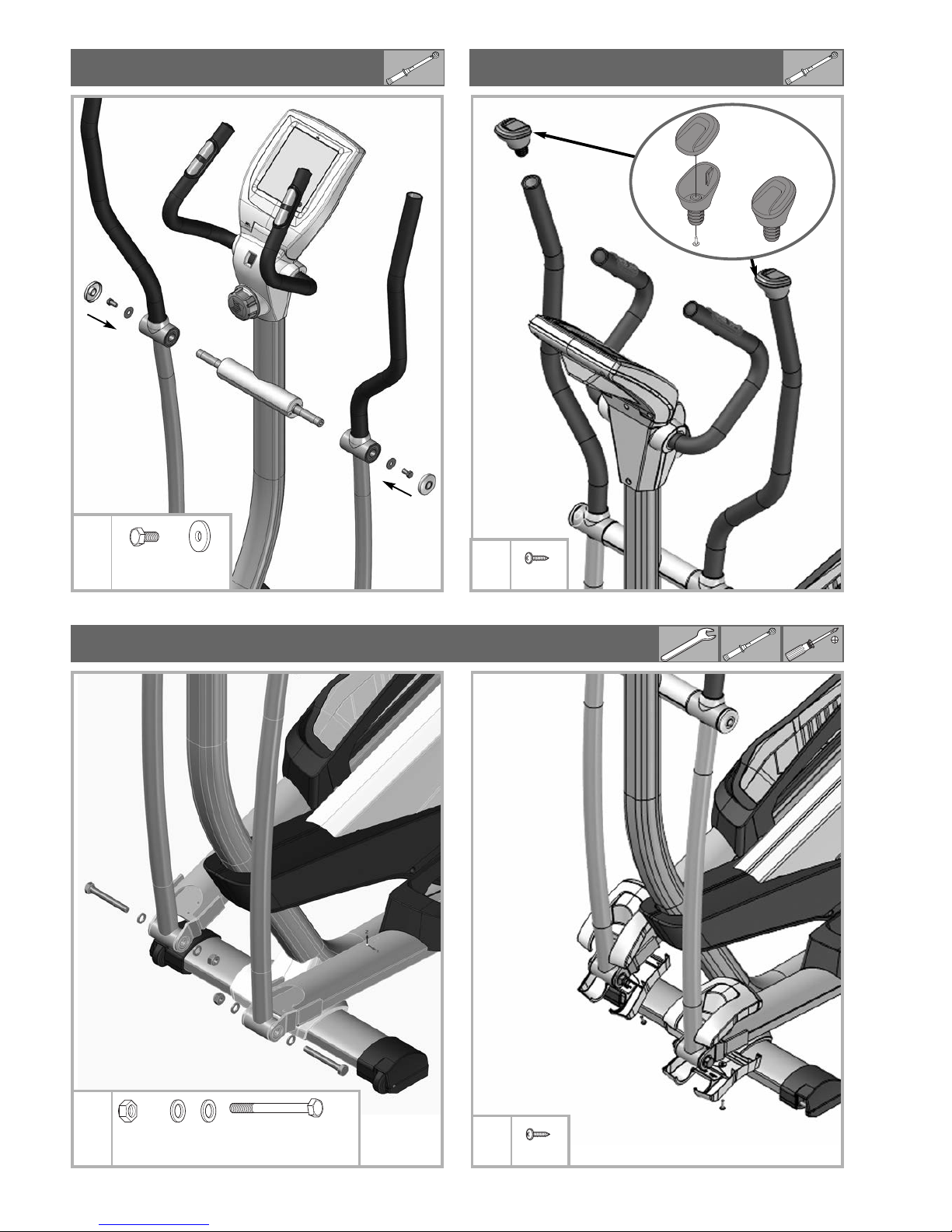

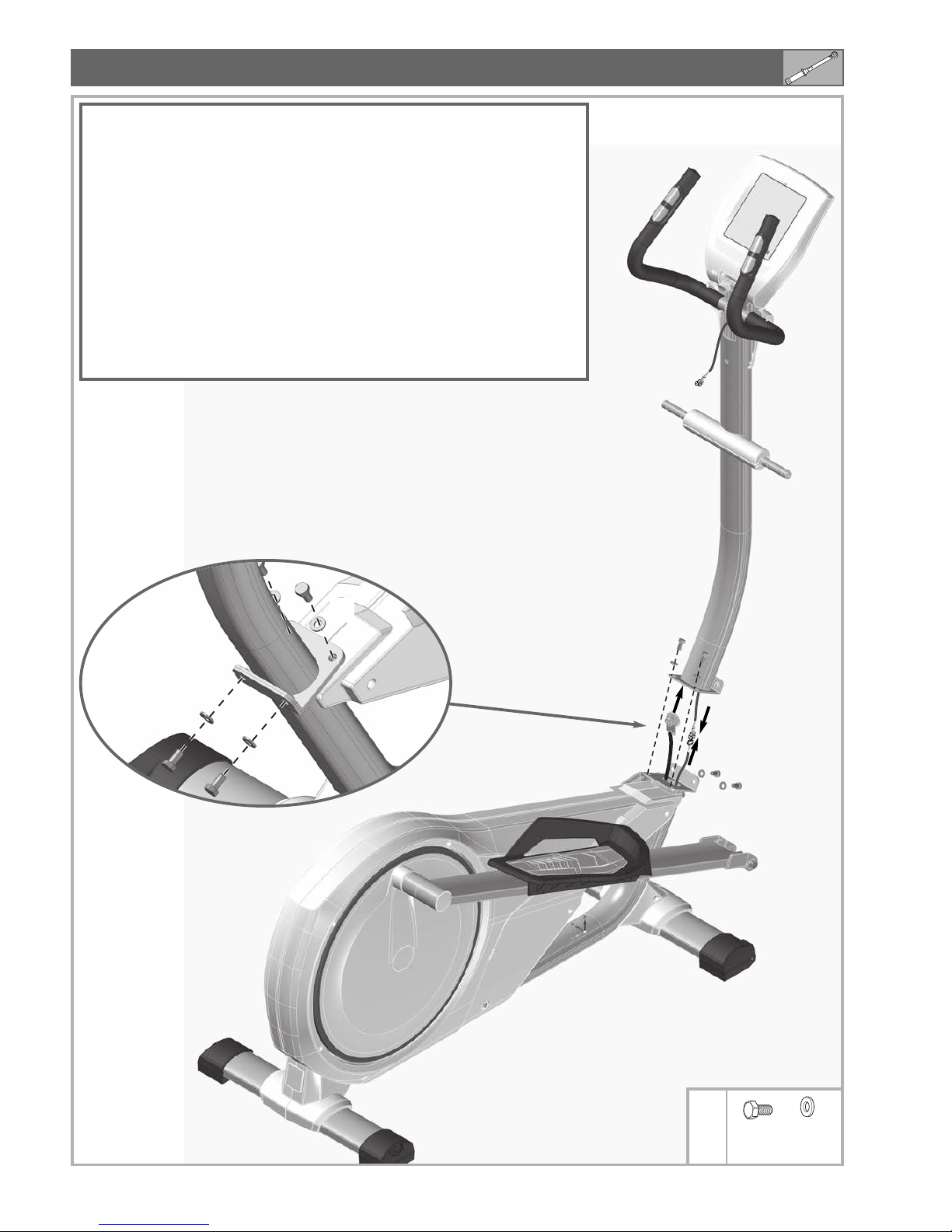

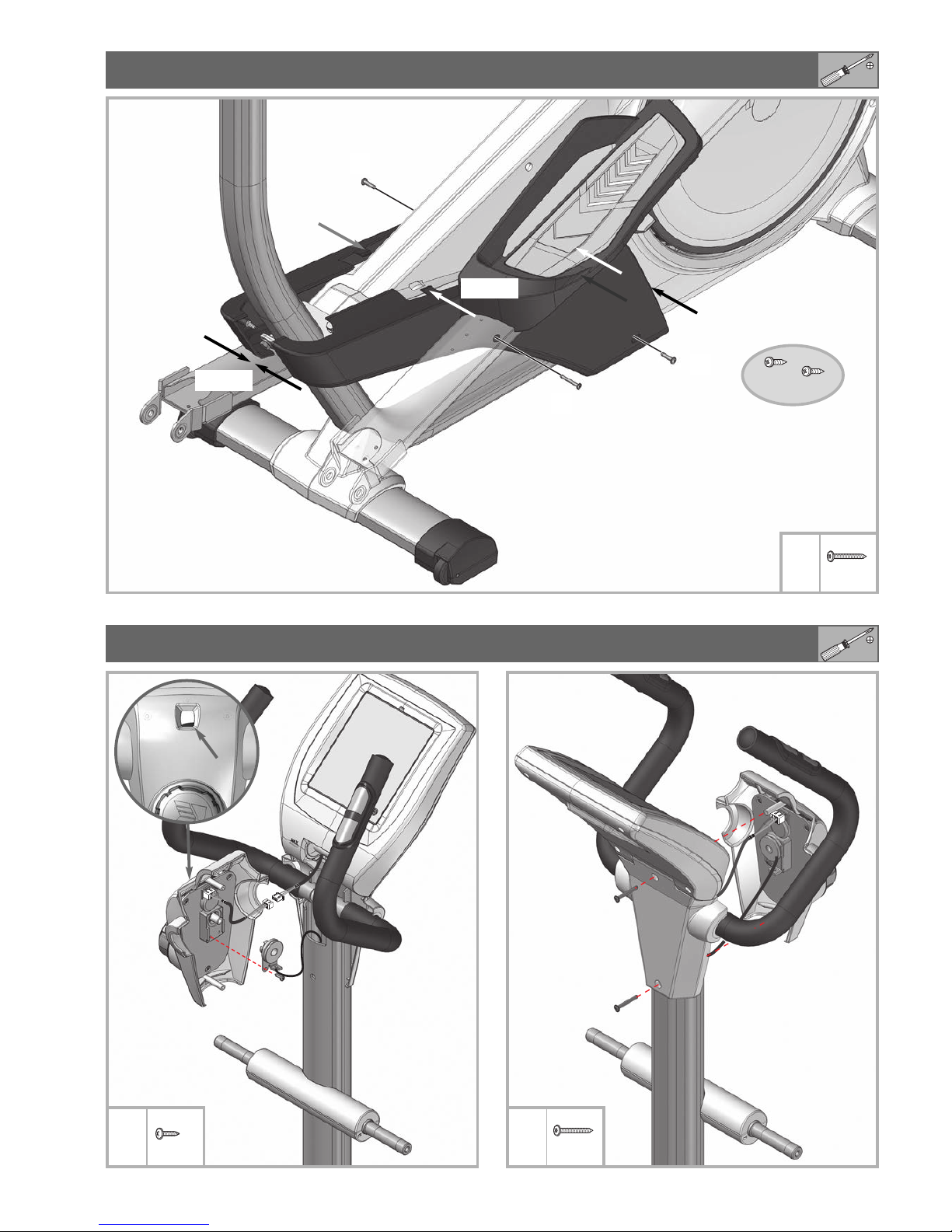

■Before assembling the equipment, study the drawings careful-

ly and carry out the operations in the order shown by the dia-

grams. The correct sequence is given in capital letters.

■The equipment must be assembled with due care by an adult

person. If in doubt call upon the help of a second person, if

possible technically talented.

■The fastening material required for each assembly step is sho-

wn in the diagram inset. Use the fastening material exactly as

instructed.

■Bolt all the parts together loosely at first, and check that they

have been assembled correctly. Tighten the locknuts by hand

until resistance is felt, then use spanner to finally tighten nuts

completely against resistance (locking device). Then check

that all screw connections have been tightened firmly. Attenti-

on: once locknuts have been unscrewed they no longer func-

tion correctly (the locking device is destroyed), and must be

replaced.

■For technical reasons, we reserve the right to carry out preli-

minary assembly work (e.g. addition of tubing plugs).

Important Instructions

Handling the equipment

■Before using the equipment for exercise, check carefully to en-

sure that it has been correctly assembled.

■It is not recommended to use or store the apparatus in a damp

room as this may cause it to rust. Please ensure that no part

of the machine comes in contact with liquids (drinks, perspi-

ration etc.). This may cause corrosion.

■The machine is designed for use by adults and children

should not be allowed to play with it. Children at play beha-

ve unpredictably and dangerous situations may occur for

which the manufacturer cannot be held liable. If, in spite of

this, children are allowed to use the equipment, ensure that

they are instructed in its proper use and supervised accor-

dingly.

■This device is an RPM-independent training device

■A slight production of noise at the bearing of the centrifugal

mass is due to the construction and has no negative effect

upon operation. Possibly occurring noise during reverse pe-

dalling result from engineering and are absolutely safe.

■The training device has a magnetic brake system.

■To operate correctly, the pulse function requires a minimum

voltage of 2,7 volts (only for computers working with batte-

ries).

■Before beginning your first training session, familiarize yours-

elf thoroughly with all the functions and settings of the unit.

Care and Maintenance

■Damaged components may endanger your safety or reduce

the lifetime of the equipment. For this reason, worn or dama-

ged parts should be replaced immediately and the equipment

taken out of use until this has been done. Use only original

KETTLER spare parts.

■To ensure that the safety level is kept to the highest possible

standard, determined by its construction, this product should

be serviced regulary (once a year) by specialist retailers.

■Use for your regular cleaning, maintenance and care our ap-

pliance maintenance set (Article no. 07921-000) specifically

licensed for KETTLER Sports apparatus and available from the

Sport specialized trade.

■Please ensure that liquids or perspiration never enter the ma-

chine or the electronics.

List of spare parts page 44-47

When ordering spare parts, always state the full article number,

spare-partnumber, the quantity required and the S/N of the pro-

duct (see handling).

Example order: Art. no. 07650-100 / spare-part no. 07650-100

/ 2 pieces / S/N .................... Please keep original packaging

of this article, so that it may be used for transport at a later date,

if necessary.

Goods may only be returned after prior arrangement and in (in-

ternal) packaging, which is safe for transportation, in the original

box if possible. It is important to provide a detailed defect de-

scription / damage report!

Important: spare part prices do not include fastening material if

fastening material (bolts, nuts, washers etc.) is required, this

should be clearly stated on the order by adding the words „with

fastening material“.

Waste Disposal

KETTLER products are recyclable. At the end of its

useful life please dispose of this article correctly and

safely (local refuse sites).

KETTLER GB Ltd.

Kettler House, Merse Road

North Moons Moat

Redditch, Worcestershire B98 9HL

www.kettler.co.uk

+44 1527 591901

+44 1527 62423

sales@kettler.co.uke-mail:

KETTLER International Inc.

1355 London Bridge Road

Virginia Beach, VA 23453

www.kettlerusa.com

USA

+1 888 253 8853

+1 888 222 9333

sales@kettler.co.uke-mail:

0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170

M5x40

M8x40

ø22

ø16

ø12

ø3,9x13

M5x40

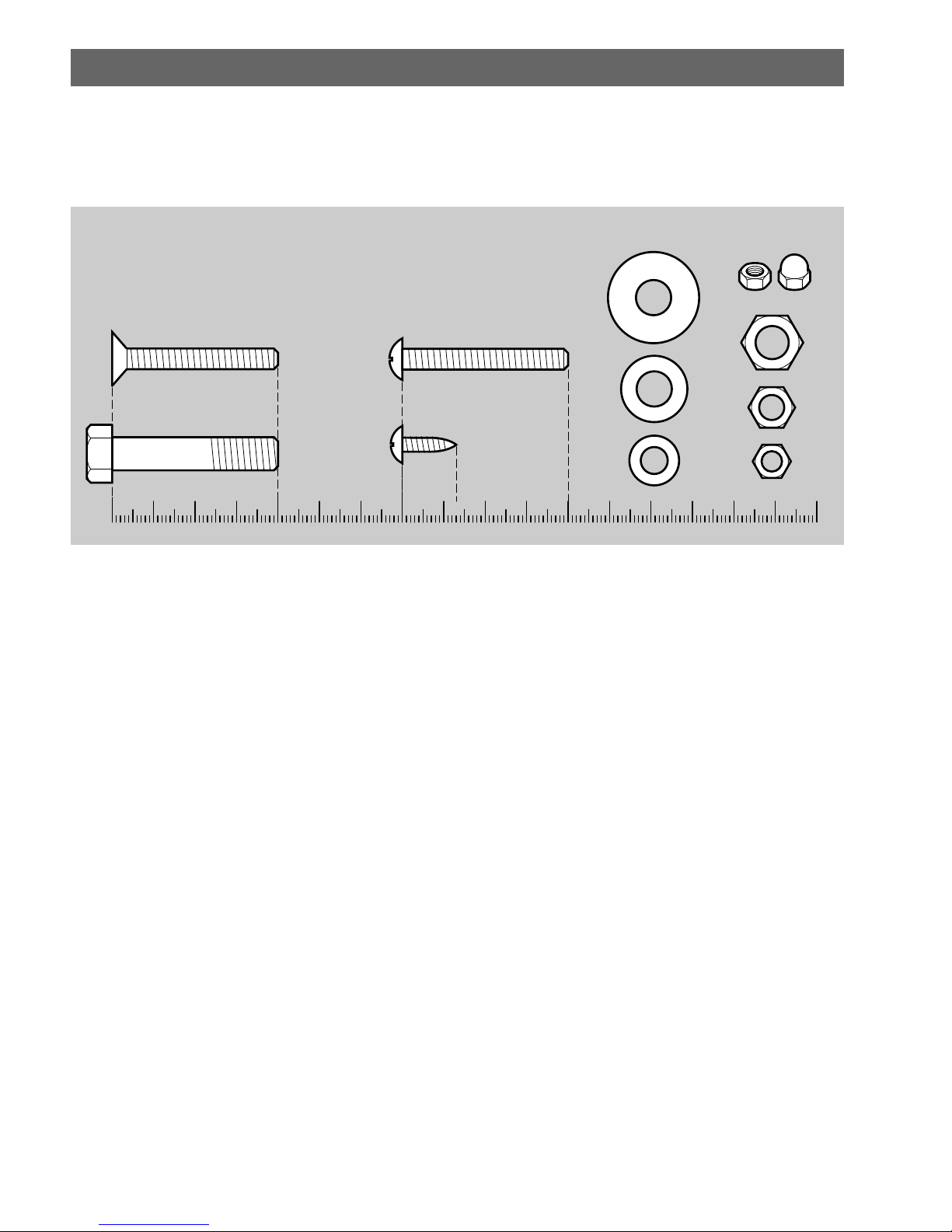

– GB – Measuring help for screw connections

– F – Gabarit pour système de serrae

– NL – Meethulp voor schroefmateraal

– E – Ayuda para la medición del material de atornilladura

– I – Misura per materiale di avvitamento

– PL – Wzornik do połączeń śrubowych

– CZ – Měřící pomůcka pro materiál k přišroubování

– P – Auxiliar de medição para materiais de aparafusamento

– DK – Hjælp til måling af skruer

– RUS – Размеры крепёжных материалов

– H – Mérő segédeszköz csavaranyaghoz

– SLO – Merilni pripomoček za vijačni material

– SRB – Pomoć za merenje materijala za pričvršćivanje

Messhilfe für Verschraubungsmaterial

Beispiel Examples Examples Voorbeeld Ejemplos

Esempio Przykłod Příklad Exemplo Eksempel

Exemplu Példa Primjer Primer Príklad

Primer Пример Παράδειγµα Примеры Exempel

Esimerkki Näide Piemērs Pavyzdys Örnek

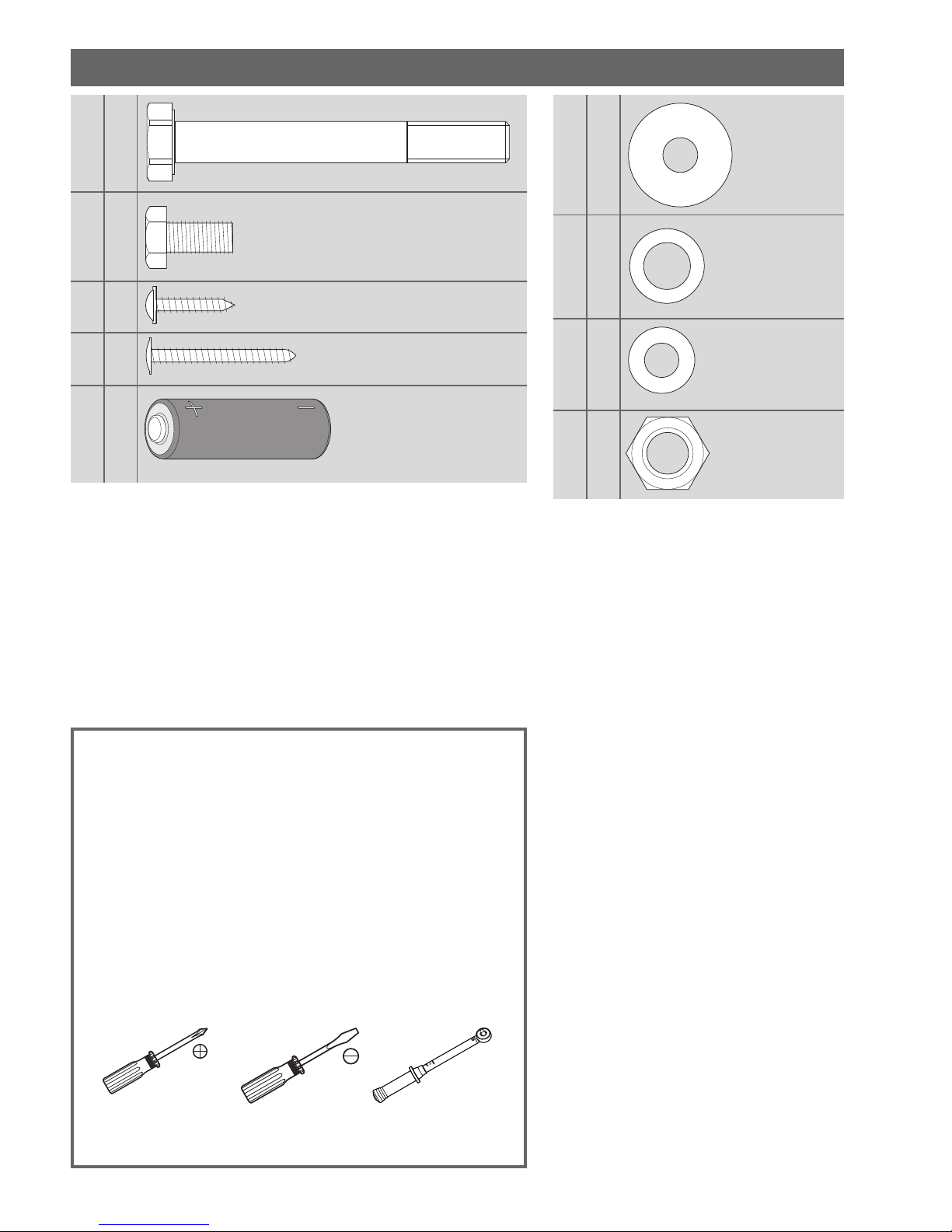

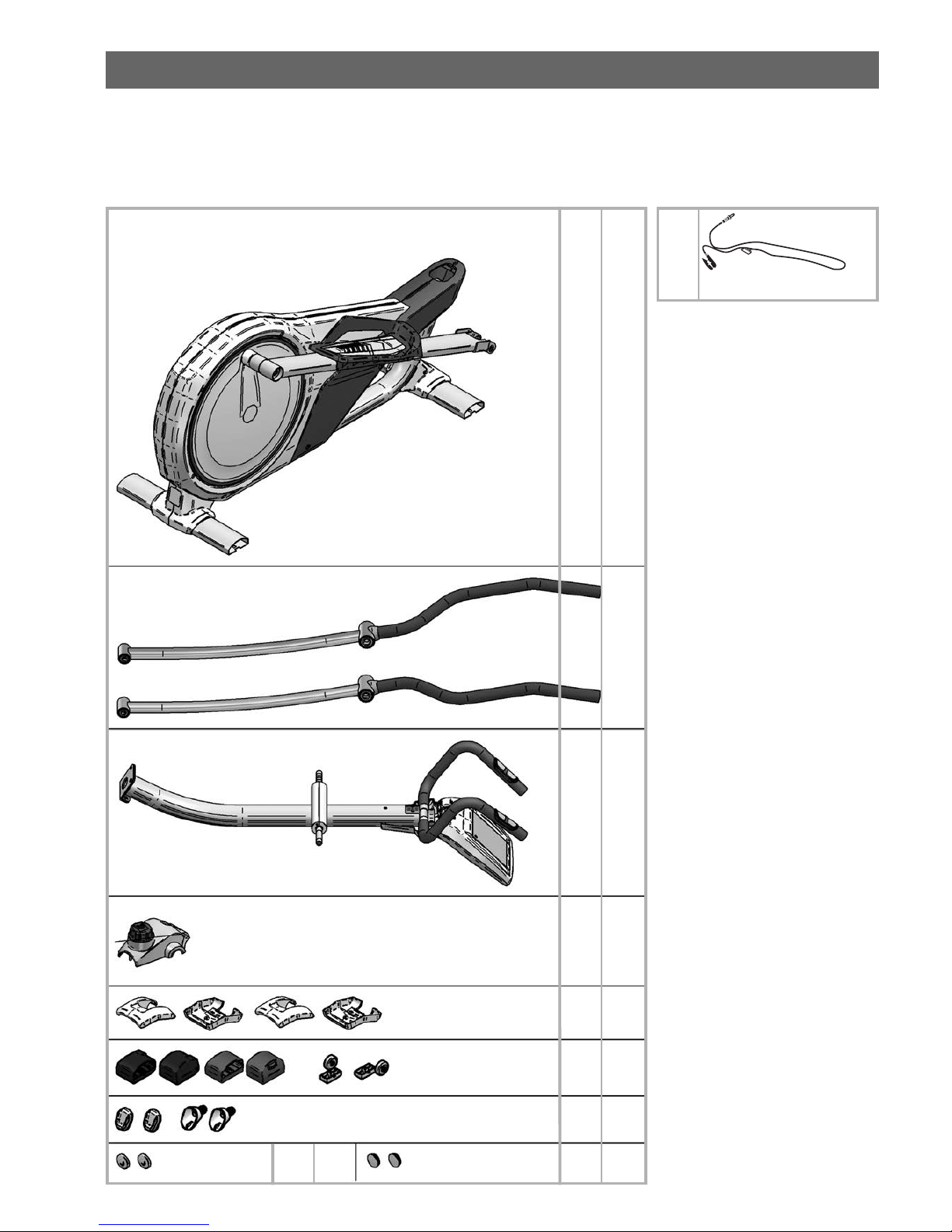

– GB – Checklist (contents of packaging)

– F – Liste de vérification (contenu de l’emballage)

– NL – Checklijst (verpakkingsinhoud)

– E – Lista de control (contenido del paquete)

– I – Lista di controllo (contenuto del pacco)

– PL – Lista kontrolna (zawartość opakowania)

– CZ – Kontrolní seznam (obsah balení)

– P – Lista de verificação (conteúdo da embalagem)

– DK – Checkliste (pakkens indhold)

– RUS – Контрольный список

– H – (Csomagolás tartalmának) ellenőrző listája

– SLO – Kontrolni seznam (vsebina embalaže)

– SRB – Spisak delova u pakovanju

Checkliste (Packungsinhalt)

– D – Benötigtes Werkzeug – Gehört nicht zum Lieferumfang.

– GB – Tools required – Not included.

– F – Outils nécessaires – Ne fait pas partie du domaine de livraison.

– NL – Benodigd gereedschap – Is niet bij de levering inbegrepen.

– E – Herramientas necesarias – No forma parte del volumen de entrega.

– I – Strumenti necessari – Non in dotazione alla fornitura.

– PL – Narzędzi – Nie należy do zakresu dostawy.

– CZ – Nářadí potřebné – Nepatří do rozsahu dodávky

– P – Ferramentas necessárias – Não está incluído nas peças fornecidas

– DK – Værktøjer kræves – Er ikke inkluderet i leveringsomfanget.

– RUS – Необходимый инструмент - не входит в комплект поставки.

– H – Szükséges szerszámok – Nem is.

– SLO – Potrebna orodja – niso vključeni.

– SRB – Potreban alat - ne spada u opseg isporuke.

ø 25x8,4

ø 18x11,3

ø 16x8,3

M10x80

M8x16

M10

3,9x19

4x35

Mignon AA

“klick”

A “klick”

“klick”

4,8x22

–D– Schraubverbindung regelmäßig kontrollieren.

– GB – The screwed connections must be controled at regular intervals.

–F– Resserrer le raccord à vis à intervalles réguliers.

– NL – Schroefverbinding moet regelmatig opnieuw vastgedraaid worden.

–E– La atornilladura debe ser apretada con regularidad.

–I– Il collegamento a vite va riserrato ad intervalli regolari.

– PL – Połączenie śrubowe musi być regularnie dokręcane.

– CZ – Šroubové spojení pravidelně kontrolujte.

– P – Verifique regularmente as uniões roscadas.

– DK – Kontrollér skrueforbindelsen regelmæssigt.

– RUS – Регулярно проверяйте винтовое соединение.

– H – Ellenőrizze rendszeresen a csavarkötéseket.

– SLO – Redno preverjajte vijačni spoji.

– SRB – Redovno kontrolišite vijčane spojeve.

4x M8x16 ø16x8,3

M = 20-25 Nm

“klick”

3,9x19

4x35

4,8x22

3,9x19

2x M8x16 · ø25x8,4

M = 25-30 Nm

M 10 · ø18x11,3 · M10x80

M = 25-30 Nm

Autres manuels pour Unix M

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Kettler vélo elliptique

Kettler

Kettler CTR 1 Manuel utilisateur

Kettler

Kettler NOVA M CT1019-300 Manuel utilisateur

Kettler

Kettler 07648-500 Manuel utilisateur

Kettler

Kettler RIVO-P Manuel utilisateur

Kettler

Kettler OPTIMA 800 Manuel utilisateur

Kettler

Kettler CX3 Manuel utilisateur

Kettler

Kettler Unix M Manuel d'instructions d'installation

Kettler

Kettler Alpine Trainer Manuel utilisateur

Kettler

Kettler Unix PX Manuel d'instructions d'installation

Kettler

Kettler HOI CROSS+ Manuel utilisateur

Kettler

Kettler ST 7620-80 Manuel de la liste des pièces

Kettler

Kettler XTR2 Manuel utilisateur

Kettler

Kettler MONDEO ST Manuel utilisateur

Kettler

Kettler MONDEO LE Manuel utilisateur

Kettler

Kettler SM3205-68 Manuel utilisateur

Kettler

Kettler SKYLON-2 Manuel utilisateur

Kettler

Kettler UNIX 10 EXT Manuel utilisateur

Kettler

Kettler VITO M Manuel d'instructions d'installation

Kettler

Kettler Calypso Manuel utilisateur

Kettler

Kettler 08326-100 Manuel utilisateur

Kettler

Kettler RIVO-M Manuel utilisateur

Kettler

Kettler SKYLON 3 Manuel utilisateur

Kettler

Kettler 07862-700 Manuel utilisateur

Kettler

Kettler 07648-8X0 Manuel d'instructions d'installation

Manuels vélo elliptique populaires d'autres marques

Weslo

Weslo Momentum 4.0 Elliptical Manuel d'utilisation et d'entretien

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manuel utilisateur

Torque Fitness

Torque Fitness XPLLP Manuel utilisateur

Octane Fitness

Octane Fitness PRO3700C Manuel utilisateur

Xterra

Xterra FS5.8e Manuel utilisateur

Bodyguard

Bodyguard E-40 Manuel utilisateur

Bonn Germany

Bonn Germany Concept 2.2 Manuel utilisateur

Precor

Precor Resolute RSL 620 Manuel utilisateur

NordicTrack

NordicTrack E 9.2 Elliptical Manuel utilisateur

Vision Fitness

Vision Fitness X6600iNetTV Manuel utilisateur

Matrix

Matrix MX-A5x Manuel utilisateur

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manuel utilisateur

Sears

Sears FREE SPIRIT C249 30737 0 Manuel utilisateur

True

True FS-64 Manuel utilisateur

Sport-thieme

Sport-thieme ST 310 Manuel utilisateur

VIRTUFIT

VIRTUFIT CTR 1.1 Manuel utilisateur

CIRCLE FITNESS

CIRCLE FITNESS E7 Manuel utilisateur

Reebok

Reebok 1000 Zx Elliptical Manuel utilisateur
