Kettler Elyx 1 Manuel utilisateur

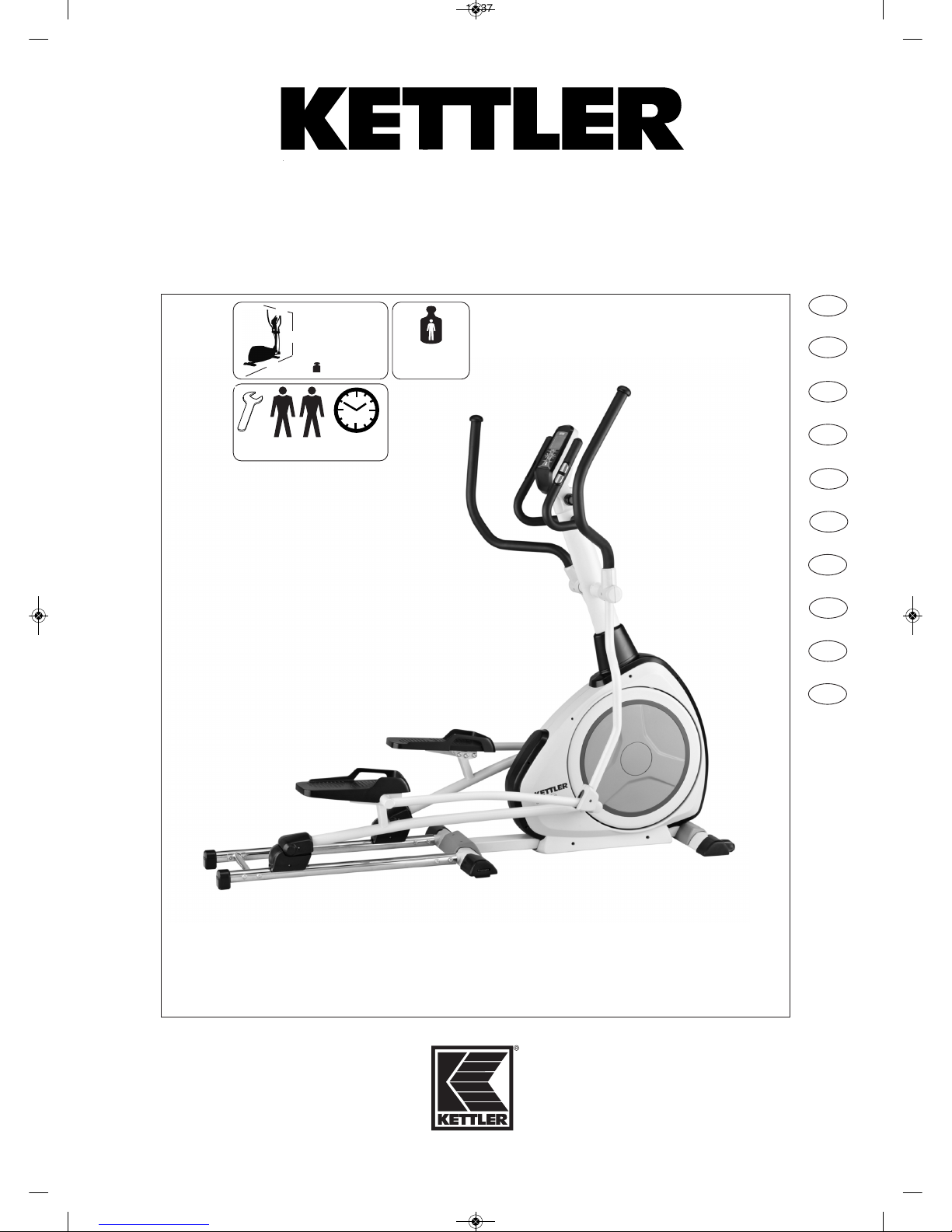

Mo tagea leitu g „ELYX 1”

Art.–Nr. 07643-500

Abb. ähnlich

Auf 100% Altpapier!

A 193 cm

B 66 cm

C 172 cm

75 kg max.

150 kg

ca 30 – 45 Min.

07643-500_ELYX-1_3071b-0213.de,en, r,nl,es,it,pl,pt,da,cs_selec HB 15.02.13 14:37 Seite 1

Please read these instructions carefully prior to carrying out assembly and using for the first time. They contain

information which is important for your safety as well as for the use and maintenance of the appliance. Keep these

instructions in a safe place for reference purposes, maintenance work and to assist you when ordering spare parts.

For Your Safety

R SK! While assembly of the product keep off children’s reach

(Choking hazard - contains small parts).

RSK! Any other use of the equipment is prohibited and may

be dangerous. The manufacturer cannot be held liable for

damage or injury caused by improper use of the equipment.

R SK! Instruct people using the equipment (in particular children)

on possible sources of danger during exercising.

RSK! Incorrect repairs and structural modiﬁcations (e.g. removal

or replacement of original parts) may endanger the safety of the

user.

R SK! Heart rate monitoring systems may be inaccurate. Over

exercise may result in serious injury or death. f you feel faint

stop exercising immediately.

WARN NG! The training device should be used only for its

intended purpose, i.e. for physical exercise by adult people.

WARN NG! Before beginning your program of training, study

the instructions for training carefully.

WARN NG! Any interference with parts of the product that are

not described within the manual may cause damage, or endanger

the person using this machine. Extensive repairs must only be

carried out by KETTLER service staff or qualified personnel trained

by KETTLER.

• The training device has been designed in accordance with the

latest standards of safety. Any features which may have been a

possible cause of injury have been avoided or made as safe as

possible.

• The training device corresponds with DIN EN 957 -1/-9, class

• In case of enquiry, please contact your KETTLER dealer.

• f the equipment is in regular use, check all its components tho-

roughly every 1–2 months. Pay particular attention to the tightness

of bolts and nuts. This is particularly true for the attachment of

grip strap, running plate and fastening of the handlebar and front

tube.

• Before beginning your program of exercise, consult your doctor

to ensure that you are ﬁt enough to use the equipment.

Base your program of exercise on the advice given by your doctor.

ncorrect or excessive exercise may damage your health!

• Before use, always check all screws and plug-in connections as

well as respective safety devices ﬁt correctly.

• Always wear suitable shoes when using.

• Our products are subject to a constant innovative quality assu-

rance. We reserve the right to perform technical modiﬁcations.

• In choosing the location of the apparatus, ensure a sufﬁcient safety

distance from any obstacles. The apparatus must not be mounted

in the immediate vicinity of main passageways (paths, doorways,

corridors).

• Always observe the general safety rules and precautions for

working with electrical equipment.

•All electric appliances emit electromagnetic radiation when in

operation. Please do not leave especially radiation-intensive

appliances (e.g. mobile telephones) directly next to the cockpit

or the electronic controlsystem as otherwise values displayed might

be distorted (e.g. pulse measurement.

• The product is not suitable for use by persons weighing over 150

kg.

• Nobody may be in the moving range of a training person during

training

• This exercise machine may only be used for exercises indicated

in the training instructions.

• The surface on which the unit is placed must be ﬁrm and even.

Place rubber or straw mats under it to deaden any noise or

impacts. Only for appliances with weights. Avoid powerful oscil-

lations of the dumbbells!

• When mounting the product please take the recommended

torque information into account (M = xx Nm).

nstructions for Assembly

R SK Ensure that your working area is free of possible sources

of danger, for example don’t leave any tools lying around.

Always dispose packaging material in such a way that it may

not cause any danger. There is always a risk of suffocation if

children play with plastic bags!

WARN NG! Please note that there is always a danger of

injury when working with tools or doing manual work. The-

refore please be careful when assembling this machine.

• Ensure that you have received all the parts required (see check

list) and that they are undamaged. Should you have any cause

for complaint, please contact your KETTLER dealer.

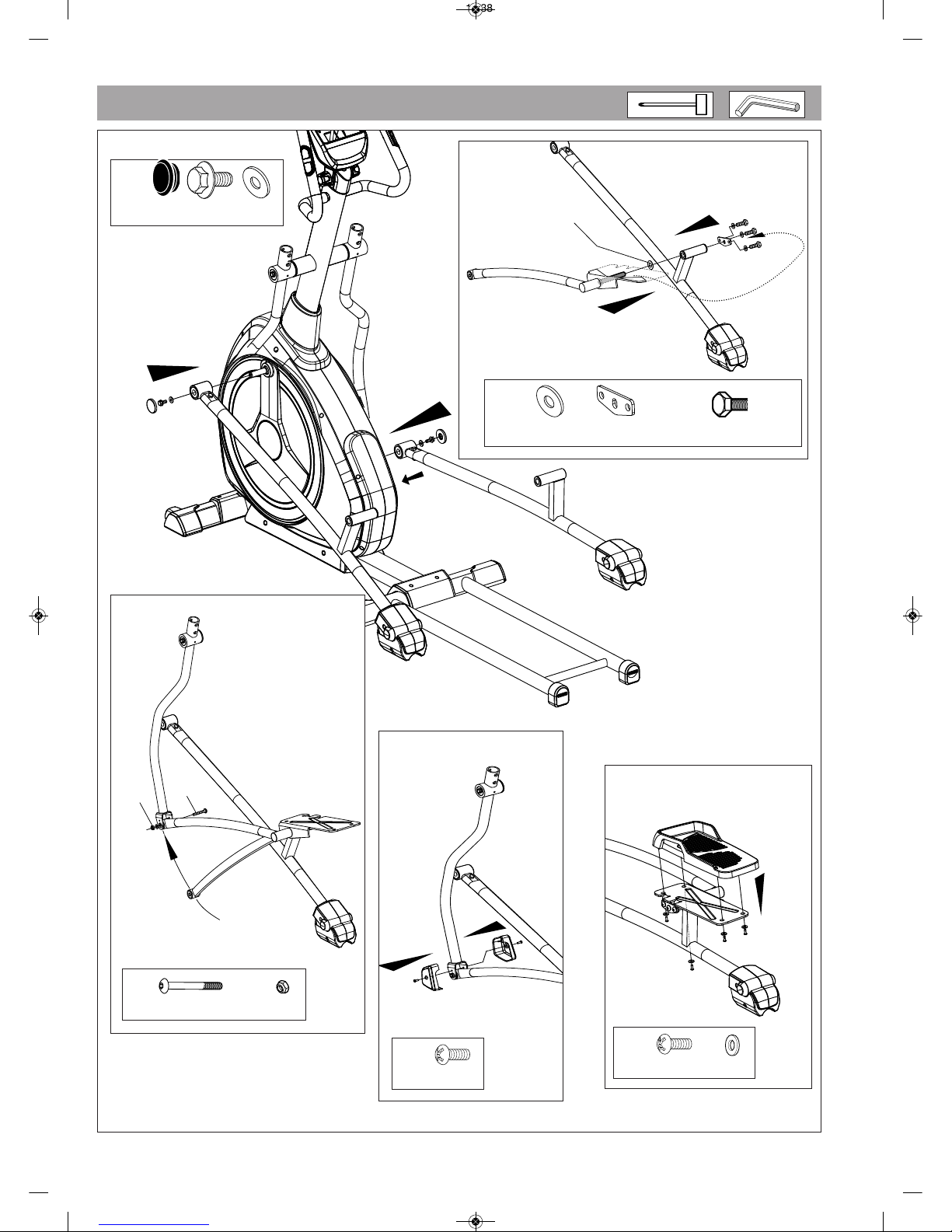

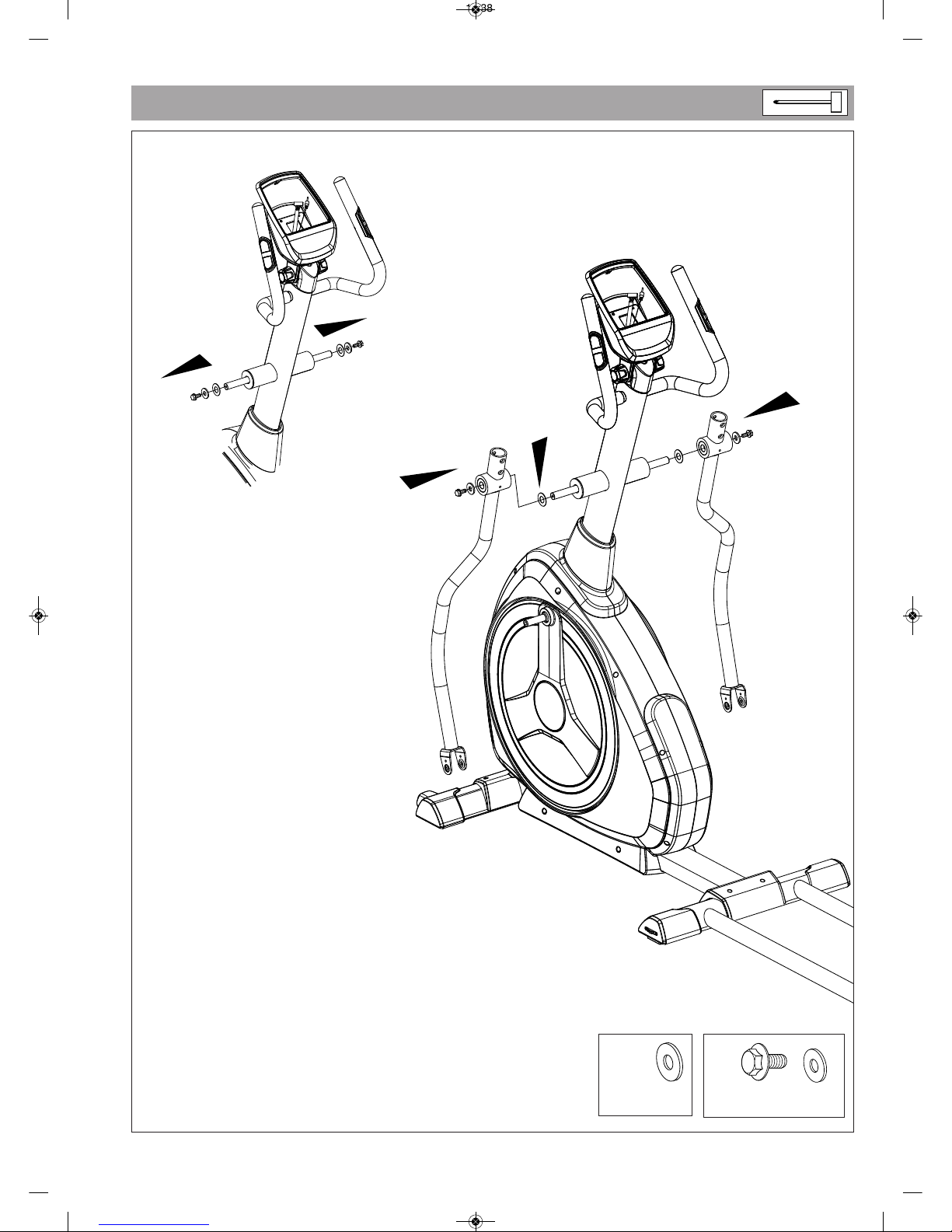

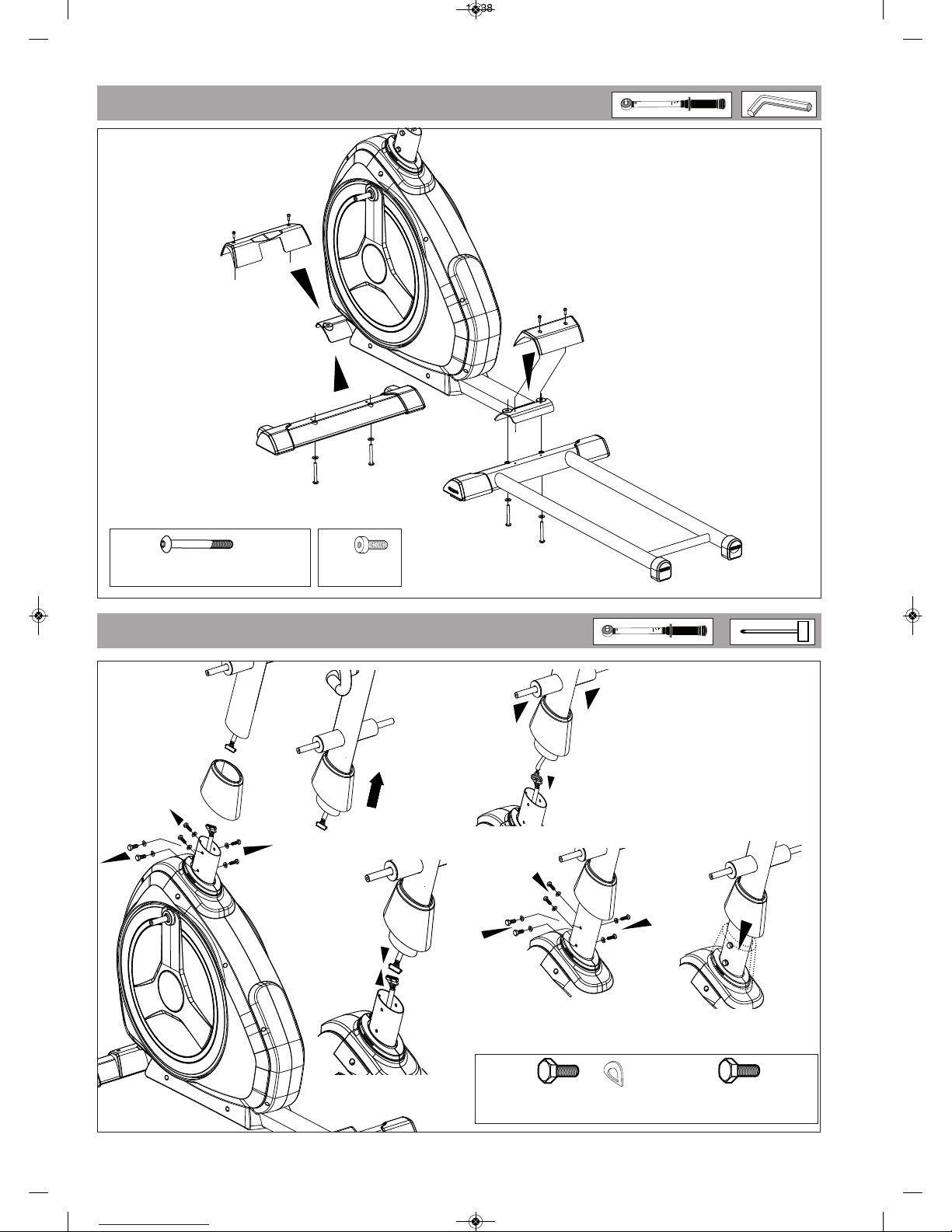

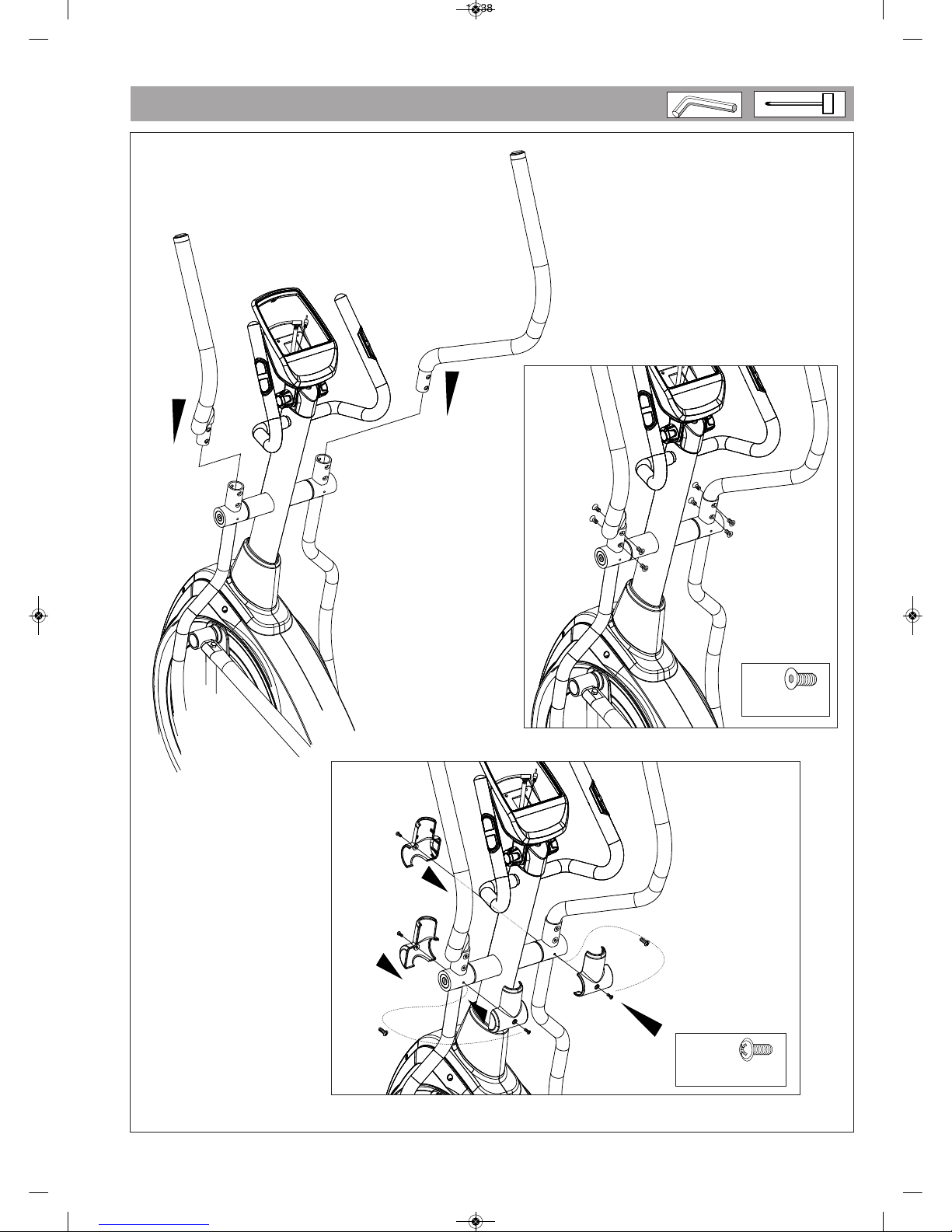

• Before assembling the equipment, study the drawings carefully

and carry out the operations in the order shown by the diagrams.

The correct sequence is given in capital letters.

• The equipment must be assembled with due care by an adult

person. If in doubt call upon the help of a second person, if pos-

sible technically talented.

• The fastening material required for each assembly step is shown

in the diagram inset. Use the fastening material exactly as

instructed. The required tools are supplied with the equipment.

• Bolt all the parts together loosely at ﬁrst, and check that they have

been assembled correctly. Tighten the locknuts by hand until resis-

tance is felt, then use spanner to finally tighten nuts completely

against resistance (locking device). Then check that all screw con-

nections have been tightened ﬁrmly. Attention: once locknuts have

been unscrewed they no longer function correctly (the locking

device is destroyed), and must be replaced.

• For technical reasons, we reserve the right to carry out preliminary

assembly work (e.g. addition of tubing plugs).

mportant nstructions

07643-500_ELYX-1_3071b-0213.de,en, r,nl,es,it,pl,pt,da,cs_selec HB 15.02.13 14:37 Seite 4

Handling the equipment

• Before using the equipment for exercise, check carefully to

ensure that it has been correctly assembled.

• It is not recommended to use or store the apparatus in a damp

room as this may cause it to rust. Please ensure that no part of

the machine comes in contact with liquids (drinks, perspiration

etc.). This may cause corrosion.

• The machine is designed for use by adults and children should

not be allowed to play with it. Children at play behave unpre-

dictably and dangerous situations may occur for which the

manufacturer cannot be held liable. If, in spite of this, children

are allowed to use the equipment, ensure that they are instructed

in its proper use and supervised accordingly.

•The equipment is independent of revolutions per minute.

• A slight production of noise at the bearing of the centrifugal mass

is due to the construction and has no negative effect upon ope-

ration. Possibly occurring noise during reverse pedalling result

from engineering and are absolutely safe.

• The training device has a magnetic brake system.

• To operate correctly, the pulse function requires a minimum

voltage of 2,7 volts (only for computers working with batteries).

• Before beginning your ﬁrst training session, familiarize yourself

thoroughly with all the functions and settings of the unit.

Care and maintenance

•Damaged components may endanger your safety or reduce the

lifetime of the equipment. For this reason, worn or damaged parts

should be replaced immediately and the equipment taken out of

use until this has been done. Use only original KETTLER spare

parts.

• To ensure that the safety level is kept to the highest possible

standard, determined by its construction, this product should be

serviced regulary (once a year) by specialist retailers.

•Use for your regular cleaning, maintenance and care our

appliance maintenance set (Article no. 07921-000) speciﬁcally

licensed for KETTLER Sports apparatus and available from the

Sport specialized trade.

•Please ensure that liquids or perspiration never enter the machine

or the electronics.

List of spare parts page 30-31

When ordering spare parts, always state the full article number,

spare-partnumber, the quantity required and the S/N of the product

(see handling).

Example order: Art. no. 07643-500 / spare-part no. 68008429

/ 1 pieces / S/N .................... Please keep original packaging

of this article, so that it may be used for transport at a later date,

if necessary.

Goods may only be returned after prior arrangement and in

(internal) packaging, which is safe for transportation, in the original

box if possible. It is important to provide a detailed defect description

/ damage report!

mportant: spare part prices do not include fastening material; if

fastening material (bolts, nuts, washers etc.) is required, this should

be clearly stated on the order by adding the words „with fastening

material“.

Waste Disposal

KETTLER products are recyclable. At the end of its useful life please

dispose of this article correctly and safely (local refuse sites).

KETTLER GB Ltd.

Kettler House, Merse Road

North Moons Moat

Redditch, Worcestershire B98 9HL

+44 1527 591901 +44 1527 62423

www.kettler.co.uk Mail: [email protected]

KETTLER nternational nc.

1355 London Bridge Road +1 888 253 8853

Virginia Beach, VA 23453 +1 888 222 9333

www.kettlerusa.com

USA



07643-500_ELYX-1_3071b-0213.de,en, r,nl,es,it,pl,pt,da,cs_selec HB 15.02.13 14:37 Seite 5

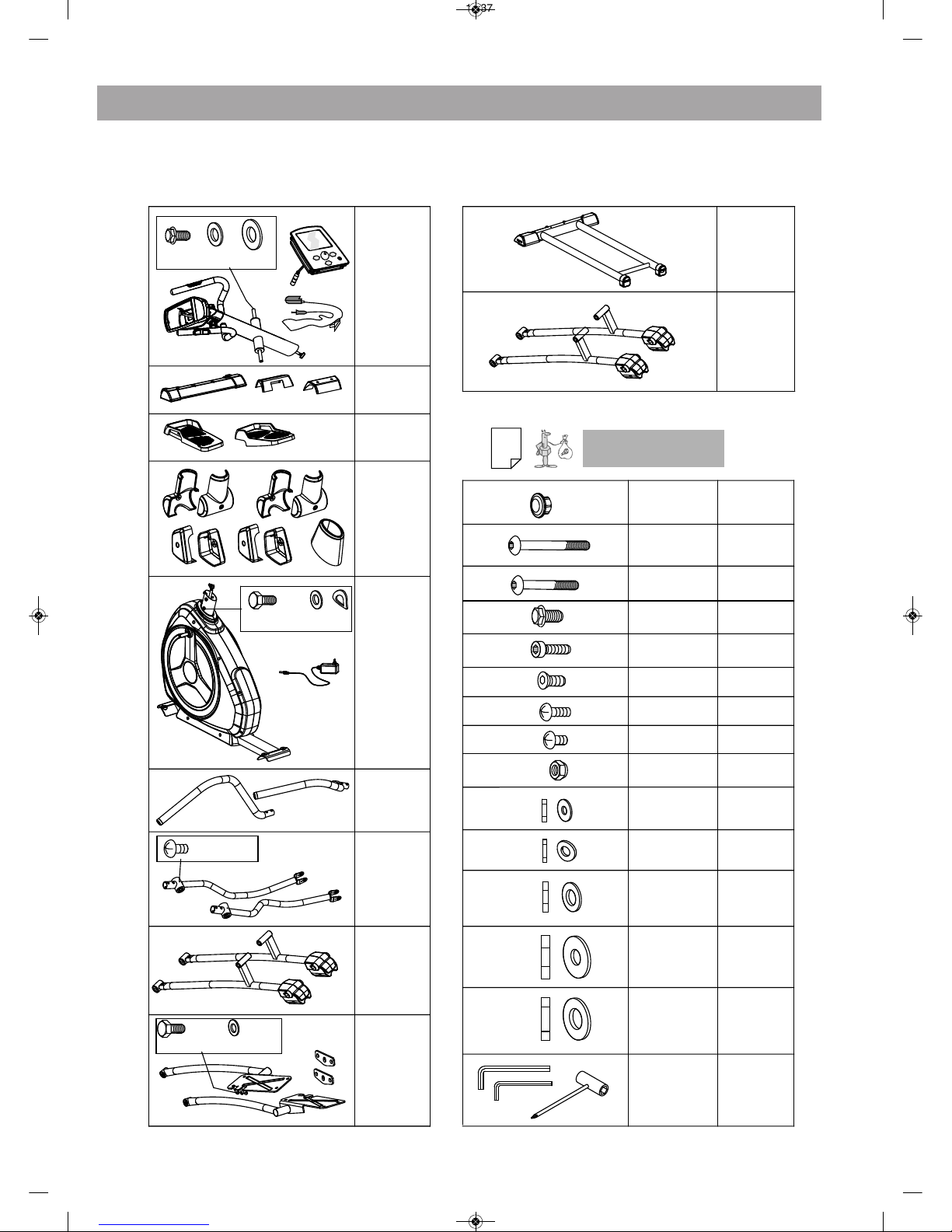

Checkliste (Packungsinhalt)

– GB –Checklist (contents of packaging)

– F – Checklist (verpakkingsinhoud)

– NL – Checklist (verpakkingsinhoud)

– E – Lista de control (contenido del paquete)

– – Lista di controllo (contenuto del pacco)

– PL – Lista kontrolna (zawartość opakowania)

– P – Lista de verificação (conteúdo da embalagem)

– DK –Checkliste (pakkens indhold)

– CZ – Kontrolní seznam (obsah balení)

Stck.

31 Pos. 43

M 8

M8x65

M8x55

M5x12

M8x12

M8x8

ø 8x19

ø 8x16

ø 6x16

ø 8x25

M8x20

6x M8x20

4x M8x12

6x M8x20 / ø 8x16

2x M8x20

4x 2x

ø 17,5x25

M8x12 8

2x 2x

07643-500_ELYX-1_3071b-0213.de,en, r,nl,es,it,pl,pt,da,cs_selec HB 15.02.13 14:37 Seite 22

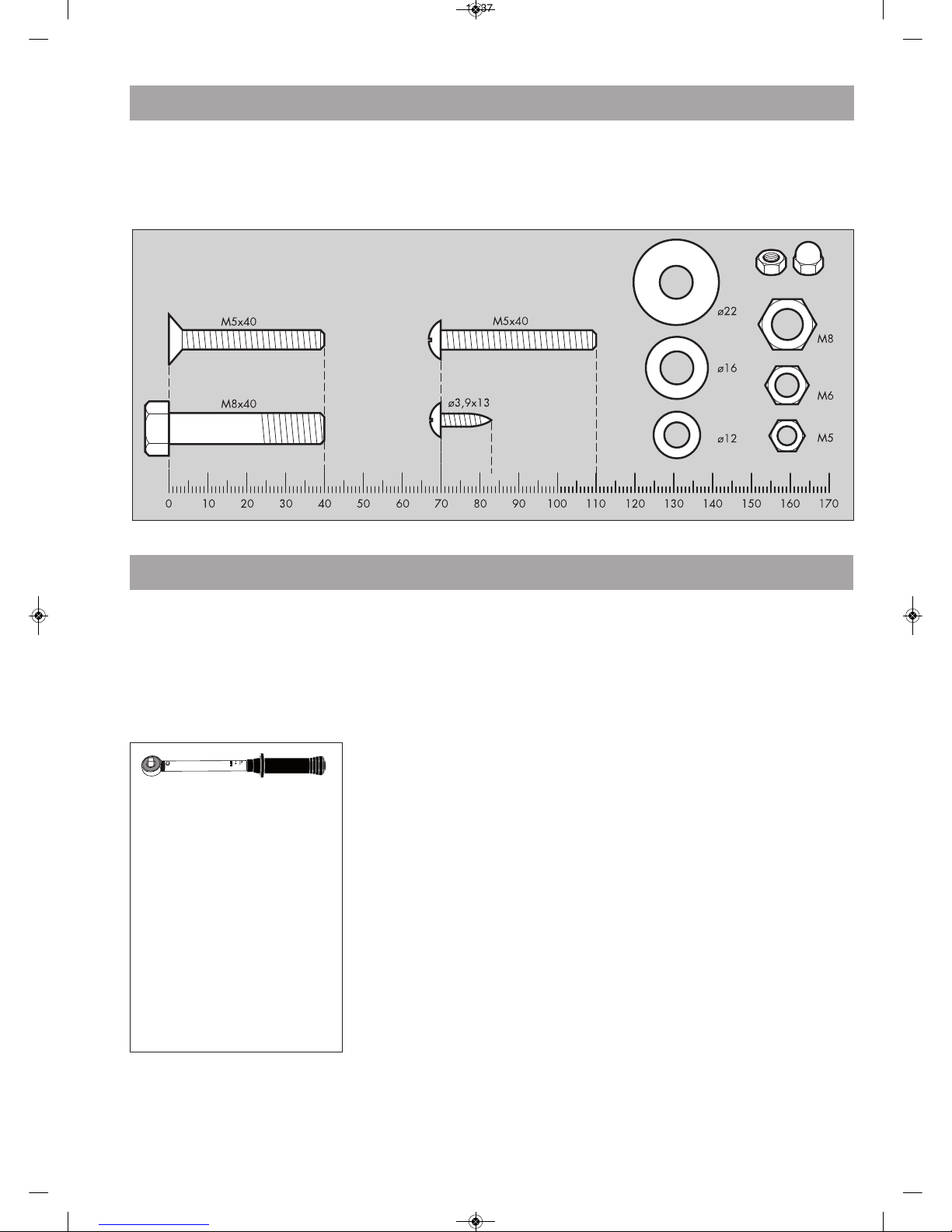

Messhilfe für Verschraubungsmaterial

– GB – Measuring help for screw connections

– F – Gabarit pour système de serrage

– NL – Meethulp voor schroefmateriaal

– E – Ayuda para la medición del material de atornilladura

– – Misura per materiale di avvitamento

– PL – Wzornik do połączeń śrubowych

– P – Auxiliar de medição para materiais de aparafusamento

– DK – Hjælp til måling af skruer

– CZ – Měřící pomůcka pro materiál k přišroubování

– D – Beispiele; – GB – Examples; – F – Examples; – NL – Bij voorbeeld; – E – Ejemp-

los; – – Esempio; – PL – Przyktady; – P – Exemplo; – DK – Eksempel; – CZ – Příklad

Schraubverbindung regelmäßig kontrollieren

– GB – The screwed connections must be controled

at regular intervals.

– F – Resserrer le raccord à vis à intervalles réguliers.

– NL – Schroefverbinding moet regelmatig

opnieuw vastgedraaid worden.

– E – La atornilladura debe ser apretada con regularidad.

– – l collegamento a vite va riserrato ad intervalli regolari.

– PL – Połączenie śrubowe musi być regularnie dokręcane.

– P – Verificação regular das uniões roscada

– DK – Kontrollér skrueforbindelsen regelmæssigt.

– CZ – Šroubové spojení pravidelně kontrolujte.

– D – Gehört nicht zum Lieferumfang.

– GB – Not included.

– F – Ne fait pas partie du domaine

de livraison.

– NL – s niet bij de levering

inbegrepen.

– E – No forma parte del volumen

de entrega.

– – Non in dotazione alla fornitura.

– PL – Nie należy do zakresu

dostawy.

– P – Não está incluído nas

peças fornecidas

– DK – Er ikke inkluderet i

everingsomfanget.

– CZ – Hjælp til måling af skruer

07643-500_ELYX-1_3071b-0213.de,en, r,nl,es,it,pl,pt,da,cs_selec HB 15.02.13 14:37 Seite 23

2x Ø 8 Ø 8

M 8x20

= 20 Nm

A/E

4x M 8x20

= 20 Nm

A/F

Ø 8x19 M5x12

M 8x65 = 15 Nm

4x4x

07643-500_ELYX-1_3071b-0213.de,en, r,nl,es,it,pl,pt,da,cs_selec HB 15.02.13 14:38 Seite 24

M 8x20 Ø 8x25

2x Ø 17,5x25

07643-500_ELYX-1_3071b-0213.de,en, r,nl,es,it,pl,pt,da,cs_selec HB 15.02.13 14:38 Seite 25

M 8x20 Ø 8x16

M 8x20Ø 17,5x25

2x 2x

B/E

Ø 8x16

M 8x55 M 8

Ø 8x16

M 5x12 Ø 6x16

M 5x8

07643-500_ELYX-1_3071b-0213.de,en, r,nl,es,it,pl,pt,da,cs_selec HB 15.02.13 14:38 Seite 26

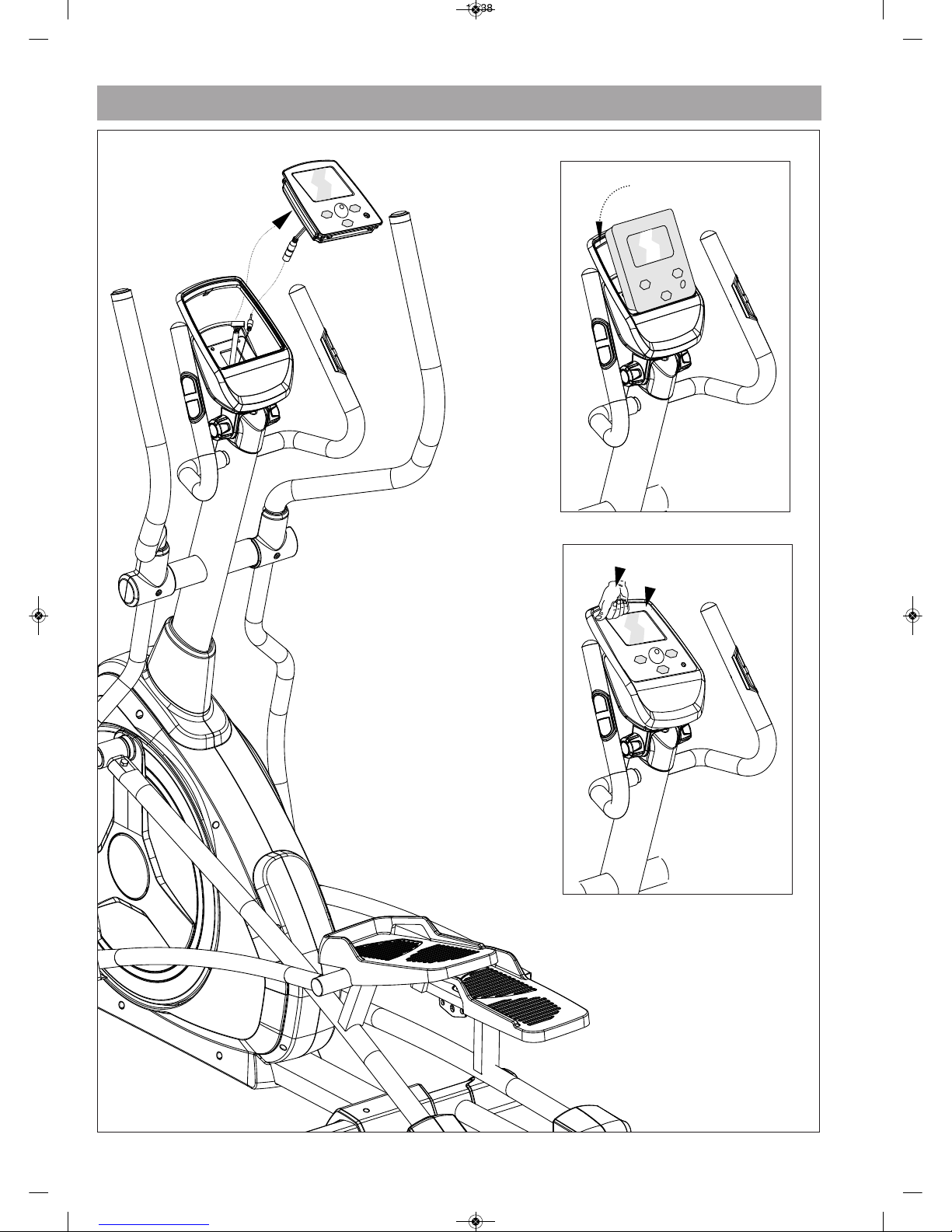

M5x12

C/D

M8x12

07643-500_ELYX-1_3071b-0213.de,en, r,nl,es,it,pl,pt,da,cs_selec HB 15.02.13 14:38 Seite 27

07643-500_ELYX-1_3071b-0213.de,en, r,nl,es,it,pl,pt,da,cs_selec HB 15.02.13 14:38 Seite 28

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Kettler vélo elliptique

Kettler

Kettler 7967-000 Manuel utilisateur

Kettler

Kettler XTR2 Manuel utilisateur

Kettler

Kettler MONDEO Manuel utilisateur

Kettler

Kettler UNIX 2 Manuel utilisateur

Kettler

Kettler Unix P Manuel d'instructions d'installation

Kettler

Kettler 07643-500 Manuel utilisateur

Kettler

Kettler OPTIMA 600 Manuel utilisateur

Kettler

Kettler Vito XL Manuel du propriétaire

Kettler

Kettler HOI CROSS Manuel utilisateur

Kettler

Kettler ELYX 5 Manuel utilisateur

Kettler

Kettler Unix E Manuel utilisateur

Kettler

Kettler 07656-000 Manuel utilisateur

Kettler

Kettler NOVA M CT1019-300 Manuel utilisateur

Kettler

Kettler Mondeo Series Manuel utilisateur

Kettler

Kettler 07644-000 Manuel utilisateur

Kettler

Kettler SKYLON 3 Manuel utilisateur

Kettler

Kettler RIVO-M Manuel utilisateur

Kettler

Kettler 07647-800 Manuel utilisateur

Kettler

Kettler Cross P Manuel utilisateur

Kettler

Kettler SKYLON-2 Manuel utilisateur

Kettler

Kettler SM3208-8 Manuel utilisateur

Kettler

Kettler VITO M Manuel utilisateur

Kettler

Kettler OPTIMA 100 Manuel utilisateur

Kettler

Kettler RIVO M Manuel utilisateur

Manuels vélo elliptique populaires d'autres marques

Weslo

Weslo Momentum 4.0 Elliptical Manuel d'utilisation et d'entretien

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manuel utilisateur

Torque Fitness

Torque Fitness XPLLP Manuel utilisateur

Octane Fitness

Octane Fitness PRO3700C Manuel utilisateur

Xterra

Xterra FS5.8e Manuel utilisateur

Bodyguard

Bodyguard E-40 Manuel utilisateur

Bonn Germany

Bonn Germany Concept 2.2 Manuel utilisateur

Precor

Precor Resolute RSL 620 Manuel utilisateur

NordicTrack

NordicTrack E 9.2 Elliptical Manuel utilisateur

Vision Fitness

Vision Fitness X6600iNetTV Manuel utilisateur

Matrix

Matrix MX-A5x Manuel utilisateur

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manuel utilisateur

Sears

Sears FREE SPIRIT C249 30737 0 Manuel utilisateur

True

True FS-64 Manuel utilisateur

Sport-thieme

Sport-thieme ST 310 Manuel utilisateur

VIRTUFIT

VIRTUFIT CTR 1.1 Manuel utilisateur

CIRCLE FITNESS

CIRCLE FITNESS E7 Manuel utilisateur

Reebok

Reebok 1000 Zx Elliptical Manuel utilisateur
