Kett HI-700 Manuel utilisateur

Operating Manual

Thank you for purchasing this product.

Please read the operating manual carefully and use this product properly.

Biomass Fuel Moisture Tester

HI-700

CONTENTS

1. Features ............................................................................................... 4

2.Specications ....................................................................................... 5

3. Part Names ........................................................................................... 6

4. Display/Keyboard ................................................................................. 7

5.PreparationandConguration ............................................................ 8

 5-1.BatteryInstallation ........................................................................ 8

 5-2.Productnumberviewing .............................................................. 8

 5-3.Productnumberselection............................................................ 9

6.SampleExtractionandMeasurement................................................. 10

 6-1.Manualhopper............................................................................... 10

 6-2.Howtoextractasample............................................................... 10

 6-3.Measurement ................................................................................ 11

7.Otherfunctions ..................................................................................... 14

 7-1.Displayingtheaveragemoisturevalue ........................................ 14

 7-2.Autopowero ............................................................................... 14

 7-3.Batterylevelicon........................................................................... 14

8. Error Display ......................................................................................... 15

9.Instructionsforproperuse .................................................................. 17

This instrument can measure the moisture content of biomass

fuel. Using a fixed sample volume allows the weight, temperature,

and capacitance (dielectric) of the sample to be measured.

After processing this information with the use of the embedded

microprocessor, the “Moisture Value” is displayed. Refer to the

“Product List” attached for measurable biomass fuel versions.

Because the calibration curves of products on the “Product List”

have been already stored, the measurement of a sample on the list

can be instantly performed by simply pressing the product number.

1. Features

[Note]

The entered product versions may be dierent even among the same

HI-700 models. The display may be dierent between examples in the

Operating Manual and the real ones on the actual tester, but the usage

is the same.

2. Specications

Measuring principle :Capacitance (Dielectric) (50MHz)

Applications : Solid Biomass Fuels

Measurement range : 3 - 60% (product dependent)

Sample volume :240 mL

Operating temperature range

: 0 - 40 °C

Precision :<Moisture> Standard error of 1.0% or less versus drying method (all products

with moisture content of less than 20%)

Correction function :<Mass> By integrated weighing scale

<Temperature> By thermistor

Other functions :Average, auto power o

Display :Digital (LCD)

Power supply : Batteries (1.5V "R6" or "AA" size, x4)

Power consumption :240 mW

Dimensions and weight : 125 (W) x 205 (D) x 215 (H) mm, 1.3 kg

Accessories : Funnel, Manual hopper, Brush, Batteries (1.5V “R6” or “AA” size, x4), Product list,

Operating manual

3. Part Names

Measuring section

(sample inlet)

Battery cover

Keyboard

Display

Inner cylinder

Funnel Manual hopper

(Sample cup)

Product list Operating manual

Brush Batteries

(1.5V “R6” or “AA” size, x4)

HI-700 PRODUCT LIST

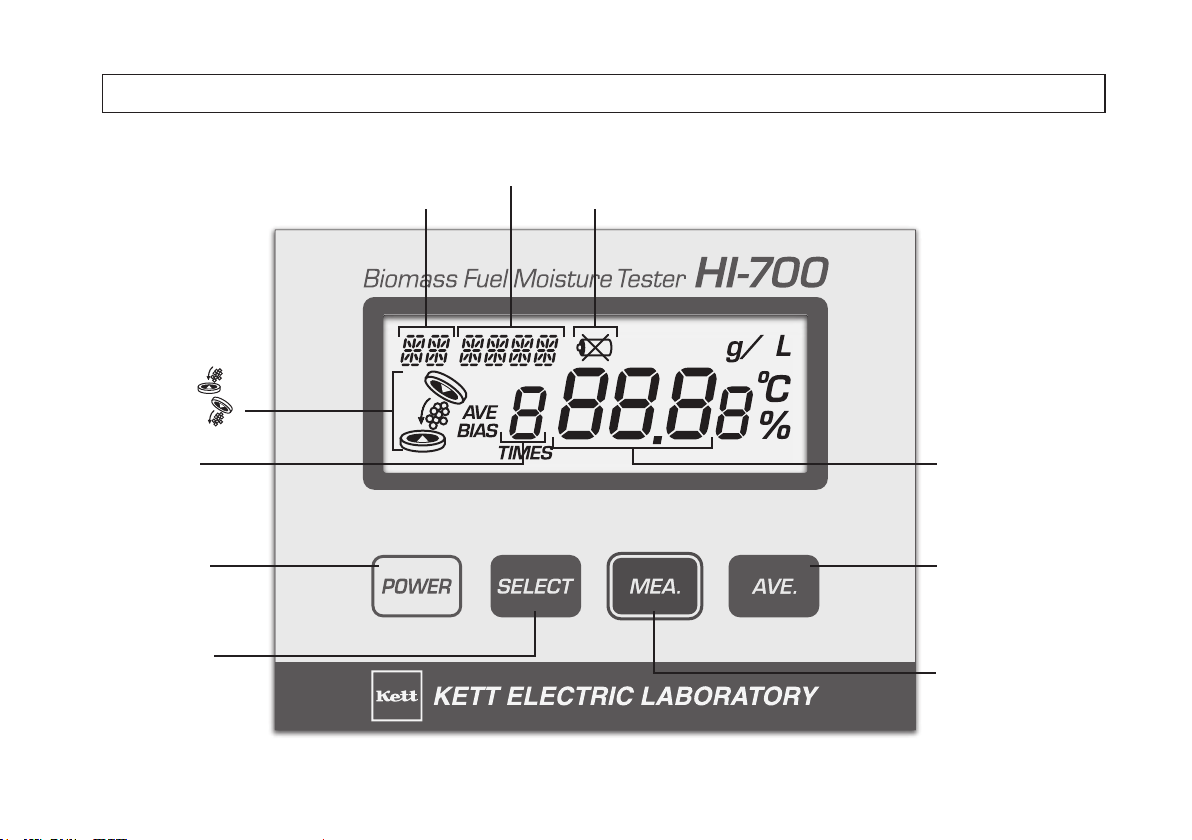

4. Display / Keyboard

MEA. key

Measurement

POWER key

Power On/O

Moisture value

Battery level icon

Product name

Version No.

Product number

Sample in ( )

Sample out ( )

icon

Number of

measuring

SELECT key

Selection of products

AVG. key

Average value

5. Preparation and Conguration

•

This instrument is equipped with an integrated weighing scale. For optimal results, this instrument should be placed on

a horizontal surface and used in locations where the wind is not strong and the instrument isn’t subject to vibration.

• Do not hit the instrument during operation and do not leave the instrument upside down.

• Although this instrument performs automatic temperature correction, for optimal measurement, leave this

instrument at ambient temperature for 2 hours or more before use.

• The temperature sensor embedded in the main unit measures the ambient temperature around the measuring

unit and automatically performs temperature correction. If the displayed measured value blinks (warning

indication), see “8. Error Display” on page 16.

5-1. Battery Installation

Theunit is powered by four 1.5 V batteries (A A ,

manganese). Remove the bottom batter y cover,

place the batteries into the compartment, ensuring

to correctly orient the positive (+) and negative (–)

terminals. Then replace the battery cover.

5-2. Product number viewing

(1) Press the key.

(A buzzer sounds for 2 seconds, and all contents are

displayed, the four-digit number in the upper left while

displaying the all contents is the version number.)

(2) The number of the product that was measured during

the last test is displayed. In the case of the drawing

(right) the product number is “01 PKSD”.

5-3.Product number selection

Select a product number to be measured from the

"Product List".

(1) Ever y time the key is pressed, the product

number is displayed in the following order:

"01→02→03→04→· · ·".

(2) For example, to change to “04 WP” when “01 PKSD”

is displayed.

(3) Press the key 3 times to adjust the product

number to "03".

(4) Now, “04 WP” is selected.

[Note] The product number is memorized while

the instrument is off, and therefore, the

last selected number is displayed when the

instrument is turned on the next time.

6-1. Manual hopper

6. Sample Extraction and Measurement

Use of Manual hopper

6-2. How to extract a sample

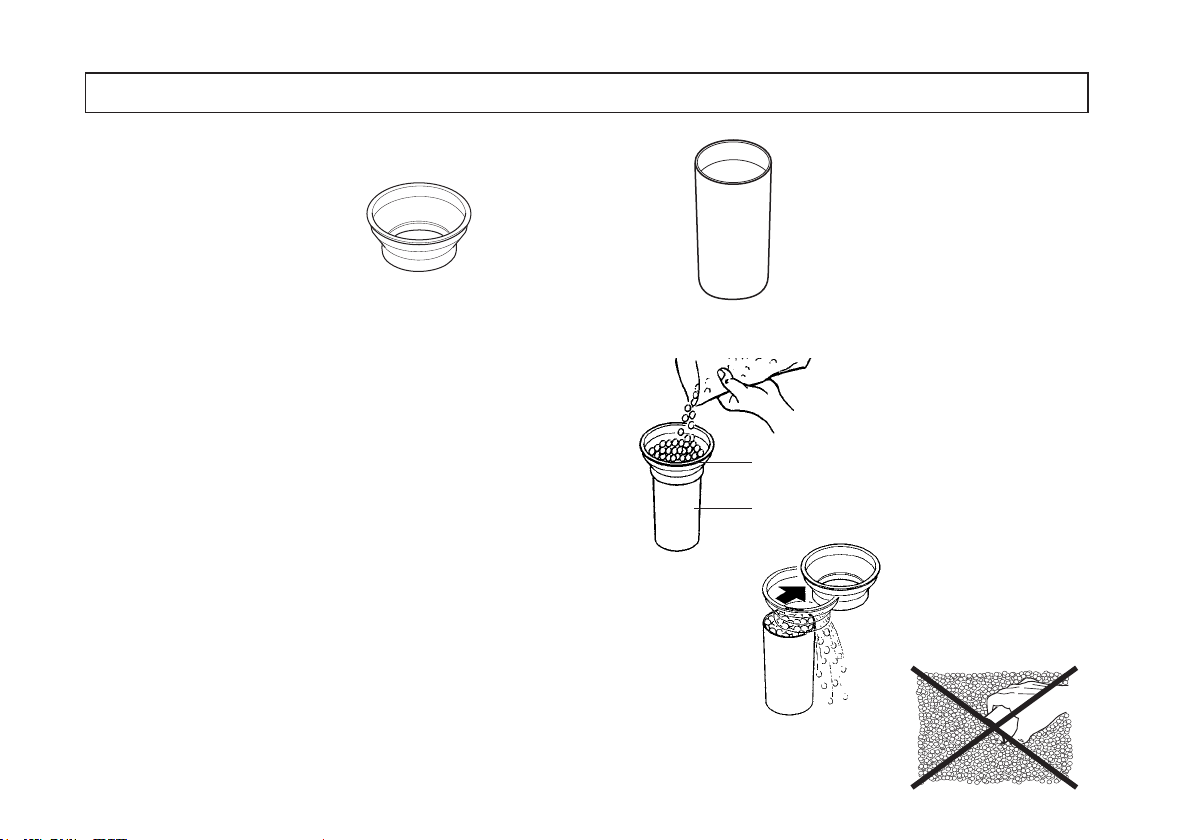

(1) Mount the funnel on the manual hopper, and load

a sample into the funnel to one-third of the funnel

depth.

(2) Remove the funnel to eliminate surplus sample and to

level o the sample.

[Note] Never extract a sample directly with the manual

hopper.

Funnel Manual hopper

Funnel

Manual hopper
