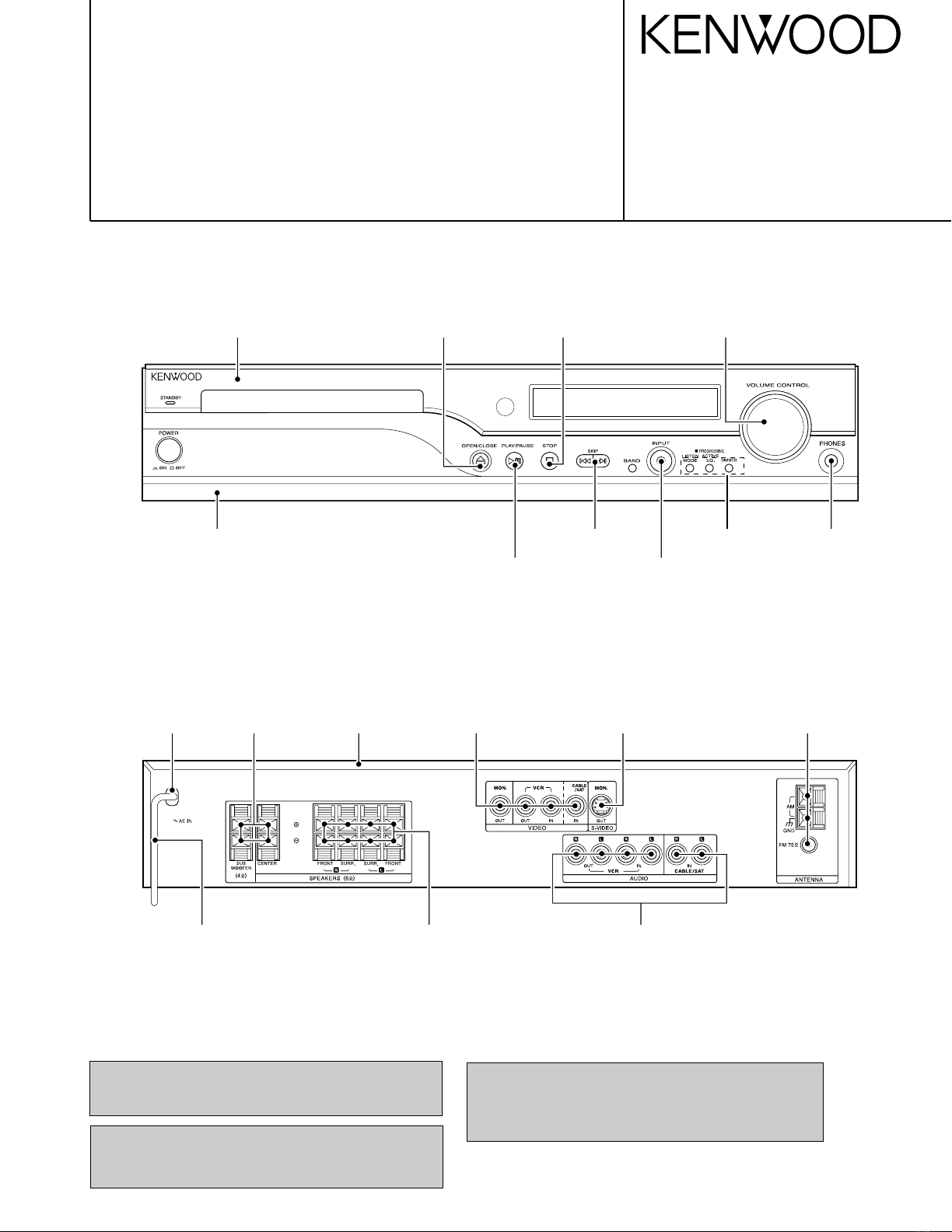

Kenwood DVR-6200 Manuel utilisateur

DVD / AV RECEIVER

B51-5872-00 (K/K) 1679

AC DEC cabinet *

(A29-)

AC DEC crystal *

(B10-)

Pun cover

(A09-1294-08)

In compliance with Federal Regulations, following are repro-

duction of labels on, or inside the product relating to laser

product safety.

KENWOOD Corp. certifies this equipment conforms to DHHS

Regulations No.21 CFR 1040. 10, Chapter 1, subchapter J.

DANGER : Laser radiation when open and interlock defeated.

AVOID DIRECT EXPOSURE TO BEAM.

Caution : No connection of ground line if disassemble

the unit. Please connect the ground line on

rear panel, PCBs, Chassis and some others.

AC DEC cap

(K29-8334-08)

AC DEC button

(K29-8266-08)

AC MLD clamp

(J42-0350-08)

Tuner module *

(W02-)

Conn-spe

(E70-0186-08)

Con phono socket

(E63-1331-08)x3

Phone jack

(E11-0957-08)

AC DEC knob

(K29-8335-08)

AC DEC cap

(K29-8331-08)

Wire-MCRDM *

(E30-)

*Refer to parts list on page 24.

AC DEC cap

(K29-8333-08)

AC DEC button

(K29-8332-08)

AC DEC button

(K29-8330-08)

Con phono socket

(E63-1267-05)x2

Con din socket

(E56-0054-08)

Conn-spe

(E70-0185-08)

DVR-6200

KSW-6200

SERVICE MANUAL

(DVT-6200)

Caution on condensation

Before transporting or moving this unit, carry out the

following operations.

1.Set the POWER ON/OFF switch to theON

without loading a disc.

2. Wait a few seconds and verify that the display

shown appears.

3. Set the POWER ON/OFF switch to OFF.

Note related to transportation and movement

Condensation(of dew) may occur inside the unit when there is agreat

difference in temperature between this unit andthe outside. Thisunit

may not function properly if condensation occurs. In this case, leave

the unit for a few hours and restart the operation after the condensa-

tion has dried up.

Be speciallycautious againstcondensation in the following circum-

stances:

When this unit is carried from one place to another across a large

difference in temperature, when the humidity in the room where

this unit is installed increases, etc.

System Speakers

DVR-6200 KSW-6200 (Left speaker, right speaker, center speaker, surround speakers and subwoofer)

Speaker model names

The marking of products using lasers

(For countries other than U.S.A. and U.S.-Military)

Inside this laser product, a laser diode classified as Class 2 laser radia-

tion is contained as alerted by the internal caution label shown above. Do

not stare into beam or view directly with optical instruments.

Location: DVD laser pick-up unit cover inside this product

CAUTION

VISIBLE AND INVISIBLE LASER RADIATION

WHEN OPEN. DO NOT STARE INTO THE BEAM OR

VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.

DO NOT PRESSON THIS SURFACE

The marking this product has been classified as Class 1. It

means that there is no danger of hazardous radiation outside

the product.

Location: Back panel

CLASS 1

LASER PRODUCT

Manufactured under license from Dolby Laboratories.

“DOLBY”, “Pro Logic” and the double-D symbol are

trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Surround” are trademarks of

Digital Theater Systems, Inc.

Operation to reset

1Press the MENU key on the remote to enter SETUP

MENU .

2Select the PREFERENCE, then press the ENTER key.

3Select DEFAULTS, press the Cursoe right (3) key to

select RESET.

4Press the numeric keys as shown below.

Press 1, 3, 9, 7, then press the ENTER key.

When resetting is done according to this method, all set-

tings, including the settings for password and parental level ,

will be reset to the factory defaults .

The microprocessormay fall into malfunction (impos-

sibility to operate erroneous display, etc.) when the

power cord is unplugged while power is ON or due to

an external factor.

In this case,switch off the power, wait for several sec-

onds, and then switch the power on again.

Return to the factory defaults by resetting the micropro-

cessoris done as shown as follows.

FM indoor antenna (1)

(T90-0882-08): MEX

(T90-0907-08): K

Loop antenna (1)

(T90-0896-08)

Remote control unit (1)

(A70-1647-08): KXM

(A70-1648-08): E

Batteries (R6/AA) (2)

Video cord (1)

(E30-1427-05)

SCART plug adaptor (1)

(Europe only)

(E69-0012-05)

Speaker cords (6)

(E30-5480-08): RD

(E30-5962-08): WH

(E30-7005-05): VT

(E30-5482-08): GN

(E30-5483-08): GY

(E30-5963-08): BL

DVR-6200

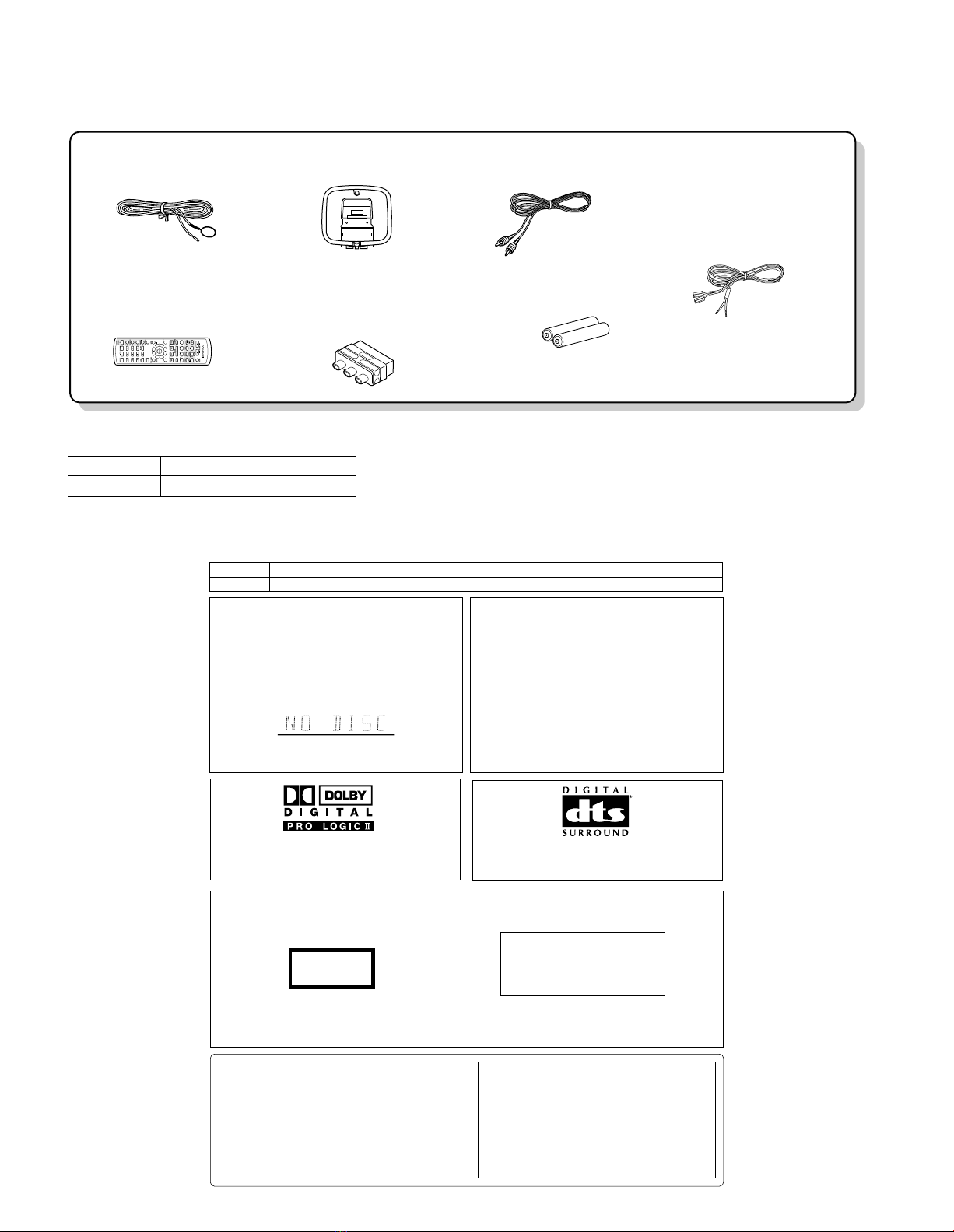

ACCESSORIES / CAUTIONS

Accessories

Cautions

SYSTEM MAIN UNIT SPEAKER

DVT-6200 DVR-6200 KSW-6200

SYSTEM CONFIGURATION

DVR-6200

DISASSEMBLY FOR REPAIR

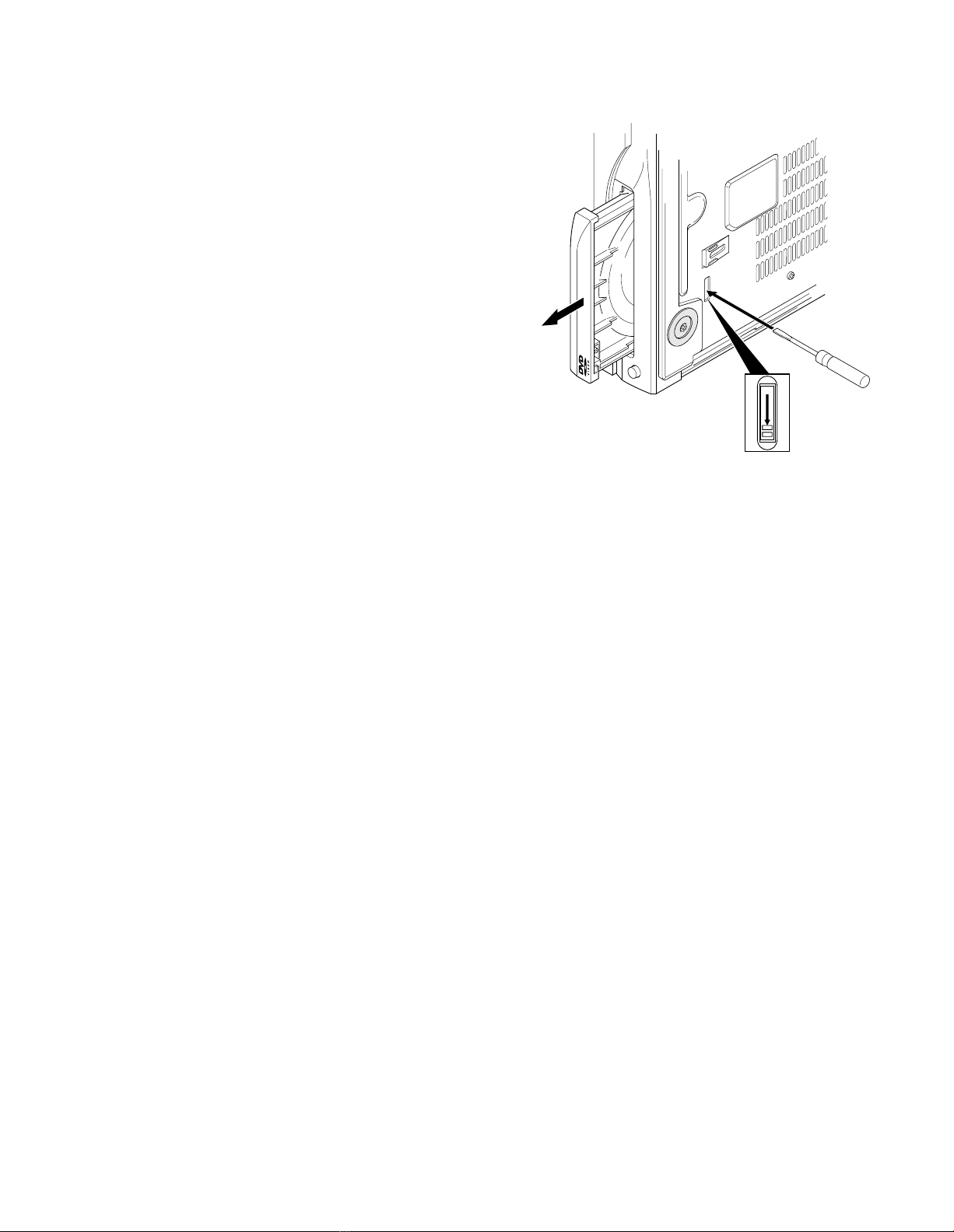

How to open the tray if it does not come out.

1. Insert a flat driver in the drawing through the hole on the loading

chassis bottom and pull the lever down.

2. Pull out the tray frontward by hand when it comes just out.

ACEG IBDFHJ

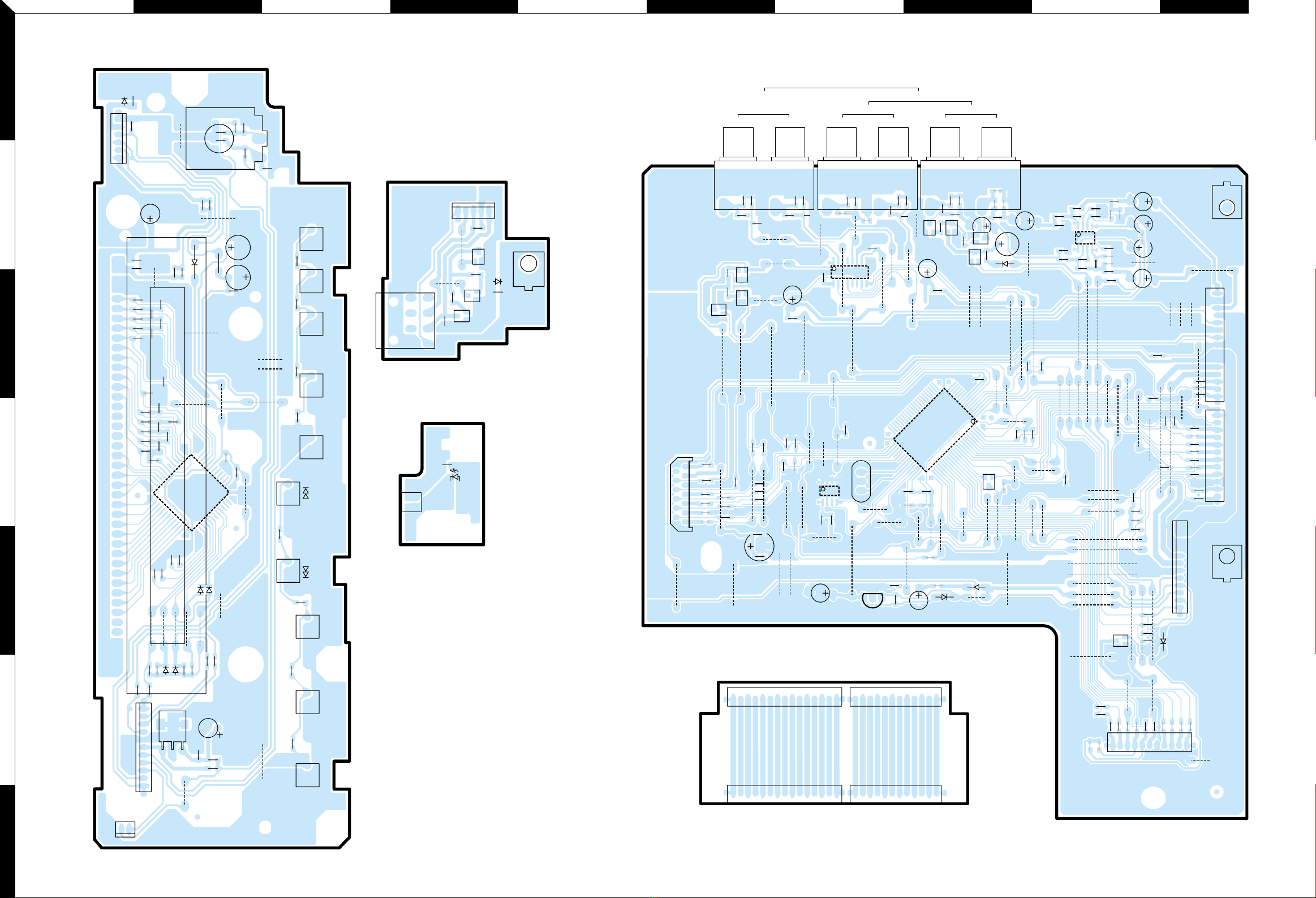

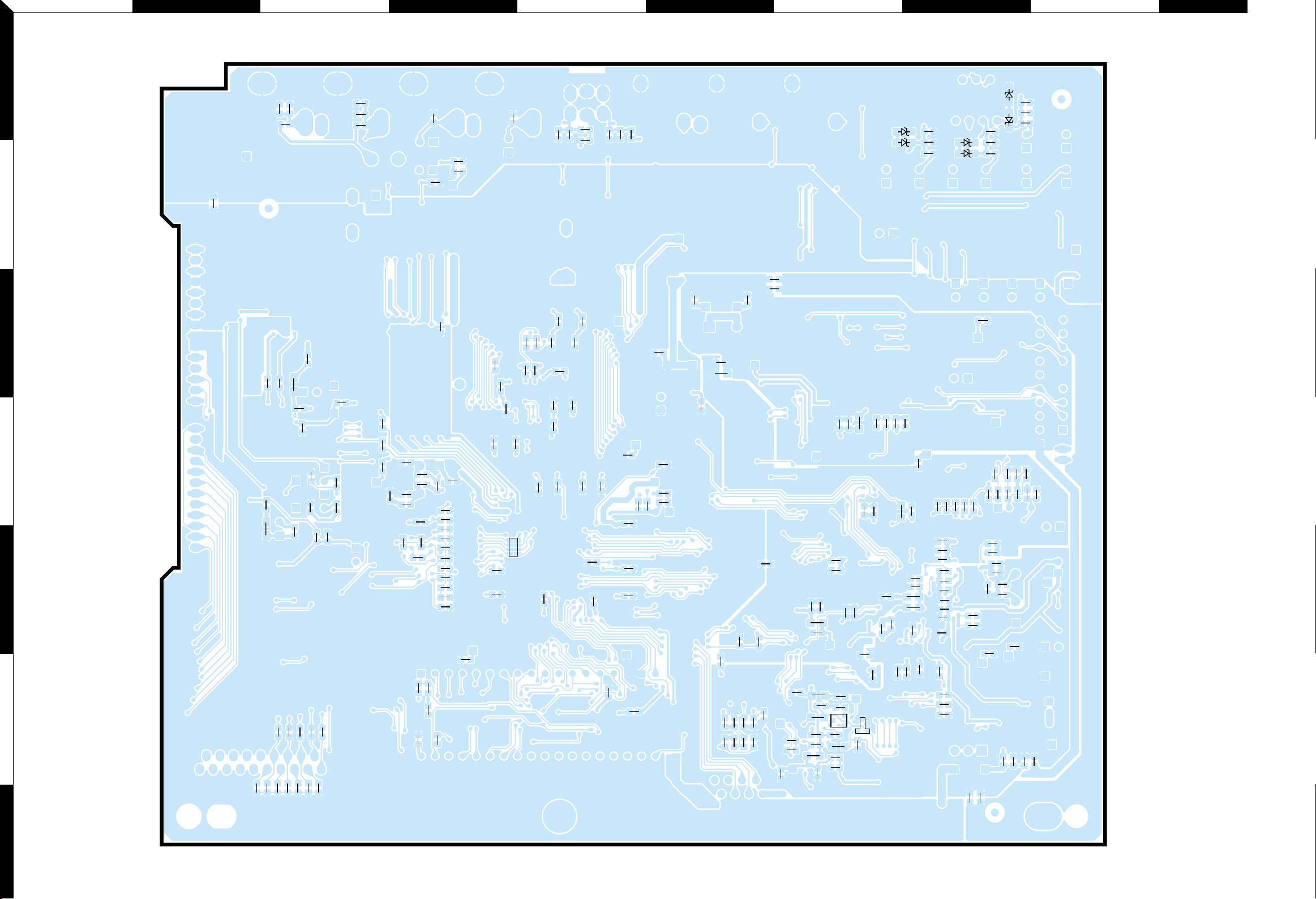

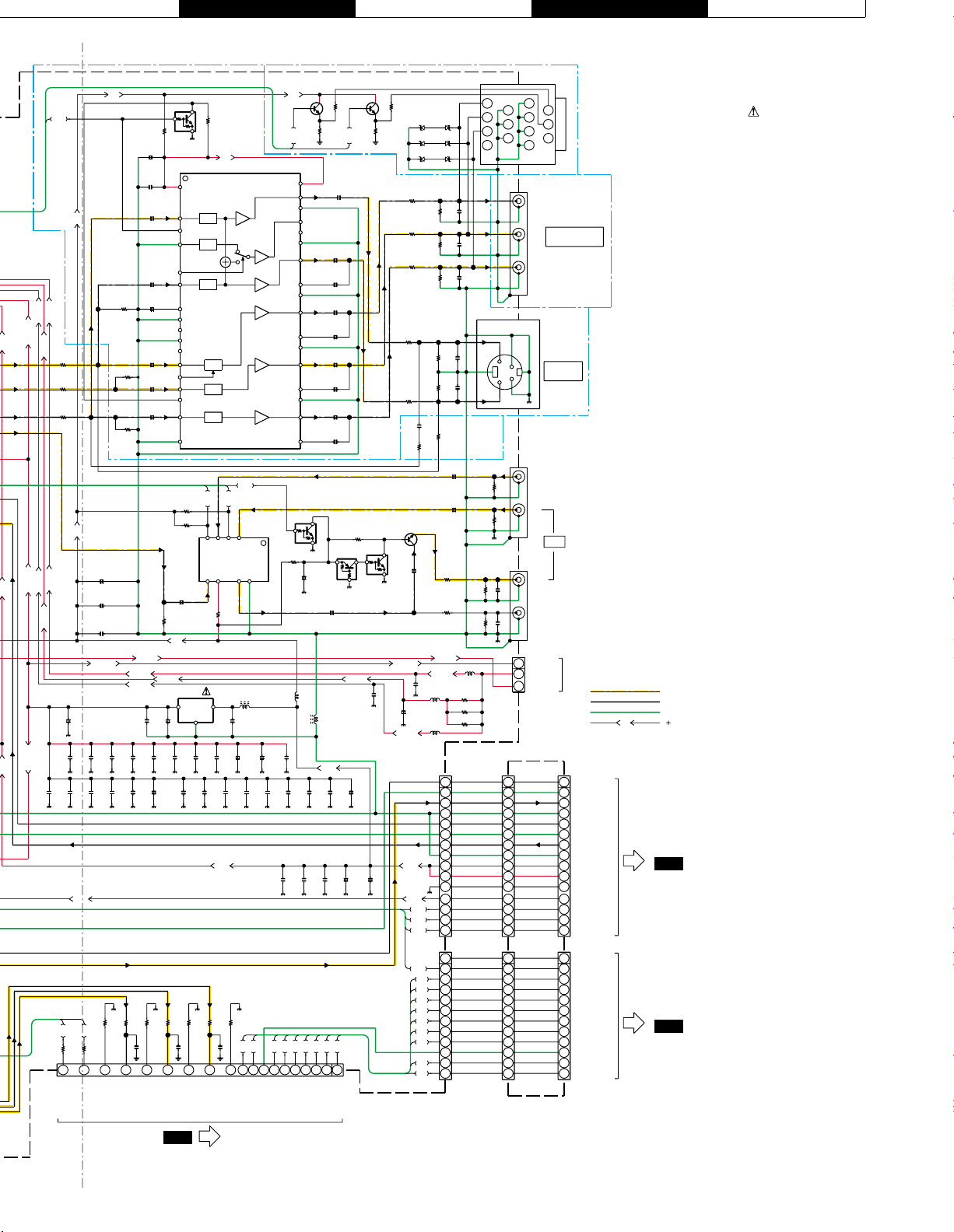

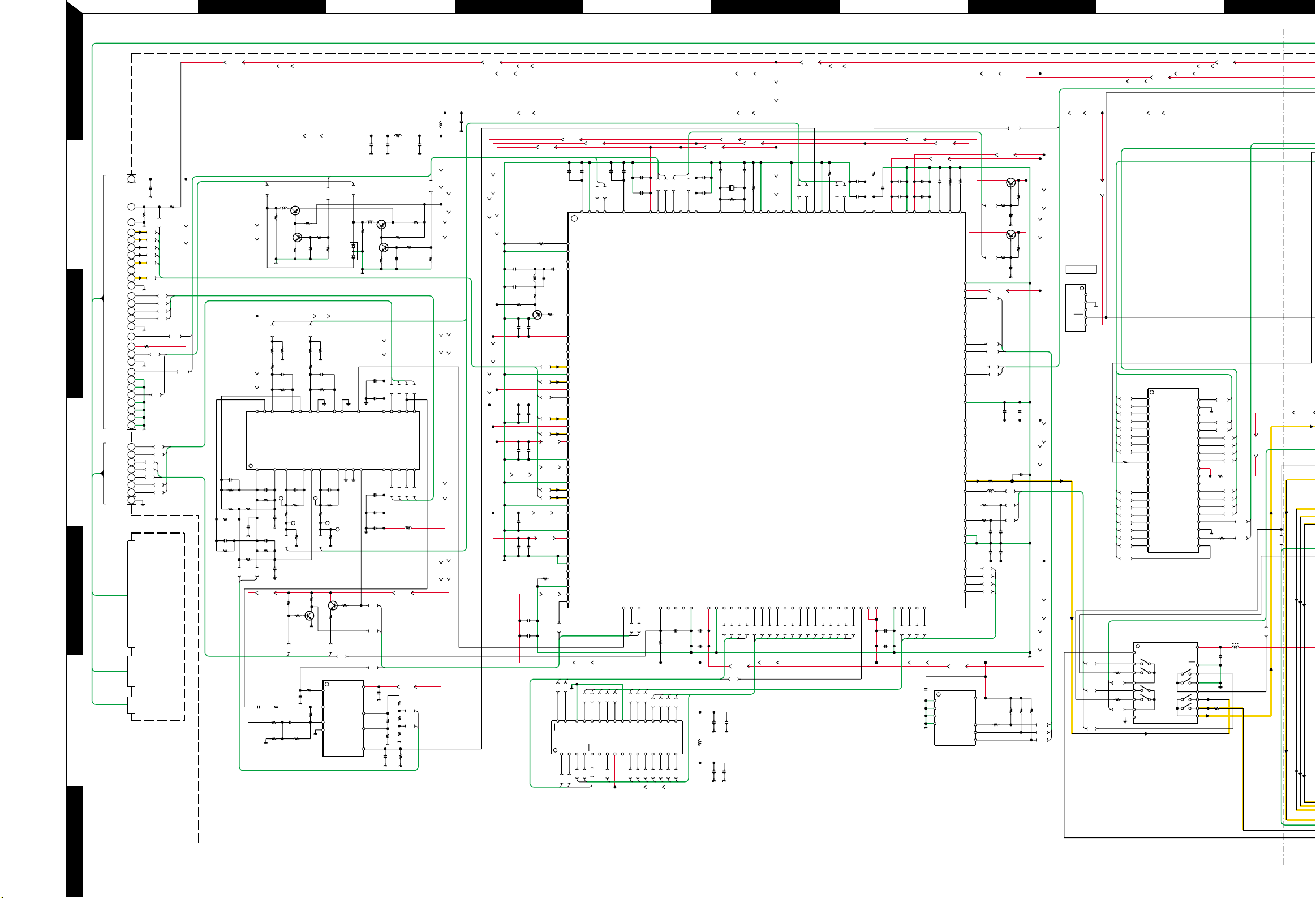

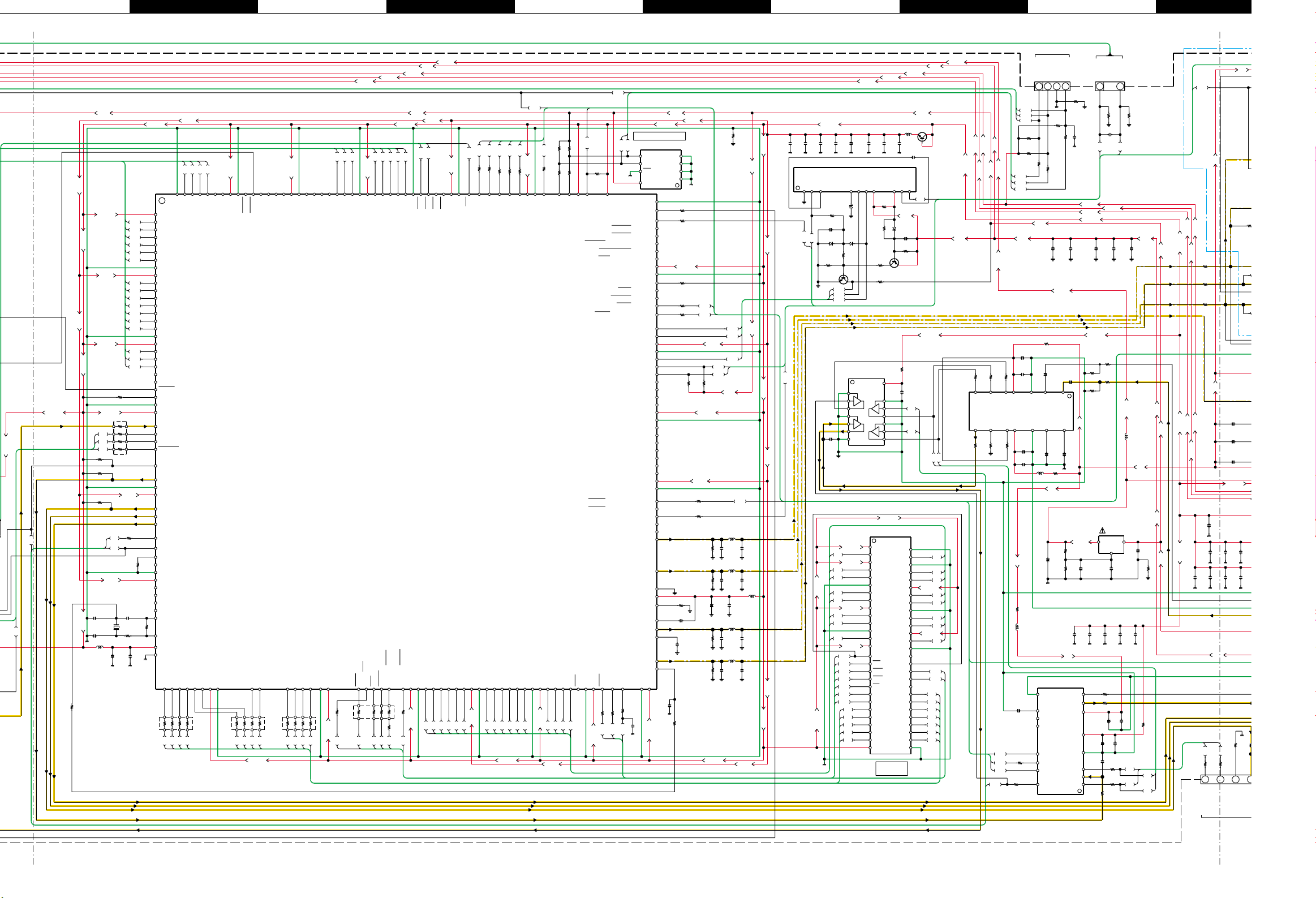

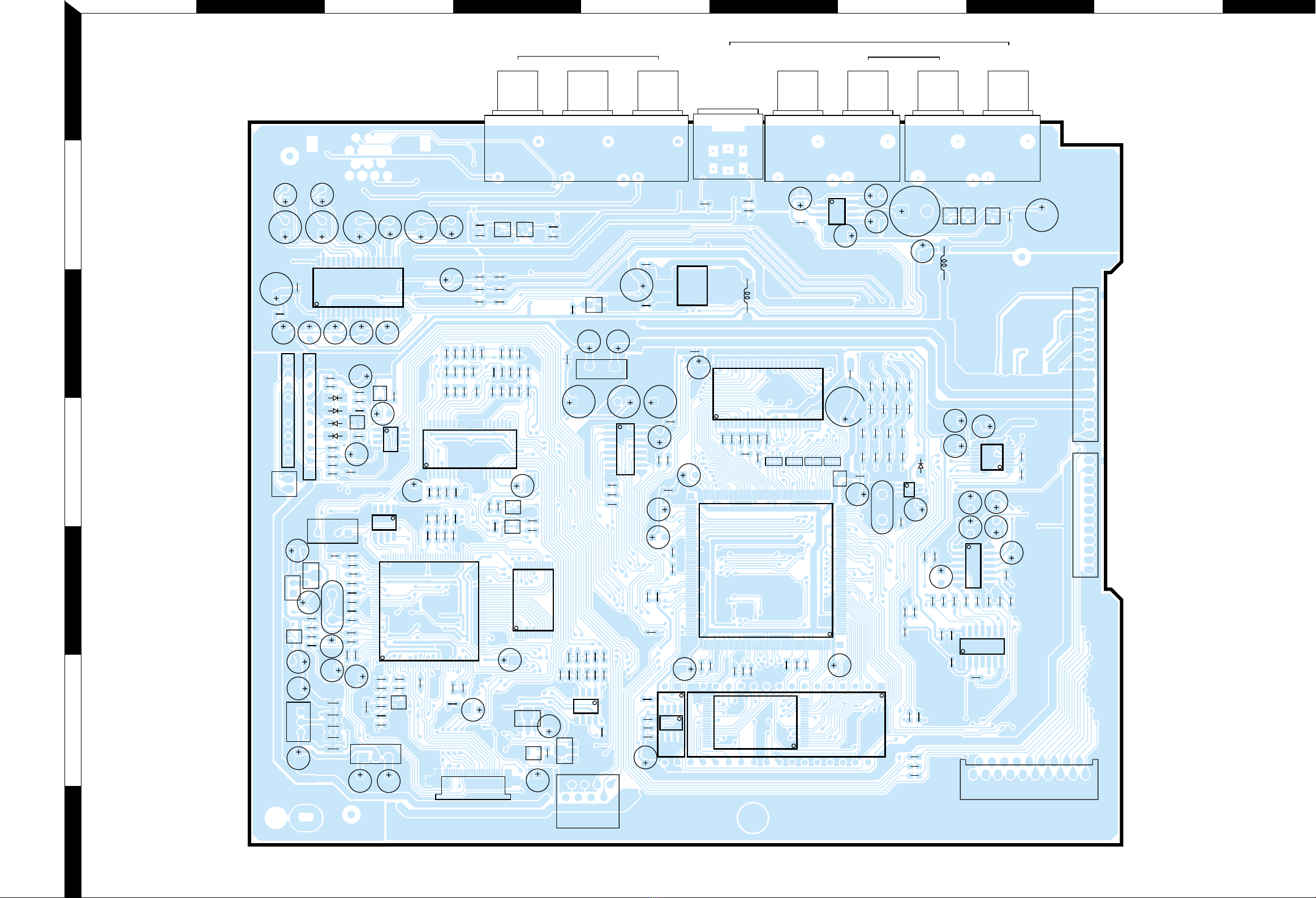

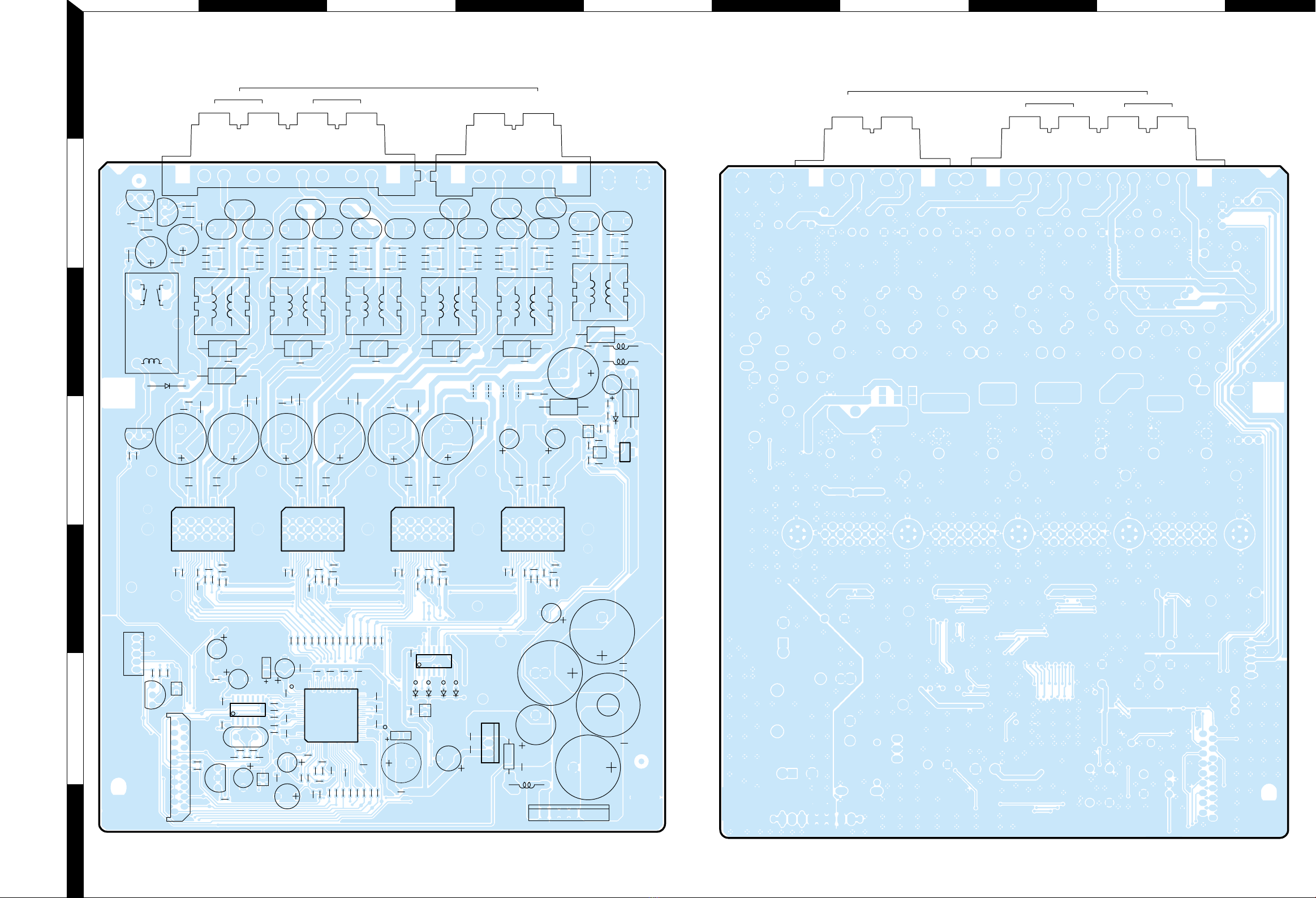

Refer to the schematic diagram for the value of resistors and capacitors.
