Kenroy Home RIVERSIDE Manuel utilisateur

USE AND CARE GUIDE

RIVERSIDESWINGARMCONVERTIBLELAMP-#32217

Questions,problems,missingparts?Beforereturningtothestore,

callKenroyHomeCustomerService

8a.m.-6p.m.,EST,Monday-Friday

904-642-4340

THANKYOU

Weappreciatethe trustandconfidence you have placedinKenroy Homethroughthepurchaseofthislamp.

We strivetocontinuallycreatequalityproductsdesignedtoenhance your home.

Thankyouforchoosingus!

TableofContents

SafetyInformation.......................................................................................................................................2

Warranty......................................................................................................................................................2

Pre-Installation............................................................................................................................................3

Planning Installation.............................................................................................................................3

PackageContents..................................................................................................................................4

Usingpowercordinstructions...............................................................................................................5,6,7

Outletbox installationinstructions.......................................................................................................8,9,10

CareandCleaning......................................................................................................................................11

Troubleshooting ..........................................................................................................................................11

SafetyInformation

Consulta qualifiedelectricianwithany

electricalquestionsyoumayhave.

Warranty

1-YEARLIMITEDWARRANTY

WHATISCOVERED

Themanufacturerwarrantsthislamptobefreefromdefectsinthematerialsandworkmanshipfora periodof

one(1)yearfromdateofpurchase.Thiswarrantyappliesonlytotheoriginalconsumerpurchaserandonlyto

productsusedinnormaluse.Ifthis productisfoundtobe defective,themanufacturer'sonlyobligation,and

yourexclusiveremedy,istherepairorreplacementoftheproductatthemanufacturer'sdiscretion,provided

thatthe producthasnotbeendamagedthroughmisuse,abuse,accident,modifications,alterations,neglector

mishandling.Thiswarrantyshallnotapplytoanyproductthatisfoundtohavebeenimproperlyinstalled,

assembled,orusedinanywaynotinaccordancewiththeinstructionssuppliedwiththe product.This

warrantyshallnotapplytoa failureoftheproductas aresultofanaccident,misuse,abuse,negligence,

alteration,faultyinstallation,oranyotherfailurenotrelatingtofaultymaterialorworkmanship.

WHATISNOTCOVERED

Thiswarrantyshallnotapplytothefinishonanyportionoftheproductduetoweathering,asthisis

considerednormalwear.Themanufacturerdoesnotwarrantandspecificallydisclaimsanywarranty,whether

expressedorimplied,otherthanthe warrantycontainedherein.Themanufacturerspecificallydisclaimsany

liabilityandshallnotbe liableforanyconsequentialorincidentallossordamage,includingbutnotlimited

to,anylabororexpensecosts involvedinthe replacementorrepairoftheproduct.

ContacttheCustomerServiceTeamat904-642-4340.

IMPORTANT:Inspectthewire insulationfor

anycuts,abrasions,orexposedcopperthatmay

haveoccurredduringshipping.Ifthereisa

defectinthe wire,do notcontinuethe assembly

process.PleasecallourCustomerServiceTeam

at904-642-4340.

Pre-Installation

PLANNINGINSTALLATION

Readallinstructionsbeforeassembly.

Toavoiddamagingthisproduct,assembleitonasoft,non-abrasivesurfacesuchas carpet

orcardboard.Inspecteachpartfordefectsthatmayhaveoccurredduringshipping.

Keepyourreceiptandtheseinstructionsforproofofpurchase.

NOTE: Thelamprequirestheuseofone 120V,60HZ,

100-Wattmax,medium-basetype A3-waybulb(notincluded).

Donotexceedtherecommendedwattage.

TOOLSREQUIRED

HARDWAREINCLUDED

NOTE:Hardwarenotshowntoactual size.

Safety

goggles Flathead

screwdriver

Phillips

screwdriver

Ladder Drill

AA BB CC

DD EE

Part

Description

Mounting plate

Wirenut

Outlet boxscrew

Mounting screw

Groundscrew

Quantity

Smallnut

HH II

Part Description Quantity

GG Ballfinial 2

HH Plasticanchor

II Woodscrew

Hole plug 1

Channel 1

Cordcover 2

Hammer

Pre-Installation(continued)

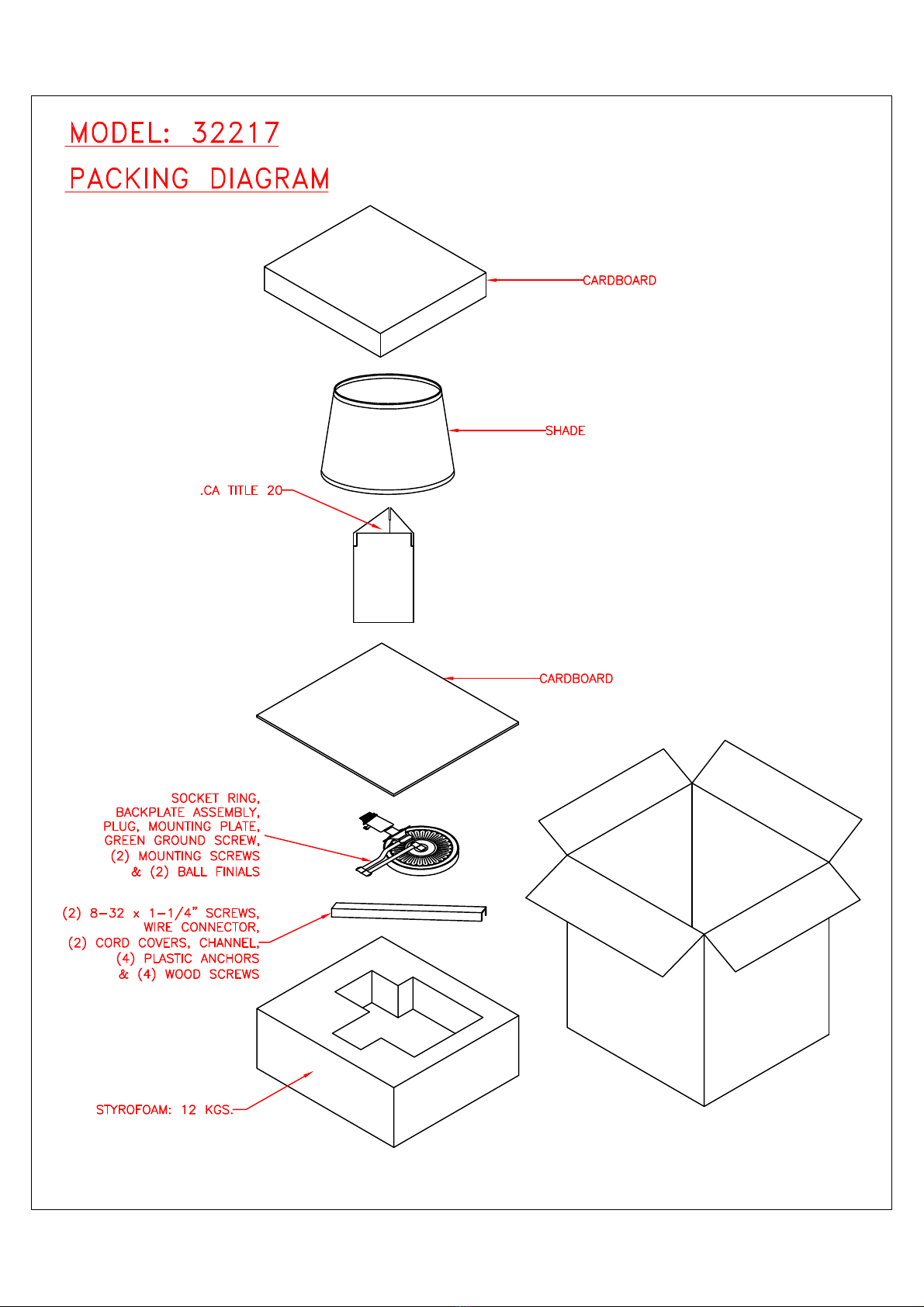

PACKAGECONTENTS

Socketring

Part Description Quantity

Shade

Lamp body

Usingpowercordinstructions

1. Unpack the lampand remove the mounting plate

Carefullyorganizeandplaceallpartsonasmooth,flatsurface.lineupallofthe parts according tothe

installationdiagram.

Removethemountingplate(BB)frombackofthebackplatebyunscrewingthetwoballfinials (GG).

NOTE:Ifusingpowercordfollowinstructions below.

Ifwiringto anoutletboxproceedtooutletboxinstallation instructions.

2. Installingthemounting plate

Position the lampbody(C)onthewallatdesiredlocationandmarktheplaceforthewoodscrews(II)

tobeinstalled.

Drillpilotholesonthemarkedspotsandinsertplasticanchors(HH).

(Iffasteningwithwoodscrews(II)tostuds, skipthisstep)

Attachthe mounting plate(BB)totheplasticanchors(HH)orthespotsthatyoumarkedonstuds and

securewithtwowoodscrews(II).

BB HHII

Backplate

Usingpowercordinstructions(continued)

3. Hanging the lampbody

Raisethelampbody (C)towall,aligntheholesinbackplatewiththemountingscrews (DD),andthen

securethebackplatetothewallwithtwoballfinials (GG).

4. Installing the cord cover

Optional,ifnotusingcordcoversskiptostep5.

Placethecordchannel(KK) onthewallandmarkthe holes.

Drillpilotholesonthemarkedspotsandinsertplasticanchors(HH).

(Iffasteningwithwoodscrews(II)tostuds,skipthisstep)

Attachthecordchannel(KK) tothewallandsecurewithtwowoodscrews(II).

Placecordinsidethecordchannel(KK) andpressthetwocordcovers(LL) firmlyon cordchannel(KK)

tosecure.

HH II

Backplate

5.Installingthe shade &bulb

Swingtheswingarm,iftheswingarmishardtoswingorhaveabnormalsound,puta dropofWD-40

orsimilarproducton the jointand letitsit overnight. drywitha soft cloth.

Removethesocketring(A)fromthesocketbyunscrewingthesocketring(A).

Placetheshade(B) overthesocketandsecurewiththesocketring (A).

Priortoinstallingthebulb,inspectsocketforsilicapacket.Ifpacketispresent,thenremoveandthrow

away.Donotexposeittochildrenorpets.

Installthe120V,60HZ,100-Wattmax.medium-basetype A3-waybulb(notincluded)intothesocket

ofthelightlamp.

Plugcordintoanoutletandturnonattheswitch.

Usingpowercordinstructions(continued)

Switch

Bulb

(not included)

Socket

Swingarm

Outletboxinstallationinstructions

2. Installingthemounting plate

CAUTION:Ensurethepowerisoffatthe

mainfuse box priortobeginning installation.

Turnoff the switchatthe wall.

Turnthepoweroffatthemainfusebox.

Screwgreengroundscrew(FF)ontomountingplate(BB),donottightenthegreengroundscrew(FF).

Attachthe mounting plate (BB)tothe outletbox and usetwooutletboxscrews(CC)tosecureit.

1. Removingthe powercord

Thepowercordisthewirethatentersthroughthebottomofthebackplate.

Removethe(2)wirenutsthatconnecttopowercordbytwistingcounterclockwise.(seediagram)

Removethesetscrewandpullpowercordoutthroughbottomofbackplate.

Removethegrommetandusetheholeplug(JJ)tocovertheholeinbackplate.

Ground wire

Grommet

Wirenut

(remove)

Backplate

Setscrew

(remove)

Wirenut

(remove)

Power cord

Holeplug(JJ)

Outletboxinstallationinstructions(continued)

3. Connectingthe wires

Install the fixture bare wire (1)underthegreengroundscrew(FF)onthemountingplate(BB).

Connectthe fixture bare wire (1)tothe green(orbare, orgreen& yellow)supplyground wire (2)

intheoutletboxusingawirenut(AA).

Connectthewhitefixture wire (3)tothe white (orribbed)supplywire (4)inthe outletbox using a wire

nut(AA).

Connecttheblackfixture wire (5)tothe black(orred, orblue)supplywire (6)inthe outletbox using a

wire nut(AA).

4. Hanging the lampbody

Raisethelampbody (C)towall,aligntheholesinbackplatewiththemountingscrews (DD),andthen

securethebackplatetothewallwithtwoballfinials (GG).

AA 41

AA AA Housewire

black

(orred,orblue)

(HOT)

Fixturewire

black

(HOT)

Housewire

white

(NEUTRAL)

Fixturewire

white

(NEUTRAL)

Housewire

green

(orbarewire,

orgreen&yellow)

(GROUND)

Fixturewire

barewire

(GROUND)

Backplate

DD BB
