Quick Start & Install Guide

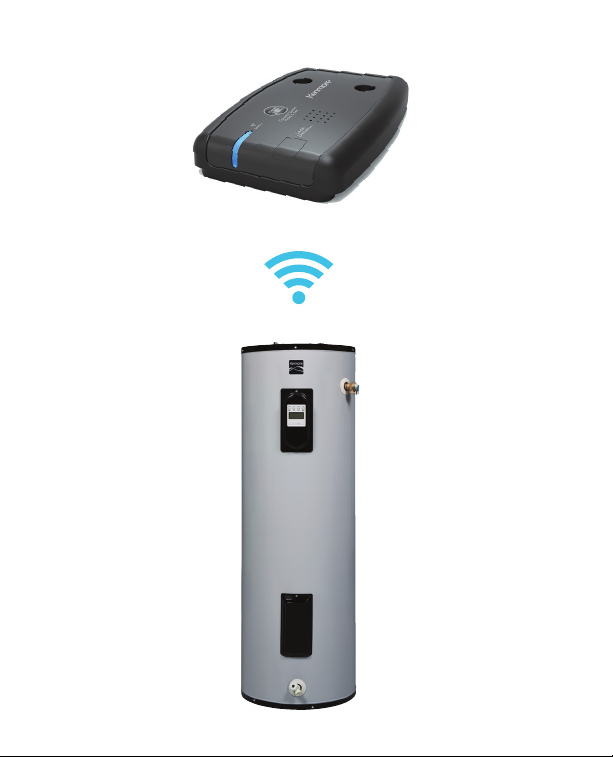

Smart Water Heater Module

To get started,

you need your

Kenmore®Smart Water Heater Module

With Leak Detection Module (included),

A Kenmore®Connected Ready Water Heater,

A wireless router with working internet connection

and a smartphone.

It’s easy!

• Kenmore®Smart Water Heater Module

with Leak Detector

• Home router with internet access

• iOS or Android smartphone

• #2 Phillips screwdriver, and

• One of these Kenmore®water heater models (as listed on the

water heater’s rating label):

153.582400, 153.582500, 153.589400,

153.589500, 153.592500, 153.592600,

or 153.592800

• Kenmore® Smart Water Heater Use

and Care Guide

Before you start the installation,

here is what you will need:

Preparation

Note the locations of the various key features of

the Kenmore®Smart Water Heater Module:

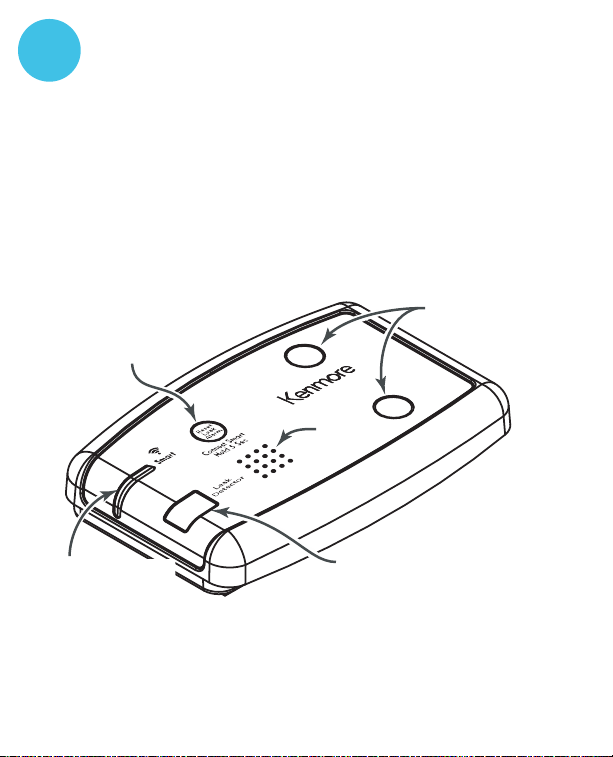

Figure 1

Control Button:

• Connect Smart

• Leak Detector Reset

Beeper

Leak Sensor Plug Cover

Clearance Holes for

Mounting Screws (2)

Smart Connected

Status LED

1Preparation

(Cont’d)

Install the Smart

Water Heater Module

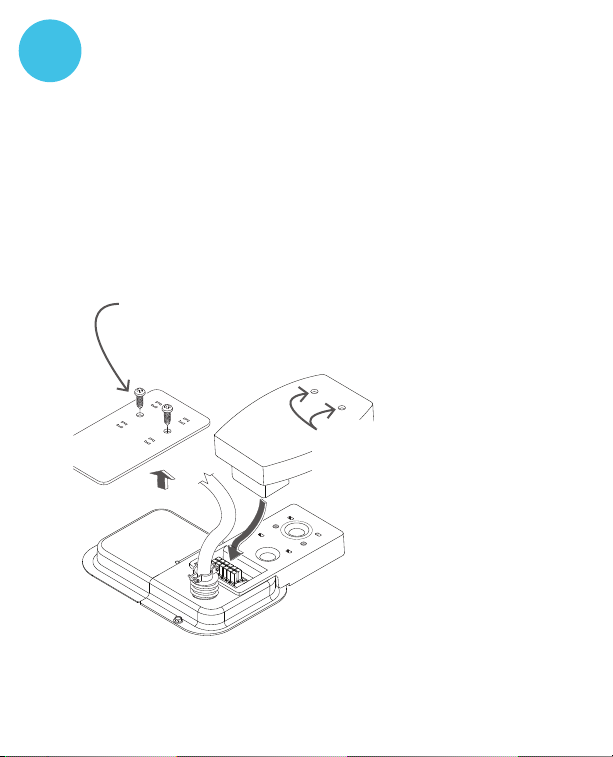

Step 2: Remove access cover. Discard screws.

Longer screws are provided.

Cover

Access

Module

Step 3: Plug in module.

Step 4: Secure the

module with the

longer screws that

are provided (2).

NOTICE: Do not turn power on unless screws are installed as described in Step

4 above. Screws must be installed to prevent equipment damage.

Figure 2: Top of Heater

Step 1: Turn power oﬀat source (circuit breaker).

If you have a smart electric water heater, follow these steps:

Step 5:

Go to Section 3.

WARNING! Working on an energized circuit can result in severe injury or

death from electrical shock. Turn power oﬀbefore performing this installation.

Check wires with a non-contact circuit tester to make sure power is oﬀ.

If you have a heat pump water heater, follow these steps:

Step 2: Remove plug access cover. Discard screws.

Longer screws are provided.

Step 3: Plug in module.

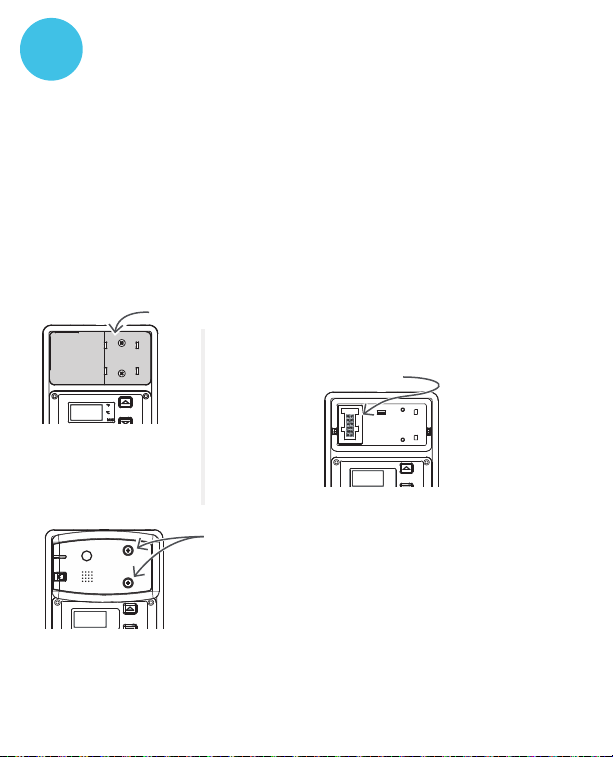

Figure 3:

Control panel shown;

Located on front of

water heater.

Step 1: Turn power oﬀat source (circuit breaker).

Step 4: Secure the module with

the longer screws that are

provided (2).

Step 5. Go to Section 3.

NOTICE: Do not turn power on unless screws are installed as described in

Step 4 above. Screws must be installed to prevent equipment damage.

Install the Smart

Water Heater Module

(Cont’d)

Install the Leak Sensor

Step 1: Remove the leak sensor plug cover. See Figure 1.

Step 2: Plug the sensor’s connector into the module.

See Figure 4.

Step 3: Peel the backing oﬀof the sensor’s adhesive tape (located

on the back of the sensor).

IMPORTANT: The sensor must be mounted to a surface

that is clean and dry.

Step 4: Secure the sensor to the bottom edge of the water heater

or the inside rim of the drain pan (Figure 4). Be sure that

the two metal pins (opposite the wires) are placed slightly

above the ﬂoor of the drain pan. For the sensor to work

properly, the extensions must be located where water will

ﬁll the gap between them.

Step 5: Peel the backing oﬀthe tape on one of the wire clips.

Attach the clip to the water heater, close to the leak

sensor, as shown in Figure 4. Open the clip, insert the

wires, then close the clip.

Repeat at the middle of the water heater, then at the top

(near the module).

NOTE: The wire clips must be mounted to a surface that is

clean and dry.

Sensor

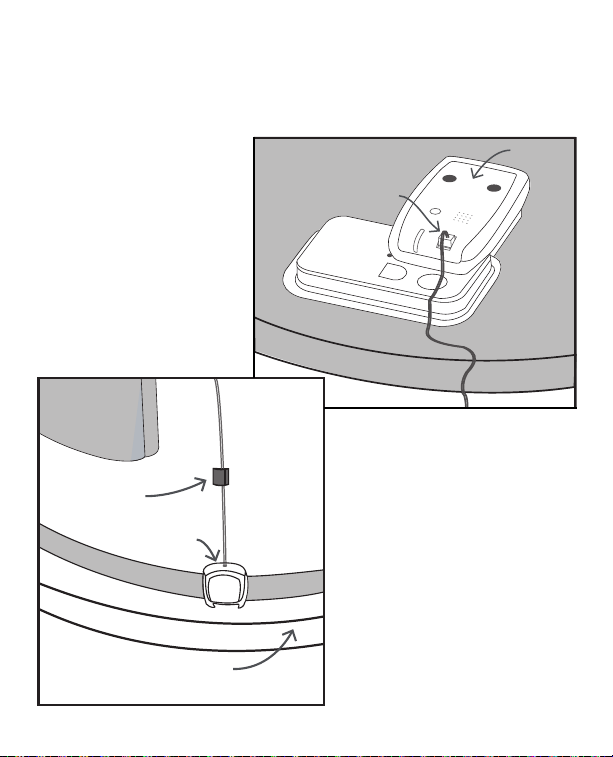

Figure 4:

Leak Sensor

Installation

• IMPORTANT: Read

the instructions before

attaching the sensor.

• Figure shows installation

on a smart electric water

heater. Use the same

procedure for a heat

pump water heater.

Install sensor plug.

Suitable Drain Pan

Wire Clip

Module

If you are installing the Kenmore®

Smart Water Heater Module on one

of these models, turn your water

heater on according to its use and

care guide, then go to Section 5:

• 153.582400

• 153.582500

• 153.592500

• 153.592600

• 153.592800

If you are installing the module on

model 153.589400 or 153.589500,

turn your water heater on according

to its use and care guide, then go to

Section 6.

Turn on Power
