Kenmore 4048 - Pro 29.5 cu. Ft Manuel utilisateur

rlrM

MOflel

401.40483800

S|DE-BY-SIDE

REFRIGERATOR

Always consult the Use & Care Guide

for more operating information.

86002-2008 085 JR

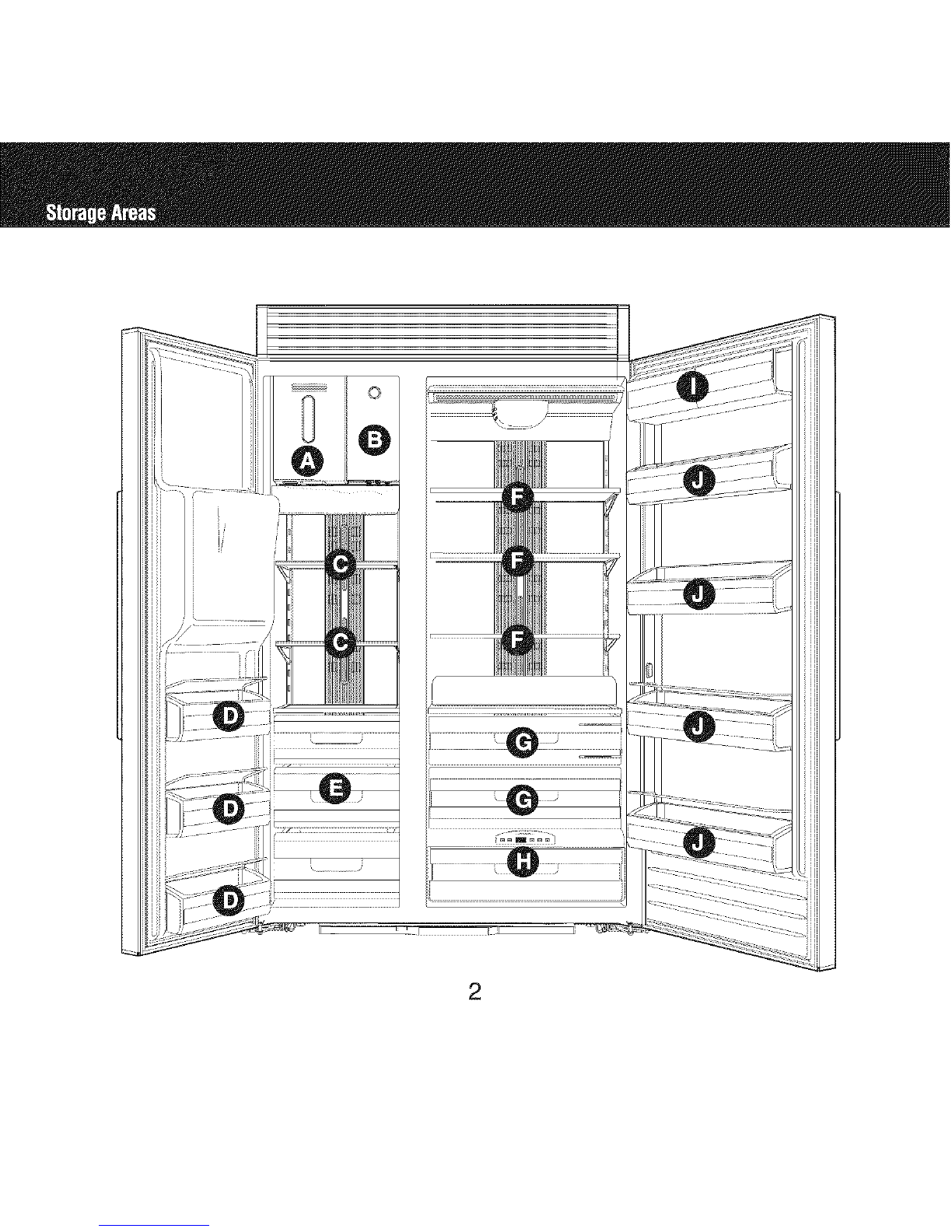

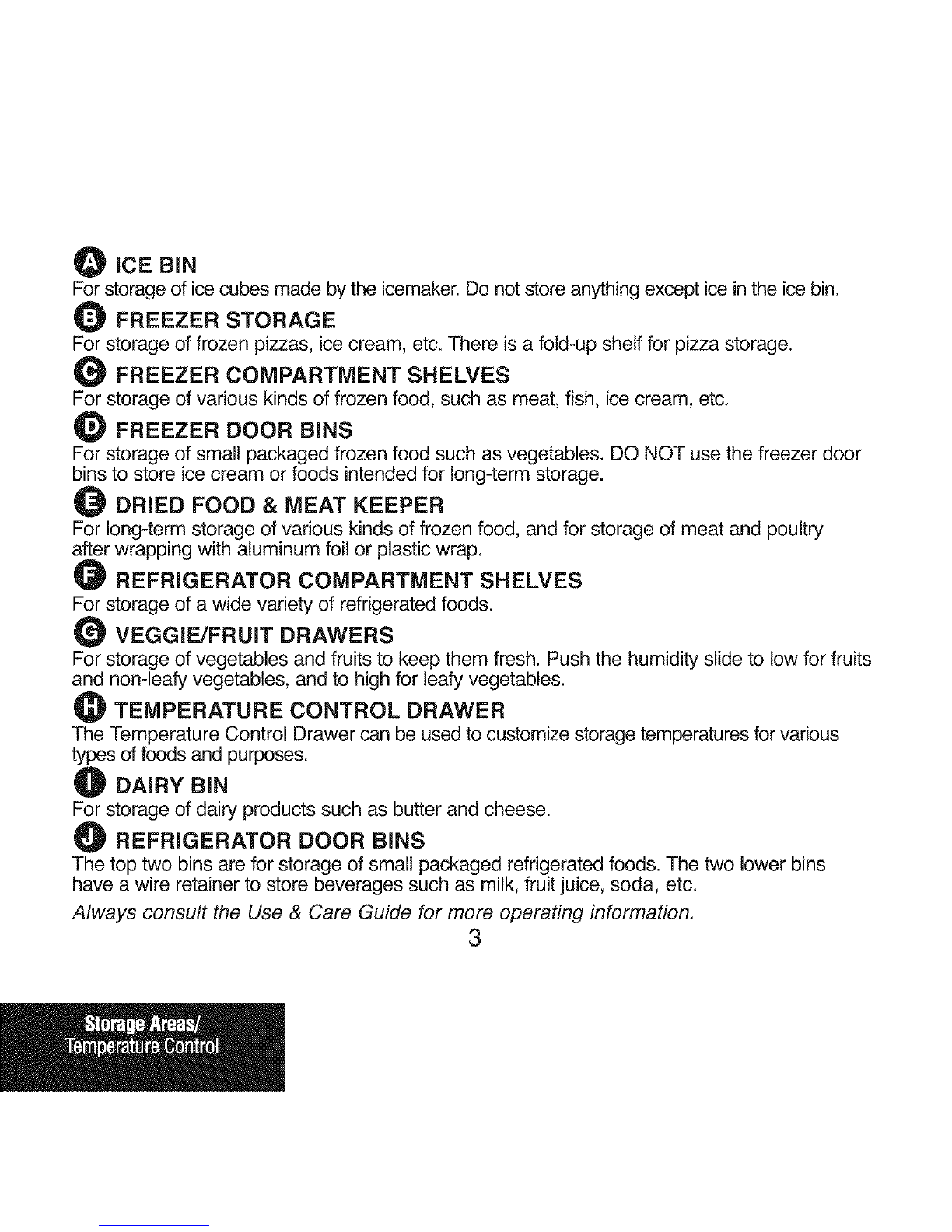

OiCE BiN

For storage of ice cubes made by the icemaker. Do not store anything except ice inthe ice bin.

OFREEZER STORAGE

For storage of frozen pizzas, ice cream, etc. There is a fold-up shelf for pizza storage.

FREEZER COMPARTMENT SHELVES

For storage of various kinds of frozen food, such as meat, fish, ice cream, etc.

FREEZER DOOR BINS

For storage of small packaged frozen food such as vegetables. DO NOT use the freezer door

bins to store ice cream or foods intended for long-term storage.

DRIED FOOD & MEAT KEEPER

For long-term storage of various kinds of frozen food, and for storage of meat and poultry

after wrapping with aluminum foil or plastic wrap.

REFRIGERATOR COMPARTMENT SHELVES

For storage of a wide variety of refrigerated foods.

@ VEGGIF_./FRUIT DRAWERS

For storage of vegetables and fruits to keep them fresh. Push the humidity slide to low for fruits

and non-leafy vegetables, and to high for leafy vegetables.

TEMPERATURE CONTROL DRAWER

The Temperature Control Drawer can be used to customize storage temperatures for various

types offoods and purposes.

ODAIRY BiN

For storage of dairy products such as butter and cheese.

OREFRIGERATOR DOOR BINS

The top two bins are for storage of small packaged refrigerated foods. The two lower bins

have a wire retainer to store beverages such as milk, fruit juice, soda, etc.

Always consult the Use & Care Guide for more operating information.

Gauge

Display ---- _

Freezer Fridge

Temp. Rapid Ice Cubed Crushed Water Filter Light Lock Temp.

,! (Hold _s_cl

- Gauge

-------- Display

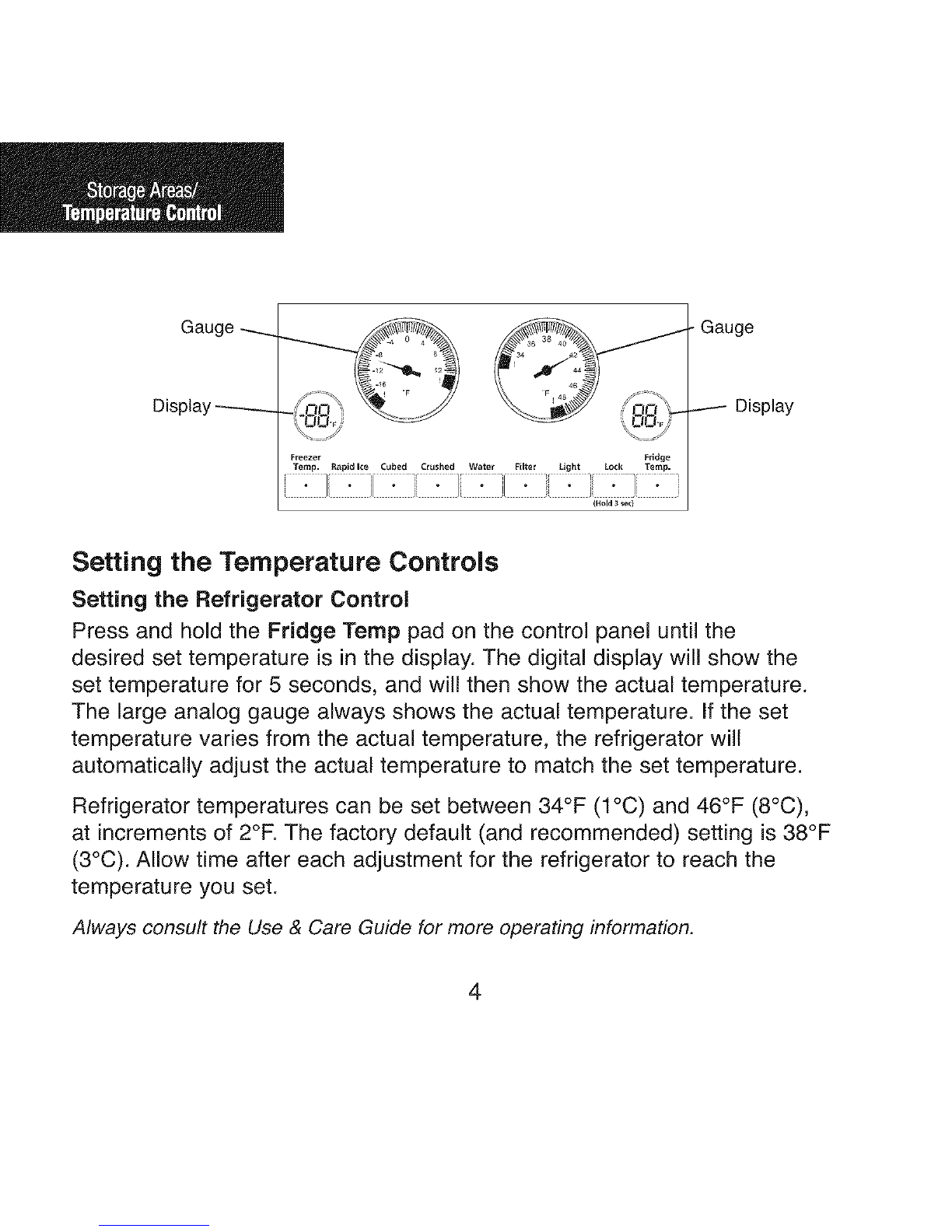

Setting the Temperature Controls

Setting the Refrigerator Control

Press and hold the Fridge Temp pad on the control panel until the

desired set temperature is in the display. The digital display will show the

set temperature for 5 seconds, and will then show the actual temperature.

The large analog gauge always shows the actual temperature. If the set

temperature varies from the actual temperature, the refrigerator will

automatically adjust the actual temperature to match the set temperature.

Refrigerator temperatures can be set between 34°F (1°C) and 46°F (8°C),

at increments of 2°R The factory default (and recommended) setting is 38°F

(3°C) Allow time after each adjustment for the refrigerator to reach the

temperature you set.

Always consult the Use & Care Guide for more operating information.

Gauge _ Gauge

Display .... \-TY \-CY

Freezer Fridge

Temp. Rapid ke Cubed Crushed Water Filter Light Lock Temp. I

(Hold 3_ecl

I Display

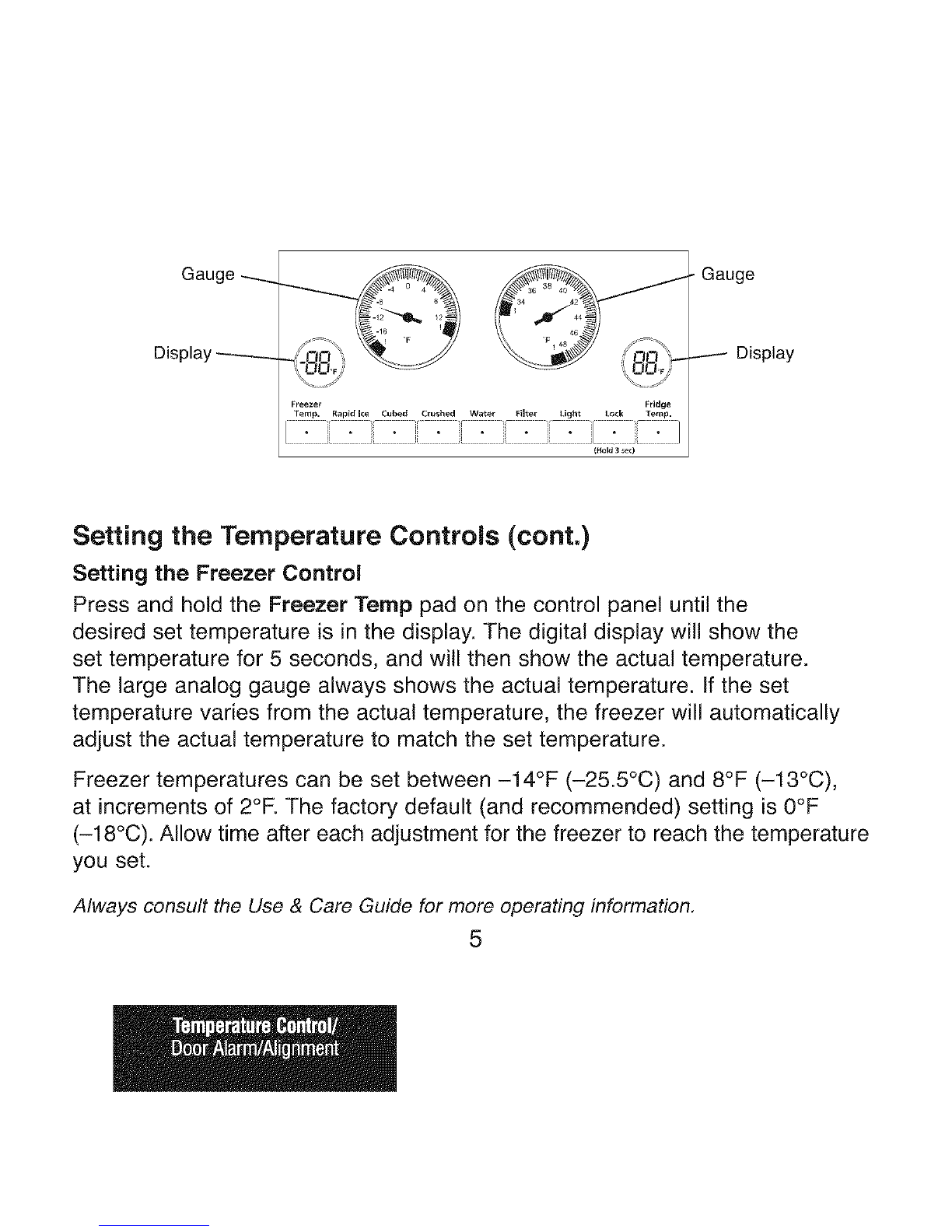

Setting the Temperature Controls (cont.)

Setting the Freezer Control

Press and hold the Freezer Temp pad on the control panel until the

desired set temperature is in the display. The digital display will show the

set temperature for 5 seconds, and will then show the actual temperature.

The large analog gauge always shows the actual temperature. If the set

temperature varies from the actual temperature, the freezer will automatically

adjust the actual temperature to match the set temperature.

Freezer temperatures can be set between -14°F (-25.5°C) and 8°F (-13°C),

at increments of 2°F. The factory default (and recommended) setting is 0°F

(-18°C). Allow time after each adjustment for the freezer to reach the temperature

you set.

Always consult the Use & Care Guide for more operating information,

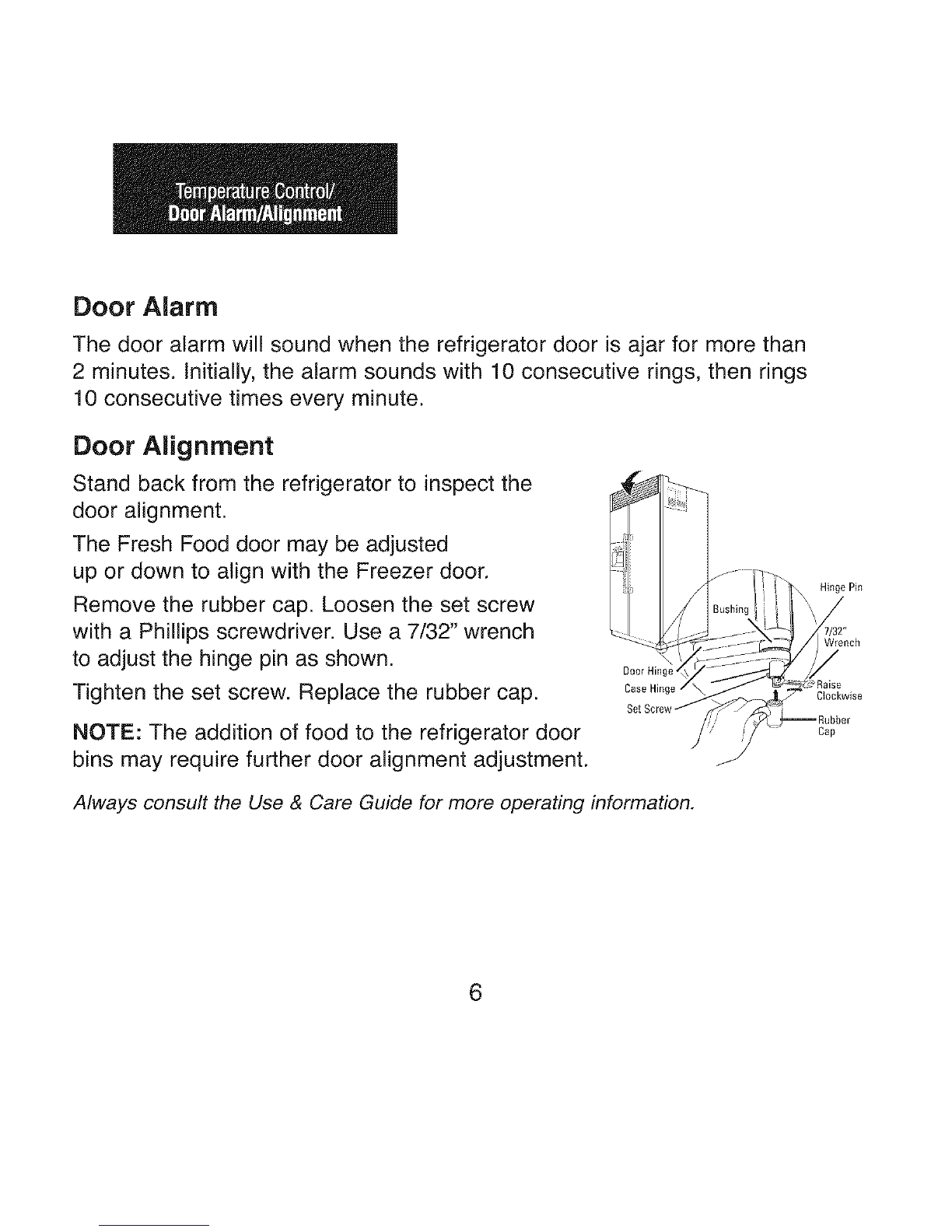

Door Alarm

The door alarm will sound when the refrigerator door is ajar for more than

2 minutes. Initially, the alarm sounds with 10 consecutive rings, then rings

10 consecutive times every minute.

Door Alignment

Stand back from the refrigerator to inspect the

door alignment.

The Fresh Food door may be adjusted

up or down to align with the Freezer door.

Remove the rubber cap. Loosen the set screw

with a Phillips screwdriver. Use a 7/32" wrench

to adjust the hinge pin as shown.

Tighten the set screw. Replace the rubber cap.

NOTE: The addition of food to the refrigerator door

bins may require further door alignment adjustment.

Case Hinge

Set Screw /

/.....

Bushin

Always consult the Use & Care Guide for more operating information.

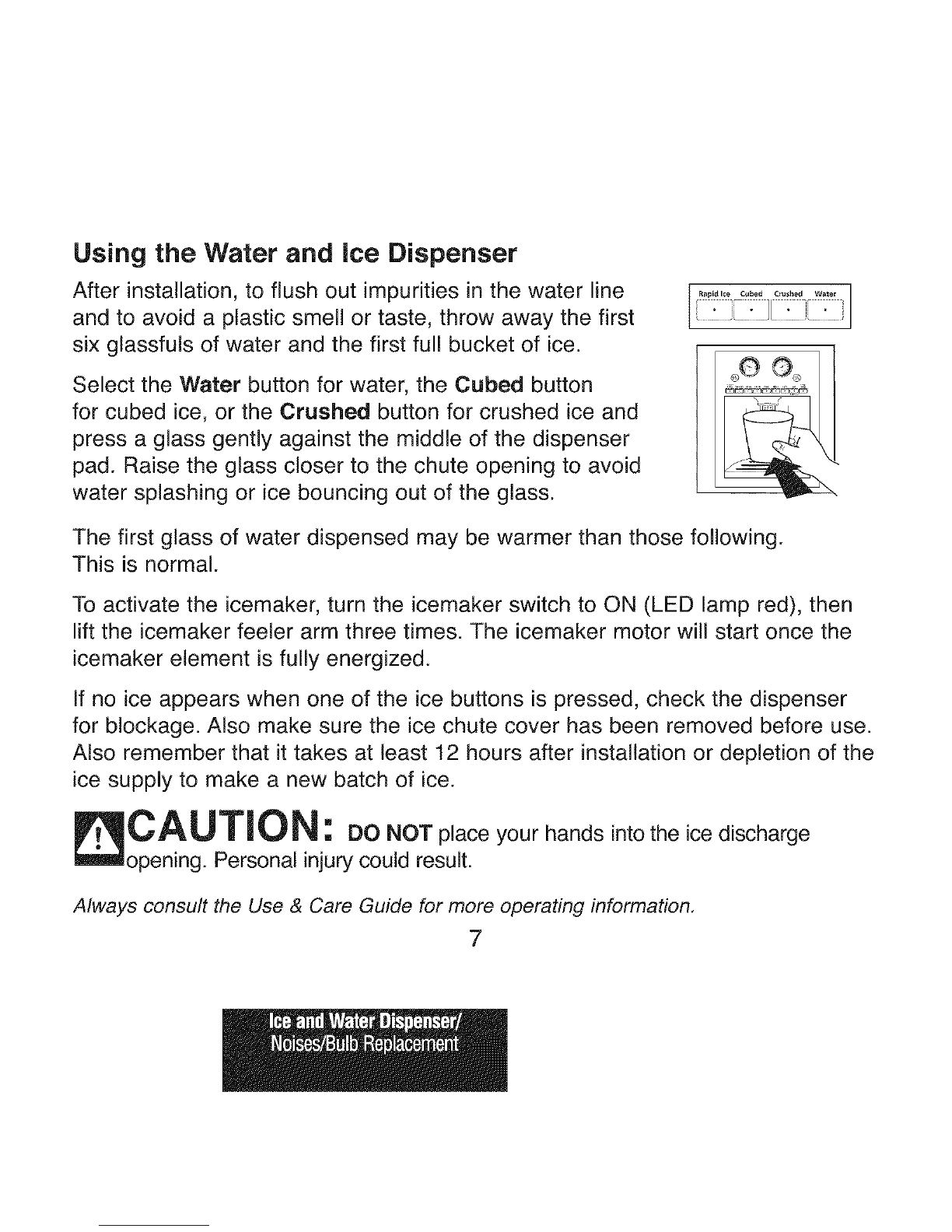

Using the Water and ice Dispenser

After installation, to flush out impurities in the water line

and to avoid a plastic smell or taste, throw away the first

six glassfuls of water and the first full bucket of ice.

Select the Water button for water, the Cubed button

for cubed ice, or the Crushed button for crushed ice and

press a glass gently against the middle of the dispenser

pad. Raise the glass closer to the chute opening to avoid

water splashing or ice bouncing out of the glass.

............][............

The first glass of water dispensed may be warmer than those following.

This is normal.

To activate the icemaker, turn the icemaker switch to ON (LED lamp red), then

lift the icemaker feeler arm three times. The icemaker motor will start once the

icemaker element is fully energized.

If no ice appears when one of the ice buttons is pressed, check the dispenser

for blockage. Also make sure the ice chute cover has been removed before use.

Also remember that it takes at least 12 hours after installation or depletion of the

ice supply to make a new batch of ice.

CAUTION: DO NOT place your hands into the icedischarge

opening. Personal injurycould result.

Always consult the Use & Care Guide for more operating information,

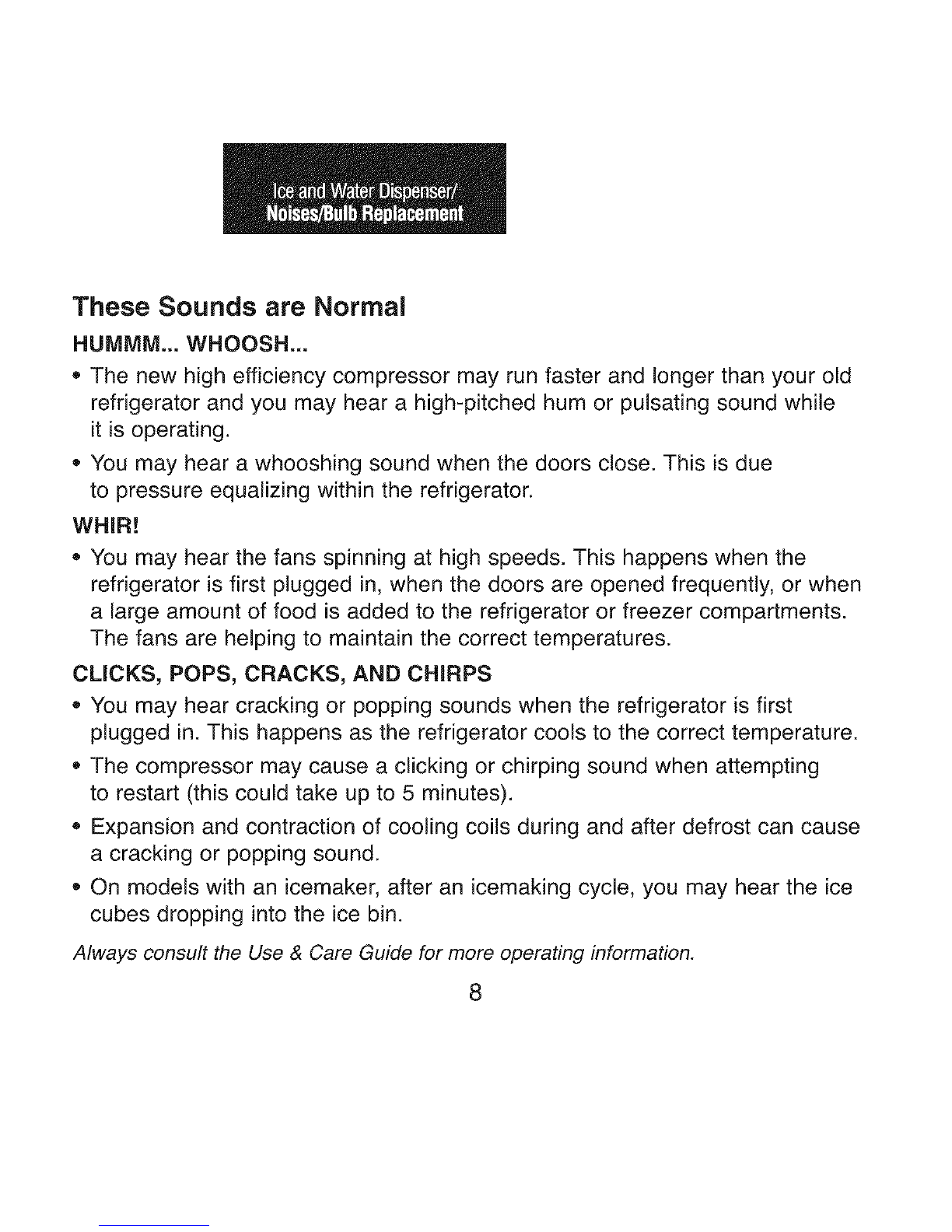

These Sounds are Normal

HUMMM... WHOOSH...

• The new high efficiency compressor may run faster and longer than your old

refrigerator and you may hear a high-pitched hum or pulsating sound while

it is operating.

= You may hear a whooshing sound when the doors close. This is due

to pressure equalizing within the refrigerator.

WHIR!

= You may hear the fans spinning at high speeds. This happens when the

refrigerator is first plugged in, when the doors are opened frequently, or when

alarge amount of food is added to the refrigerator or freezer compartments.

The fans are helping to maintain the correct temperatures.

CLICKS, POPS, CRACKS, AND CHIRPS

• You may hear cracking or popping sounds when the refrigerator is first

plugged in. This happens as the refrigerator cools to the correct temperature.

• The compressor may cause a clicking or chirping sound when attempting

to restart (this could take up to 5 minutes).

• Expansion and contraction of cooling coils during and after defrost can cause

a cracking or popping sound.

•On models with an icemaker, after an icemaking cycle, you may hear the ice

cubes dropping into the ice bin.

Always consult the Use & Care Guide for more operating information.

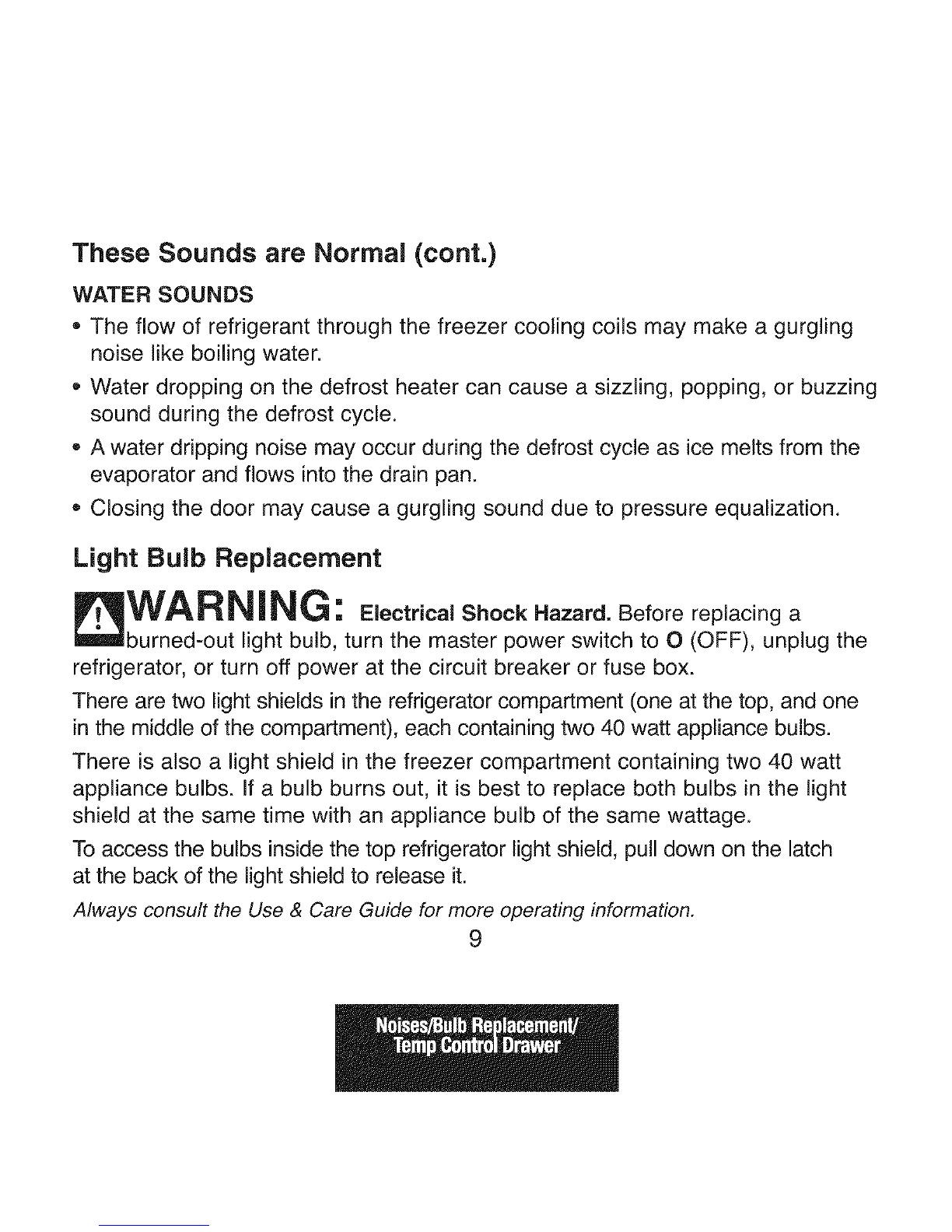

These Sounds are Normal (cont.)

WATER SOUNDS

•The flow of refrigerant through the freezer cooling coils may make a gurgling

noise like boiling water.

•Water dropping on the defrost heater can cause a sizzling, popping, or buzzing

sound during the defrost cycle.

•A water dripping noise may occur during the defrost cycle as ice melts from the

evaporator and flows into the drain pan.

•Closing the door may cause a gurgling sound due to pressure equalization.

Light Bulb Replacement

WARNING: ElootrioalS.oo..oz rd.Beforereplacing a

burned-out light bulb, turn the master power switch to O (OFF), unplug the

refrigerator, or turn off power at the circuit breaker or fuse box.

There are two light shields inthe refrigerator compartment (one at the top, and one

in the middle of the compartment), each containing two 40 watt appliance bulbs.

There is also a light shield in the freezer compartment containing two 40 watt

appliance bulbs, if a bulb burns out, it is best to replace both bulbs in the light

shield at the same time with an appliance bulb of the same wattage.

To access the bulbs inside the top refrigerator light shield, pull down on the latch

at the back of the lightshield to release it.

Always consult the Use & Care Guide for more operating information.

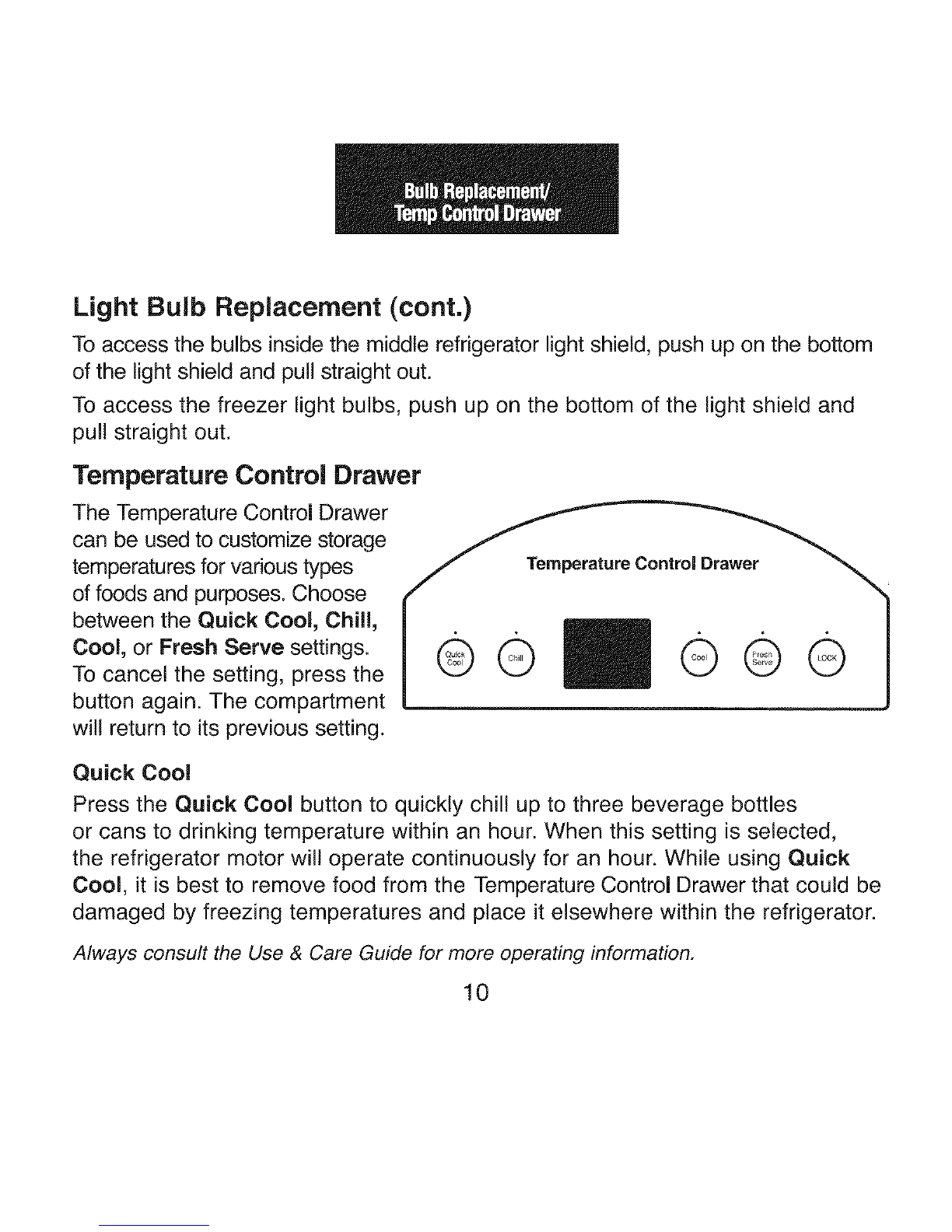

Light Bulb Replacement (cont.)

To access the bulbs insidethe middle refrigerator light shield, push up on the bottom

of the light shield and pull straight out.

To access the freezer light bulbs, push up on the bottom of the light shield and

pull straight out.

Temperature Control Drawer

The Temperature Control Drawer

can be used to customize storage

temperatures for various types

of foods and purposes. Choose

between the Quick Cool, Chill,

Cool, or Fresh Serve settings.

To cancel the setting, press the

button again. The compartment

will return to its previous setting.

Quick Cool

Press the Quick Cool button to quickly chill up to three beverage bottles

or cans to drinking temperature within an hour. When this setting is selected,

the refrigerator motor will operate continuously for an hour. While using Quick

Cool, it is best to remove food from the Temperature Control Drawer that could be

damaged by freezing temperatures and place it elsewhere within the refrigerator.

Always consult the Use & Care Guide for more operating information.
