Kenmore 240-volt compact electric dryers Instructions originales

Owner's Manual and

Installation Instructions

240-Volt

COMPACT

ELECTRIC DRYERS

IMPORTANT:

Read and follow all safety

and operating instructions

before first use of this product.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

PARTNO. 3406896 PRINTED iN U.S.A.

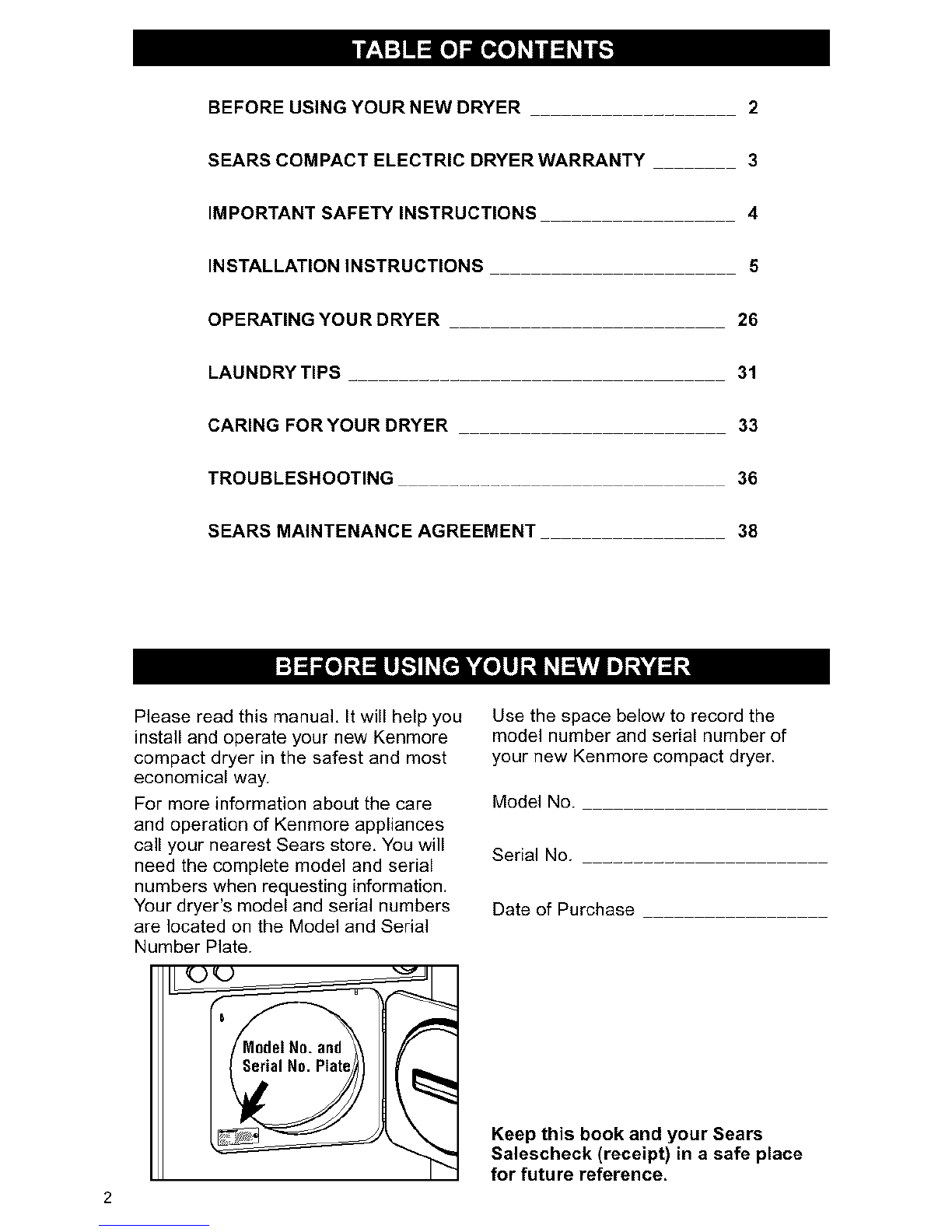

BEFORE USING YOUR NEW DRYER 2

SEARS COMPACT ELECTRIC DRYER WARRANTY 3

IMPORTANT SAFETY INSTRUCTIONS 4

INSTALLATION INSTRUCTIONS

OPERATING YOUR DRYER 26

LAUNDRY TIPS 31

CARING FOR YOUR DRYER 33

TROUBLESHOOTING 36

SEARS MAINTENANCE AGREEMENT 38

Please read this manual, It will help you

install and operate your new Kenmore

compact dryer in the safest and most

economical way.

For more information about the care

and operation of Kenmore appliances

call your nearest Sears store, You will

need the complete model and serial

numbers when requesting information,

Your dryer's model and serial numbers

are located on the Model and Serial

Number Plate.

Use the space below to record the

model number and serial number of

your new Kenmore compact dryer.

Model No.

Serial No.

Date of Purchase

Keep this book and your Sears

Salescheck (receipt) in asafe place

for future reference,

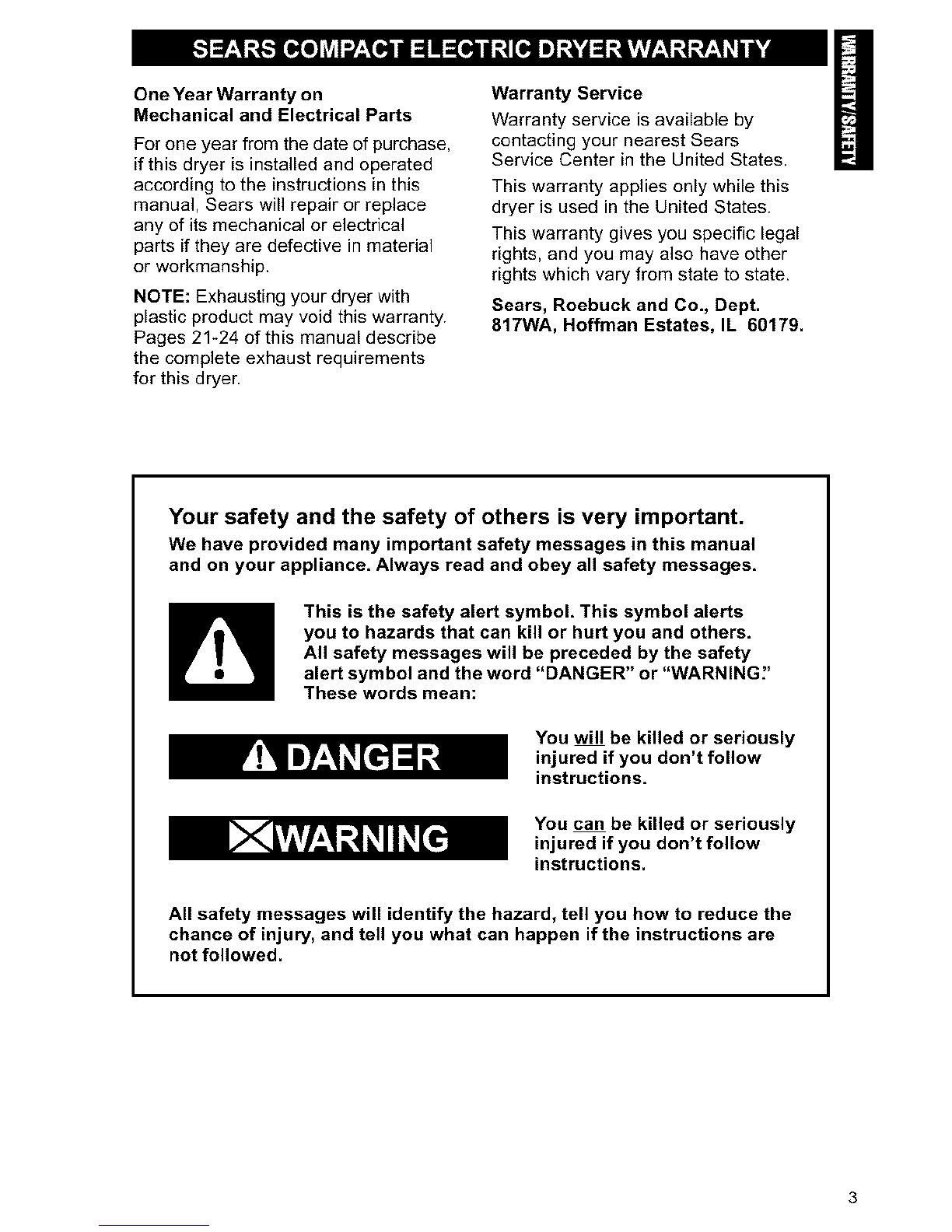

OneYearWarrantyon

MechanicalandElectricalParts

For one year from the date of purchase,

if this dryer is installed and operated

according to the instructions in this

manual, Sears will repair or replace

any of its mechanical or electrical

parts if they are defective in material

or workmanship.

NOTE: Exhausting your dryer with

plastic product may void this warranty.

Pages 21-24 of this manual describe

the complete exhaust requirements

for this dryer.

Warranty Service

Warranty service is available by

contacting your nearest Sears

Service Center in the United States.

This warranty applies only while this

dryer is used in the United States.

This warranty gives you specific legal

rights, and you may also have other

rights which vary from state to state.

Sears, Roebuck and Co., Dept.

817WA, Hoffman Estates, IL 60179.

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual

and on your appliance, Always read and obey all safety messages,

This is the safety alert symbol, This symbol alerts

you to hazards that can kill or hurt you and others.

All safety messages will be preceded by the safety

alert symbol and the word "DANGER" or "WARNING,"

These words mean:

You will be killed or seriously

injured if you don't follow

instructions,

You can be killed or seriously

injured if you don't follow

instructions.

All safety messages will identify the hazard, tell you how to reduce the

chance of injury, and tell you what can happen if the instructions are

not followed.

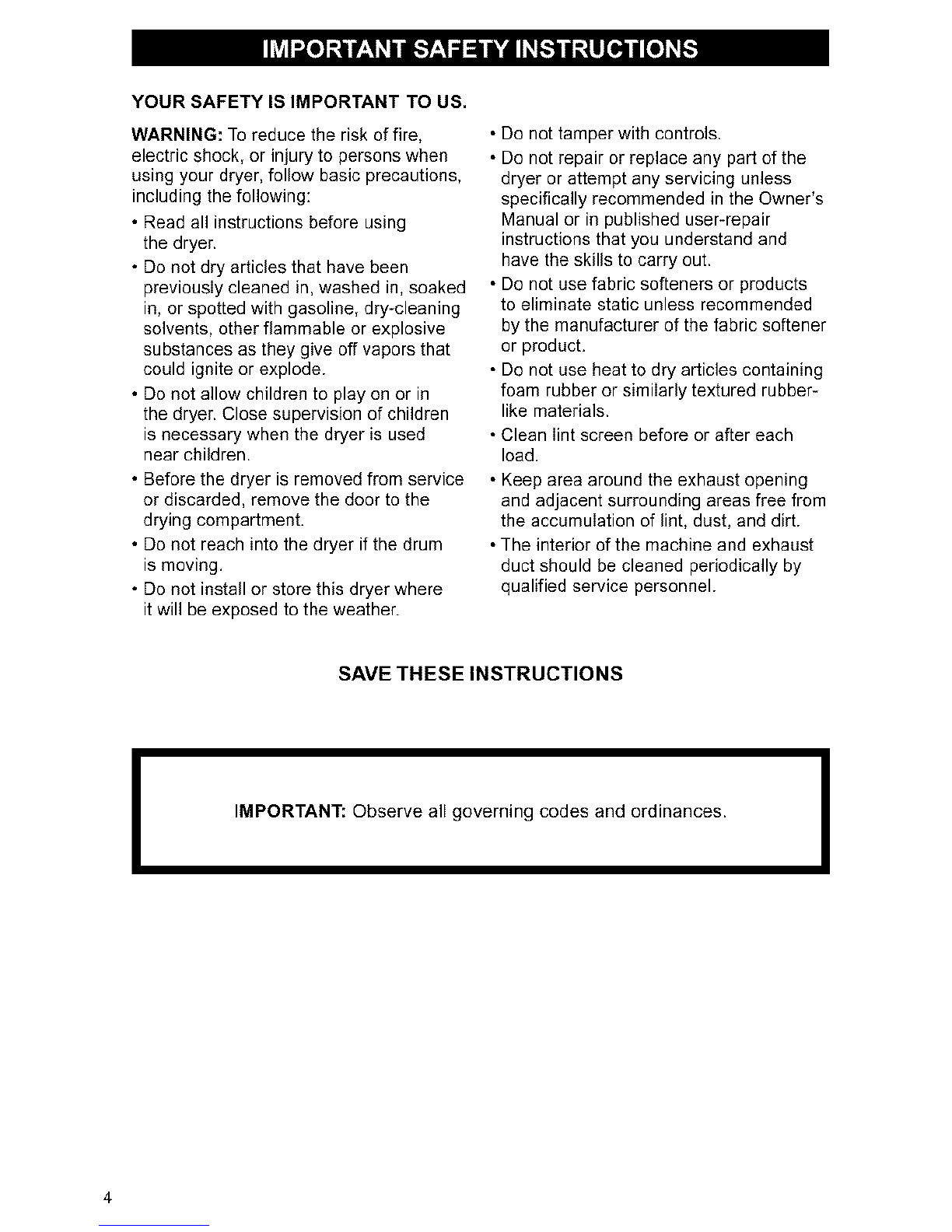

YOUR SAFETY IS IMPORTANT TO US.

WARNING: To reduce the risk of fire,

electric shock, or injury to persons when

using your dryer, follow basic precautions,

including the following:

•Read all instructions before using

the dryer.

• Do not dry articles that have been

previously cleaned in, washed in, soaked

in, or spotted with gasoline, dry-cleaning

solvents, other flammable or explosive

substances as they give off vapors that

could ignite or explode.

• Do not allow children to play on or in

the dryer. Close supervision of children

is necessary when the dryer is used

near children.

• Before the dryer is removed from service

or discarded, remove the door to the

drying compartment.

• Do not reach into the dryer if the drum

is moving.

• Do not install or store this dryer where

it will be exposed to the weather.

• Do not tamper with controls.

• Do not repair or replace any part of the

dryer or attempt any servicing unless

specifically recommended in the Owner's

Manual or in published user-repair

instructions that you understand and

have the skills to carry out.

• Do nat use fabric softeners or products

to eliminate static unless recommended

by the manufacturer of the fabric softener

or product.

• Do nat use heat to dry articles containing

foam rubber or similariy textured rubber-

like materials.

• Clean Iint screen before or after each

load,

• Keep area around the exhaust opening

and adjacent surrounding areas free from

the accumulation of tint, dust, and dirt.

• The interior of the machine and exhaust

duct should be cleaned periodically by

qualified service personnel.

SAVE THESE INSTRUCTIONS

IIMPORTANT: Observe all governing codes and ordinances. I

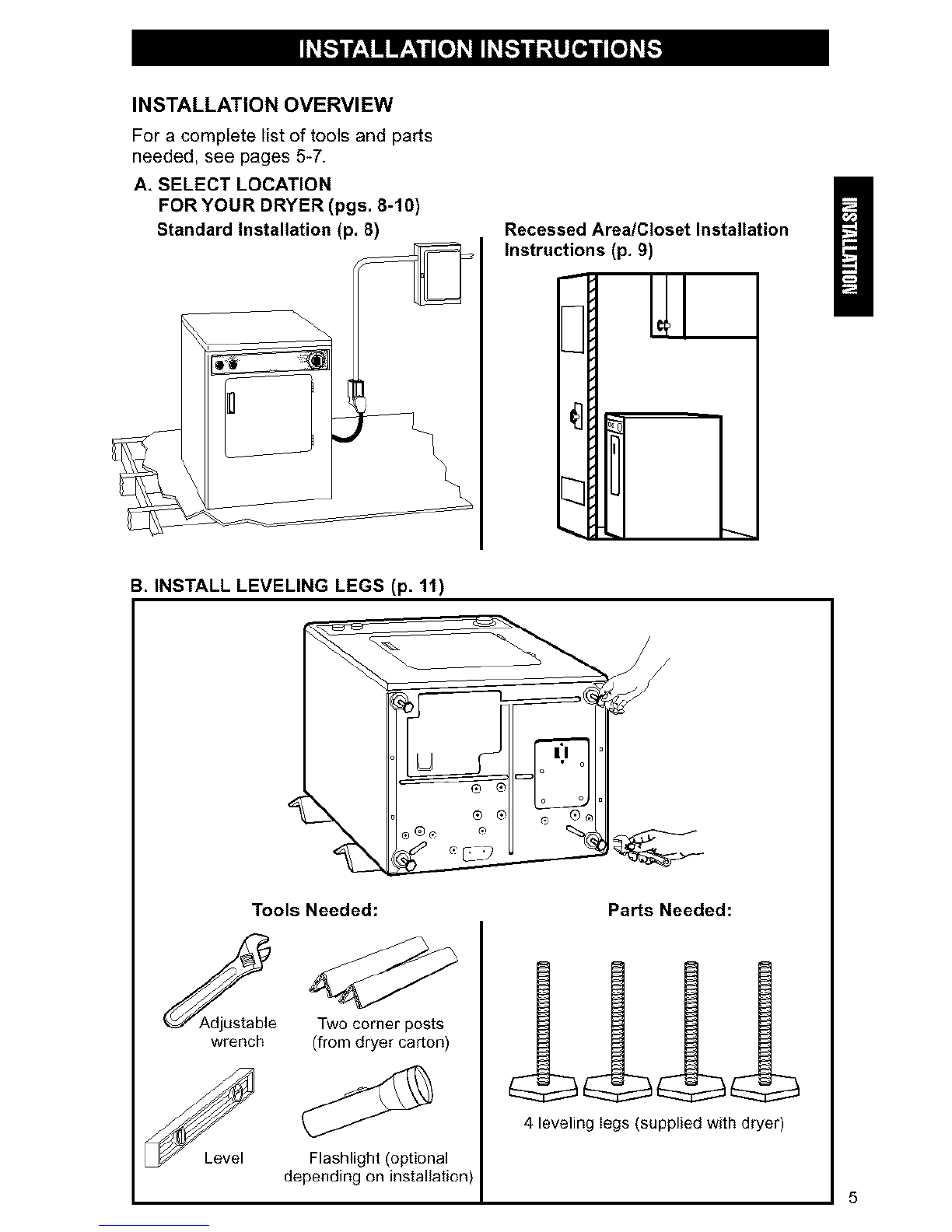

INSTALLATION OVERVIEW

For a complete list of tools and parts

needed, see pages 5-7.

A, SELECT LOCATION

FOR YOUR DRYER (pgs. 8-10)

Standard Installation (p. 8) Recessed Area/Closet Installation

Instructions (p. 9)

B, INSTALL LEVELING LEGS (p, 11)

Tools Needed: PaNs Needed:

Jstable

wrench Two corner posts

(from dryer carton)

Flashlight (optional

depending on installation)

4 leveling legs (supplied with dryer)

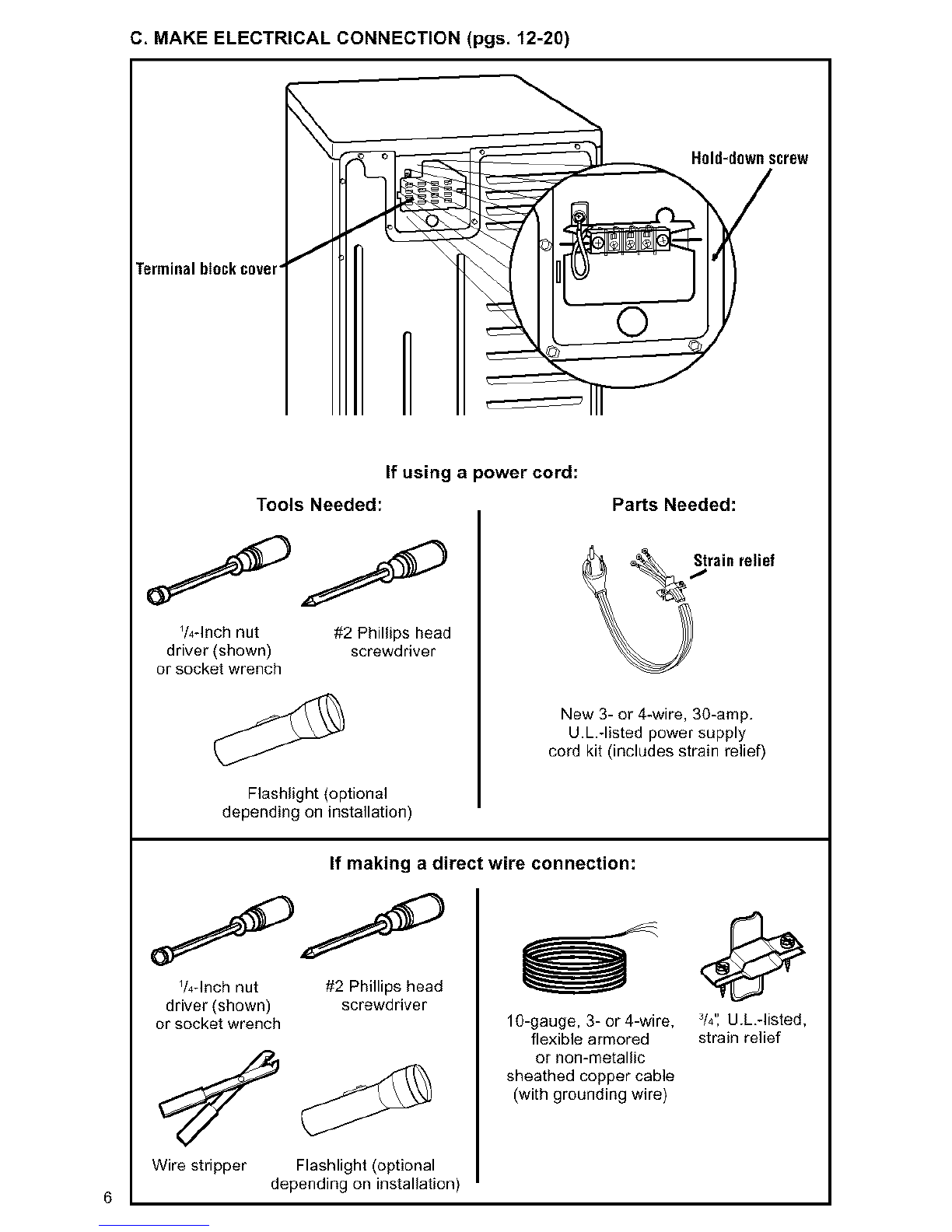

C, MAKE ELECTRICAL CONNECTION (pgs, 12-20)

Hold-downscrew

Terminalblockcover

If using a power cord:

Tools Needed: Parts Needed:

V4-1nch nut #2 Phillips head

driver (shown) screwdriver

or socket wrench

Flashlight {optional

depending on installation)

New 3- or 4-wire, 30-amp.

U.L.-listed power supply

cord kit (includes strain relief)

If making a direct wire connection:

V4-1nch nut #2 Phillips head

driver (shown) screwdriver

or socket wrench

Wire stripper Flashlight (optional

depending on installation)

10-gauge, 3- or 4-wire, 314':U.h-listed,

flexible armored strain relief

or non-metallic

sheathed copper cable

(with grounding wire)

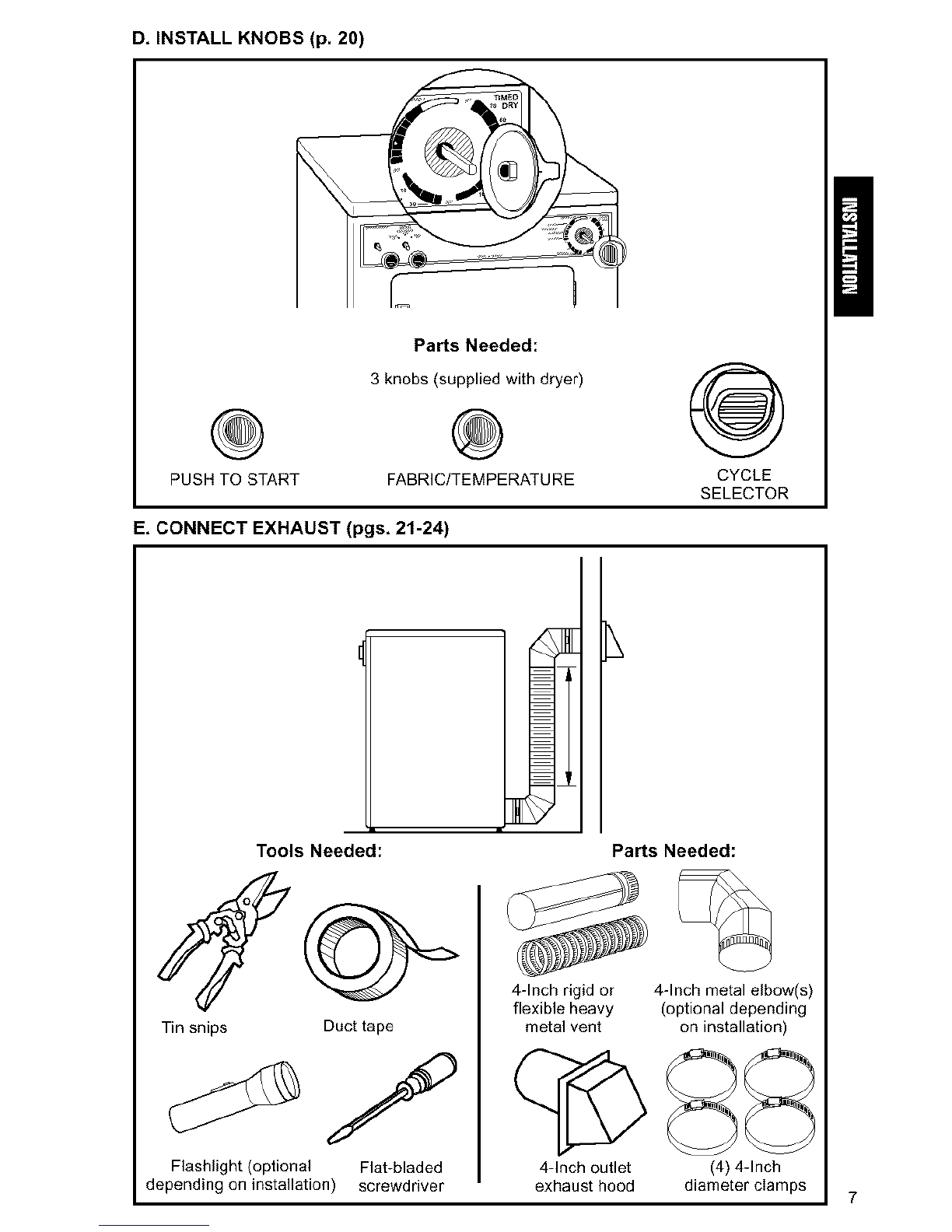

D, INSTALL KNOBS (p. 20)

PUSH TO START

PaNs Needed:

3 knobs(supplied with d_er)

FABRIC/TEMPERATURE @

CYCLE

SELECTOR

E, CONNECT EXHAUST (pgs, 21-24)

i •

Tools Needed:

Tin snips

Flashlight {optional

depending on installation)

Duct tape

Flat-bladed

screwdriver

PaNs Needed:

4-Inch rigid or

flexible heavy

metal vent

4-Inch metal elbow(s)

(optional depending

on installation)

4-Inch outlet (4) 4-Inch

exhaust hood diameter damps 7

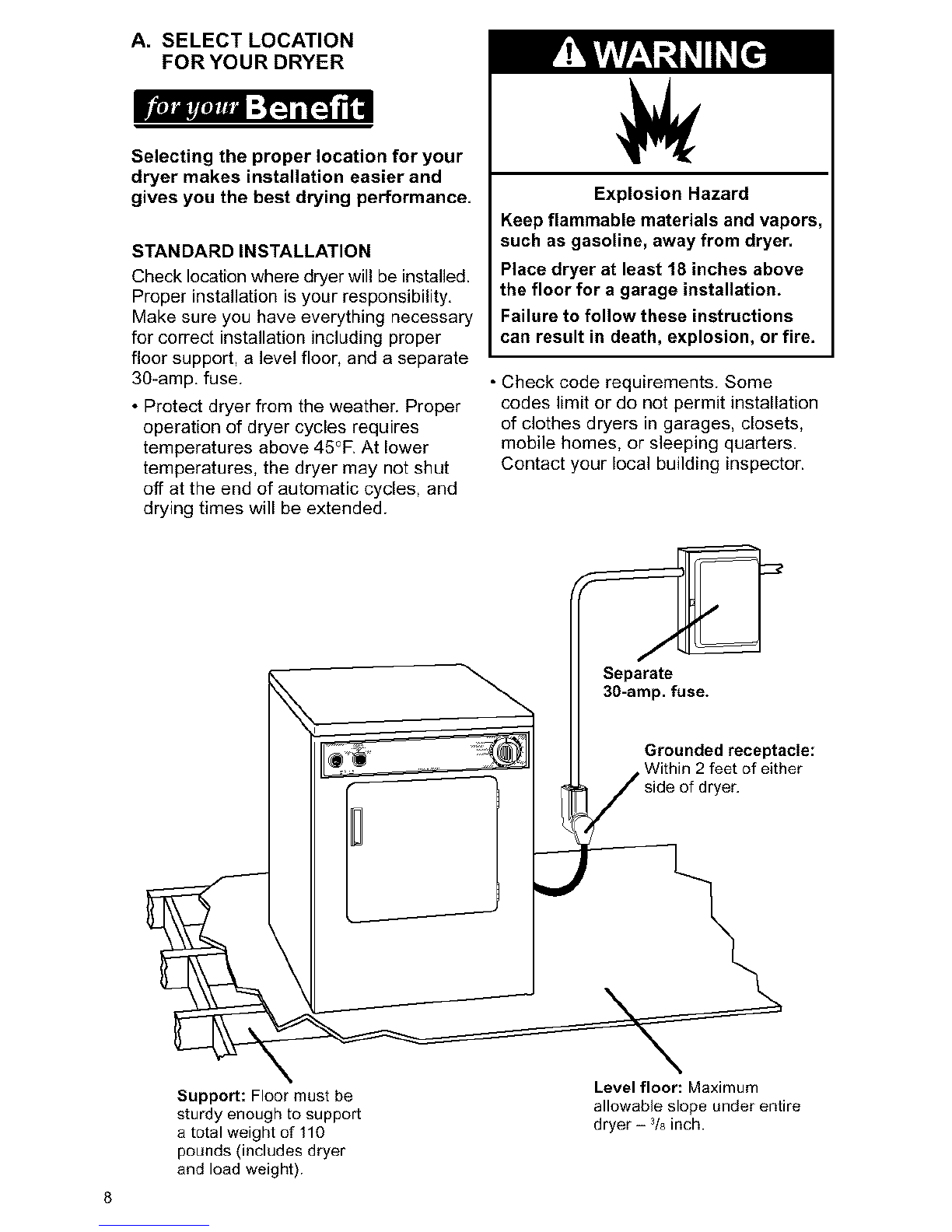

A. SELECT LOCATION

FOR YOUR DRYER

Selecting the proper location for your

dryer makes installation easier and

gives you the best drying performance,

STANDARD INSTALLATION

Check location where dryer will be installed.

Proper installation is your responsibility.

Make sure you have everything necessary

for correct installation including proper

floor support, a level floor, and a separate

3g-amp. fuse.

• Protect dryer from the weather. Proper

operation of dryer cycles requires

temperatures above 45°F, At lower

temperatures, the dryer may not shut

off at the end of automatic cycles, and

drying times will be extended.

Explosion Hazard

Keep flammable materials and vapors,

such as gasoline, away from dryer.

Place dryer at least 18 inches above

the floor for a garage installation.

Failure to follow these instructions

can result in death, explosion, or fire.

•Check code requirements. Some

codes limit or do not permit installation

of clothes dryers in garages, closets,

mobile homes, or sleeping quarters.

Contact your local building inspector.

_- _ Separate

\ 30.ompf_

OroonOe0recep,ac,e:

' '_ /Withinf2_;ee'°f either

Support: Floor must be Level floor: Maximum

sturdy enough to support allowable slope under entire

a total weight of110 dryer - 3/_inch.

pounds (includes dryer

and lead weight).

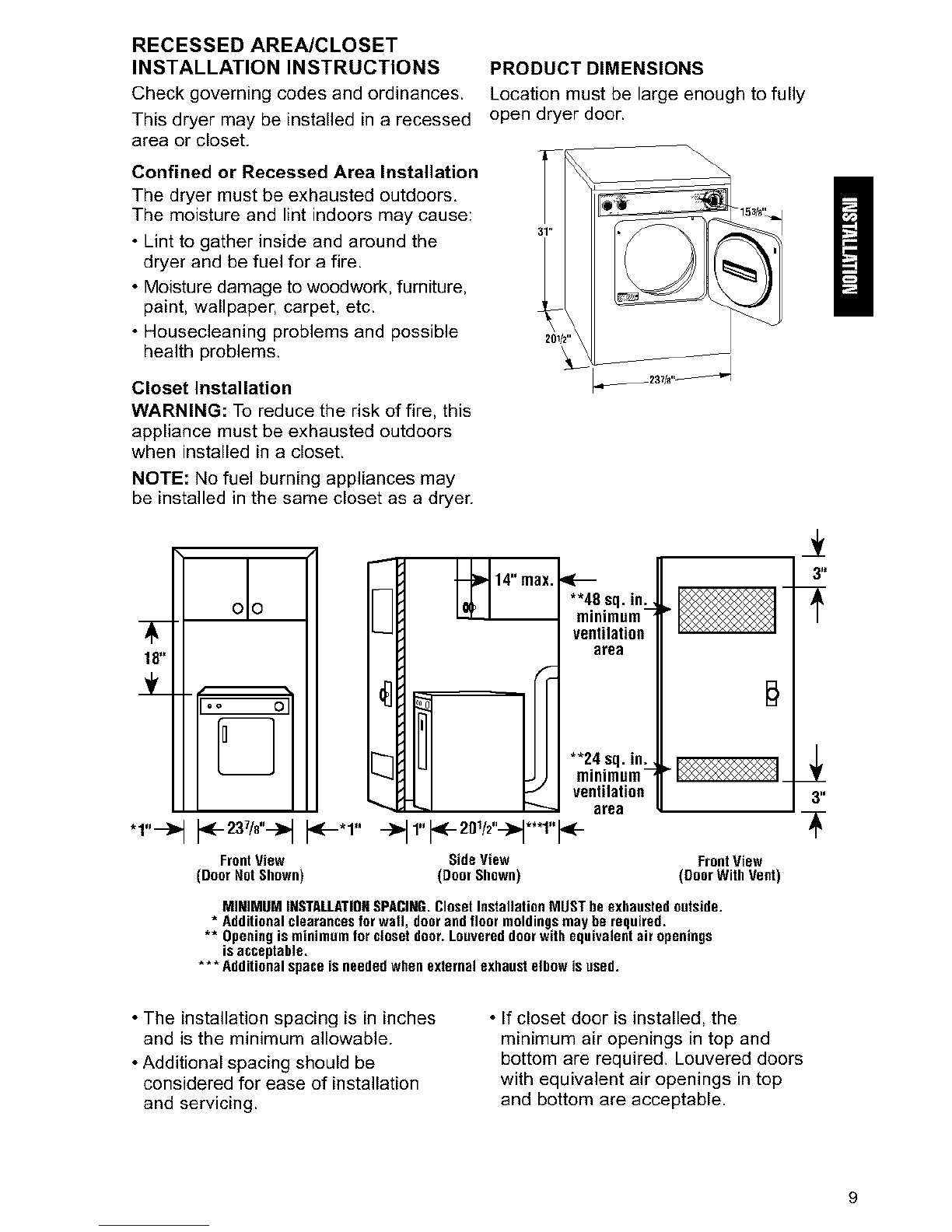

RECESSED AREA/CLOSET

INSTALLATION INSTRUCTIONS PRODUCT DIMENSIONS

Check governing codes and ordinances. Location must be large enough to fully

This dryer may be installed in arecessed open dryer door.

area or closet.

Confined or Recessed Area Installation

The dryer must be exhausted outdoors,

The moisture and lint indoors may cause:

• Lint to gather inside and around the

dryer and be fuel for afire.

• Moisture damage to woodwork, furniture,

paint, wallpaper, carpet, etc.

• Housecleaning problems and possible

health problems.

Closet Installation

WARNING: To reduce the risk of fire, this

appliance must be exhausted outdoors

when installed in a closet.

NOTE: No fuel burning appliances may

be installed in the same closet as a dryer.

201/2"

18"

"1"4

olo

FrontView

(DoorNotShown)

**48 sq.in.,

minimum_

-- ventilation

area

_" **24 sq.in.,

"--- minimum_

ventilatien

area

t,, SideView

(DoorShown)

FrontView

(Door WithVent)

MINIMUMINSTALLATIONSPACING,ClosetInstallationMUSTbeexhaustedoutside.

* Additionalclearancesforwall, doorandfloormoldingsmaybe required.

** Openingis minimumfor closetdoor.Louvereddoorwithequivalentair openings

isacceptable,

** *Additionalspaceisneededwhenexternalexhaustelbowisused.

• The installation spacing is in inches

and is the minimum allowable.

• Additional spacing should be

considered for ease of installation

and servicing.

• If closet door is installed, the

minimum air openings in top and

bottom are required. Louvered doors

with equivalent air openings in top

and bottom are acceptable.

STAND KIT CLEARANCES

12,,E-Iiiiiiii

*'1"÷ FrontView Side View

StackStand StackStand

(Door Dot Shown) (Door Shown)

FrontView

(DoorWithVent)

* 1"dimensionmustbefromfrontoftimerknoh.

** Additionalclearancesforwall, doorandDoormoldingsmayberequired.

*** Openingis minimumforclosetdoor.Louvereddoorwithequivalentair openings

isacceptable.

• The installation spacing is in inches • For complete installation information,

and is the minimum allowable, order Stand Kit Installation Instructions,

Part No, 49971/8, from your Sears

store or Sears Service Center.

MOBILE HOME EXHAUST

REQUIREMENTS

• The dryer must not be installed where

it will be exposed to water and/or

weather. Proper operation of dryer cycles

requires temperatures above 45°F.

At lower temperatures, the dryer may

not shut off at the end of automatic

cycles. Drying times will be extended.

This dryer is suitable for mobile home

installations. The installation must

conform to the Manufactured Home

Construction and Safety Standard,

Title 24 CFR, Part 3280 (formerly the

Federal Standard for Mobile Homes

Construction and Safety, Title 24,

HUD Part 280).

• Dryer exhaust vent must not be

connected or secured with screws

or other devices which extend into

the interior of the vent.

• If the dryer is exhausted outdoors,

the exhaust vent must be securely

fastened to a non-combustible

portion of the mobile home

structure and must _

not terminate

beneath the

mobile home.

• While in transit,

the dryer must

be securely [,_

fastened to

the floor. Order

Mobile Home Installation

Kit 346764 from your Sears

store or Sears Service Center,

Kit includes the necessary fastening

hardware and detailed installation

instructions.

Autres manuels pour 240-volt compact electric dryers

Table des matières

Autres manuels Kenmore Séchoir

Kenmore

Kenmore 27" (69 cm) Manuel utilisateur

Kenmore

Kenmore 6012 Manuel utilisateur

Kenmore

Kenmore 67102 Manuel utilisateur

Kenmore

Kenmore 67102 Manuel utilisateur

Kenmore

Kenmore 110.9787 Manuel utilisateur

Kenmore

Kenmore 796.8172 Manuel utilisateur

Kenmore

Kenmore 69812 Manuel utilisateur

Kenmore

Kenmore 796.8219 Manuel utilisateur

Kenmore

Kenmore 796.81382410 Manuel utilisateur

Kenmore

Kenmore 8907 Series Manuel utilisateur

Kenmore

Kenmore 110.C8580 Series Manuel utilisateur

Kenmore

Kenmore 6600 Manuel utilisateur

Kenmore

Kenmore 62992 Manuel utilisateur

Kenmore

Kenmore C8906 Series Manuel utilisateur

Kenmore

Kenmore 796.8002 Series Manuel utilisateur

Kenmore

Kenmore 29" Manuel utilisateur

Kenmore

Kenmore Whirpool 1992 96291100 Manuel utilisateur

Kenmore

Kenmore 8576652 Manuel utilisateur

Kenmore

Kenmore 110.C67132 411 Series Manuel utilisateur

Kenmore

Kenmore 110.75132410 Manuel utilisateur

Kenmore

Kenmore 8519319A Manuel utilisateur

Kenmore

Kenmore Elite Oasis 110.7705 Series Manuel utilisateur

Kenmore

Kenmore HE4 Gas dryer 110.9586 Manuel utilisateur

Kenmore

Kenmore SENSOR SMART KING SIZE Capacity Plus Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Frigidaire

Frigidaire CAQE7077KW0 Manuel du propriétaire
