Kenmore 580.751515 Manuel
REPAIR
PARTS
LIST
Model No.
580.75151500
◆Product Type ◆Part Number
◆Model Number ◆Part Description
Sears, Reobuck and Co., Hoffman Estates, IL 60179 U.S.A.
To Call
Toll Free
For Parts:
1-800-366-PART
(1-800-366-7278)
1-800-4-MY-HOME
(1-800-469-4663)
For Service:
The model number of your Air Conditioner can be found
on the right side of the cabinet.
All repair parts listed are available for immediate
purchase or special order when you visit your nearest
Sears Service Center, or the Service Department at most
Sears stores. To order parts by phone, call the toll free
parts number listed to the left.
When requesting service or ordering parts, always
provide the following information:
®
ROOM AIR CONDITIONER
12/03 - 2 -
Room Air Conditioner To order Parts call Toll Free
Model No. 580.75151500 1-800-4-MY-HOME®(1-800-469-4663)
CAUTION: Use the Kenmore part number on all orders, not the illustration number.

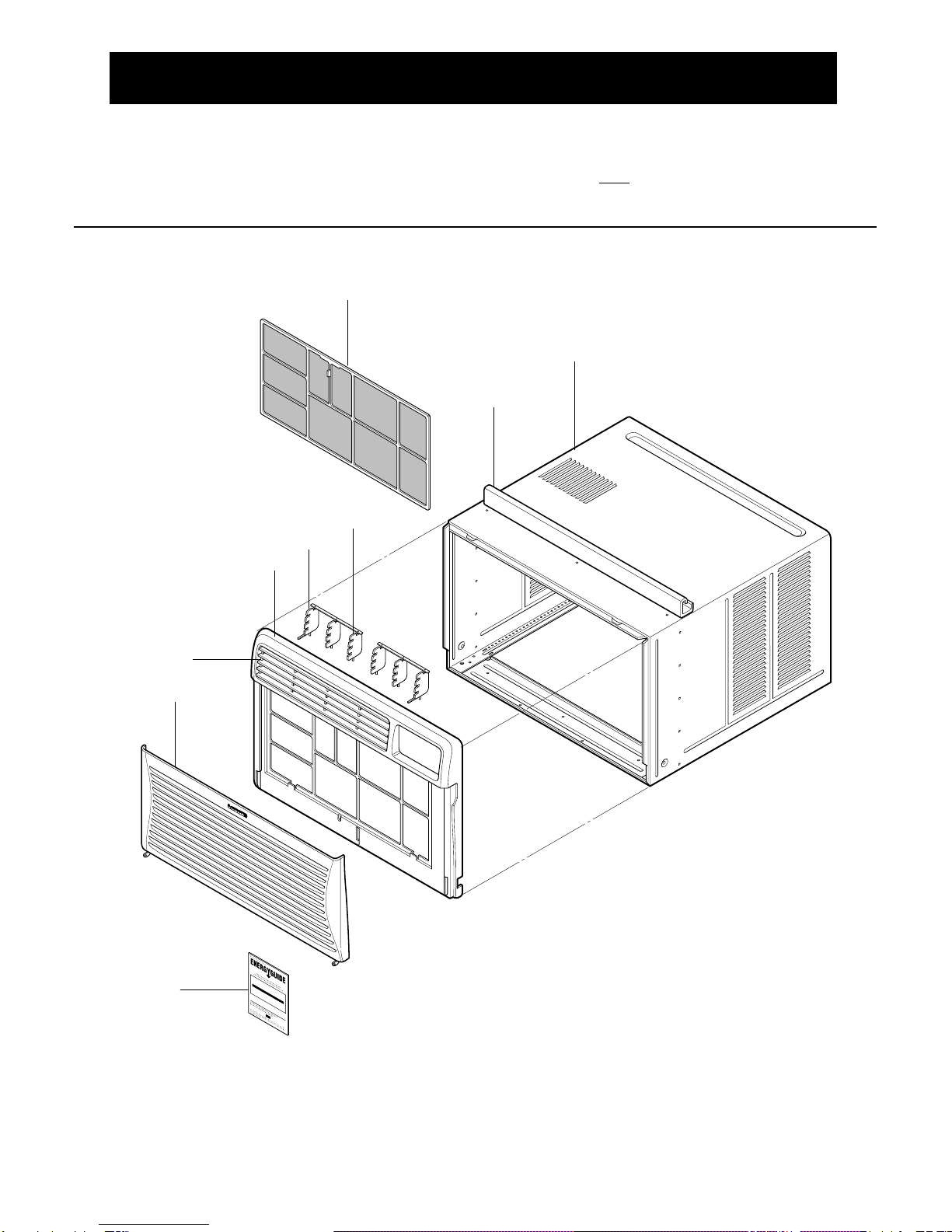

CABINET & FRONT GRILLE ASSEMBLY
2-A
1-A
3-A
5-A 6-A
8-A
7-A
9-A
4-A
REPAIR PARTS
- 3 - 12/03
580.75151500
CAUTION: Use the Kenmore part number on all orders, not the illustration number.
CABINET & FRONT GRILLE ASSEMBLY
# = Functional Parts
* = Non-illustrated Parts
1 - A
2 - A
3 - A
4 - A
5 - A
6 - A
7 - A
8 - A
9 - A
*
PART NUMBER
3530A10213A
3530A10214A
5231A20008A
4758A30047A
4758A30050A
4758A30050B
3091AR6057R
2H00858D
3850A27114C
3828A21007E
DESCRIPTION
FRONT GRILLE
INLET GRILLE
AIR FILTER ASSEMBLY
VANE
LOUVER
LOUVER
CABINET ASSEMBLY
UPPER GUIDE
LABEL, ENERGY
MANUAL OWNER'S
ILLUSTRATION
NUMBER
12/03 - 4 -
580.75151500
CAUTION: Use the Kenmore part number on all orders, not the illustration number.

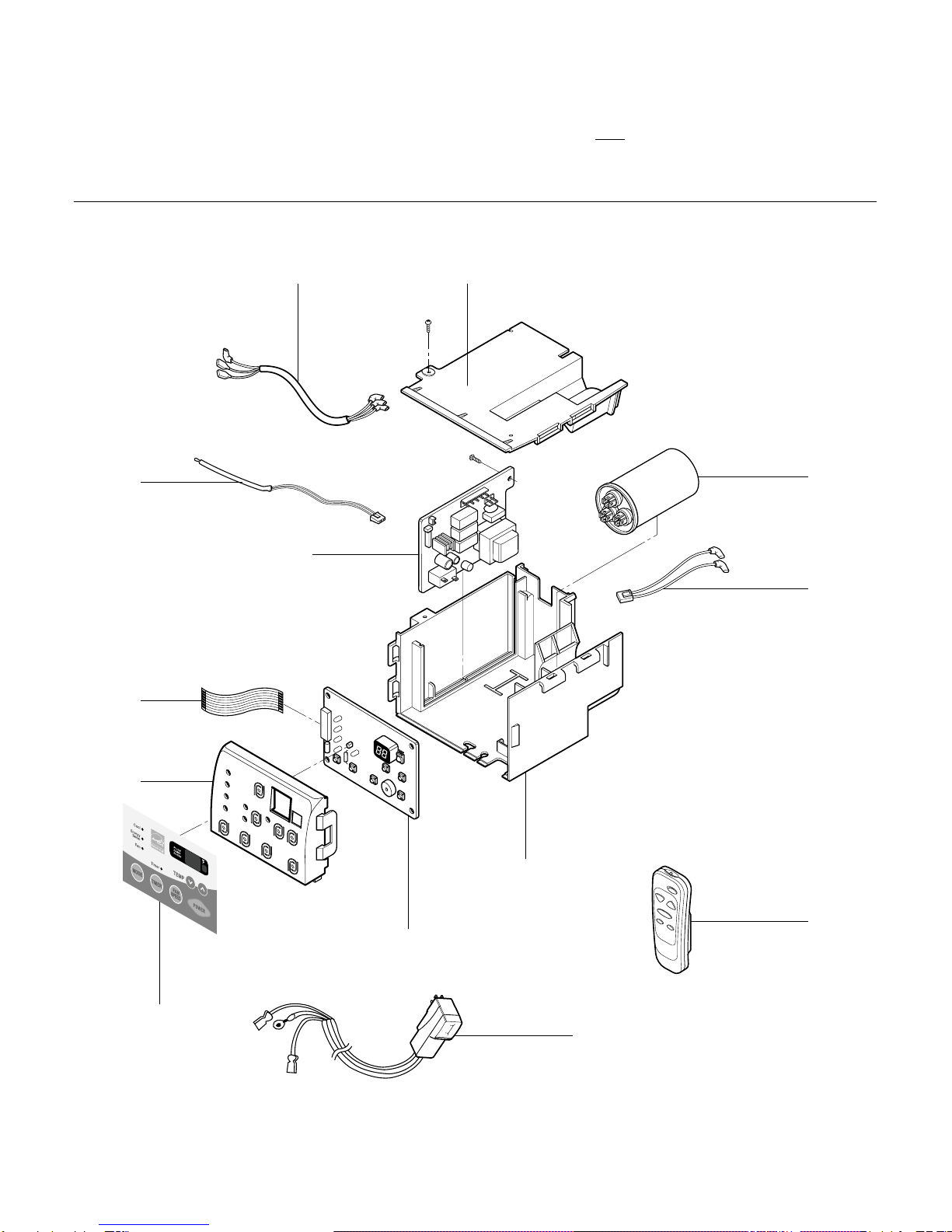

CONTROL BOX ASSEMBLY
9-B 3-B
1-B
5-B
13-B
6-B
11-B
12-B
7-B
2-B
10-B
8-B
4-B
- 5 - 12/03
580.75151500
CAUTION: Use the Kenmore part number on all orders, not the illustration number.
CONTROL BOX ASSEMBLY
# = Functional Parts
* = Non-illustrated Parts
1 - B #
2 - B
3 - B
4 - B
5 - B #
6 - B
7 - B
8 - B
9 - B
10 - B
11 - B
12 - B
13 - B
PART NUMBER
4994A20045A
3720A10112A
3550A30122A
6871A20617P
6871A20604E
0CZZA20001L
6411A20048U
6323A20012C
6631AR3843V
6850A90001G
6631A30003A
6711A20056T
3831A20097D
DESCRIPTION
CONTROL BOX
PANEL, CONTROL
COVER, CONTROL BOX
PWB ASSEMBLY, MAIN
PWB ASSEMBLY, DISPLAY
CAPACITOR
POWER CORD ASSEMBLY
THERMISTOR ASSEMBLY
CONNECTOR ASSEMBLY
CABLE FLAT
CONNECTOR ASSEMBLY
REMOTE CONTROL
ESCUTCHEON
ILLUSTRATION
NUMBER
12/03 - 6 -
580.75151500
CAUTION: Use the Kenmore part number on all orders, not the illustration number.

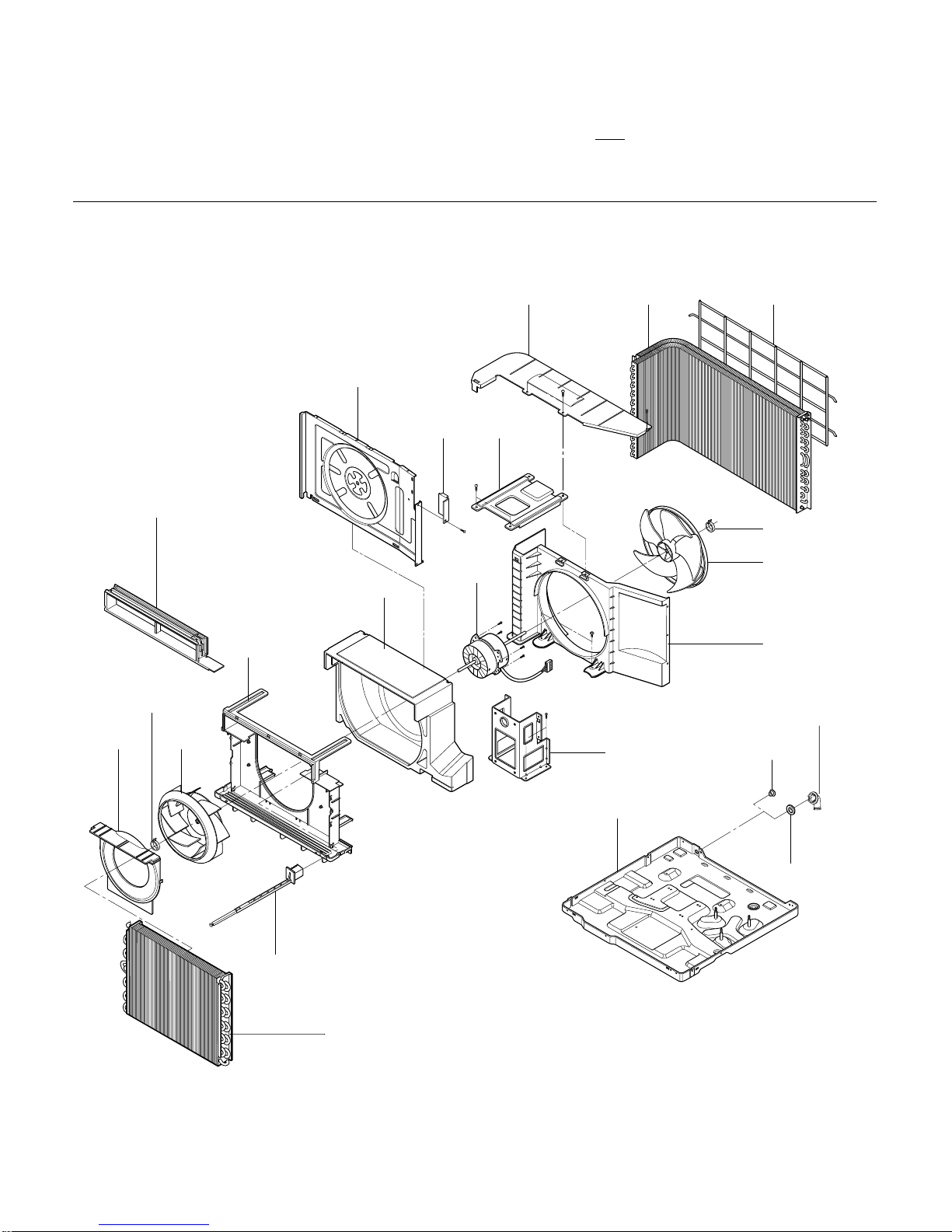

AIR HANDLING & CYCLE PARTS
5-C
6-C
9-C
12-C
14-C
10-C
11-C
2-C
1-C
4-C
15-C17-C 21-C
13-C8-C
3-C 7-C
11-C
22-C
16-C 20-C
19-C
18-C
- 7 - 12/03
580.75151500
CAUTION: Use the Kenmore part number on all orders, not the illustration number.
AIR HANDLING & CYCLE PARTS
# = Functional Parts
* = Non-illustrated Parts
1 - C
2 - C
3 - C
4 - C
5 - C
6 - C
7 - C #
8 - C
9 - C #
10 - C #
11 - C
12 - C
13 - C
14 - C #
15 - C #
16 - C
17 - C
18 - C
19 - C
20 - C
21 - C
22 - C
PART NUMBER
3041A20023T
5238A10008A
3072A20005A
4790A20031A
4900A20004A
4960AR1596A
4681A23010A
4790A30018A
5901A20009A
5900AR1508A
3H02932C
4998A10013A
4800A20001A
5421A20091F
5403A20062B
4948A30008A
3550A20089A
4H01029F
4H01010A
4H02023A
3530A20042D
5238A20014A
DESCRIPTION
BASE PAN WELD ASSEMBLY
AIR GUIDE
SCROLL
BARRIER
DAMPER
MOTOR MOUNT
MOTOR ASSEMBLY
BARRIER, BLOCK
TURBO FAN
AXIAL FAN
CLAMP SPRING
SHROUD
BRACE
EVAPORATOR ASSEMBLY
CONDENSER ASSEMBLY
ORIFICE
COVER, SHROUD
WASHER RUBBER
PIPE ELBOW
HOLE RUBBER
GRILLE, REAR
AIR GUIDE UPPER
ILLUSTRATION
NUMBER
12/03 - 8 -
580.75151500
CAUTION: Use the Kenmore part number on all orders, not the illustration number.

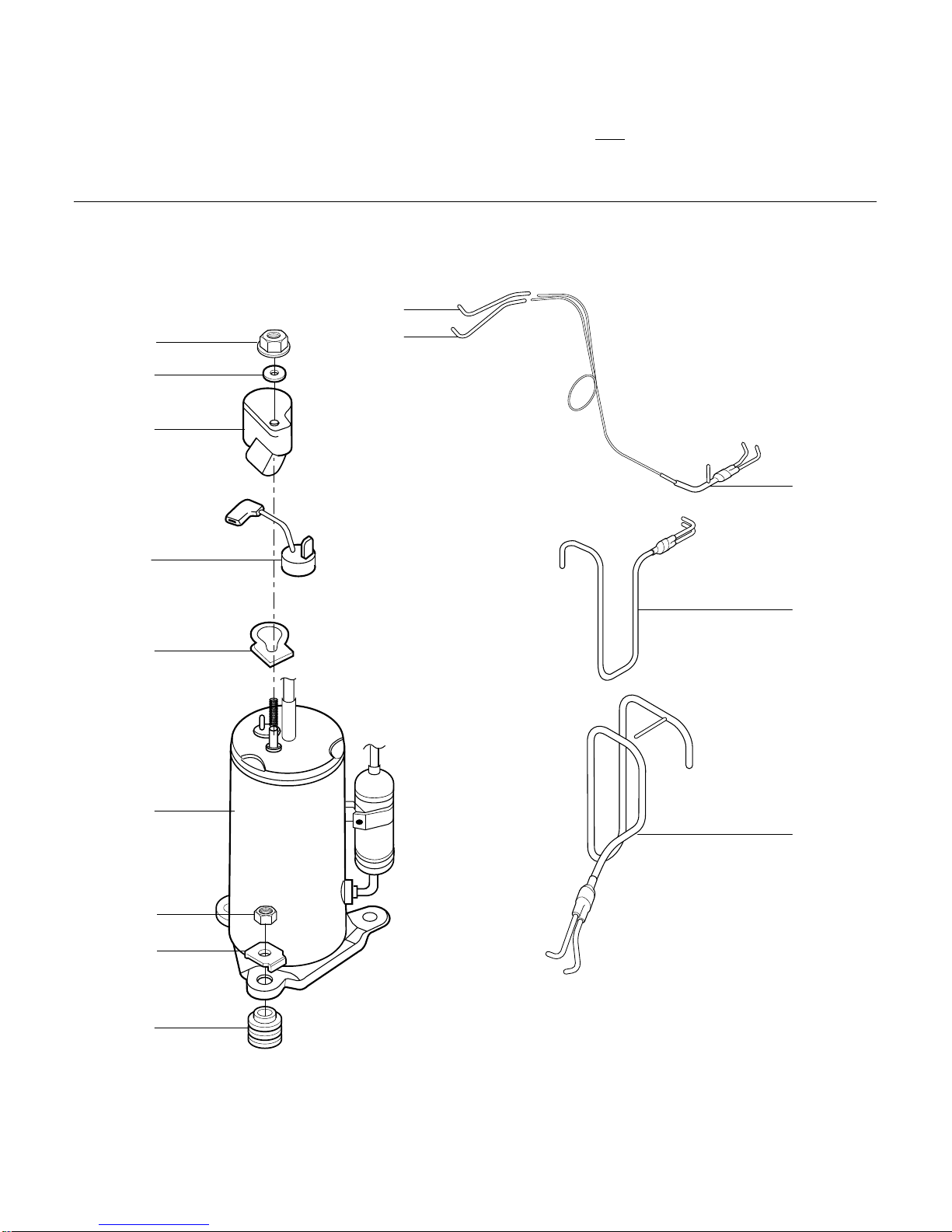

COMPRESSOR PARTS
3-D
4-D
2-D
5-D
8-D
11-D
7-D
1-D
10-D
13-D
12-D
6-D
9-D
14-D
- 9 - 12/03
580.75151500
CAUTION: Use the Kenmore part number on all orders, not the illustration number.
COMPRESSOR PARTS
# = Functional Parts
* = Non-illustrated Parts
1 - D
2 - D #
3 - D
4 - D
5 - D
7 - D
8 - D
9 - D
10 - D
11 - D
12 - D
13 - D
PART NUMBER
4H00982C
2520UCBK025
4810AR4155B
1NHA0801206
4986UTL001G
3550UTL006A
4H01058A
4H00947A
5211A34005A
5211A20441K
5210A23358A
5210A23358B
5211AR3332Z
DESCRIPTION
ISOLATOR, COMP
COMPRESSOR
BRACKET, WASHER
HEXAGON NUTS
GASKET
TERMINAL COVER
GASKET NUT
TERMINAL COVER NUT
TUBE ASSEMBLY DISCHARGE
TUBE ASSEMBLY SUCTION
TUBE, FORMED
TUBE, FORMED
TUBE ASSEMBLY CAPILLARY
ILLUSTRATION
NUMBER
14- D
6 - D 6750U-L046A OVERLOAD PROTECTOR
12/03 - 10 -
580.75151500
CAUTION: Use the Kenmore part number on all orders, not the illustration number.

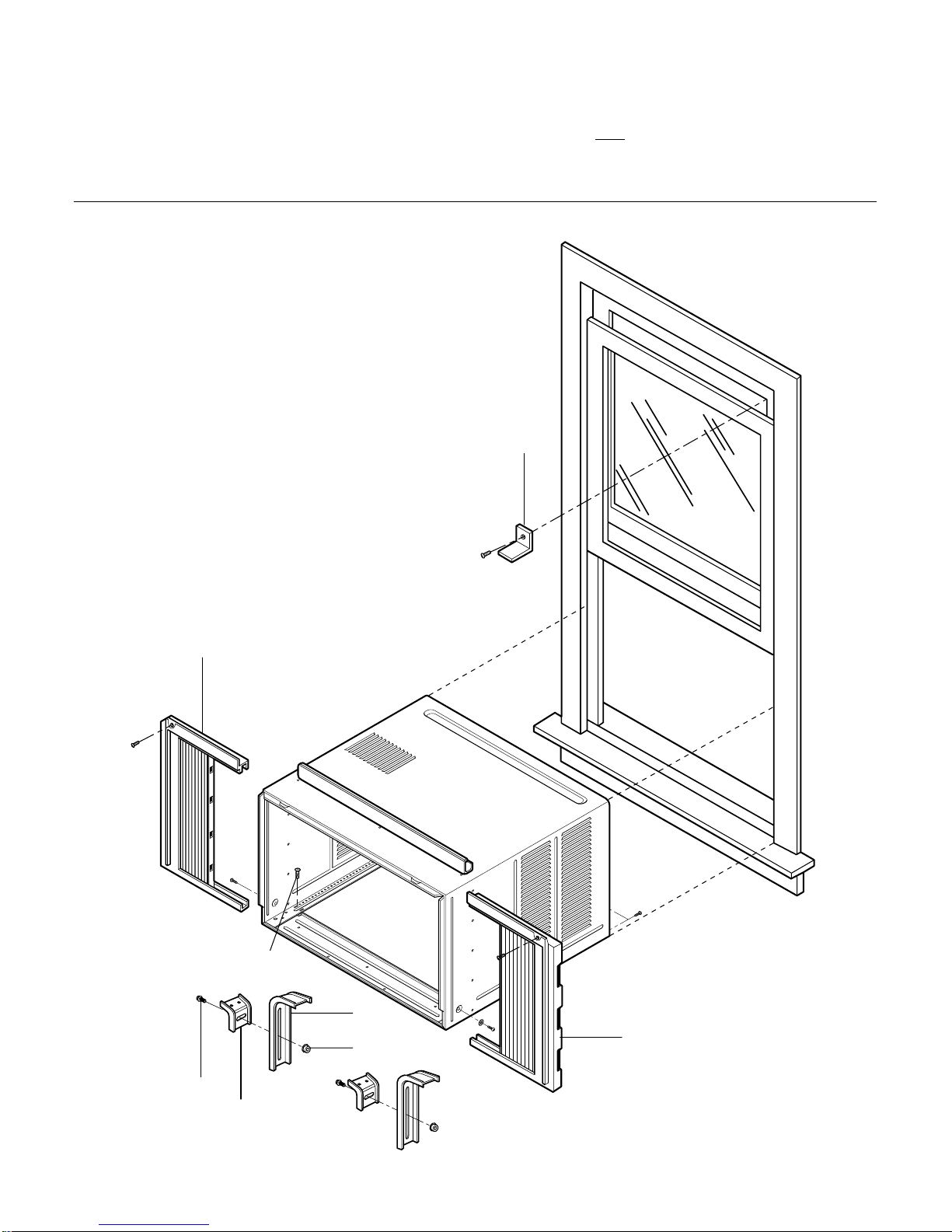

INSTALLATION KIT ASSEMBLY
1-E
4-E
6-E
2-E
7-E 5-E
3-E
8-E
