OPERATING MANUAL

English

MinarcMig 170 / © Kemppi Oy / 1117

CONTENTS

1. PREFACE.................................................................................................................3

1.1 General..........................................................................................................................3

1.2 Properties ...................................................................................................................3

2. MACHINE USE .................................................................................................4

2.1 Before implementation ......................................................................................4

2.2 General view of the machine ..........................................................................5

2.3 Distribution network.............................................................................................5

2.4 Cable connections .................................................................................................5

2.5 Filler wire .....................................................................................................................7

2.5.1 Changing the feed roll groove .................................................................7

2.5.2 Threading the ller wire .............................................................................8

2.5.3 Reversing polarity .........................................................................................9

2.6 Controls and indicator lights.........................................................................10

2.6.1 Welding power adjustment ...................................................................11

2.6.2 Arc length trimmer ....................................................................................11

2.7 Threading the shoulder strap .......................................................................12

3. SERVICE ..............................................................................................................12

3.1 Daily maintenance .............................................................................................13

3.2 Maintenance of the wire feed mechanism ...........................................13

4. DISPOSAL..........................................................................................................14

5. TROUBLESHOOTING............................................................................15

6. ORDERING NUMBERS.........................................................................16

7. TECHNICAL DATA.....................................................................................17

MinarcMig 170 / © Kemppi Oy / 1117

1. PREFACE

1.1 GENERAL

Congratulations on choosing the MinarcMig Adaptive 170 equipment. Used

correctly, Kemppi products can signicantly increase the productivity of your

welding, and provide years of economical service.

This operating manual contains important information on the use,

maintenance and safety of your Kemppi product. The technical specications

of the equipment can be found at the end of the manual.

Please read the manual carefully before using the equipment for the rst

time. For your own safety and that of your working environment, pay

particular attention to the safety instructions in the manual.

For more information on Kemppi products, contact Kemppi Oy, consult an

authorised Kemppi dealer, or visit the Kemppi web site at www.kemppi.com.

The specications presented in this manual are subject to change without

prior notice.

Important notes

Items in the manual that require particular attention in order to minimise

damage and personal harm are indicated with the ’NOTE!’ notation. Read

these sections carefully and follow their instructions.

1.2 PROPERTIES

The welding machine is small, ecient and extremely light. It is easy to

carry with the help of a shoulder strap. The machine is suitable for a range

of dierent purposes and the possibility to use a long extention cord eases

operation in various sites. It is also suitable for generator use on construction

sites.

Welding voltage and wire feed speed are adjusted with one control

according to the thickness of the welded sheet. Thus, selecting the right

parameters is easy. The length of the arc, or welding heat, is trimmed with

another control, and once the right value is found there usually is no need to

change it even when welding a thicker or thinner sheet.

The machine’s welding properties are optimum with a steel wire of

0.8 mm diameter. Also, 0.6 mm, 0.9 mm or 1.0 mm solid wire or cored wire

can be used as ller wire. Note, however, that the machine is designed for

steel wire welding only.

MinarcMig 170 / © Kemppi Oy / 1117

2. MACHINE USE

The machine is delivered ready for operation without adjustments with

0.8 mm diameter ller wire.

If you use non-recommended ller wire, make sure that the feed roll groove,

welding gun contact tip and machine polarity are suited for the used wire

size and type.

2.1 BEFORE IMPLEMENTATION

The products are packed to durable packages especially designed for them.

However, always make sure before use that the products have not been

damaged during transportation. Check also, that you have received the

products you ordered and the instruction manuals needed. Product packing

material is recyclable.

Transportation

The machine should be transported in an upright position.

NOTE! Always move the welding machine by lifting it from the handle. Never pull

it from the welding gun or other cables.

Environment

The machine is suitable for both indoor and outdoor use, but it should be

protected from heavy rain and sunshine. Store the machine in a dry and clean

environment and protect it from sand and dust during use and storage. The

recommended operating temperature range is -20 °C – +40 °C.

Place the machine in such a way that it does not come in contact with hot

surfaces, sparks and spatters.

Make sure the air ow in the machine is unrestricted.

MinarcMig 170 / © Kemppi Oy / 1117

2.2 GENERAL VIEW OF THE MACHINE

1. Welding gun

2. Earthing cable

3. Main switch

4. Supply voltage cable

5. Shielding gas hose connector

2.3 DISTRIBUTION NETWORK

All regular electrical devices without special circuits generate harmonic

currents into distribution network. High rates of harmonic current may cause

losses and disturbance to some equipment.

MinarcMig Adaptive 170:

WARNING: This equipment does not comply with IEC 61000-3-12. If it is

connected to a public low voltage system, it is the responsibility of the

installer or user of the equipment to ensure, by consultation with the

distribution network operator if necessary, that the equipment may be

connected.

2.4 CABLE CONNECTIONS

Connection to the mains

The machine is equipped with a 3.3 m long supply voltage cable and plug.

Connect the supply voltage cable to the mains.

NOTE! The fuse size needed is 16 A delayed.

If you use an extension cord, its cross-sectional area should be at least as

large as the supply voltage cable’s (3 x 2.5 mm²). The maximum length for the

extension cord is 50 m.

MinarcMig 170 / © Kemppi Oy / 1117

The machine can also be used with a generator. The minimum power for the

generator is 4.2 kVA, and the recommended power 8.0 kVA in order for the

machine to be used at maximum capacity.

Earthing

The earthing cable is already connected to the machine. Clean the workpiece

surface and x the earthing cable clamp to the piece in order to create a

closed and interference-free circuit needed for welding.

Welding gun

The welding gun is already connected to the machine. The welding gun

leads the ller wire, shielding gas and electric current to the weld. When you

press the welding gun trigger, shielding gas ow and wire feed begin. The arc

ignites, when the ller wire touches the welded piece.

The gun neck can be rotated 360°. When turning the neck, always make

sure that the neck is twisted almost all the way to the bottom. This prevents

damaging and overheating the neck.

NOTE! If you use other than 0.8 mm diameter ller wire, change the welding gun

contact tip to match the wire thickness.

Shielding gas

The shielding gas used for steel wires is carbon dioxide or a mixture of argon

and carbon dioxide which replaces air in the arc’s area. Thickness of the

welded sheet and welding power dene the ow rate of the shielding gas.

The machine is delivered with a 4.5 m long shielding gas hose. Connect the

bayonet socket of the shielding gas hose to the machine’s hose connector

and the hose connector end to the gas bottle’s control valve.

MinarcMig 170 / © Kemppi Oy / 1117

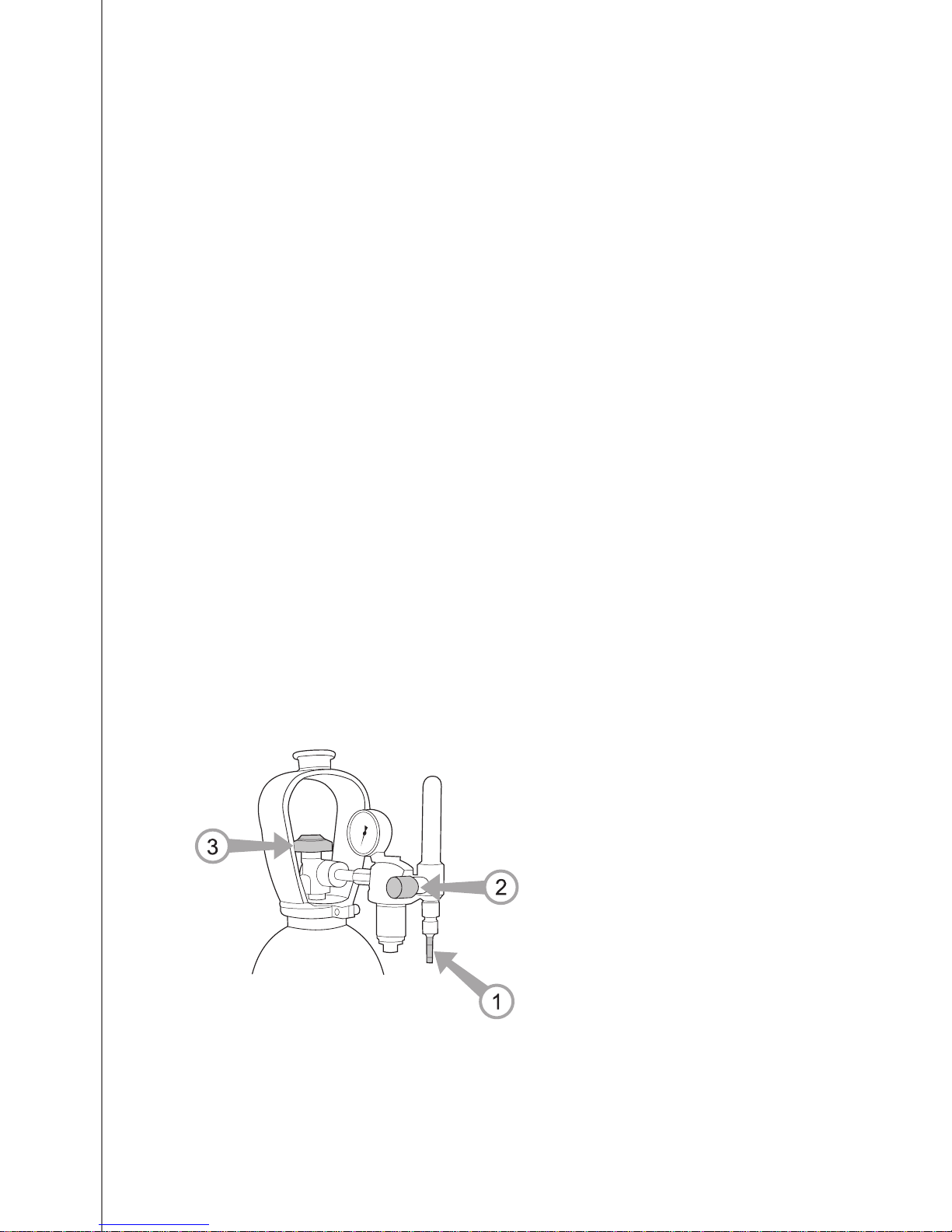

1. Connect the hose to the gas bottle’s control valve and tighten the

connector.

2. Adjust the ow rate with the control valve screw. A suitable shielding gas

ow rate is 8 – 15 l/min.

3. Close the bottle’s valve after use.

NOTE! Use a shielding gas suitable for the material’s welding. Fix the gas bottle

securely in an upright position before installing the control valve.

2.5 FILLER WIRE

The machine is delivered with the welding gun connected to +pole making it

suitable for steel solid wire welding without adjustments.

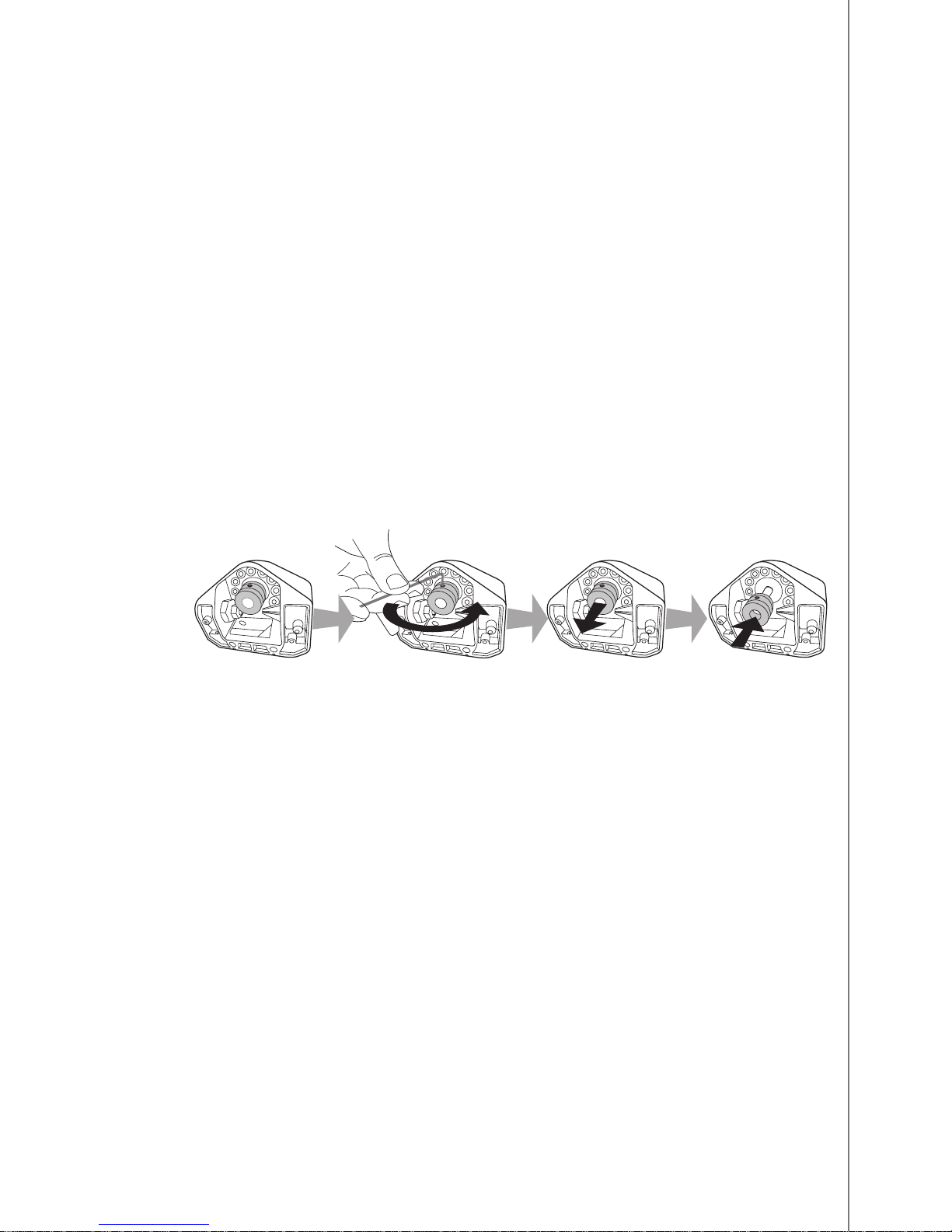

2.5.1 Changing the feed roll groove

The feed roll groove is factory set for welding ller wires of 0.8 – 1.0 mm

diameter. The feed roll groove must be changed if you use 0.6 mm thick ller

wire.

1. Open the feed roll from the pressure control lever.

2. Switch the machine on from the main switch.

3. Press the welding gun trigger and drive the feed roll in such a position

that its locking screw is up and can be opened.

4. Switch the power o from the main switch.

5. Open the feed roll locking screw with a 2.0 mm Allen wrench

approximately half a turn.

6. Pull the feed roll from its shaft.

7. Turn the feed roll and reinstall it to its shaft all the way to the bottom

making sure that the screw is on the shaft’s level.

8. Tighten the feed roll locking screw.

MinarcMig 170 / © Kemppi Oy / 1117

2.5.2 Threading the ller wire

1. Open the reel housing by pressing on the opening button and install

the wire reel in such a way that it rotates counter clockwise. You can

use either a 5 kg (diameter 200 mm) or 1 kg (100 mm) wire reel in the

machine.

2. Attach the reel with a reel lock.

3. Unfasten the wire end from the reel, but hold on to it all the time.

4. Straighten the wire end for approximately 20 cm and cut the wire in the

straightened location.

5. Open the pressure control lever which then opens the feed gear.

6. Thread the wire through the wire’s rear guide to the gun’s wire guide.

7. Close the feed gear and fasten it with the pressure control lever. Make

sure that the wire runs in the feed roll groove.

8. Adjust the compression pressure with the pressure control lever no

higher than to the middle of the scale. If the pressure is too high, it

removes metal fragments from the wire surface and may damage the

wire. On the other hand, if the pressure is too low, the feed gear slips and

the wire does not run smoothly.

9. Press the welding gun trigger and wait for the wire to come out.

10. Close the reel housing cover.

MinarcMig 170 / © Kemppi Oy / 1117

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Kemppi Système de soudage

Kemppi

Kemppi MMT 42C Manuel utilisateur

Kemppi

Kemppi Master M 205 Manuel utilisateur

Kemppi

Kemppi Minarc 120 AU Manuel utilisateur

Kemppi

Kemppi MinarcTig Evo 200MLP Manuel utilisateur

Kemppi

Kemppi MasterTig 535ACDC Manuel utilisateur

Kemppi

Kemppi MinarcTig Evo 200 Manuel utilisateur

Kemppi

Kemppi Kempotig 4500 AC/DC Manuel utilisateur

Kemppi

Kemppi Beta 90 SFA Manuel utilisateur

Kemppi

Kemppi Minarc Evo 150 Manuel utilisateur

Kemppi

Kemppi 25 Manuel utilisateur

Kemppi

Kemppi MASTERTIG AC/DC 2000 Manuel utilisateur

Kemppi

Kemppi MTP 350 Manuel utilisateur

Kemppi

Kemppi WELDFORCE KPS 3500 Manuel utilisateur

Kemppi

Kemppi Kempomat 2001 Manuel technique

Kemppi

Kemppi Kempotig 4500 AC/DC Manuel utilisateur

Kemppi

Kemppi FastMig MXP 37 Pipe Steel Manuel utilisateur

Kemppi

Kemppi Kempoweld Wire 550 Manuel utilisateur

Kemppi

Kemppi FastMig M 320, FastMig M 420, FastMigM 520 Manuel utilisateur

Kemppi

Kemppi Minarc 150 Manuel utilisateur

Kemppi

Kemppi Feed 400 Manuel utilisateur

Kemppi

Kemppi ArcFeed 200 Manuel utilisateur

Kemppi

Kemppi KEMPOWELD 3200 Manuel utilisateur

Kemppi

Kemppi FastMig KM300 Manuel utilisateur

Kemppi

Kemppi A7 Cooler Manuel utilisateur

Manuels Système de soudage populaires d'autres marques

Berner

Berner PLASMACUT 54 Manuel utilisateur

Pro Spot

Pro Spot PR-155 Manuel utilisateur

Forney

Forney 210 Manuel utilisateur

Thermal Arc

Thermal Arc 400S Manuel utilisateur

Lincoln Electric

Lincoln Electric HANDYMIG 170I Manuel utilisateur

GYS

GYS PROTIG 201 AC/DC Manuel utilisateur

TAFA

TAFA 30*8B35 Manuel utilisateur

Lincoln Electric

Lincoln Electric INVERTEC V350-PRO CE Manuel utilisateur

ESAB

ESAB Buddy Arc 145 Manuel utilisateur

CIGWELD

CIGWELD 636804 Guide rapide

Red-D-Arc

Red-D-Arc DC-400 Manuel utilisateur

Hobart Welding Products

Hobart Welding Products Spool Gun DP 3035-10 Manuel utilisateur

Elettro

Elettro HI-MIG 3000 SYNERGIC Manuel utilisateur

WIA

WIA Weldmatic 270 CP132-2 Manuel utilisateur

Sonics

Sonics H520T Manuel utilisateur

Miller

Miller Big Blue 400D Manuel utilisateur

NewArc

NewArc RT2000 Guide de démarrage rapide

Hypertherm

Hypertherm powermax1000 Manuel utilisateur
