KEF Model 7 Manuel utilisateur
PL1630EN
Floor Stand
for model 7 satellite
Wall Bracket
The wall bracket is simple
and unobtrusive.
model 7 model 11
Design Surround sound speaker Surround sound speaker
Drive units 7 Speaker drivers, comprising: 11 Speaker drivers, comprising:
Dedicated Centre Channel Dedicated Centre Channel
1 x 75mm (3in.) Uni-Q array with 1 x 75mm (3in.) Uni-Q array with
1 x 15mm (0.6in.) HF 1 x 15mm (0.6in.) HF
1 x 75mm (3in.) LF
Front Left/Right Channel Front Left/Right Channel
1 x 75mm (3in.) Uni-Q array with 1 x 75mm (3in.) Uni-Q array with
1 x 15mm (0.6in.) HF 1 x 15mm (0.6in.) HF
2 x 75mm (3in.) LF 4 x 75mm (3in.) LF
Rear Left/Right Channel Rear Left/Right Channel
1 x Vertical Flat Panel 2 x Vertical Flat Panel
Frequency range 100Hz - 30kHz 90Hz - 30kHz
Magnetic shielding Yes Yes
Sensitivity (2.83V/1m) 87dB 87dB
Maximum output (SPL) 104dB 109dB
Impedance 8 ohms 8 ohms
Weight 3.85kg (8.5lbs) 11.3kg (24.9lbs)
Dimensions 400 x 104 x 230 mm 1020 x 210 x 230 mm
(H x W x D) (15.7 x 4.1 x 9.1 in.) (40.2 x 8.3 x 9.1 in.)
Cabinet finishes Matt Silver or High Gloss Black Matt Silver or High Gloss Black
Connectors Supplied with connection for any 5.1 Supplied with connection for any 5.1
home theatre receiver/amplifier home theatre receiver/amplifier
(Cable for connection to KEF KIT100/200 available separately)
Specifications Optional Accessories
www.kef.com
Allows a rotation
of 80 degrees
KEF Audio (UK), Eccleston Road,Tovil, Maidstone, Kent, ME15 6QP U.K. Telephone: + 44 (0)1622 672261 Fax: + 44 (0)1622 750653
KEF America, Inc. 10 Timber Lane, Marlboro, New Jersey 07746 U.S.A. Telephone: +(1) 732 683 2356 Fax: +(1) 732 683 2358
GP Acoustics GmbH, Heinrichstraße 51, D-44536 Lünen, Deutschland. Telephone: +49 (0) 231 9860-320. Fax: +49 (0) 231 9860-330
GP Acoustics (France) SAS, 39 Rue des Granges Galand - BP414, 37554 Saint Avertin CEDEX, France. Tel : +33(0)2 47 80 49 01 Fax : +33(0)2 47 27 89 64
KEF and Uni-Q are registered trademarks. Uni-Q is protected under GB patent 2 236929, U.S. Pat. No. 5,548,657 and other worldwide patents.
KEF reserve the right, in line with continuing research and development, to amend or change specifications.
“Surround yourself with sound,
not speakers”
www.kef.com
K1292_BROCHURE_FIVE-TWO_EN 8/11/06 14:06 Page 1
‘Five channel surround sound from only two front speakers’
Sound reproduction should be invisible – you want surround
sound, with the hardware as unobtrusive as possible. Trouble
is, conventional home theatre systems require at least five
speakers and a subwoofer to be placed around the room,
regardless of how they fit with the rest of your furniture.
Cables have to be run to the rears. Before you know it, your living
space looks like a hi-fi showroom.
That’s why we came up with an alternative. As its name implies,
the new fivetwo series envelops you in the surround sound of
a full 5.1 set-up using only two speakers and a subwoofer.
The secret lies in combining KEF’s acclaimed Uni-Q®
“sit anywhere” driver concept with flat panel technology.
Each speaker has a front-firing array of Uni-Q drivers from the
award-winning KHT5000 and KHT6000 series, providing true
dedicated centre speakers as well as spreading a highly detailed
sound image to your left and right. Behind them, large vertical flat
panels act as high performance rear effect speakers, radiating the
relevant parts of the signal to the back of the listening area.
And all the channels can be separately adjusted from your receiver
to achieve a perfect balanced sound.
The hide-away subwoofer that best matches the fivetwo series is
KEF’s powerful HTB2 from the EISA award winning KHT3005
system. Whether you choose the compact model 7 (with seven
drivers in each speaker) or the formidable model 11 (with no less
than eleven), the effect is amazing.Voices sound real and precisely
located. Ambient effects travel through a realistic three-
dimensional soundscape as the director intended. On screen
action comes alive for everyone in the room, wherever they sit.
Available in sleek matt silver or high gloss black, they can be
mounted either on neat adjustable wall brackets or floor stands –
and in line with the thinking behind the whole concept, they’re
exceptionally simple to set up.All you have to do is connect the
cables supplied to your 5.1 home theatre receiver/amp.
Front Left & Right
channels
Centre channel
Rear Surround
KEF’s 'sit anywhere' Uni-Q technology disperses sound around the
room so well that you can 'sit anywhere' to enjoy the optimum
surround experience.
Innovative engineering + clever design – hassle and clutter
= Pure entertainment.
Uni-Q Technology 5 Audio Channels from 2 Speakers
K1292_BROCHURE_FIVE-TWO_EN 8/11/06 14:06 Page 3
Ce manuel convient aux modèles suivants
3
Autres manuels KEF Système de haut-parleurs
KEF
KEF X300A Manuel utilisateur
KEF
KEF Ci 100QR Manuel utilisateur
KEF
KEF KHT 5005 Manuel utilisateur
KEF
KEF V Series Manuel utilisateur
KEF
KEF X300A Manuel utilisateur
KEF
KEF LS60 Wireless Manuel utilisateur
KEF
KEF X Series X300A Manuel utilisateur
KEF
KEF cantor III Manuel utilisateur
KEF
KEF Ci50 SOUNDlight Manuel utilisateur
KEF
KEF 104/2 Manuel utilisateur
KEF
KEF 103.2 Manuel utilisateur
KEF
KEF LS50 Manuel utilisateur
KEF
KEF 107 Manuel utilisateur
KEF
KEF 101/2 Manuel utilisateur
KEF

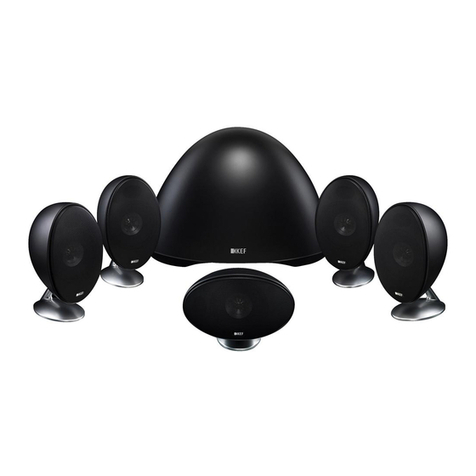

KEF E305 Manuel utilisateur
