INSTRUCTION MANUAL

TABLE OF CONTENTS

Introduction.......................................................................3

Technical Specifications...............................................4

Primary Delay Controls................................................5

Secondary Delay Controls..........................................6

Looper Controls...............................................................7

Looper Effects / Tone Controls.................................8

Creating and Saving Presents...................................9

Sound on Sound Mode................................................10

Independent Switching...............................................10

Trails or True Bypass Mode........................................11

Status Lights....................................................................11

Stereo Ping Pong...........................................................11

Runaway Feedback Oscillator..................................11

Advanced Settings........................................................12

Expression Pedal Use...................................................13

ECCOS Example Settings..........................................14

ECCOs User Settings...................................................15

Quick Start Guide..........................................................16

Keeley Electronics, Inc. 2019

ECCOS DELAY/LOOPER

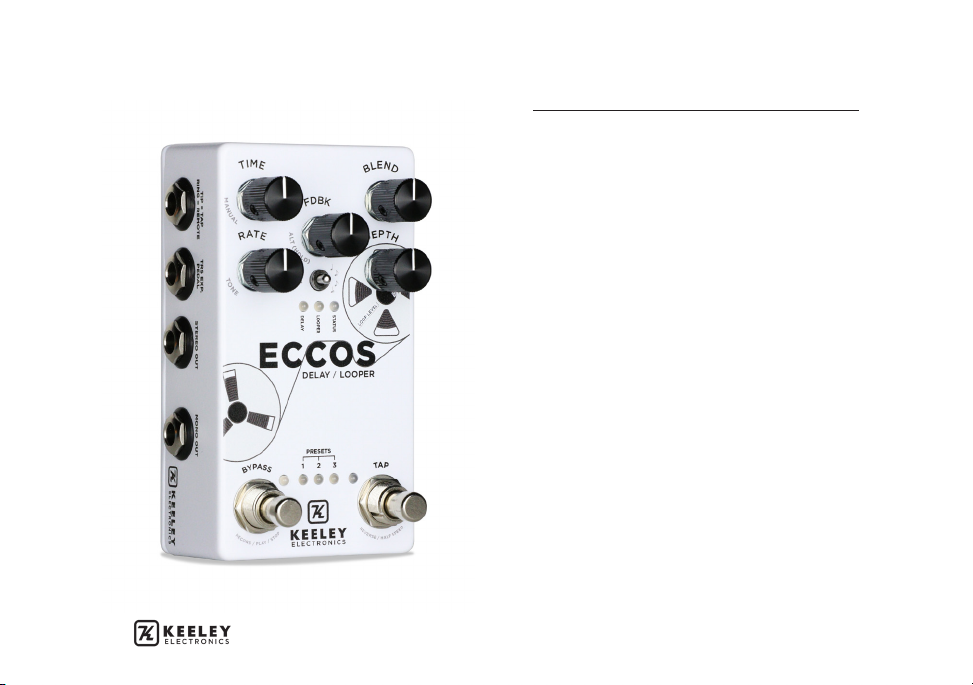

THE KEELEY ECCOS - FLANGE MODULATED TAPE DELAY / LOOPER

Tape-Flanged Delay Trails. That’s what makes the ECCOS delay pedal unique; a new style of

tone-modulation that isn’t pitchy. It’s the sound of just the echoes being flanged with vintage

reel-to-reel tape decks. The shape and tone of your repeats are constantly changing, creating

lush movement to your delay trails! Listen as your delay trails move with flanged tonalities that

are beautifully filtered and sound tone-modulated, not just pitch modulated. Simply adjust the

Rate and Modulation parameters to hear the flanged delay trails mixed with your pure analog

blended guitar. Modulation without undue pitch bending.

The ECCOS is also a Looper. Record and playback loops while you play live. ECCOS features like

Reverse, Half Speed, and Play-Once are easy to use creatively. Create guitar magic using the

delay with its own tap tempo (up to 1.5 seconds); all while layering on endless loops of audio.

The ECCOS offers loop times of up to 120 seconds in mono, and up to 60 seconds in stereo.

The Keeley ECCOS features true stereo processing with mono and stereo inputs and outputs.

Uber-clean, all-analog audio for the pure guitar dry/blend. Experience next level audio DSP

using the Dream quad 24/56-bit processor. There are nine adjustable controls for crafting the

tone of the delay trails. Manual or remote operation of looper, bypass, presets, and tap tempo.

Dynamically assign controls to be used with a foot expression pedal. Switch back and forth

between the Delay and Looper to choose custom delay sounds and then record additional

layers, hands-free, while looping.

PLUG IN AND PLAY YOUR GUITAR!

TECHNICAL SPECIFICATIONS

9V Neg-Tip DC Supply

115mA

Input Impedance, 1M / Output Impedance, 10K

True-Stereo Input and Output

True Bypass or Buffered Trails

Analog Dry-Thru Blend

ECCOS DELAY/LOOPER

PRIMARY DELAY CONTROLS

TIME - Adjusts delay time manually from 5ms to

1.5 seconds.

BLEND - Adjusts effect level, blend in delay with

your clean guitar tone.

DEPTH -

Depth of Delay Modulation, up to 13ms.

Set high to achieve chorus-like modulations.

Turning the depth to zero produces a clean delay

tone.

FEEDBACK -

Adjusts the number of delays or

repeats. FDBK is also a push button switch. Tap the

FDBK knob once to enter preset selection mode.

Press and hold FDBK to access secondary controls

like TONE or REGEN, or use the MODE select new

tempo subdivisions. Quickly double tap the FDBK

knob to switch between Looper and Delay modes.

You can even use your foot while playing live!

RATE -

This controls the rate or speed of your

modulated delay trails. Setting this slow will create

slightly comb filtered delays. Fast rates can be used

to get rotary speaker effects. The sine wave LFO

modulation goes from 0 to 15 Hz.

SECONDARY DELAY CONTROLS

Access four alternate tone and time shaping controls by pressing and holding the FDBK control while turning other controls

MANUAL (Flanger Time) - Subtly changes the

delay time of the flange. Ranges ~0 - 13ms. With

longer times, the delays become more chorused.

Set at minimum by default.

VIBE (Modulation Style) - Flanged delay trails are

created by producing two repeats that are blended

together. The VIBE knob controls the clean portion

of your delays. Turn CCW for pitch vibrato. Turn CW

for flanging repeats. Set at max by default.

TONE - Tone control for the repeats. Set it high for

a sweet high-pass sheen. Set it lower for a warm,

tape style high-end roll off. Set at noon by default.

REGEN (Flanger Regeneration) - Controls the

amount of flanger feedback. Increasing this control

will give you deep flanging effect for your delays.

Set at minimum by default.

SUBDIVISIONS - Like all secondary controls,

hold down the FDBK knob. While knob is held

down, toggle the mode switch to set delay-time

subdivisions: Quarter, Dotted Eighth, Eighth, or Triplet.

The Status LED will blink the current subdivision while

FDBK is held down. Set at quarter note by default.

Hold down the FDBK knob to access

secondary controls.

LOOPER CONTROLS

In looper mode, the BYPASS and TAP switches change functions

ECCOS DELAY/LOOPER

ENTERING LOOP MODE:

Place the ECCOS in looper mode by using the

MODE toggle switch or by double tapping the

FDBK knob with your foot. The Looper LED will

light to indicate which mode is active.

RECORD/PLAY/STOP -

To start recording a loop, press the

BYPASS (Record) switch and begin playing. The BYPASS LED

turns red. After playing, press the BYPASS (Play) switch again

and playback will start. The BYPASS LED will turn blue.

To stop the looper, double tap the BYPASS (Stop) switch. The

STATUS light will remain blue indicating that there is a stored

recording ready for playback.

OVERDUB -

To start an overdub from Play mode, simply tab

the BYPASS switch again. The BYPASS LED will turn red to

indicate recording. When you’re done recording, press the

START switch to go back to playback mode. The LED will

once again turn blue.

UNDO/REDO -

To undo your last recording, press and hold

the FDBK knob for 1 second. If you are recording your first

loop, this will silently delete the track. If you completely stop

the loop, you cannot undo your last overdub as it has been

saved to memory at that point.

LEVELS -

Adjust the volume level of playback with the Looper

Level (DEPTH Control). If no ECCOS delay effect is desired

while looping, simply turn down the BLEND knob.

Note: The ECCOS delay side can also be turned off independently.

DELETING LOOPS - To delete a loop, switch to Loop Mode

(you must be in loop mode to delete loops). Double tap &

hold BYPASS to delete the loop. The STATUS and BYPASS

lights will flash twice and then turn off indicating you

have cleared the memory and recording. Silent Erase - If

it is your first recording in loop mode, and you are still

recording, you can undo it by holding down the FDBK

knob, giving you a way to silently delete that first track.

The STATUS LED turns blue and will flash once at the

beginning of your loop. This lets you know where your loop

starts.

Note: The Eccos delay sounds work in looper mode! The TONE

control adjusts the tone of your delays. Blend, Feedback, and

Time work for the delay effect as well.

EXTENDED RECORD MODE

LOOPER EFFECTS

Half Speed and Reverse

DELAY TONES AND MODULATIONS

Adjustments while looping

To hear your loop in half speed, double tap the REVERSE/

HALF SPEED switch. If you are in playback you will hear

your recording an octave down and at half speed. The

LOOPER LED will rapidly flash letting you know that

you’re in half speed mode. You can enter this mode during

playback or recording for creative effect. Record while

in half speed, then double tap, and anything you have

recorded will now sound an octave up and in double-time!

To hear your loop in reverse, press and hold down the

REVERSE/HALF SPEED switch while you are playing or

recording a loop.

If you are recording an overdub and then you press and

hold the REVERSE/HALF SPEED switch (for Reverse),

playback will sound in reverse and anything you record

with your guitar will playback in reverse when you let go

of the REVERSE/HALF SPEED switch!

Extended Record Mode - The Eccos comes from our factory with Undo/Redo enabled and with 60 seconds

mono recording time. To get 120 seconds of looping time simply remove power and then press and hold

down the FDBK knob while applying power again. This will remove the Undo/Redo feature and give you the

maximum recording time.

This also engages Sound on Sound Mode (See pg. 10)

What makes the ECCOS an effective Delay / Looper is

that you can go back and forth between the Delay and

Looper modes while looping. To go between modes

simply use the MODE toggle switch, or Double Tap the

FDBK knob with your foot. Either operation will change

between Looper and Delay modes. Now, while looping,

you can go back to Delay mode to tap in a new delay

tempo or even change delay presets!

For example, you can start a loop with Preset 1. Then,

while playing back a loop, you can double tap the FDBK

switch and go back into Delay mode and select a new

preset. Double tap FDBK and go back into Looper

mode. Now when you record an overdub, you will have

your preset delay and modulation tone carry over to

looper recording.

ECCOS DELAY/LOOPER

PRESET SELECT MODE - To enter Preset Select

Mode (while in delay mode), quickly double tap

BYPASS or tap the FDBK knob once. Preset LEDs will

begin to flash. The TAP switch or MODE select switch

advances through the presets. Tap BYPASS again to

select the preset currently flashing. Hold BYPASS to

overwrite the selected preset.

CHANGES TO A PRESET - Any changes made to a

parameter will turn OFF the preset LED. Double tap

the BYPASS switch again to once again enter preset

select mode, then hold the BYPASS switch to enter

save mode, cycle through the presets by using the

TAP or MODE switch, then hold the BYPASS switch

again to save the changes made to the selected

preset.

The ECCOS features 3 preset locations. In addition,

you can access a What You See Is What You Get

(WYSIWYG) mode by entering Preset Select Mode,

then scrolling through the preset locations until all

3 Preset LEDs are blinking, then select it by tapping

the BYPASS switch. This is a great way to exit any of

the three preset settings and go back to where the

controls are currently set.

SWITCH PRESETS WHILE LOOPING - Switch

to Delay mode, single tap the FDBK knob, cycle

through the presets by pressing TAP, then engage

the new preset by tapping the BYPASS switch.

Note: When the WYSIWYG preset is selected, it will

recall all of the previous (non-preset) secondary and

expression control positions. All of the main controls

are set to the pots current positions. Similar to a

preset but only for the secondary and expression

controls, the pots are read at their current positions.

The three lights in the middle of the ECCOS are

preset indicators, which will correspond with the

currently engaged preset. In WYSIWYG mode, all

three are constantly lit.

CREATING AND SAVING PRESETS

SOUND ON SOUND MODE

INDEPENDENT SWITCHING

The ECCOS now features Sound on Sound

Mode! Sound on sound mode lets you record

without erasing the original loop. The volume

of the loops degrade over time, recreating a

vintage reel to reel recording technique. To set

the decay of the loops, hold down the FDBK

knob and adjust the Depth control. This alt

control comes in handy when using Sound on

Sound Mode.

The ECCOS features advanced independent

switching. The Delay or the Looper can be

turned on and off independently. You can start

the Looper with our without a Delay Setting.

Autres manuels pour ECCOS

Table des matières

Autres manuels Keeley Équipement d'enregistrement

Keeley

Keeley ECCOS Manuel utilisateur

Manuels Équipement d'enregistrement populaires d'autres marques

KV2 Audio

KV2 Audio 500 Series Manuel utilisateur

Robotics Technologies

Robotics Technologies microBus-Cam II Manuel utilisateur

Seca

Seca 460 Manuel utilisateur

Cognex

Cognex MVS-8000 Series Manuel utilisateur

Mect

Mect MPNC006 Series Manuel utilisateur

Bad Caf

Bad Caf THE LEASH Manuel utilisateur

Strymon

Strymon NIGHTSKY Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manuel utilisateur

Tews Technologies

Tews Technologies TPMC465 Manuel utilisateur

Honeywell

Honeywell Excel 50 Manuel utilisateur

SeaLevel

SeaLevel COMM+8.LPCI Manuel utilisateur

Arturia

Arturia AUDIOFUSE STUDIO Manuel utilisateur

Rukra

Rukra RK-1240 Manuel utilisateur

Samson

Samson SCOM Manuel utilisateur

Dynacord

Dynacord DPS260 Manuel utilisateur

Nice

Nice Core Manuel utilisateur

Pyle Pro

Pyle Pro PSS8 Manuel utilisateur

RF-System

RF-System TinyGate Manuel d'utilisation et d'entretien
